Kenmore
Dryer

Model # 41781912510 Official Kenmore dryer

Here are the diagrams and repair parts for Official Kenmore 41781912510 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

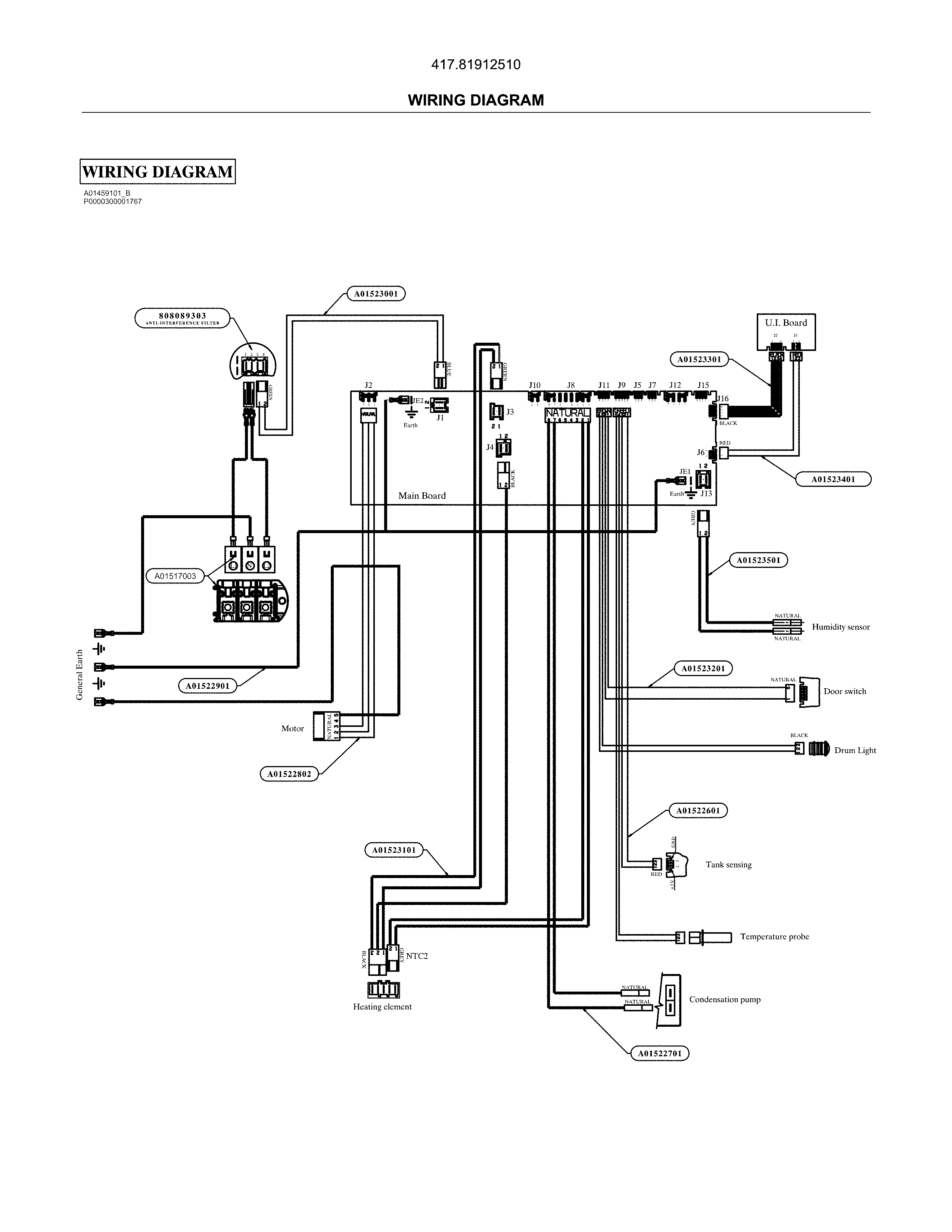

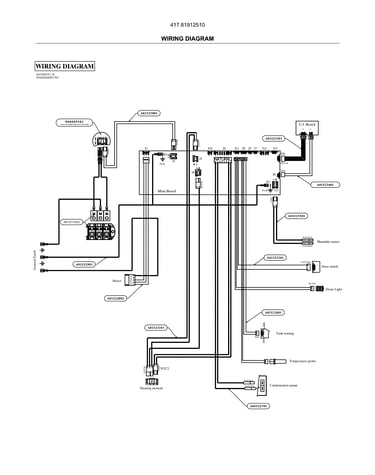

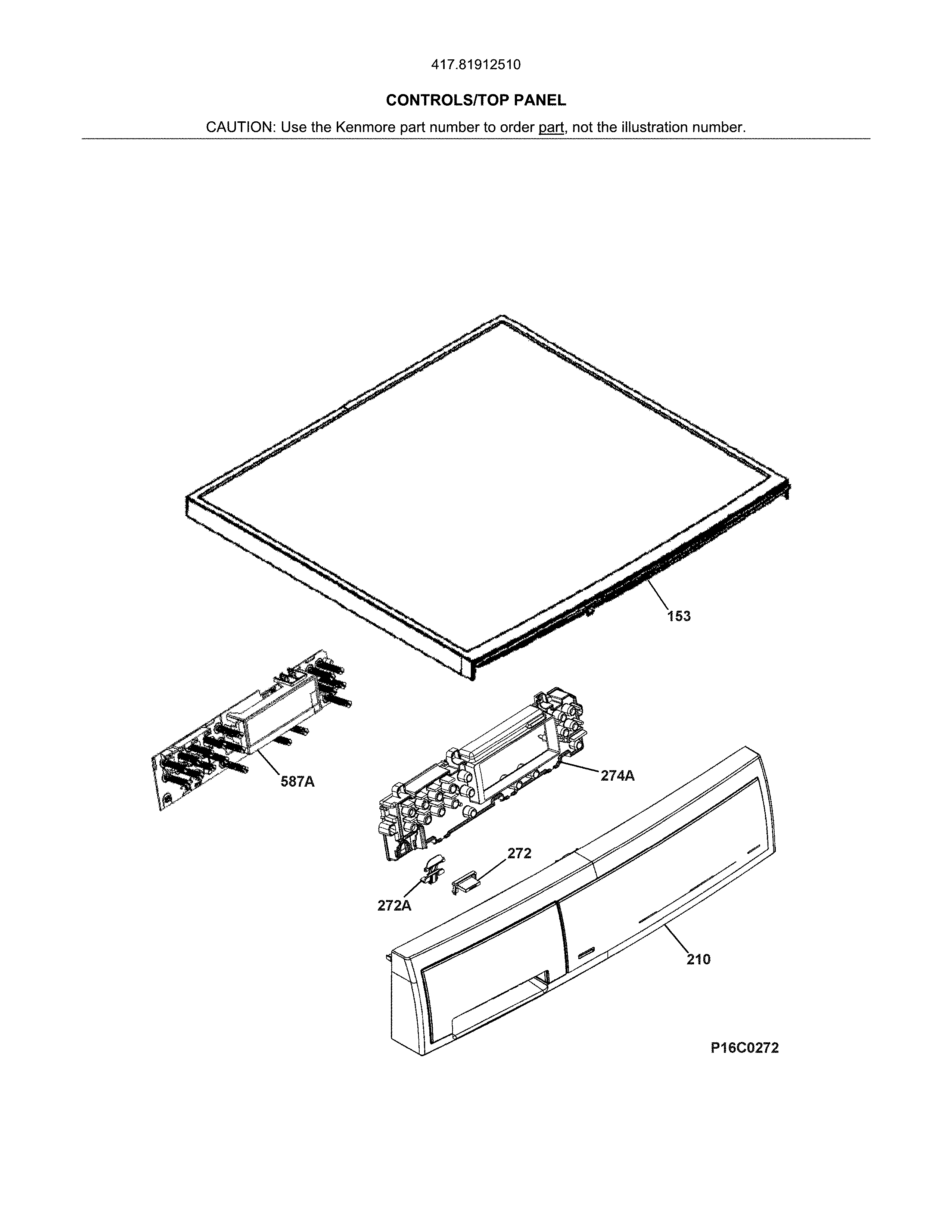

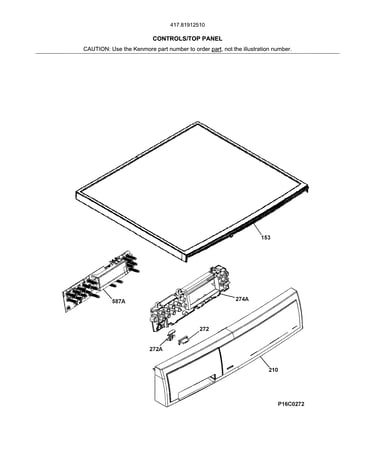

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Dryer Heating Element Assembly 136611032
#510

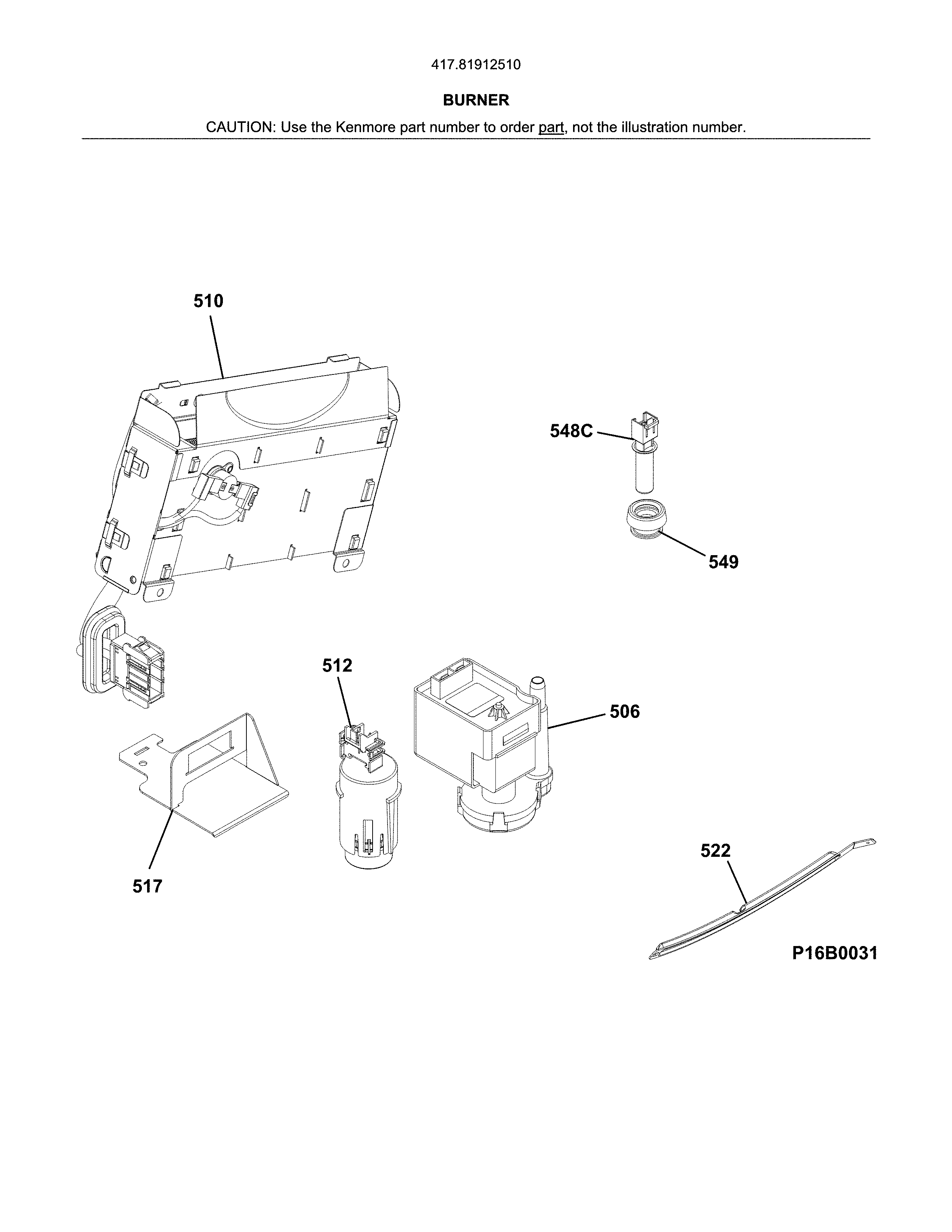

Burner diagram

Dryer heating element assembly

Part #136611032

BEST SELLER
$100.43 |
11% OFF Phone Price : $112.43
In Stock
Kenmore Dryer Electronic Control Board 97391609755200
#587

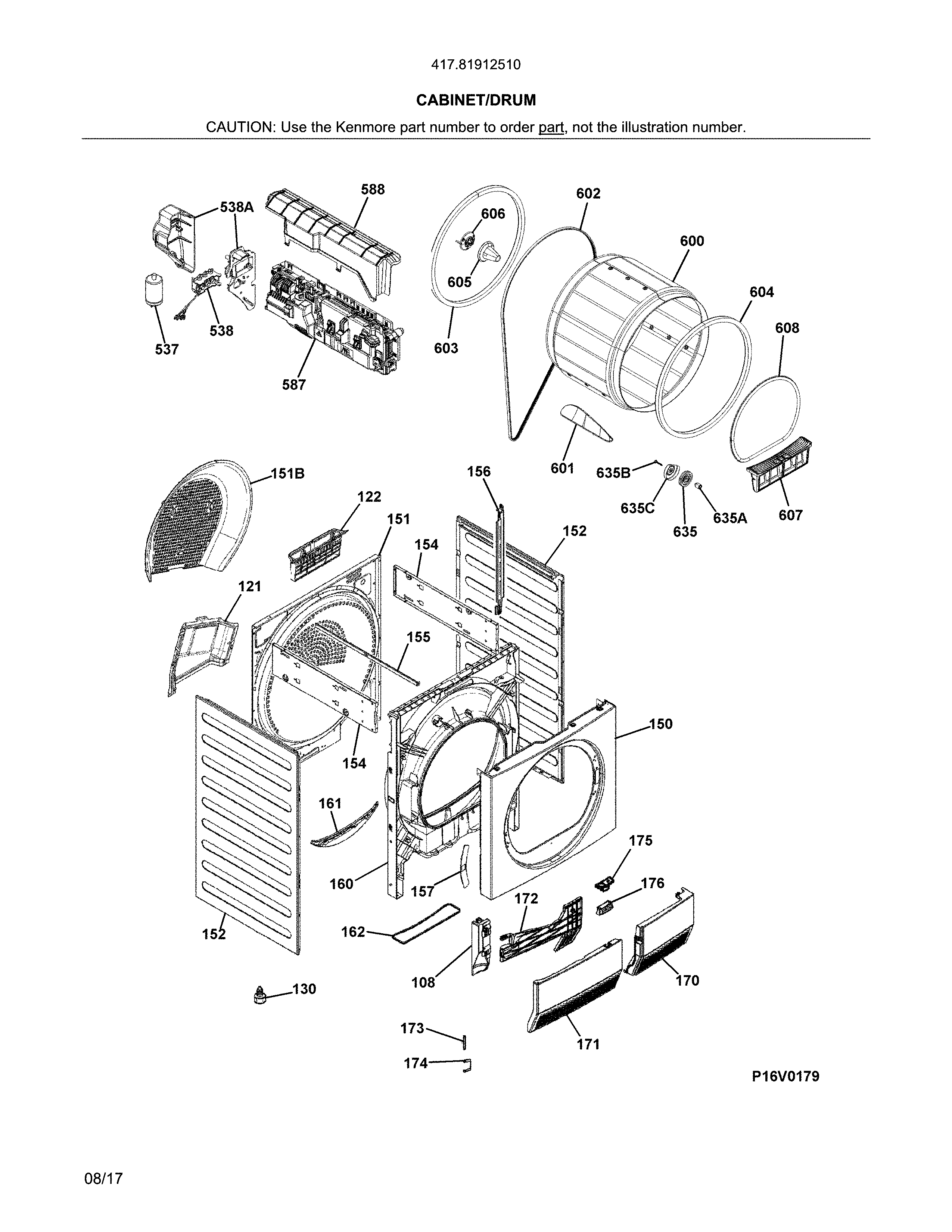

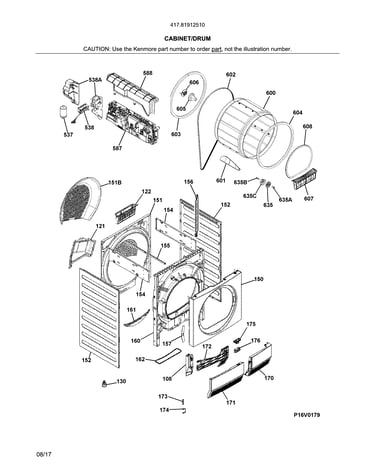

Cabinet/drum diagram

Kenmore dryer electronic control board

Part #97391609755200

$329.02 |
$12.00 OFF Phone Price : $341.02
In Stock
Dryer Water Pump 136402403
#506

Burner diagram

Dryer water pump

Part #136402403

$67.56 |
8% OFF Phone Price : $73.56
In Stock
Dryer Lint Screen 136601901
#607

Cabinet/drum diagram

Dryer lint screen

Part #136601901

$134.28 |
8% OFF Phone Price : $146.28
In Stock
Dryer Door Seal 136606311
#608

Cabinet/drum diagram

Dryer door seal

Part #136606311

$65.79 |
8% OFF Phone Price : $71.79
In Stock
Strike 808681104
#370

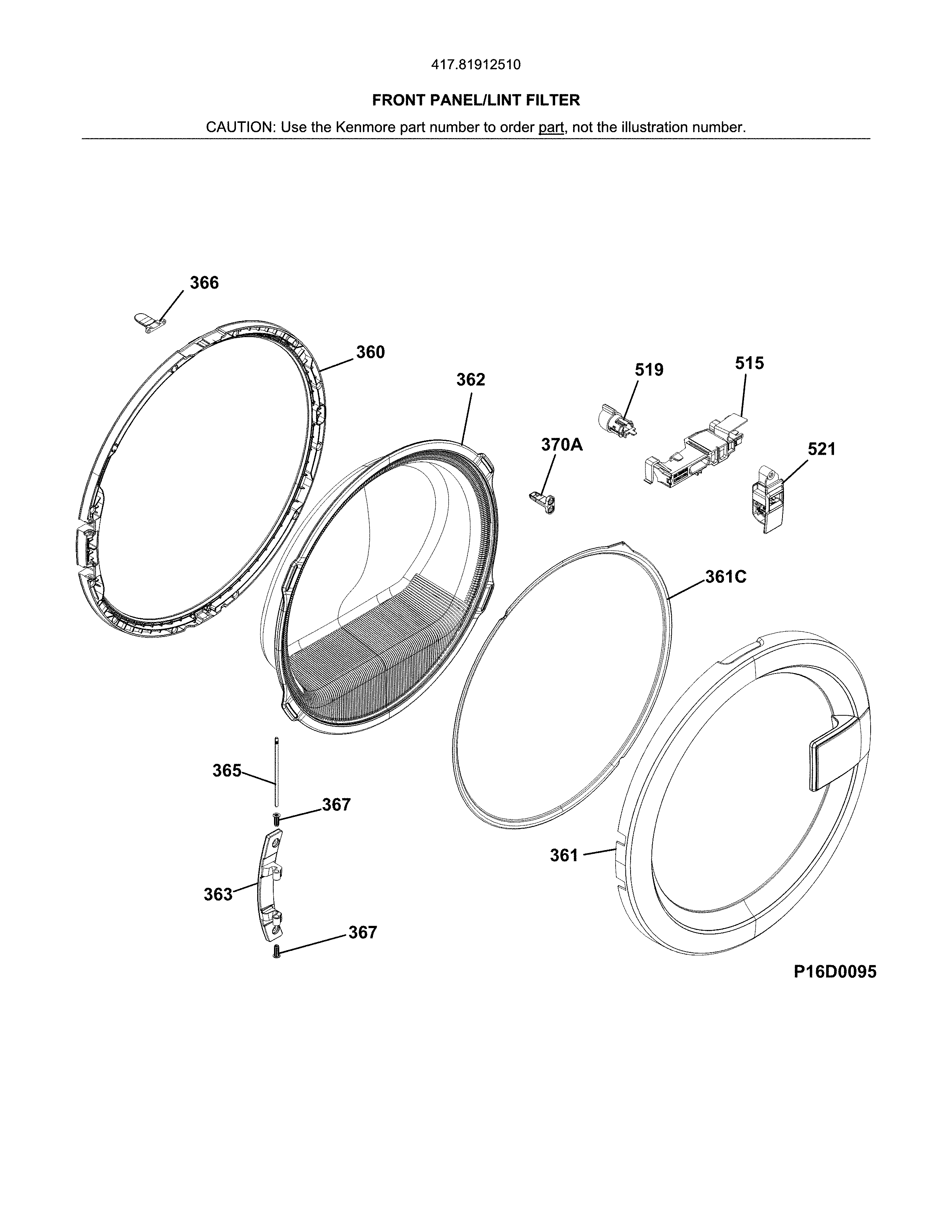

Front panel/lint filter diagram

Strike

Part #808681104

Replaced by #808681114

?
Manufacturer substitution
This part replaces 808681104. Substitute parts can look different from the original.
$11.71 |
15% OFF Phone Price : $13.71
In Stock
Glass A01265502
#362

Front panel/lint filter diagram

Glass

Part #A01265502

Replaced by #5304531893

?
Manufacturer substitution
This part replaces A01265502. Substitute parts can look different from the original.
$43.04
In Stock
Dryer Drum Seal 136424300
#603

Cabinet/drum diagram

Dryer drum seal

Part #136424300

$120.49 |
9% OFF Phone Price : $132.49
In Stock
Damper 125106000
#504

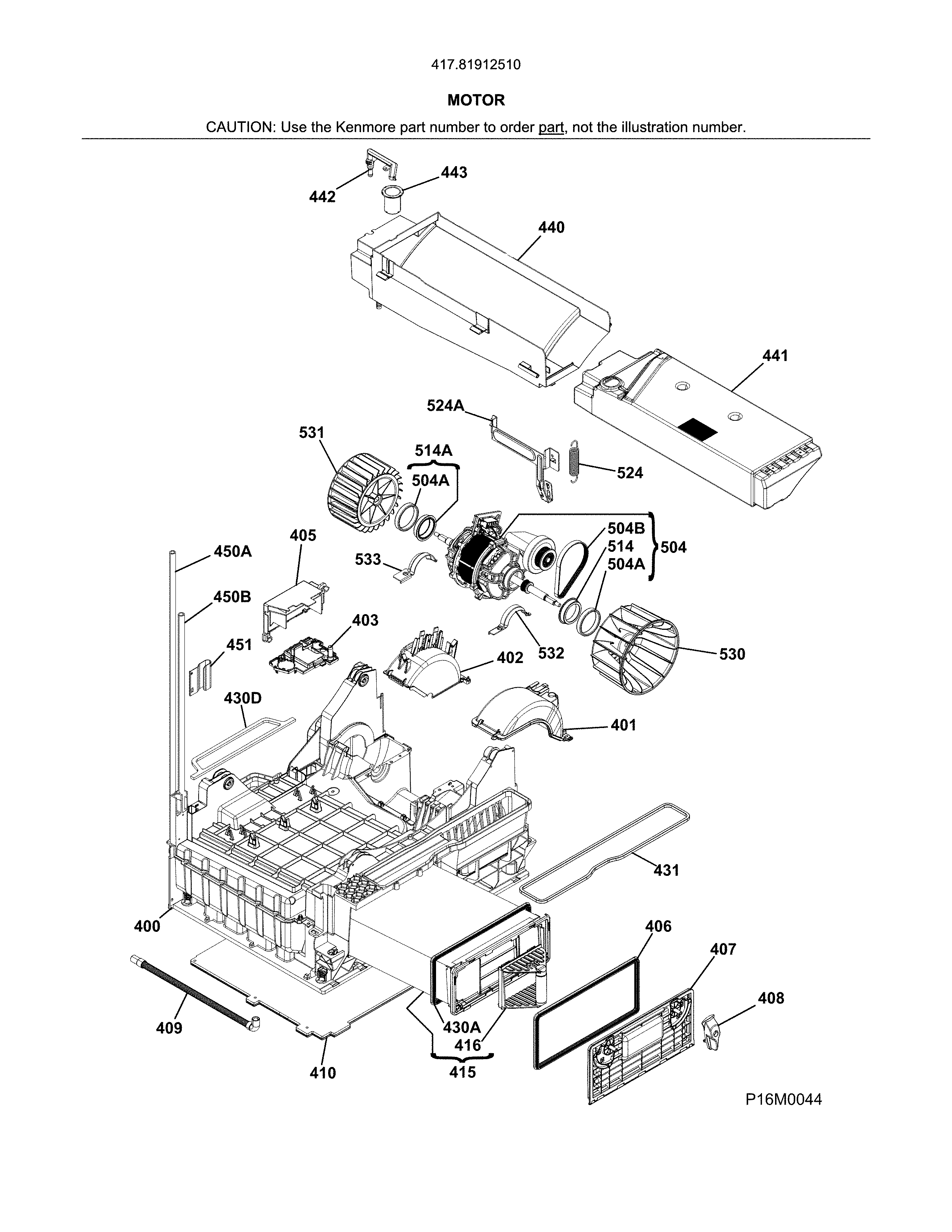

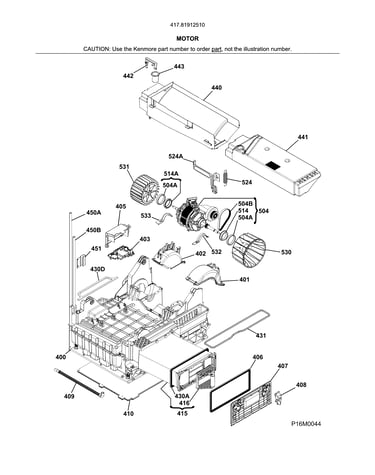

Motor diagram

Damper

Part #125106000

Replaced by #405549614

?
Manufacturer substitution
This part replaces 125106000. Substitute parts can look different from the original.
$17.49
In Stock
Wheel 136609301
#530

Motor diagram

Wheel

Part #136609301

Replaced by #136609300

?
Manufacturer substitution
This part replaces 136609301. Substitute parts can look different from the original.
$45.49 |
12% OFF Phone Price : $51.49
In Stock
