Model # 58076129200 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58076129200 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Room Air Conditioner Accordion Filler, Left 4959AR3402C
#1-E

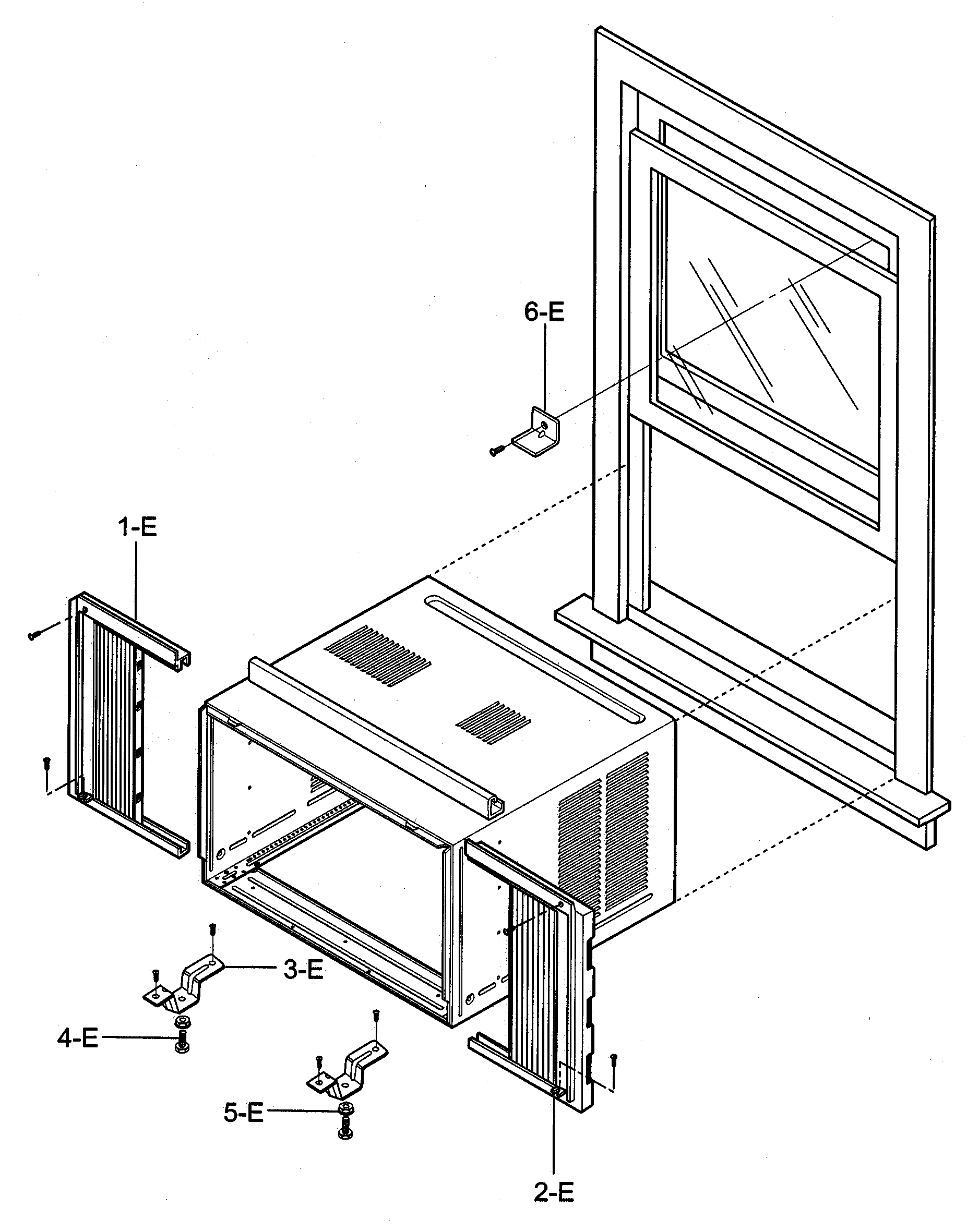

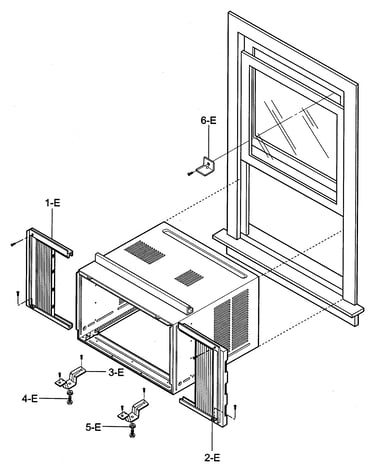

Installation kit assy diagram

Room air conditioner accordion filler, left

Part #4959AR3402C

Replaced by #3127A20074Y

?
Manufacturer substitution
This part replaces 4959AR3402C. Substitute parts can look different from the original.
$43.87 |
12% OFF Phone Price : $49.87
In Stock
Room Air Conditioner Accordion Filler, Right 4959AR3402D
#2-E

Installation kit assy diagram

Room air conditioner accordion filler, right

Part #4959AR3402D

Replaced by #3127A20074Y

?
Manufacturer substitution
This part replaces 4959AR3402D. Substitute parts can look different from the original.
$43.87 |
12% OFF Phone Price : $49.87
In Stock
Room Air Conditioner Fan Blade Clamp 3H02932B
#5-C

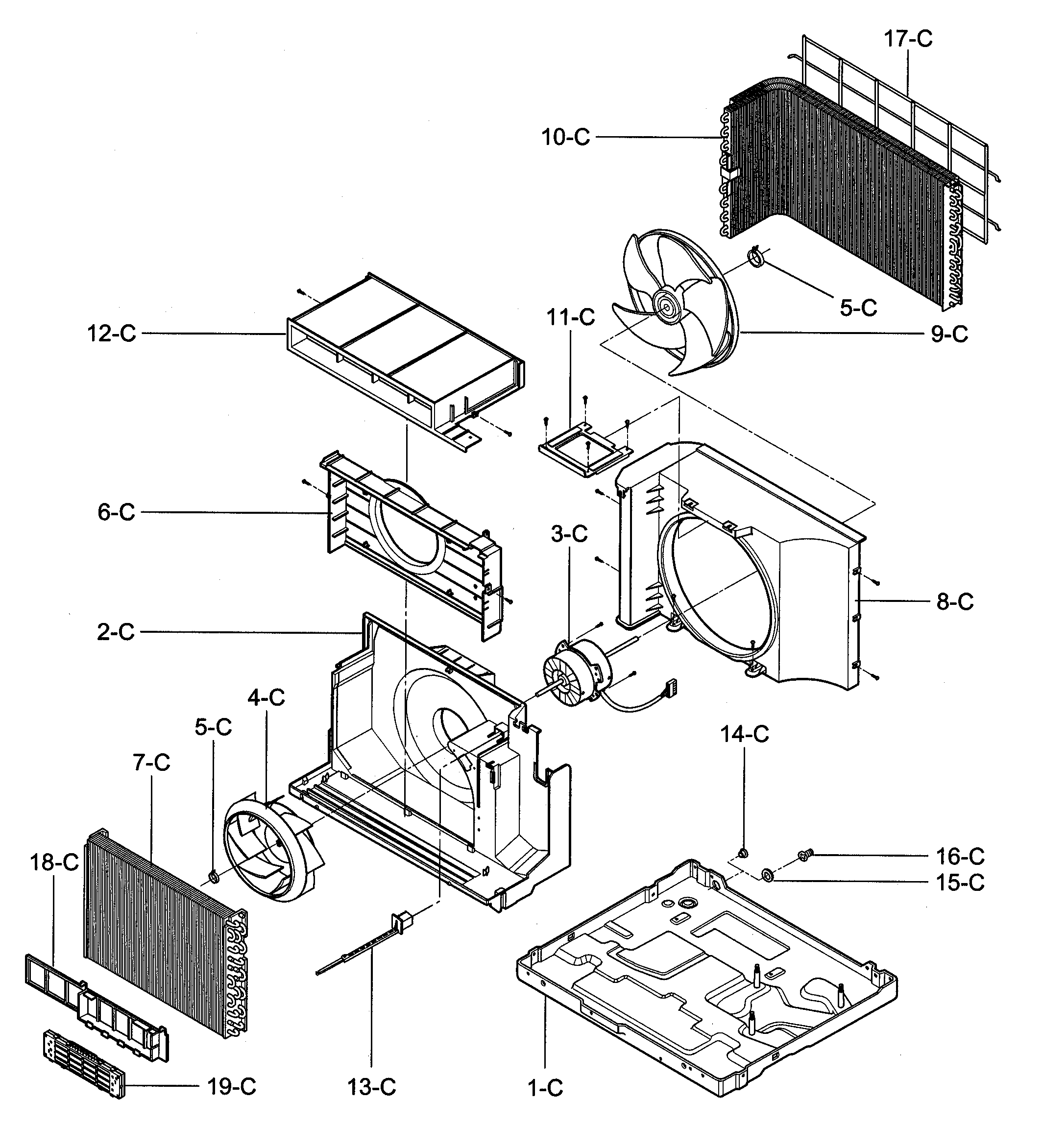

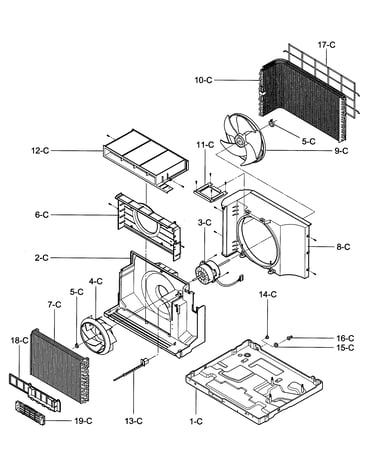

Air handleing/cycle parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Drain Pipe 3H02773A
#16-C

Air handleing/cycle parts diagram

Room air conditioner drain pipe

Part #3H02773A

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Bushing 4830AR4335A
#1-D

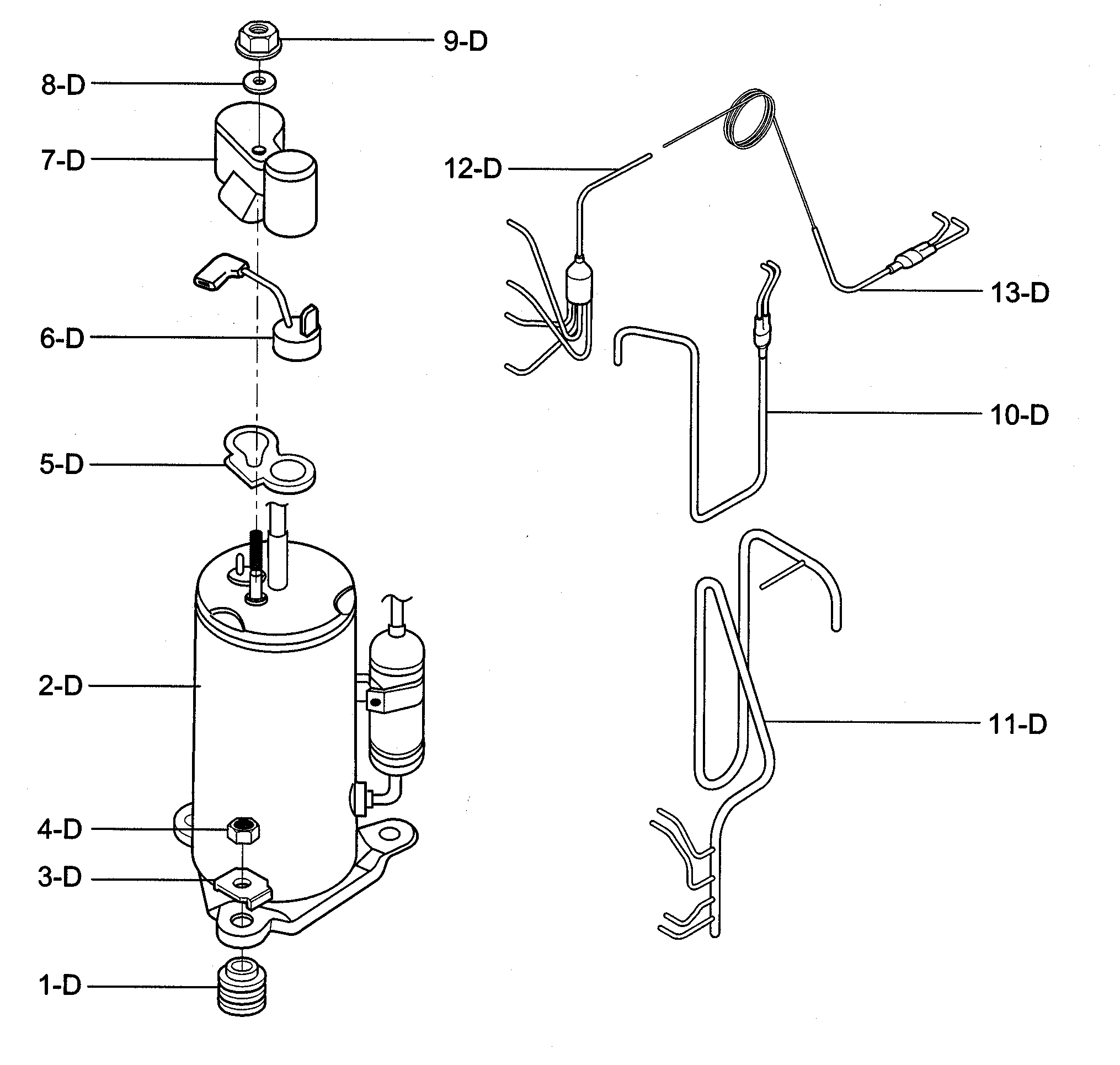

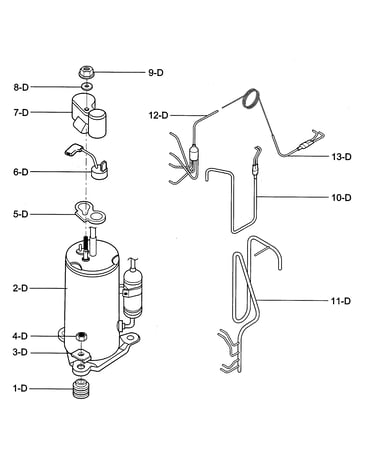

Compressor parts diagram

Bushing

Part #4830AR4335A

This item is not returnable
$4.51
In Stock
Guide 4974AR3262E
#8-A

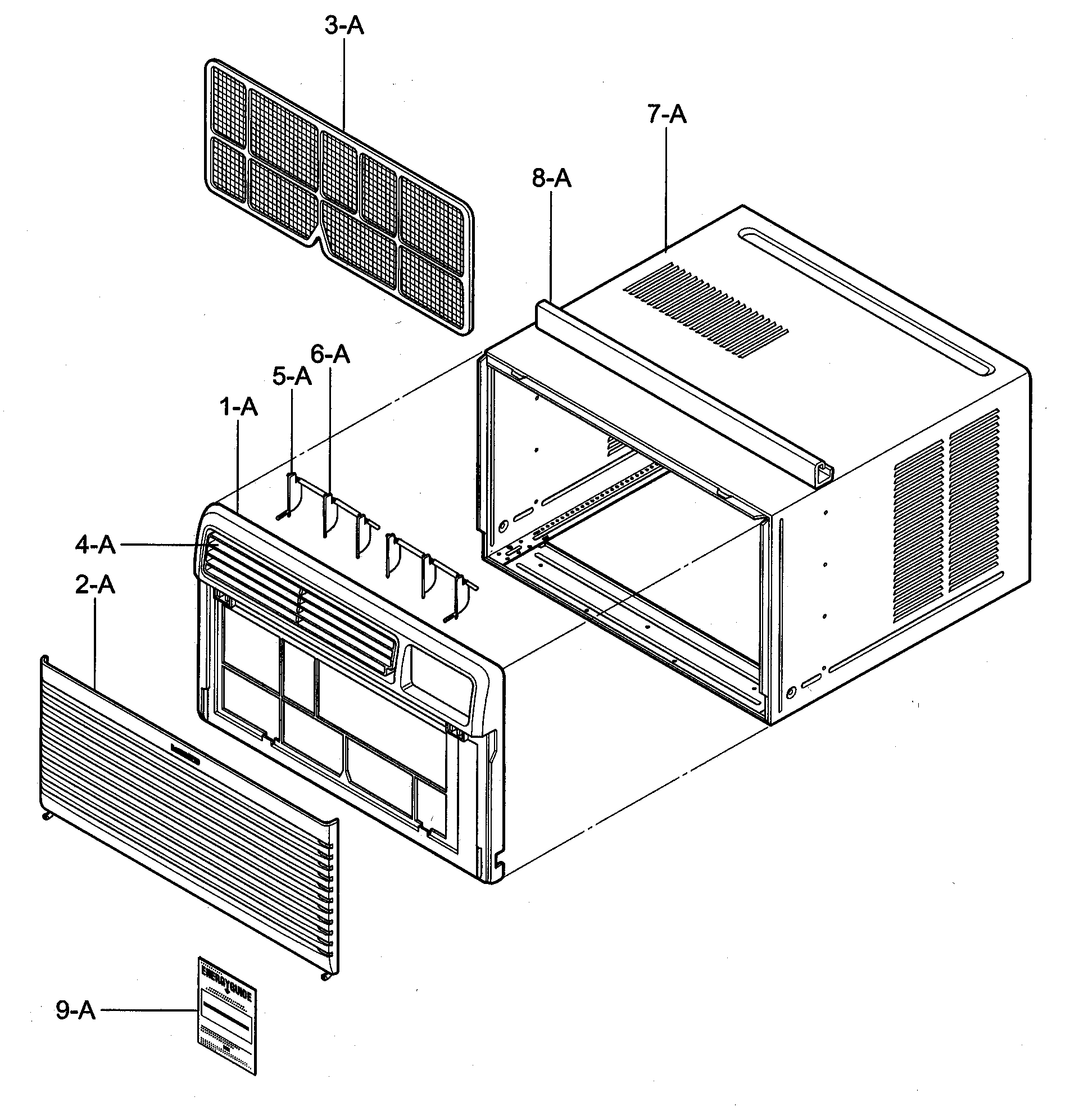

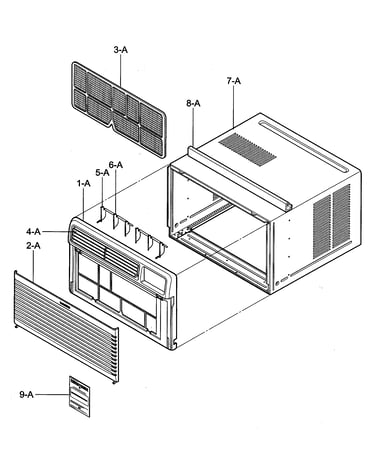

Cabinet/front grille assy diagram

Guide

Part #4974AR3262E

Replaced by #4974AR3262S

?
Manufacturer substitution
This part replaces 4974AR3262E. Substitute parts can look different from the original.
$24.09
In Stock
Lg Air Guide 5238A20010A
#12-C

Air handleing/cycle parts diagram

Lg air guide

Part #5238A20010A

$23.07
In Stock
Room Air Conditioner Compressor Overload Protector 6750U-L029A
#6-D

Compressor parts diagram

Room air conditioner compressor overload protector

Part #6750U-L029A

This item is not returnable
$18.83
In Stock
Goldstar Room Air Conditioner Electronic Control Wiring Harness 6631A30003A
#12-B

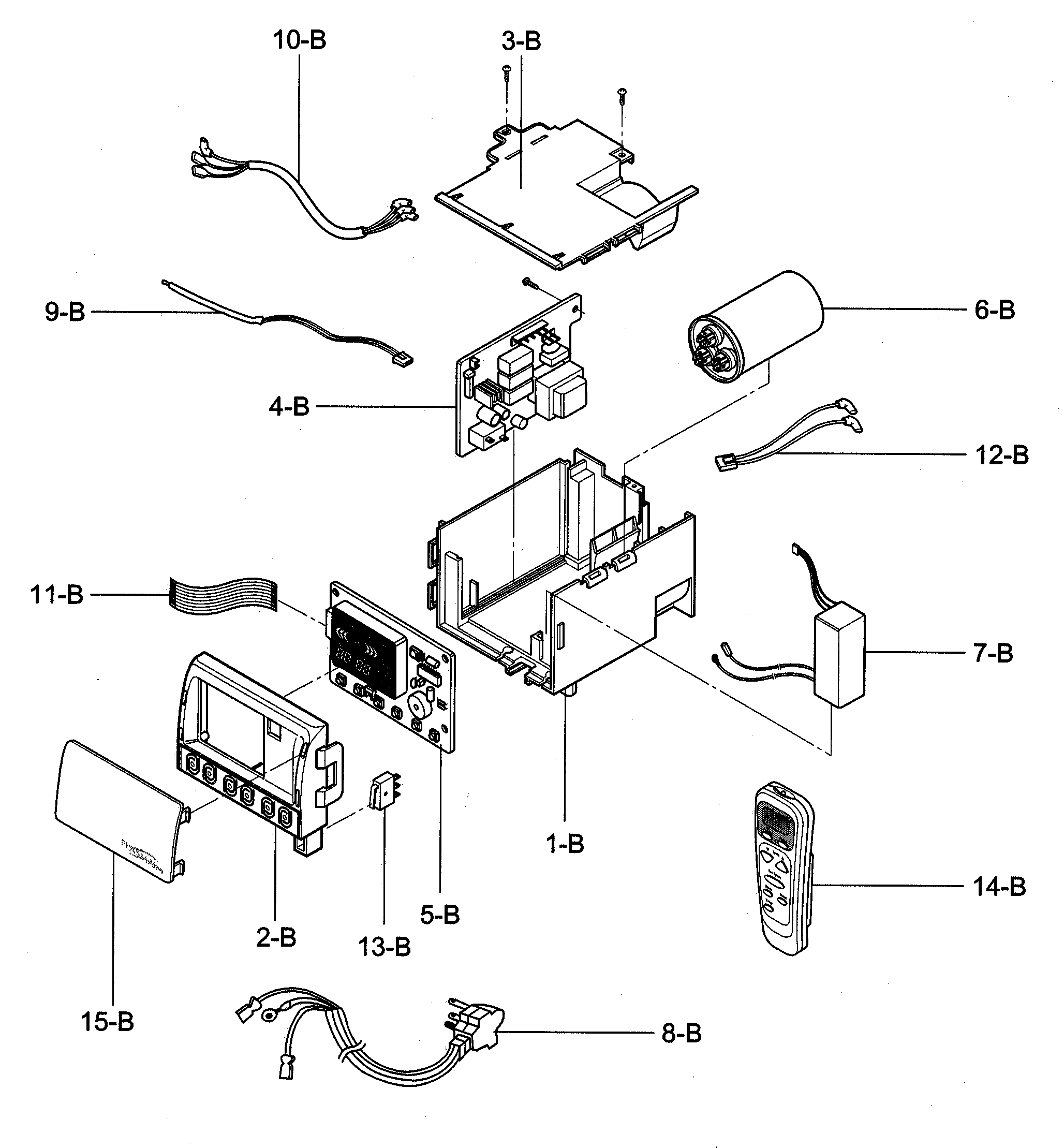

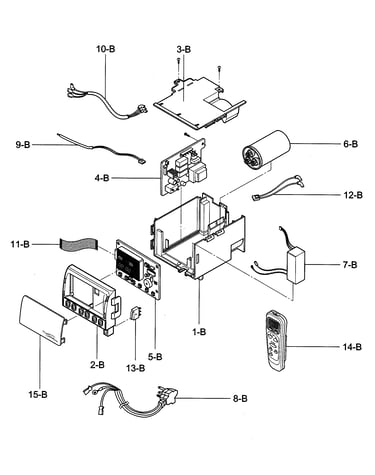

Control box assy diagram

Goldstar room air conditioner electronic control wiring harness

Part #6631A30003A

This item is not returnable
$7.00
In Stock
Cover 3550U-L005A
#7-D

Compressor parts diagram

Cover

Part #3550U-L005A

$10.60
In Stock
