Craftsman
Lawn Sweeper

Model # 42626091 Official Craftsman sweeper unit assembly

Here are the diagrams and repair parts for Official Craftsman 42626091 sweeper unit assembly, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Washer STD551025
#30

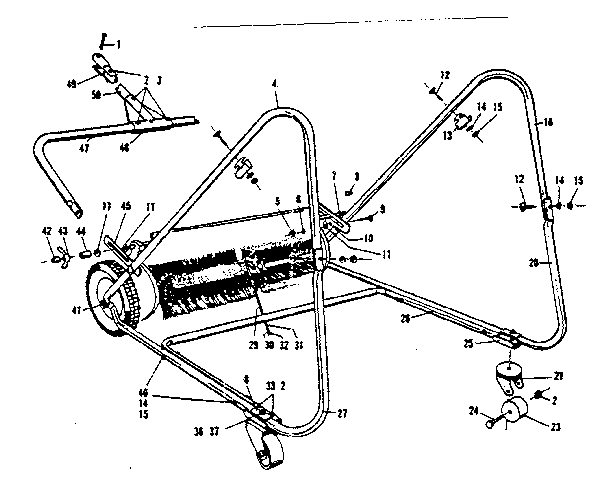

Sweeper unit assembly diagram

Washer

Part #STD551025

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut STD541431
Lock nut

Part #STD541431

The manufacturer no longer makes this part, and there's no substitute part

Up Frame 76-308
#16

Sweeper unit assembly diagram

Up frame

Part #76-308

The manufacturer no longer makes this part, and there's no substitute part

Washer STD551031
Washer

Part #STD551031

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw STD522517
#40

Sweeper unit assembly diagram

Cap screw

Part #STD522517

The manufacturer no longer makes this part, and there's no substitute part

Hood B-76-400
#1

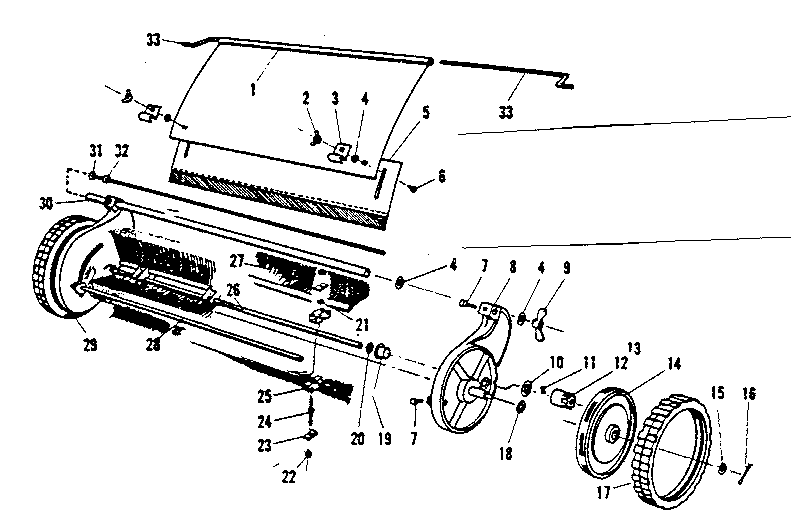

Hood and brush diagram

Hood

Part #B-76-400

The manufacturer no longer makes this part, and there's no substitute part

Rope 60-09
#2

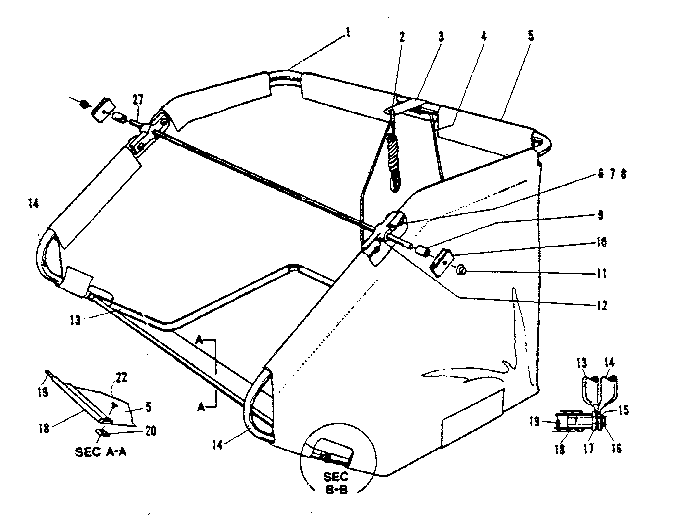

Basket assembly diagram

Rope

Part #60-09

The manufacturer no longer makes this part, and there's no substitute part

Carriage Bolt STD532507
#6

Hood and brush diagram

Carriage bolt

Part #STD532507

The manufacturer no longer makes this part, and there's no substitute part

Reel Shaft B-75-201
#26

Hood and brush diagram

Reel shaft

Part #B-75-201

The manufacturer no longer makes this part, and there's no substitute part

Insert 76-270
#17

Basket assembly diagram

Insert

Part #76-270

The manufacturer no longer makes this part, and there's no substitute part
