Craftsman
Lawn Sweeper

Model # 42626091 Official Craftsman sweeper unit assembly

Here are the diagrams and repair parts for Official Craftsman 42626091 sweeper unit assembly, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Brush Stud 74-16
#24

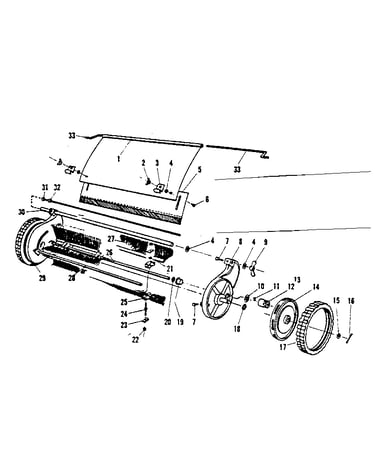

Hood and brush diagram

Brush stud

Part #74-16

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut 351-416-18
#2

Hood and brush diagram

Wing nut

Part #351-416-18

The manufacturer no longer makes this part, and there's no substitute part

Hood B-76-400
#1

Hood and brush diagram

Hood

Part #B-76-400

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 76-398

#NI

All parts diagram

Owner's manual

Part #76-398

The manufacturer no longer makes this part, and there's no substitute part

Basket Frame 76-300
#1

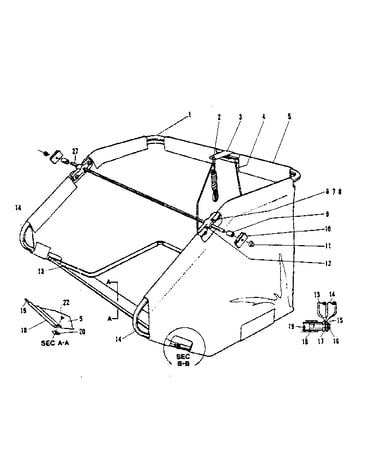

Basket assembly diagram

Basket frame

Part #76-300

The manufacturer no longer makes this part, and there's no substitute part

Basket 76-302
#5

Basket assembly diagram

Basket

Part #76-302

The manufacturer no longer makes this part, and there's no substitute part

Plated Lock Washer, 1/4-in STD551125
Plated lock washer, 1/4-in

Part #STD551125

The manufacturer no longer makes this part, and there's no substitute part

Up Frame 76-309
#4

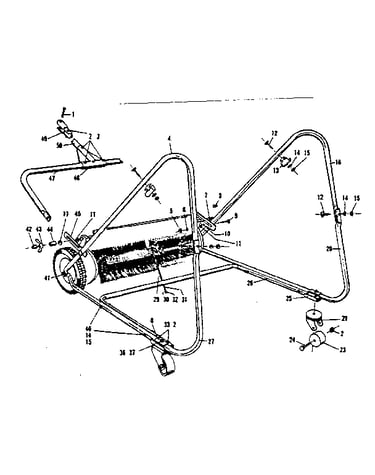

Sweeper unit assembly diagram

Up frame

Part #76-309

The manufacturer no longer makes this part, and there's no substitute part

Pivot Rod 76-294
#27

Basket assembly diagram

Pivot rod

Part #76-294

The manufacturer no longer makes this part, and there's no substitute part

Hood Clamp 60-22
#3

Hood and brush diagram

Hood clamp

Part #60-22

The manufacturer no longer makes this part, and there's no substitute part
