Model # 11A-08JC031 Official MTD lawn mower
Here are the diagrams and repair parts for Official MTD 11A-08JC031 lawn mower, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
11A-08JC031 Walk-Behind Mowers
#12

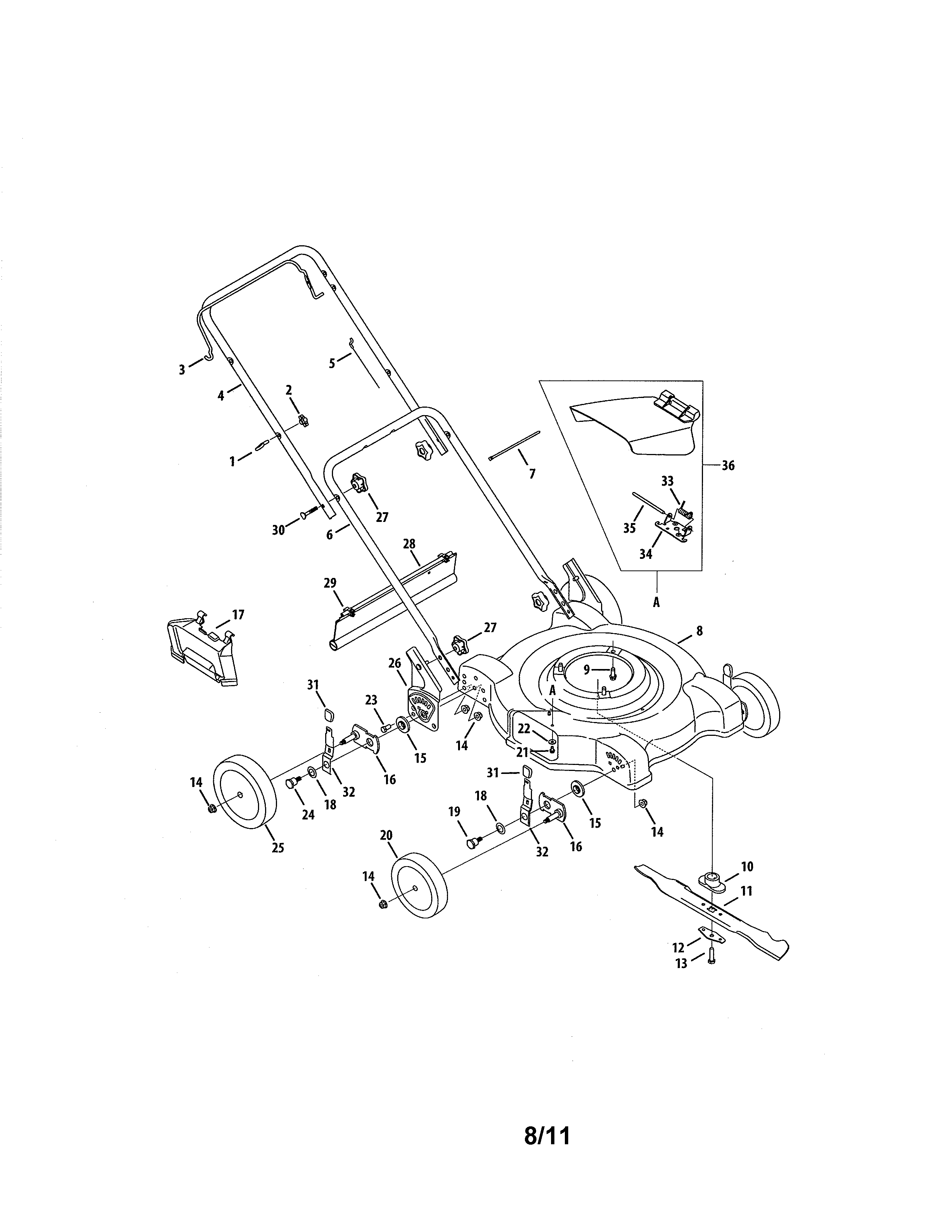

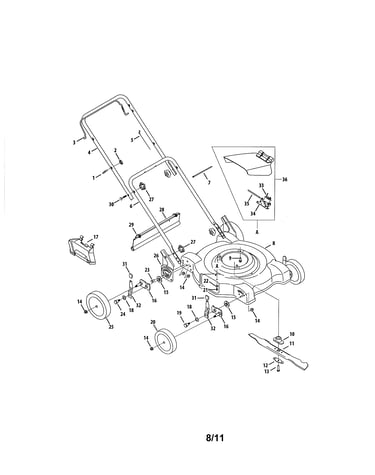

Lawn mower diagram
Lawn mower blade support (replaces 936-0524a)
Part #736-0524B
Replaced by #736-0524B-1
?
Manufacturer substitution
This part replaces 736-0524B. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$6.78 |
13% OFF Phone Price : $7.78
Back Order
#14
Lawn mower diagram
Yard machines lawn tractor flange nut (replaces 00012173, wd-129-103)
Part #712-04065
This item is not returnable
$5.27 |
16% OFF Phone Price : $6.27
In Stock
#21
Lawn mower diagram
Lawn tractor screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599)
Part #710-0599
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
#27
Lawn mower diagram
Yard machines lawn mower handle knob (replaces 01000382, 113589, 720-04072, 720-04125)
Part #720-04072A
$9.33 |
10% OFF Phone Price : $10.33
In Stock
#35
Lawn mower diagram
Hinge pin
Part #747-0710
Replaced by #747-0710A
?
Manufacturer substitution
This part replaces 747-0710. Substitute parts can look different from the original.
This item is not returnable
$4.76 |
17% OFF Phone Price : $5.76
Back Order
#25
Lawn mower diagram
Yard machines lawn mower wheel
Part #734-1987
$26.80 |
18% OFF Phone Price : $32.80
In Stock
#6
Lawn mower diagram
Lawn mower lower handle
Part #749-04037
$66.59 |
8% OFF Phone Price : $72.59
In Stock
#22
Lawn mower diagram
Yard machines lawn & garden equipment cupped washer
Part #736-0270
This item is not returnable
$5.10 |
16% OFF Phone Price : $6.10
In Stock
#32
Lawn mower diagram
Lawn mower height adjuster lever (replaces 687-02051)
Part #732-1026
This item is not returnable
$10.14 |
16% OFF Phone Price : $12.14
In Stock
#7
Lawn mower diagram
Lawn & garden equipment cable tie
Part #725-0157
Replaced by #726-0178
?
Manufacturer substitution
This part replaces 725-0157. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Symptoms for gas walk-behind mowers
Choose a symptom to see related walk-behind mower repairs.
Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel…
Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key…
Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent…
Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up…
Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, ba…
Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade…
