Model # SYSTEM 25 Official Harris air plasma cutting system

Here are the diagrams and repair parts for Official Harris SYSTEM-25 air plasma cutting system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

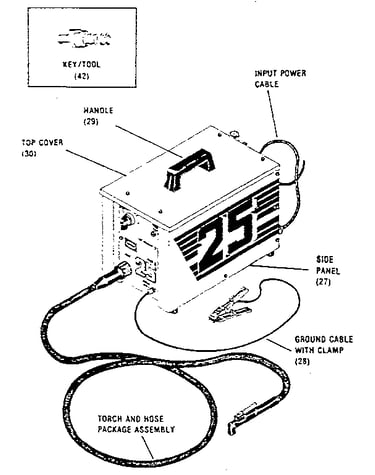

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Main Fuse 2065614
#6

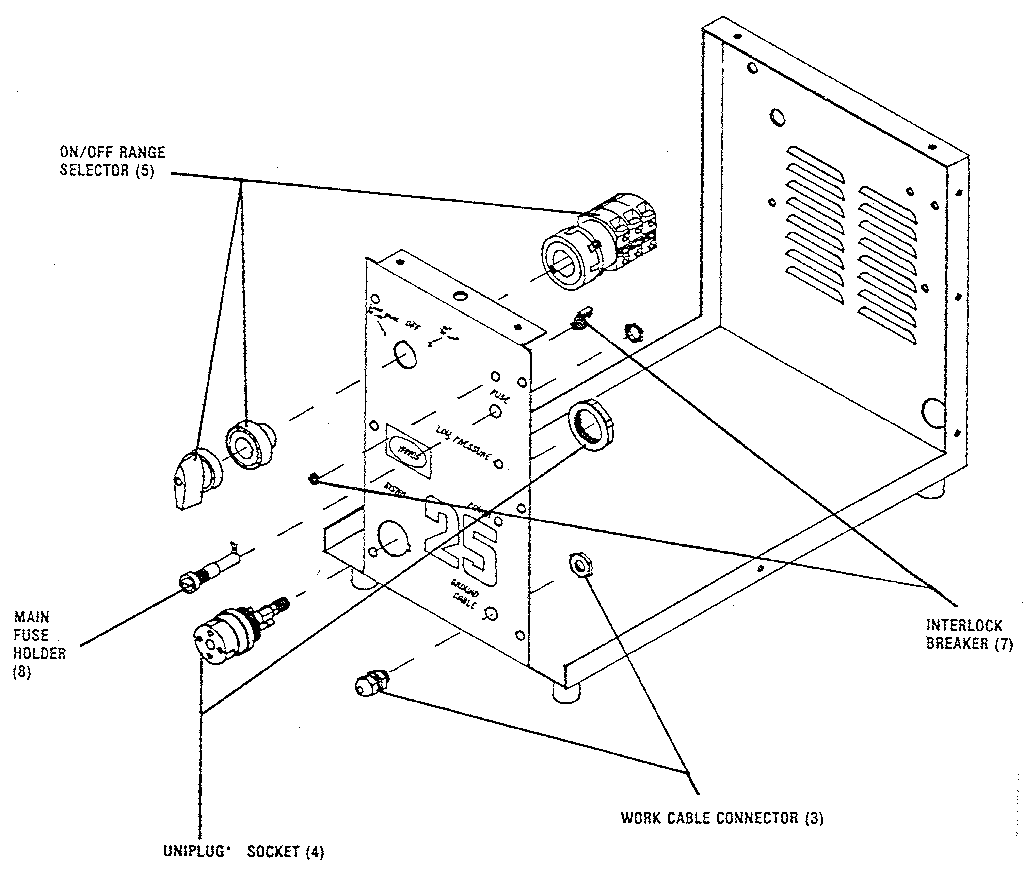

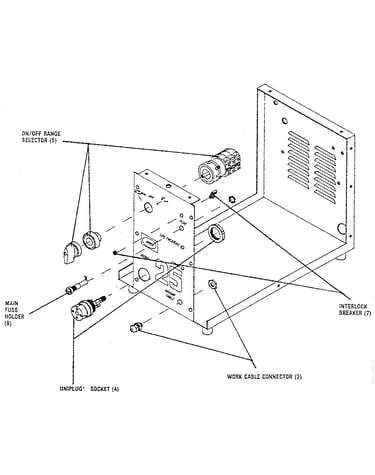

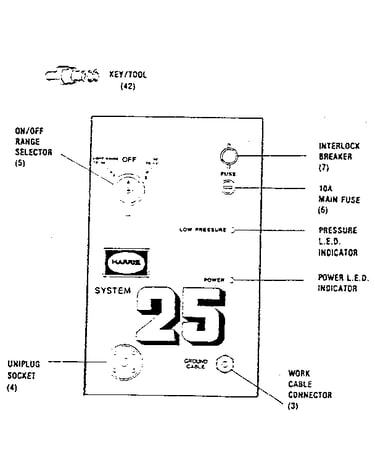

On/off range selector diagram

Main fuse

Part #2065614

The manufacturer no longer makes this part, and there's no substitute part

Rectifier 2025594
#9

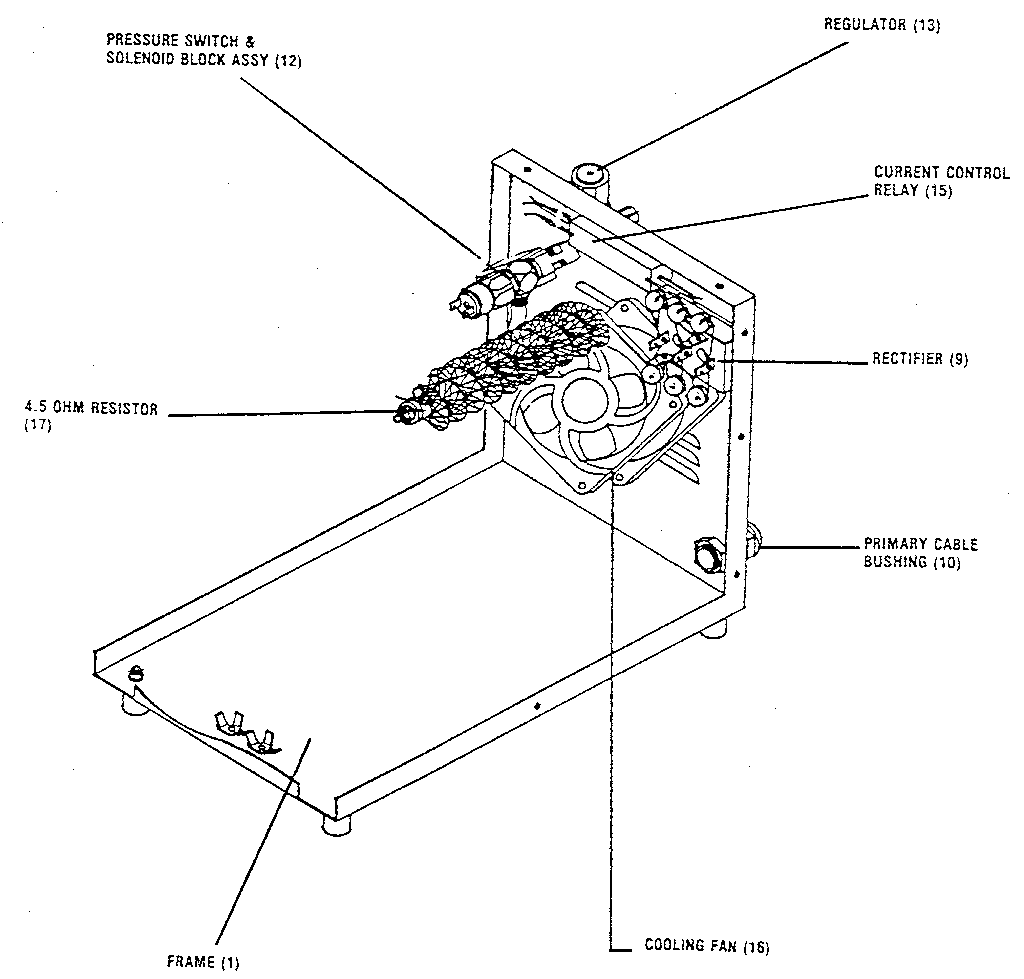

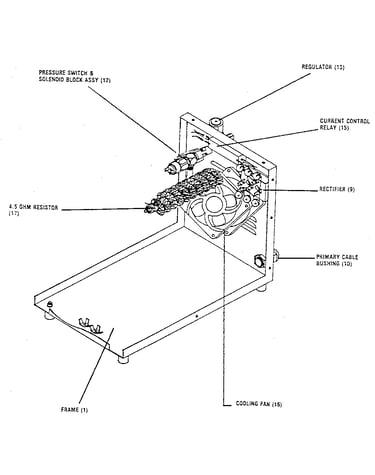

Cooling fan diagram

Rectifier

Part #2025594

The manufacturer no longer makes this part, and there's no substitute part

Washer 2825046
#5

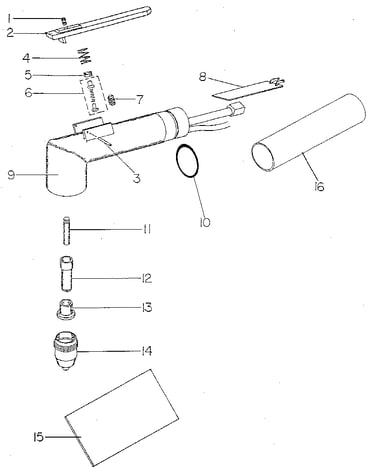

Torch & hose package diagram

Washer

Part #2825046

The manufacturer no longer makes this part, and there's no substitute part

Hose Pkg 2825107
#20

Torch & hose package diagram

Hose pkg

Part #2825107

The manufacturer no longer makes this part, and there's no substitute part

Cutting Tip 2825034
#14

Torch & hose package diagram

Cutting tip

Part #2825034

The manufacturer no longer makes this part, and there's no substitute part

O-ring 2825139
#10

Torch & hose package diagram

O-ring

Part #2825139

The manufacturer no longer makes this part, and there's no substitute part

Uniplug 2825170
#17

Torch & hose package diagram

Uniplug

Part #2825170

The manufacturer no longer makes this part, and there's no substitute part

Torch Body 2825091
#9

Torch & hose package diagram

Torch body

Part #2825091

The manufacturer no longer makes this part, and there's no substitute part

Electrode 2825030
#12

Torch & hose package diagram

Electrode

Part #2825030

The manufacturer no longer makes this part, and there's no substitute part

Bowl 2025599
#14

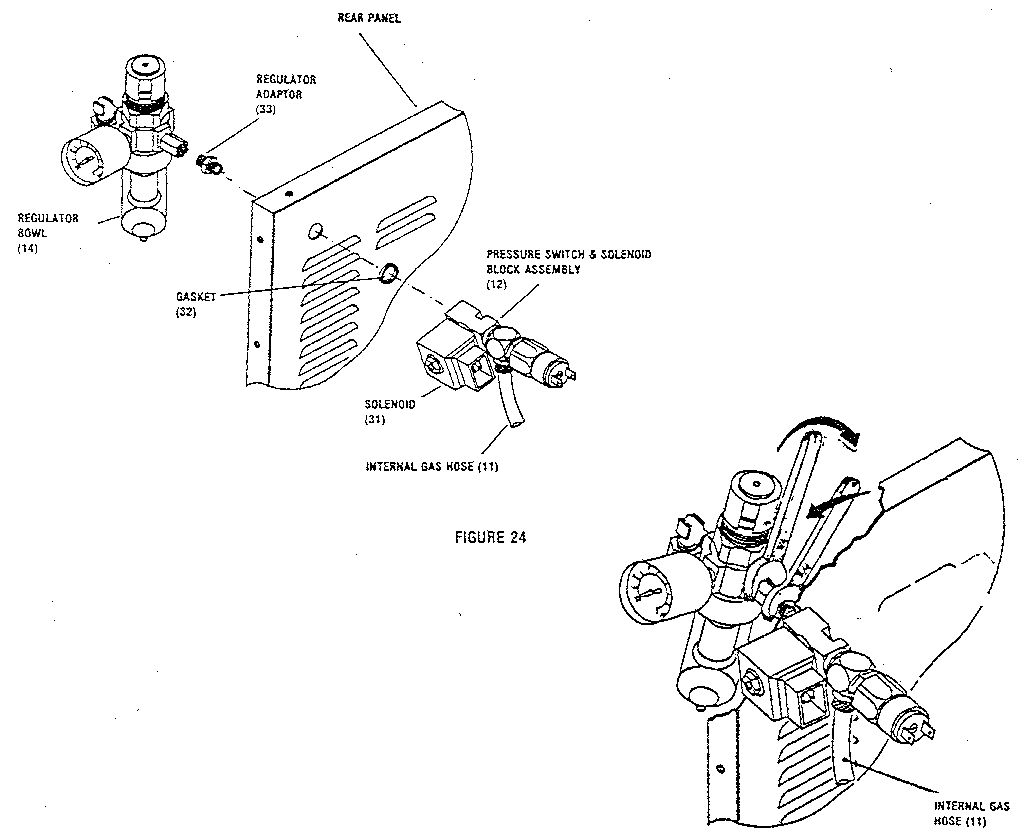

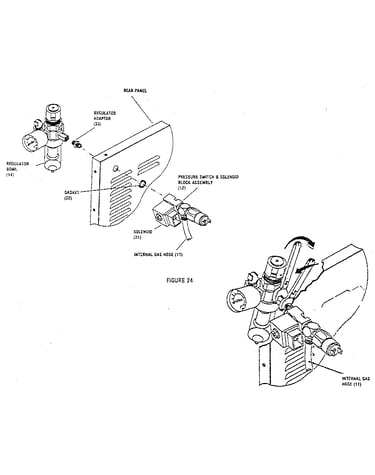

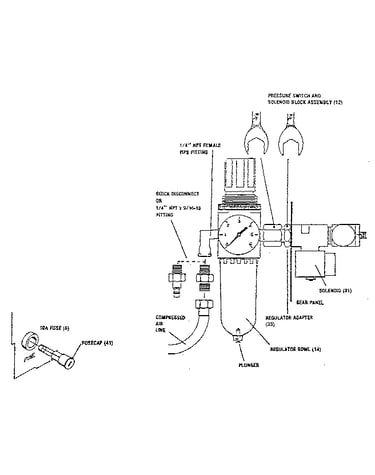

Pressure switch and solenoid block assembly diagram

Bowl

Part #2025599

The manufacturer no longer makes this part, and there's no substitute part
