Model # 110S-4262 Official Kenmore wringer gearcase

Here are the diagrams and repair parts for Official Kenmore 110S-4262 wringer gearcase, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Wick Oil 12106
#18

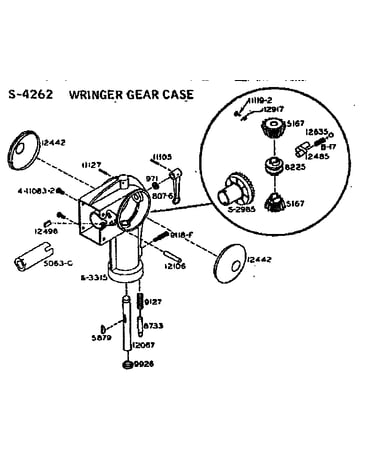

Wringer gear diagram

Wick oil

Part #12106

The manufacturer no longer makes this part, and there's no substitute part

Screw 11083-2
#26

Wringer gear diagram

Screw

Part #11083-2

The manufacturer no longer makes this part, and there's no substitute part

Spring 9127
#12

Wringer gear diagram

Spring

Part #9127

The manufacturer no longer makes this part, and there's no substitute part

Cover Decal 12465
#20

Wringer gear diagram

Cover decal

Part #12465

The manufacturer no longer makes this part, and there's no substitute part

Wick Oil 12498
#22

Wringer gear diagram

Wick oil

Part #12498

The manufacturer no longer makes this part, and there's no substitute part

Control Lever 807-6
#5

Wringer gear diagram

Control lever

Part #807-6

The manufacturer no longer makes this part, and there's no substitute part

Latch Bolt Knob 9118F
#11

Wringer gear diagram

Latch bolt knob

Part #9118F

The manufacturer no longer makes this part, and there's no substitute part

Spring B-17
#4

Wringer gear diagram

Spring

Part #B-17

The manufacturer no longer makes this part, and there's no substitute part

Felt 9926
#13

Wringer gear diagram

Felt

Part #9926

The manufacturer no longer makes this part, and there's no substitute part

Wrg Clutch 8225
#9

Wringer gear diagram

Wrg clutch

Part #8225

The manufacturer no longer makes this part, and there's no substitute part
