Upright Freezer

Model # 757720940 Official Kenmore 31 cubic foot coldspot freezer

Here are the diagrams and repair parts for Official Kenmore 757720940 31 cubic foot coldspot freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Drier 11673
#9

Unit diagram

Drier

Part #11673

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 11673. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Fan Blade 11237
#44

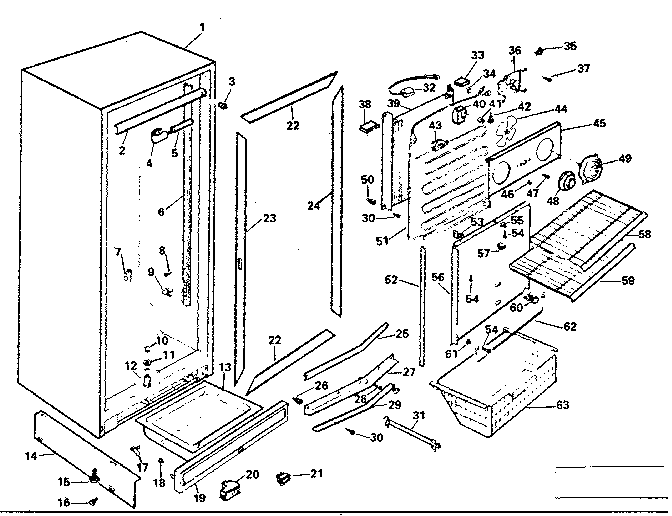

Cabinet diagram

Fan blade

Part #11237

The manufacturer no longer makes this part, and there's no substitute part

Leveler 4512
#15

Cabinet diagram

Leveler

Part #4512

The manufacturer no longer makes this part, and there's no substitute part

Bracket 13382
#30

Unit diagram

Bracket

Part #13382

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 16004
#29

Unit diagram

Fan motor

Part #16004

The manufacturer no longer makes this part, and there's no substitute part

Deflector 14268
#14

Cabinet diagram

Deflector

Part #14268

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 11236
#40

Cabinet diagram

Fan motor

Part #11236

The manufacturer no longer makes this part, and there's no substitute part

Washer 6K520
#32

Unit diagram

Washer

Part #6K520

The manufacturer no longer makes this part, and there's no substitute part

Grommet 11570
#41

Cabinet diagram

Grommet

Part #11570

The manufacturer no longer makes this part, and there's no substitute part

Knob 14065-4
#48

Cabinet diagram

Knob

Part #14065-4

The manufacturer no longer makes this part, and there's no substitute part
