Whirlpool
Warming Drawer

Model # GBW3050TS00 Official Whirlpool warming drawer

Here are the diagrams and repair parts for Official Whirlpool GBW3050TS00 warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Whirlpool Warming Drawer Thermal Fuse 9763126
#8

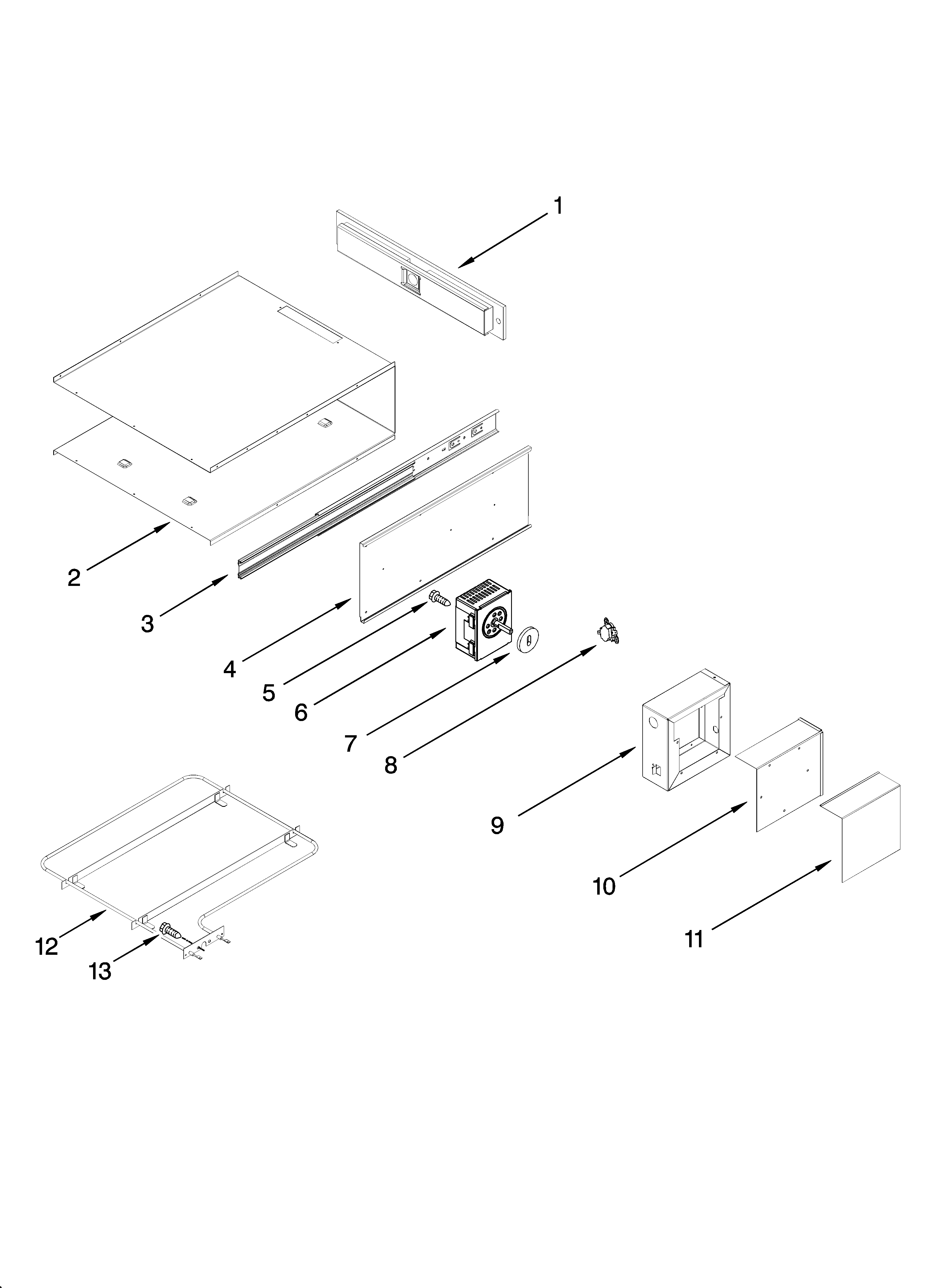

Internal warming drawer parts diagram

Whirlpool warming drawer thermal fuse

Part #9763126

$32.87
In Stock
Whirlpool Oven Rack 8273277
#2

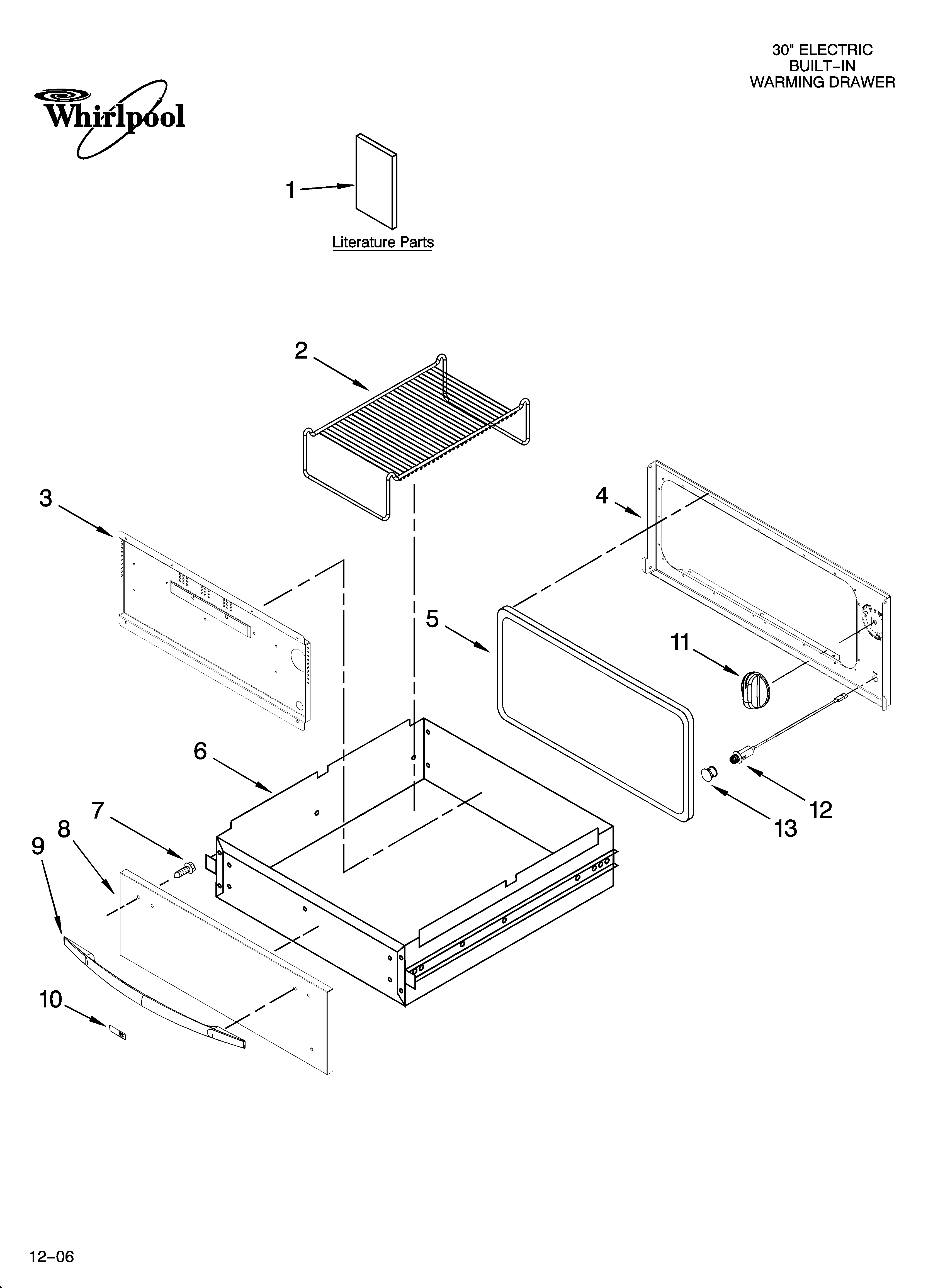

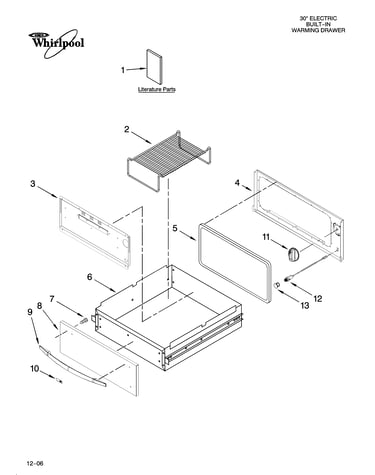

Control, door and drawer parts diagram

Whirlpool oven rack

Part #8273277

$58.22
Back Order
Whirlpool Wrapper 9762305
#2

Internal warming drawer parts diagram

Whirlpool wrapper

Part #9762305

$192.98
In Stock
Whirlpool Enclosure 9763122
#9

Internal warming drawer parts diagram

Whirlpool enclosure

Part #9763122

$41.56
In Stock
Whirlpool Drawer Panel 9762307
#4

Internal warming drawer parts diagram

Whirlpool drawer panel

Part #9762307

$29.89
In Stock
Range Ground Screw 4450800
#NI

Internal warming drawer parts diagram

Range ground screw

Part #4450800

$12.49
In Stock
Whirlpool Grommet 4452601
#NI

Internal warming drawer parts diagram

Whirlpool grommet

Part #4452601

$27.69
In Stock
Whirlpool Power Cord W10080120
#NI

Internal warming drawer parts diagram

Whirlpool power cord

Part #W10080120

$62.00
In Stock
Whirlpool Light Lens 4456314
#13

Control, door and drawer parts diagram

Whirlpool light lens

Part #4456314

$43.67
In Stock
Whirlpool Magnet W10035910
#1

Internal warming drawer parts diagram

Whirlpool magnet

Part #W10035910

$83.24
In Stock
