Model # 303482002 Official Kenmore waffle baker

Here are the diagrams and repair parts for Official Kenmore 303482002 waffle baker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Lwr Element 22927A15
#2

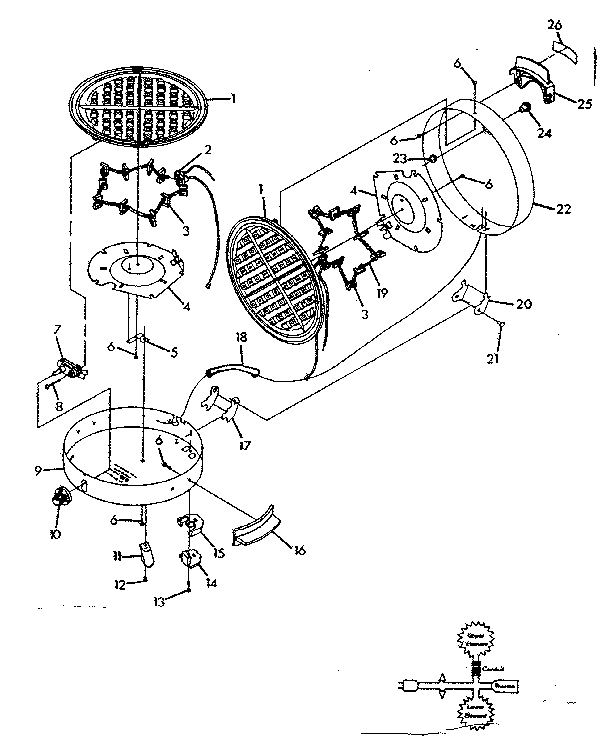

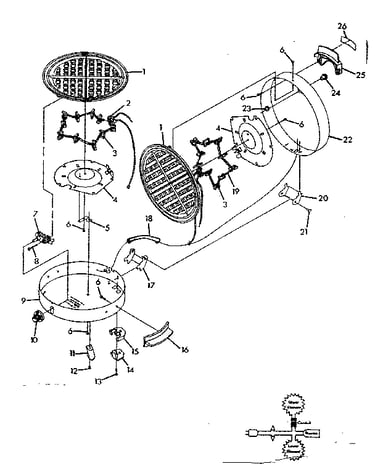

Replacement parts diagram

Lwr element

Part #22927A15

The manufacturer no longer makes this part, and there's no substitute part

Screw 21518A25
#13

Replacement parts diagram

Screw

Part #21518A25

The manufacturer no longer makes this part, and there's no substitute part

Screw 21242A25
#6

Replacement parts diagram

Screw

Part #21242A25

The manufacturer no longer makes this part, and there's no substitute part

Top Shell 13445A31
#22

Replacement parts diagram

Top shell

Part #13445A31

The manufacturer no longer makes this part, and there's no substitute part

Hinge, Upper 21932A1B
#20

Replacement parts diagram

Hinge, upper

Part #21932A1B

The manufacturer no longer makes this part, and there's no substitute part

Screw 22334A19
#8

Replacement parts diagram

Screw

Part #22334A19

The manufacturer no longer makes this part, and there's no substitute part

Foot 20292A25
#11

Replacement parts diagram

Foot

Part #20292A25

The manufacturer no longer makes this part, and there's no substitute part

Rivet 6694A21
#12

Replacement parts diagram

Rivet

Part #6694A21

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 19590A7B
#7

Replacement parts diagram

Thermostat

Part #19590A7B

The manufacturer no longer makes this part, and there's no substitute part

Bezel Chrme 549A29
#24

Replacement parts diagram

Bezel chrme

Part #549A29

The manufacturer no longer makes this part, and there's no substitute part
