Model # LW8203W2B-PLW8203W2B Official Amana washer

Here are the diagrams and repair parts for Official Amana LW8203W2B-PLW8203W2B washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

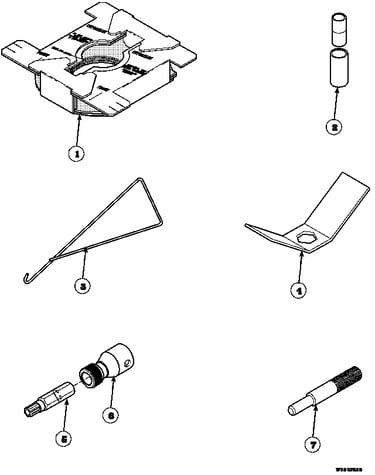

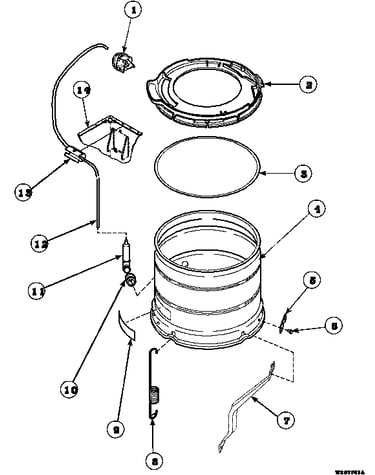

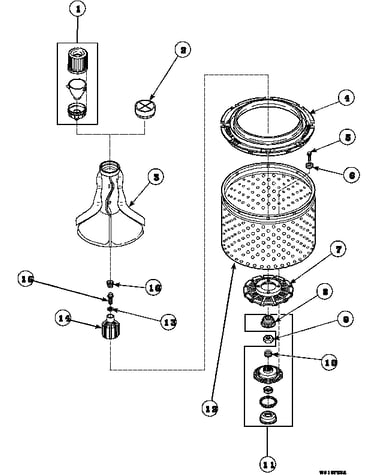

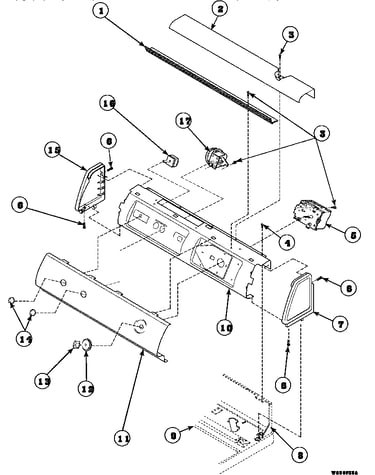

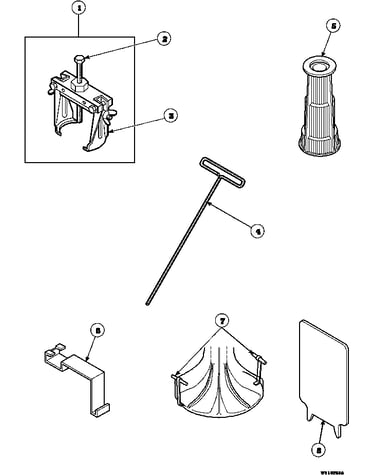

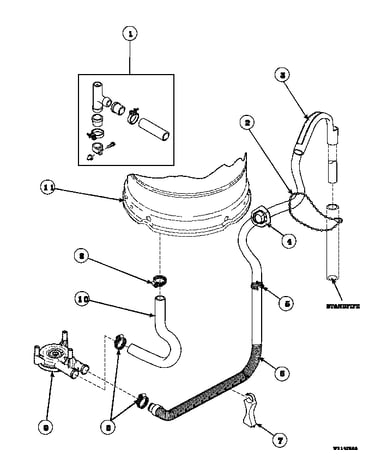

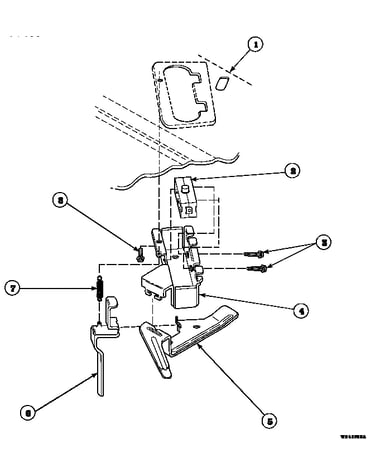

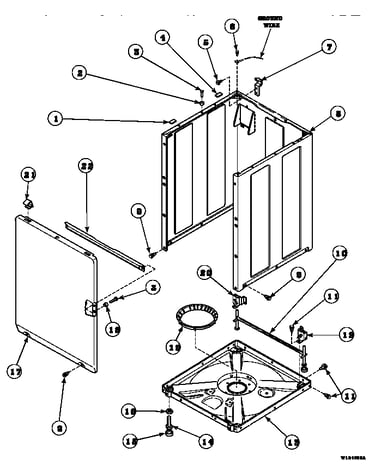

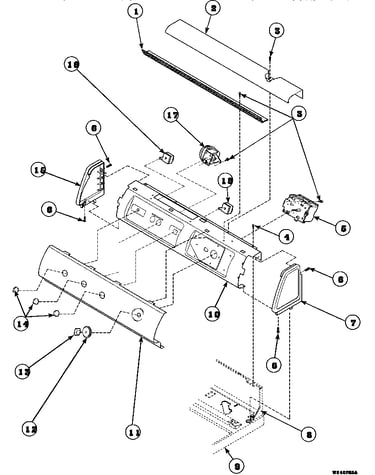

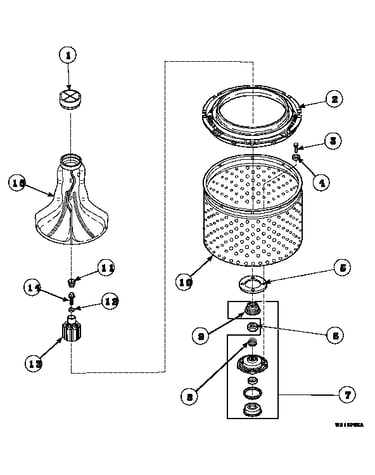

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 229 parts  |
Hose Clamp 36801
#1

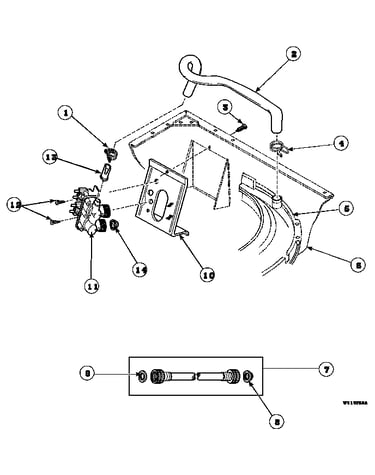

Inlet hose, fill hose, mixing valve & mounting bracket diagram

Hose clamp

Part #36801

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 36801. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 34337
#2

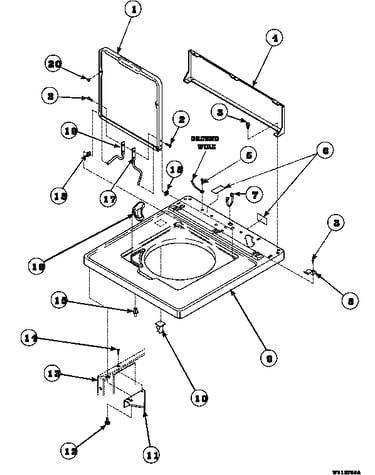

Cabinet top, loading door and control hood rear panel diagram

Screw

Part #34337

Replaced by #WPW10119828

?
Manufacturer substitution
This part replaces 34337. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Washer 52549
#17

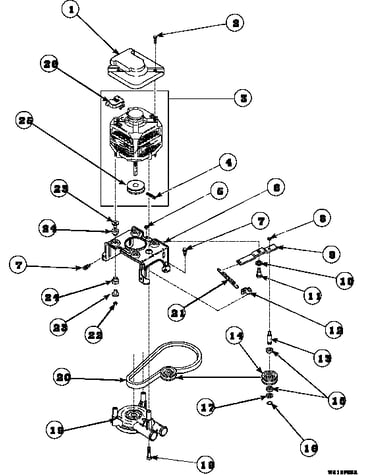

Motor, mounting bracket, belt, pump and idler assembly diagram

Washer

Part #52549

Replaced by #WP233520

?
Manufacturer substitution
This part replaces 52549. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Nut 35423
#22

Motor, mounting bracket, belt, pump and idler assembly diagram

Nut

Part #35423

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 35423. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw 34904
Screw

Part #34904

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 34904. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Washer 20290
#9

Inlet hose, fill hose, mixing valve & mounting bracket diagram

Washer

Part #20290

Replaced by #Y013783

?
Manufacturer substitution
This part replaces 20290. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Bearing 27182
#8

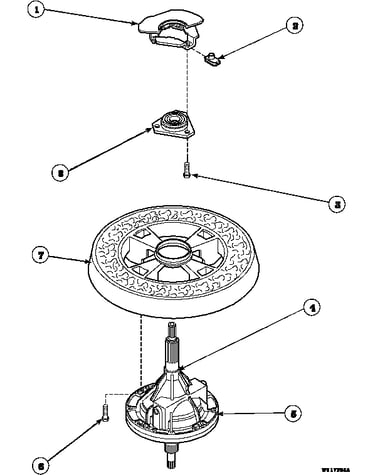

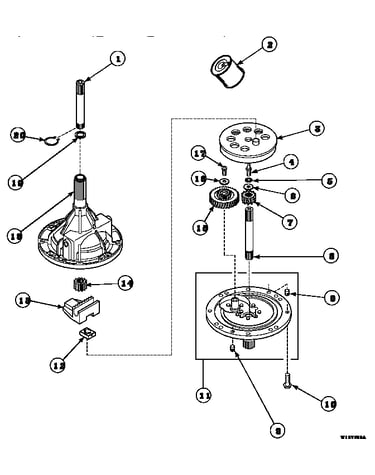

Transmission assembly and balancing ring diagram

Bearing

Part #27182

The manufacturer no longer makes this part, and there's no substitute part

Bearing 28944R
#2

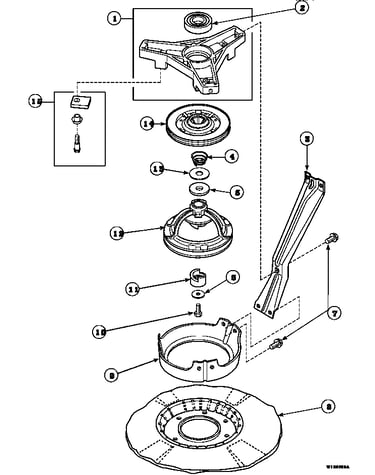

Bearing housing, brake pulley and pivot dome diagram

Bearing

Part #28944R

Replaced by #WP40004001

?
Manufacturer substitution
This part replaces 28944R. Substitute parts can look different from the original.
$50.16 |
11% OFF Phone Price : $56.16
In Stock
Screw 33562
#3

Inlet hose, fill hose, mixing valve & mounting bracket diagram

Screw

Part #33562

Replaced by #WP27001200

?
Manufacturer substitution
This part replaces 33562. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock

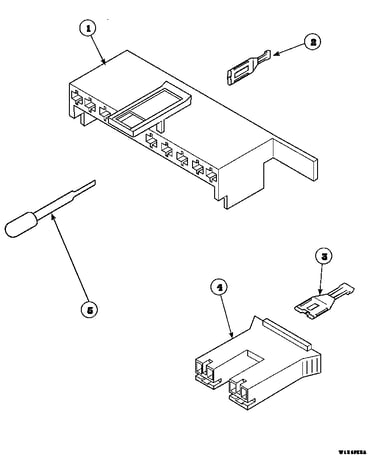

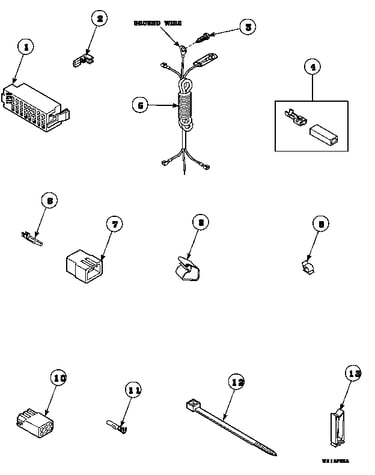

Terminal 00188
Terminal

Part #00188

Replaced by #Y00188

?
Manufacturer substitution
This part replaces 00188. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
