Model # RB160PXL0 Official Whirlpool 27" electric built-in self-cleaning oven
Here are the diagrams and repair parts for Official Whirlpool RB160PXL0 27" electric built-in self-cleaning oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

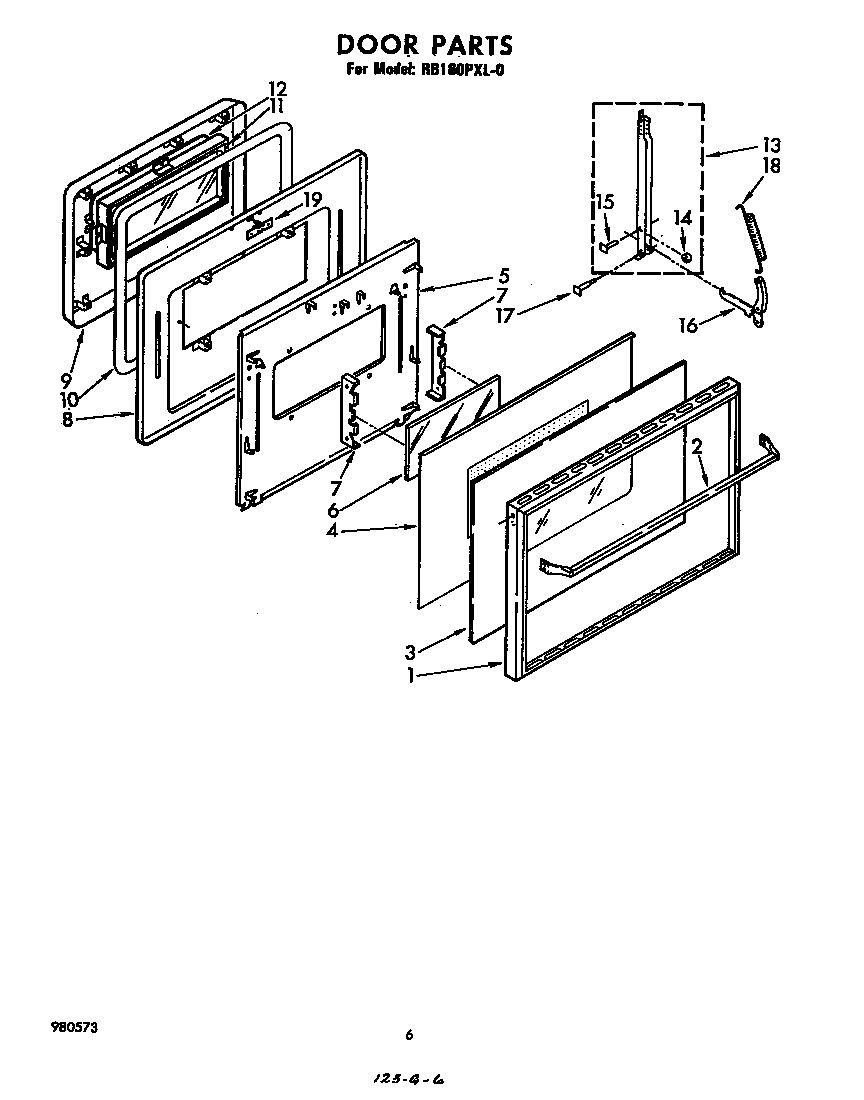

SELECT DIAGRAM
Browse Parts for
RB160PXL0 Wall Ovens
#25

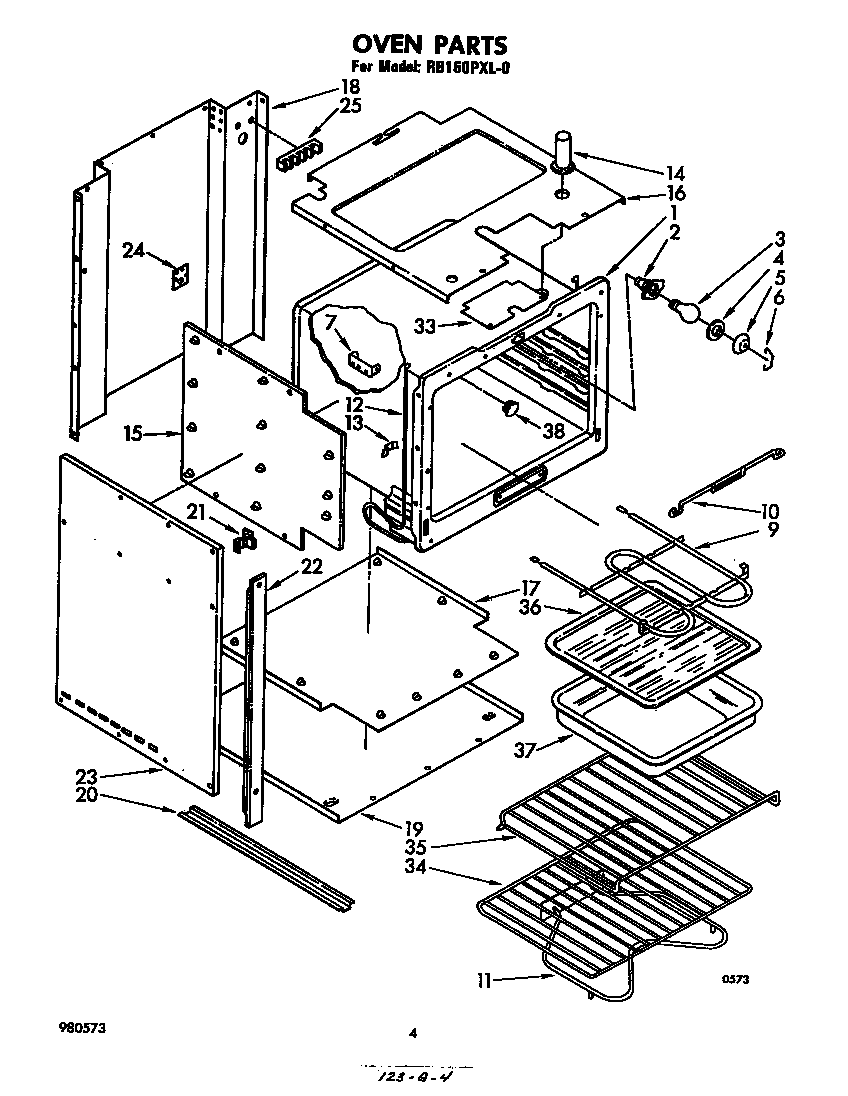

Oven diagram
Block
Part #241212
Replaced by #WP8203546
?
Manufacturer substitution
This part replaces 241212. Substitute parts can look different from the original.
This item is not returnable
$16.75 |
11% OFF Phone Price : $18.75
In Stock
#11A
Oven diagram
Range bake element
Part #866375
Replaced by #WP866375
?
Manufacturer substitution
This part replaces 866375. Substitute parts can look different from the original.
$66.86 |
10% OFF Was : $74.29
In Stock
#11B
Oven diagram
Unit
Part #868969
Replaced by #WP866375
?
Manufacturer substitution
This part replaces 868969. Substitute parts can look different from the original.
$66.86 |
10% OFF Was : $74.29
In Stock
#36
Oven diagram
Grid pan
Part #866219
Replaced by #4396923
?
Manufacturer substitution
This part replaces 866219. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Screw
Part #868430
This item is not returnable
$4.19 |
19% OFF Phone Price : $5.19
In Stock
#NI
All parts diagram
Cooking appliance 14-gauge splicing wire, 200-degree c (red)
Part #242831
$318.95
In Stock
#NI
All parts diagram
Insulation
Part #240132
Replaced by #WPW10208653
?
Manufacturer substitution
This part replaces 240132. Substitute parts can look different from the original.
$39.39 |
13% OFF Phone Price : $45.39
In Stock
#NI
All parts diagram
Insulation
Part #261514
Replaced by #WPW10208653
?
Manufacturer substitution
This part replaces 261514. Substitute parts can look different from the original.
$39.39 |
13% OFF Phone Price : $45.39
In Stock
#NI
All parts diagram
Installation instructions
Part #866338
The manufacturer no longer makes this part, and there's no substitute part
#29

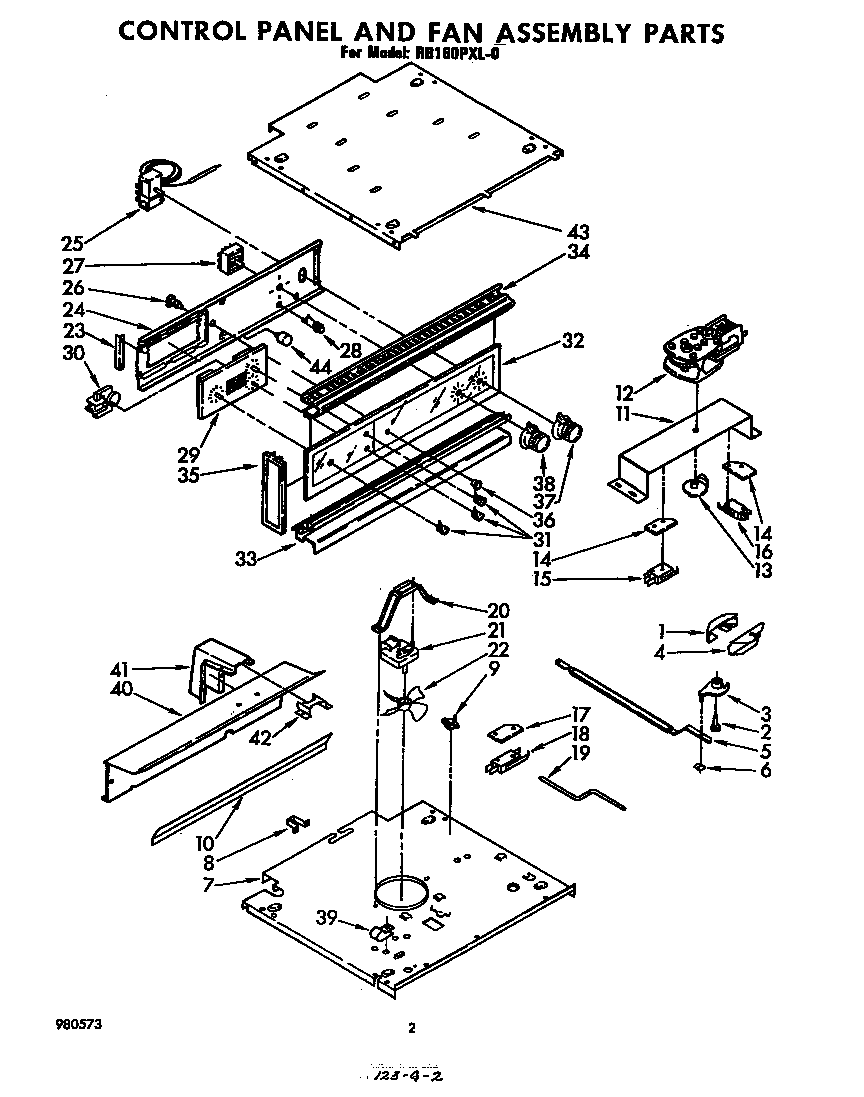

Control panel and fan assembly diagram
Clock timer
Part #868992
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your wall oven
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
Most common repair guides to help fix your wall oven
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
How to replace a wall oven thermal fuse
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…
Repair difficulty
Time required
60 minutes or less
How to replace a wall oven control thermostat
Get your oven temperature under your control by replacing a faulty oven control thermostat.…
Repair difficulty
Time required
60 minutes or less
How to replace wall oven door hinges
If your oven door flops open fast, it's time to replace the hinges. Follow these step-by-step instructions to do it your…
Repair difficulty
Time required
15 minutes or less
