Model # TMHCV36GW Official Thermador new electric coil tmh cooktop

Here are the diagrams and repair parts for Official Thermador TMHCV36GW new electric coil tmh cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

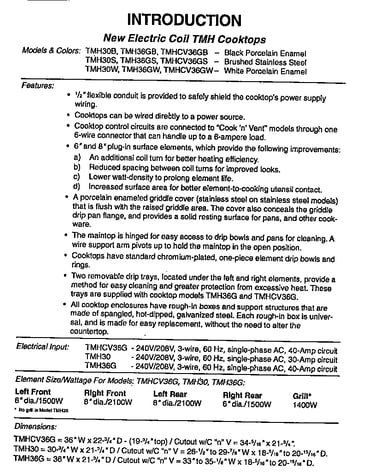

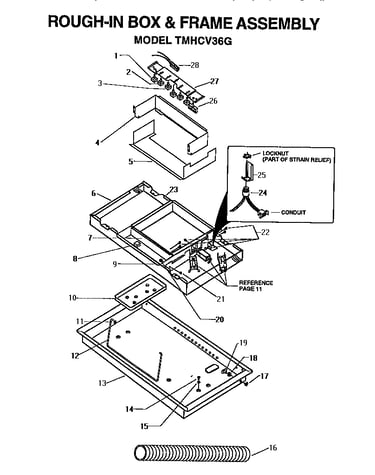

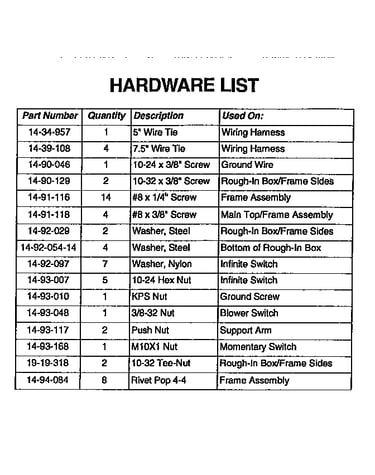

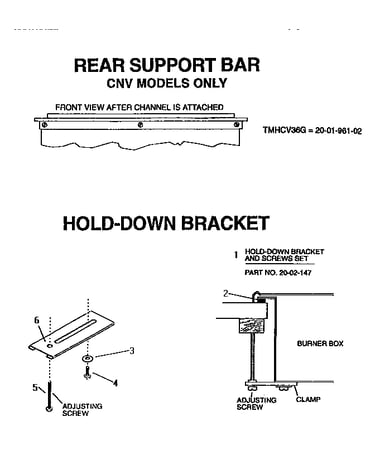

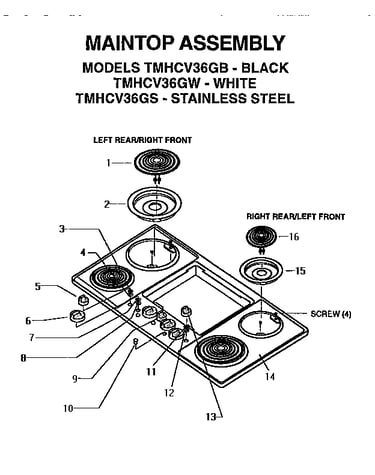

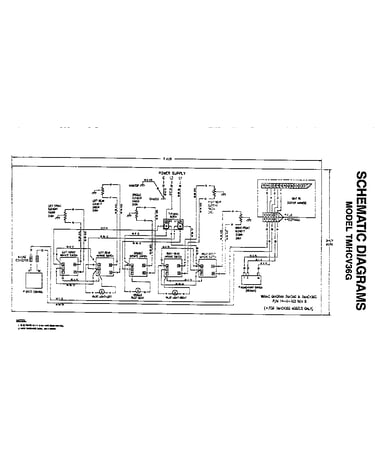

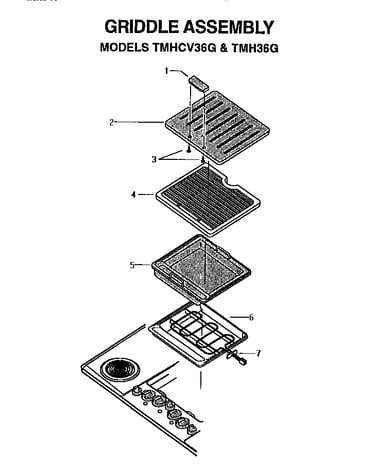

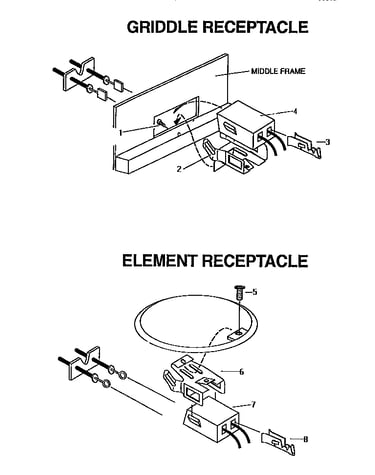

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |

Screw 14-91-118
Screw

Part #14-91-118

In Stock
Surface Element 14-41-747
Surface element

Part #14-41-747

Replaced by #00484791

?
Manufacturer substitution
This part replaces 14-41-747. Substitute parts can look different from the original.
In Stock
Mntg Kit 20-02-147
Mntg kit

Part #20-02-147

Replaced by #00188954

?
Manufacturer substitution
This part replaces 20-02-147. Substitute parts can look different from the original.
$35.49
14% OFF Phone Price : $41.49
In Stock
Switch 20-01-886
Switch

Part #20-01-886

The manufacturer no longer makes this part, and there's no substitute part

Speed Control Switch 14-39-059-01
Speed control switch

Part #14-39-059-01

The manufacturer no longer makes this part, and there's no substitute part

10-32 Tee Nut 19-19-318
10-32 tee nut

Part #19-19-318

The manufacturer no longer makes this part, and there's no substitute part

Screw 14-90-129
Screw

Part #14-90-129

The manufacturer no longer makes this part, and there's no substitute part

Hold Down Bracket (4) 20-01-897
Hold down bracket (4)

Part #20-01-897

The manufacturer no longer makes this part, and there's no substitute part

Nylon Washer 14-92-093
Nylon washer

Part #14-92-093

The manufacturer no longer makes this part, and there's no substitute part

Nut 14-92-168
Nut

Part #14-92-168

The manufacturer no longer makes this part, and there's no substitute part
