Model # C1085--- Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover C1085- upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

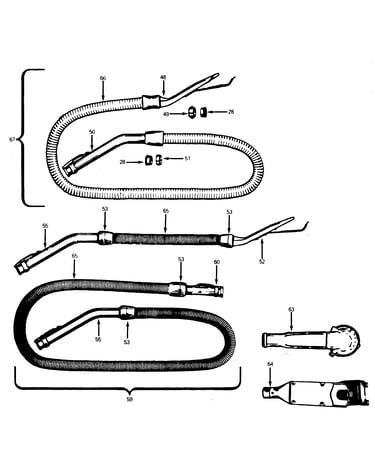

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Kenmore Terminal 27666702
#7

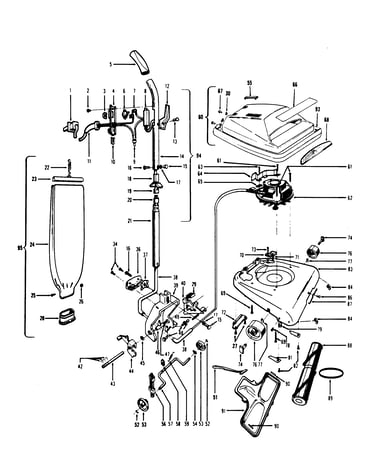

Agitator, handle, mainbody, outerbag diagram

Kenmore terminal

Part #27666702

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 38521041
#53

Agitator, handle, mainbody, outerbag diagram

Vacuum wheel

Part #38521041

The manufacturer no longer makes this part, and there's no substitute part

Hand Clamp Bolt Nut 32277021
#15

Agitator, handle, mainbody, outerbag diagram

Hand clamp bolt nut

Part #32277021

The manufacturer no longer makes this part, and there's no substitute part

Handle Plate 35463011
#37

Agitator, handle, mainbody, outerbag diagram

Handle plate

Part #35463011

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Bearing 42934002
#4

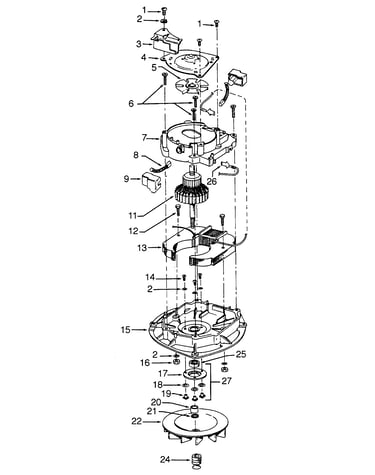

Motor assembly diagram

Kenmore bearing

Part #42934002

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Motor Bearing 24152807
#25

Motor assembly diagram

Kenmore motor bearing

Part #24152807

The manufacturer no longer makes this part, and there's no substitute part

Motor 43574192
#62

Agitator, handle, mainbody, outerbag diagram

Motor

Part #43574192

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Clamp Bolt 21631301
#16

Agitator, handle, mainbody, outerbag diagram

Kenmore clamp bolt

Part #21631301

The manufacturer no longer makes this part, and there's no substitute part

Cord Clip 39441016
#12

Agitator, handle, mainbody, outerbag diagram

Cord clip

Part #39441016

The manufacturer no longer makes this part, and there's no substitute part

Split Ring 33712007
#7

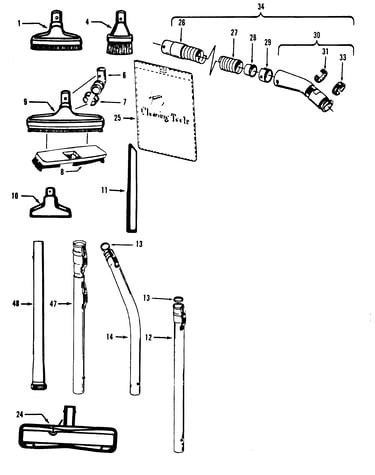

Cleaningtools diagram

Split ring

Part #33712007

The manufacturer no longer makes this part, and there's no substitute part
