GE
Electric Wall Oven

Model # JTP45WV2WW Official GE wall oven

Here are the diagrams and repair parts for Official GE JTP45WV2WW wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

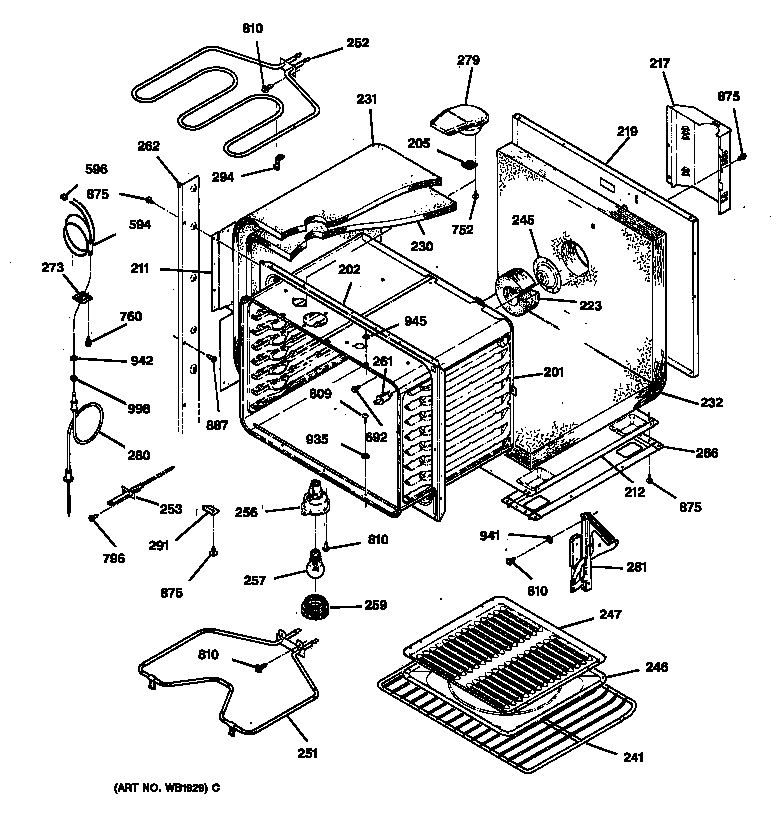

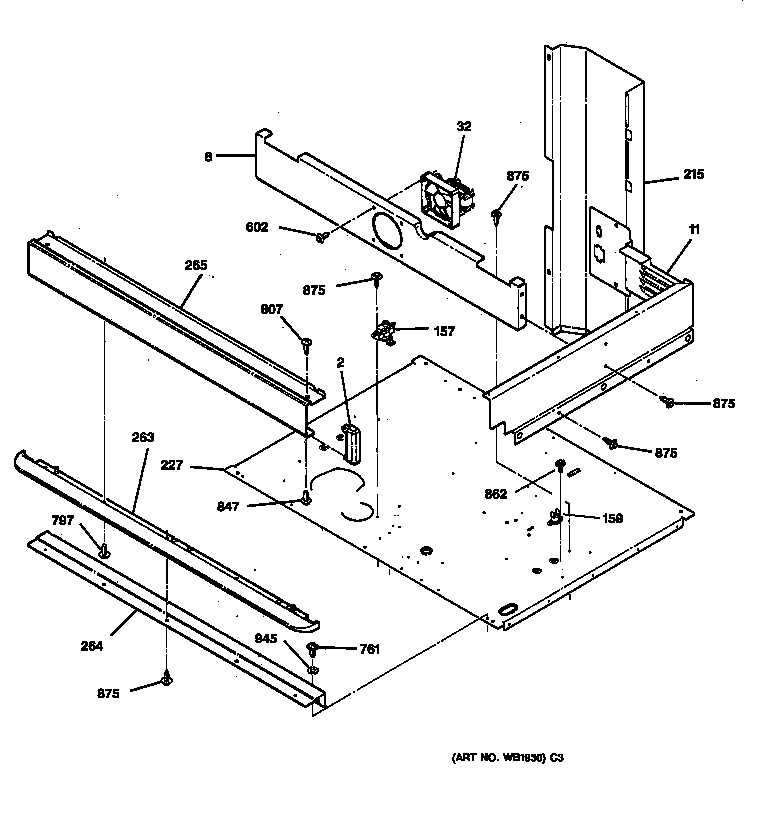

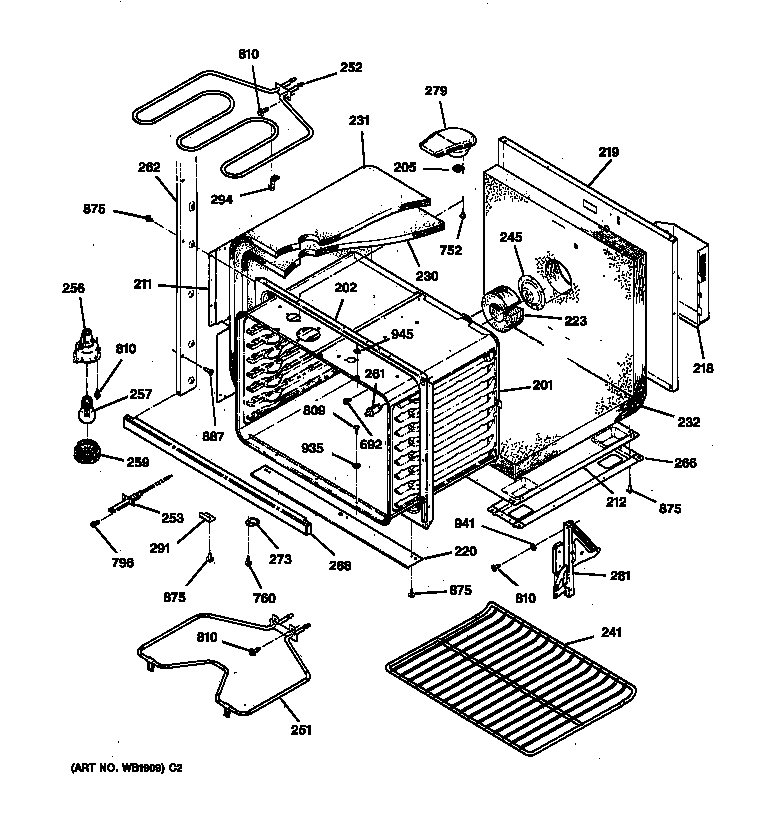

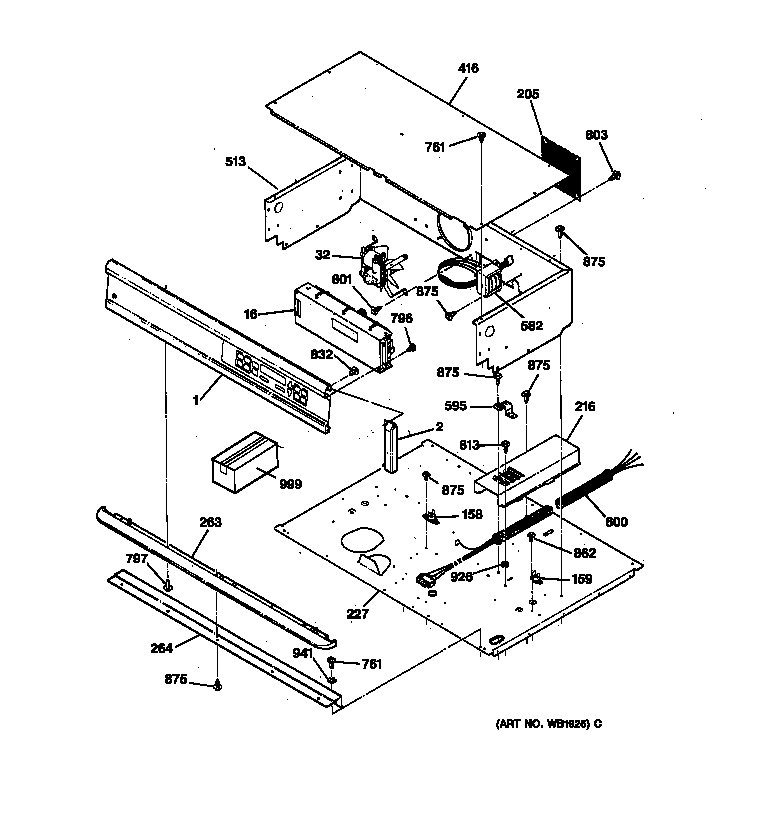

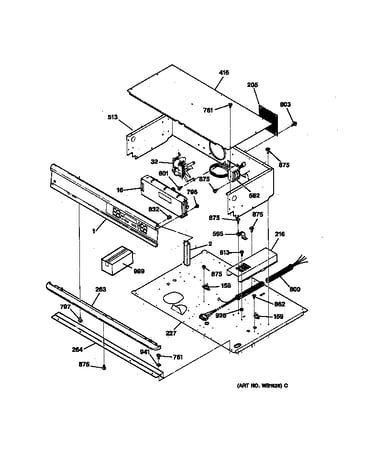

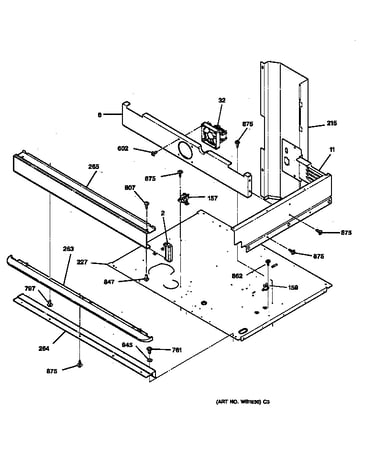

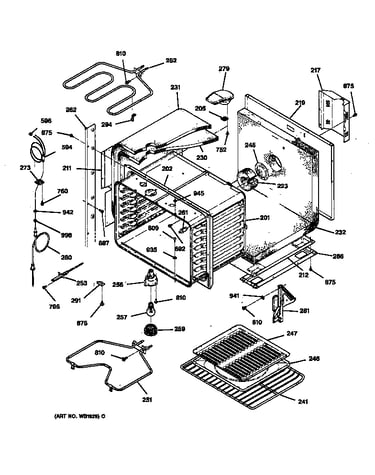

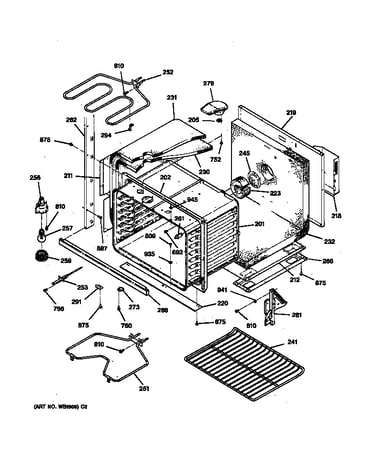

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |
Wall Oven Temperature Sensor WB23T10002
Wall oven temperature sensor

Part #WB23T10002

Replaced by #WB23X5340

?
Manufacturer substitution
This part replaces WB23T10002. Substitute parts can look different from the original.
BEST SELLER
$129.99 |
8% OFF Phone Price : $141.99
In Stock
Range Bake Element WB44K5018
Range bake element

Part #WB44K5018

BEST SELLER
$63.62 |
9% OFF Phone Price : $69.62
In Stock
Range Broil Element Support (replaces Wb02k9719, Wb02x9719, Wb2x9438, Wb2x9576) WB2X9719
Range broil element support (replaces wb02k9719, wb02x9719, wb2x9438, wb2x9576)

Part #WB2X9719

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Handle (black) WB15T10030
#136

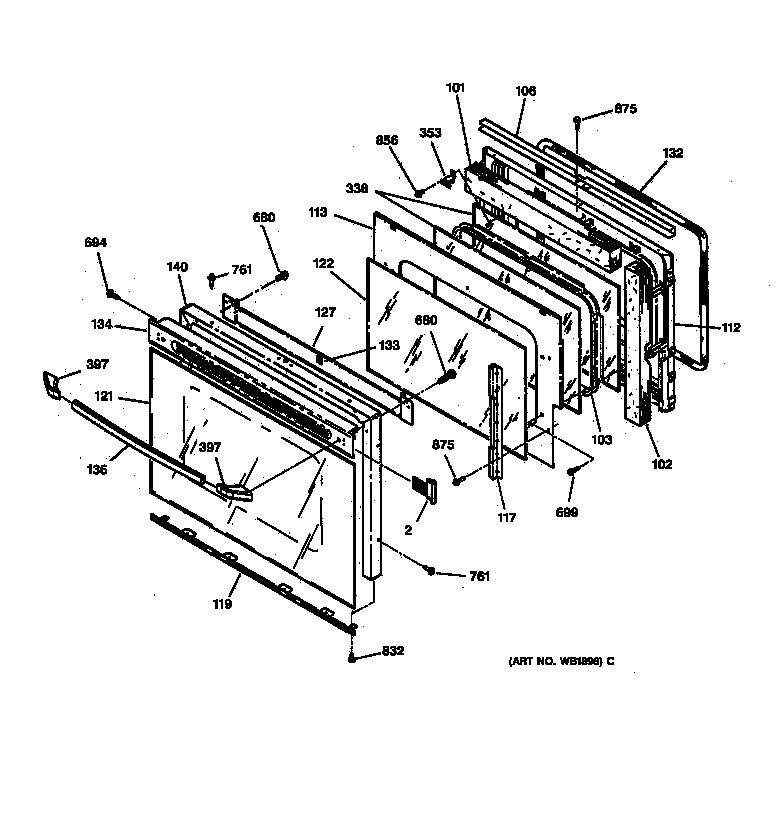

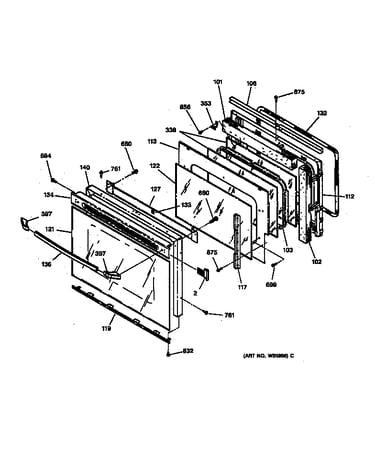

Door diagram

Range oven door handle (black)

Part #WB15T10030

$40.60 |
13% OFF Phone Price : $46.60
In Stock
Range Screw (replaces Wb01x1293, Wb1k50) WB1X1293
#856

Door diagram

Range screw (replaces wb01x1293, wb1k50)

Part #WB1X1293

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Inner Glass WB57K5230
#122

Door diagram

Range oven door inner glass

Part #WB57K5230

$121.80 |
9% OFF Phone Price : $133.80
In Stock
Range Oven Door Handle End Cap, Right (replaces Wb07x7183, Wb15k5069, Wb7x7321) WB7X7183
#397

Door diagram

Range oven door handle end cap, right (replaces wb07x7183, wb15k5069, wb7x7321)

Part #WB7X7183

$15.82 |
11% OFF Phone Price : $17.82
In Stock
Range Screw WB1K5119
Range screw

Part #WB1K5119

This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Range Screw WB1K5062
Range screw

Part #WB1K5062

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Screw WB1X1137
Range screw

Part #WB1X1137

$7.88 |
11% OFF Phone Price : $8.88
In Stock
