Model # ACQ108XP0 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACQ108XP0 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Cement 279368
#10

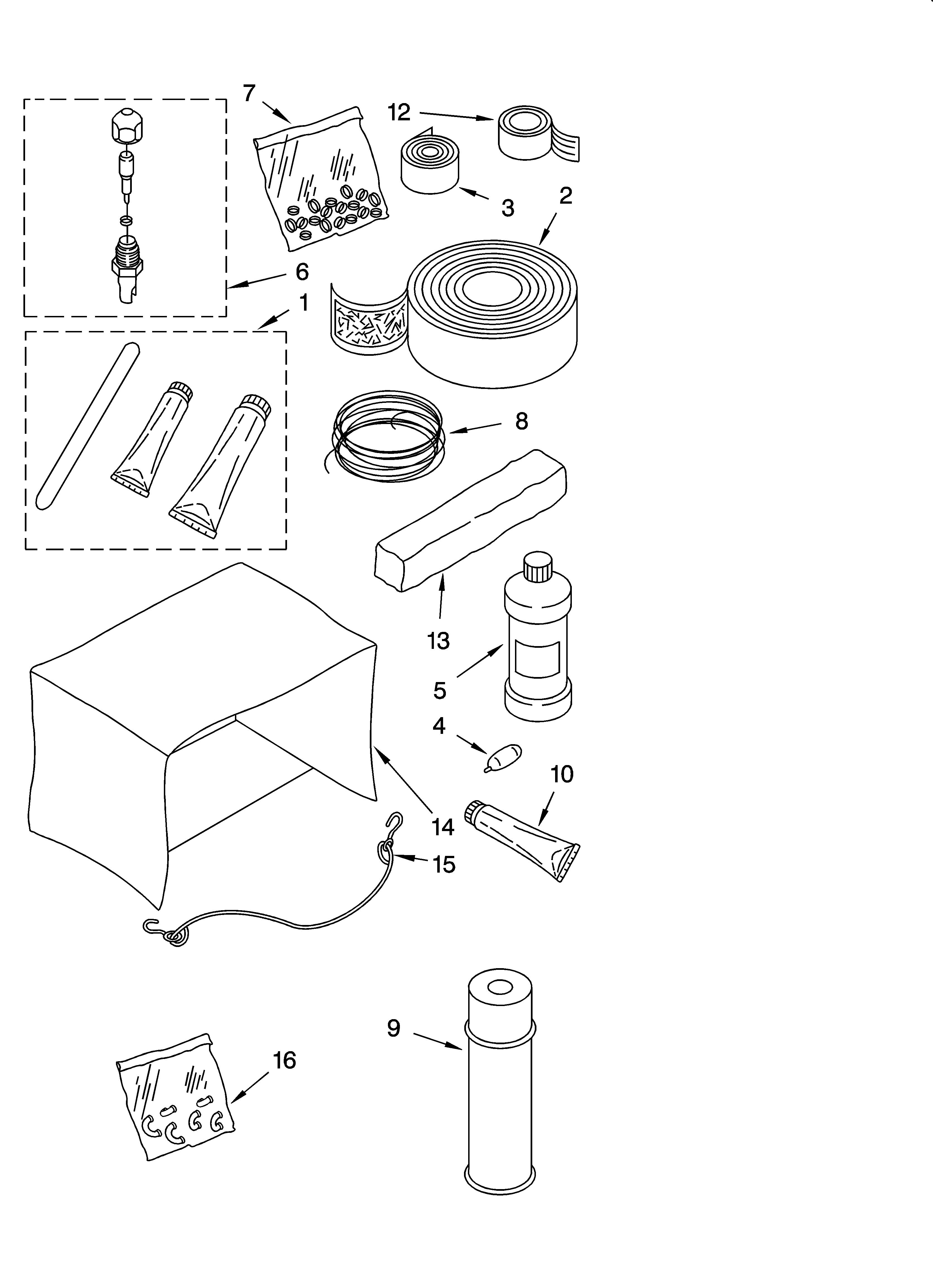

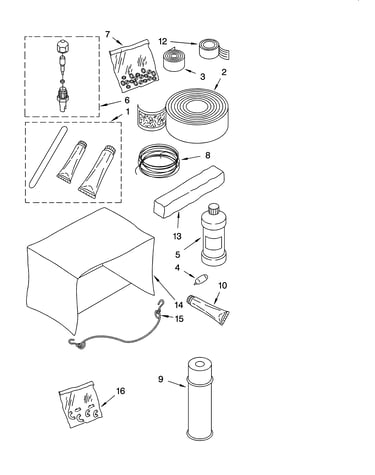

Optional parts (not included) diagram

Cement

Part #279368

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 279368. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
12% OFF Phone Price : $48.72
In Stock
Valve Kit 978025
#6A

Optional parts (not included) diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
Valve Kit 978026
#6B

Optional parts (not included) diagram

Valve kit

Part #978026

Replaced by #978026

?
Manufacturer substitution
This part replaces 978026. Substitute parts can look different from the original.
$34.19 |
15% OFF Phone Price : $40.19
In Stock
Screw 3196160
#3

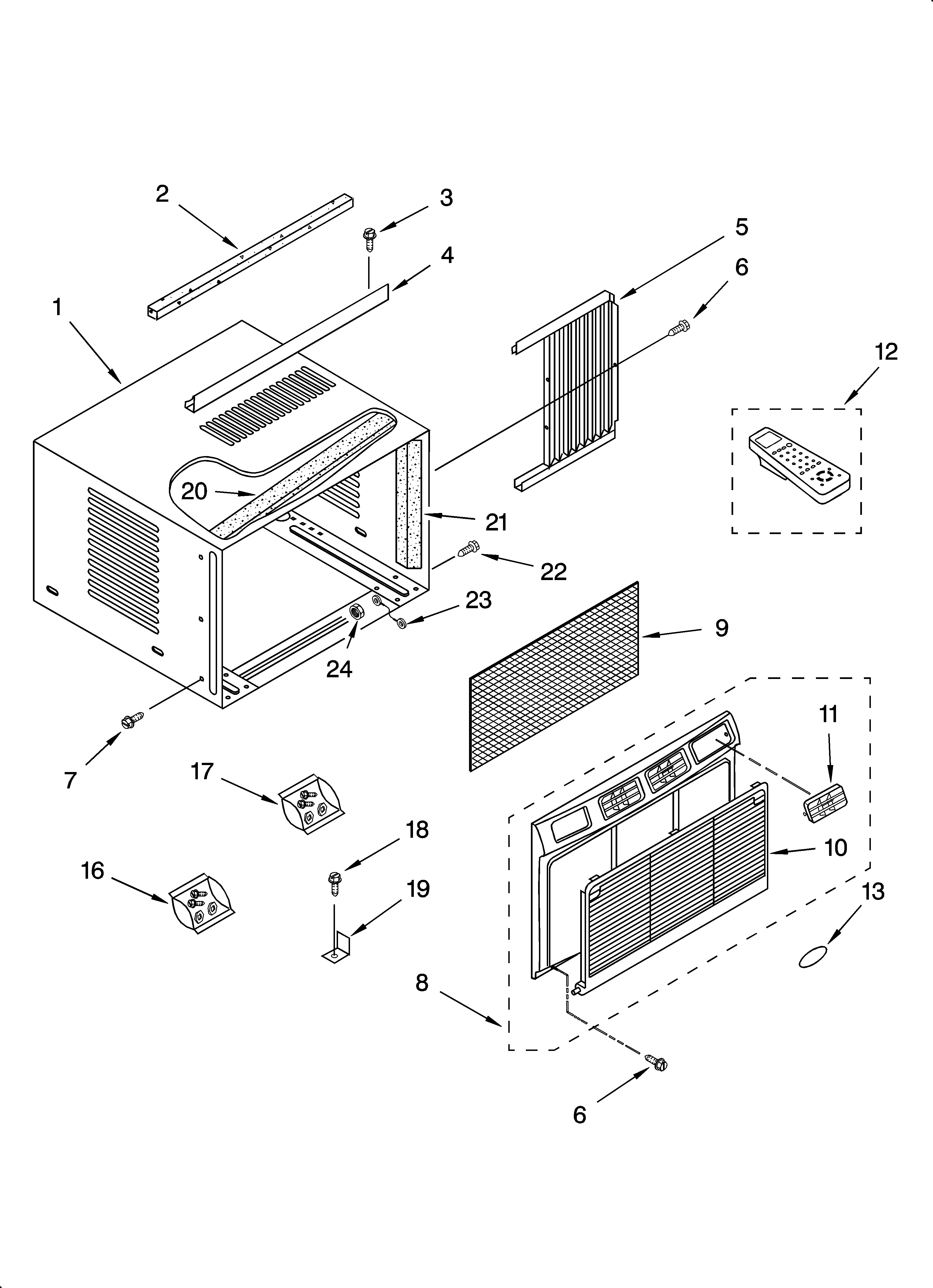

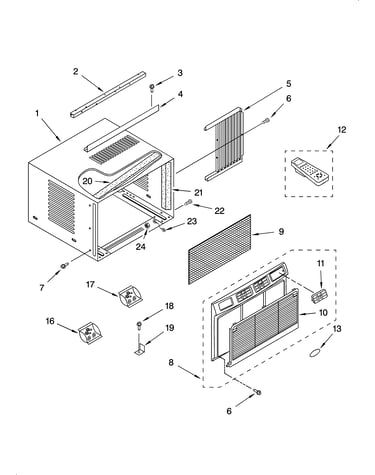

Cabinet parts diagram

Screw

Part #3196160

Replaced by #W10491985

?
Manufacturer substitution
This part replaces 3196160. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Sealer 212643
#12

Optional parts (not included) diagram

Sealer

Part #212643

Replaced by #212643

?
Manufacturer substitution
This part replaces 212643. Substitute parts can look different from the original.
This item is not returnable
$50.09 |
11% OFF Phone Price : $56.09
In Stock
Valve Kit 978030
#6F

Optional parts (not included) diagram

Valve kit

Part #978030

Replaced by #978030

?
Manufacturer substitution
This part replaces 978030. Substitute parts can look different from the original.
$40.49 |
13% OFF Phone Price : $46.49
In Stock
Seal Strip 1180698
#8

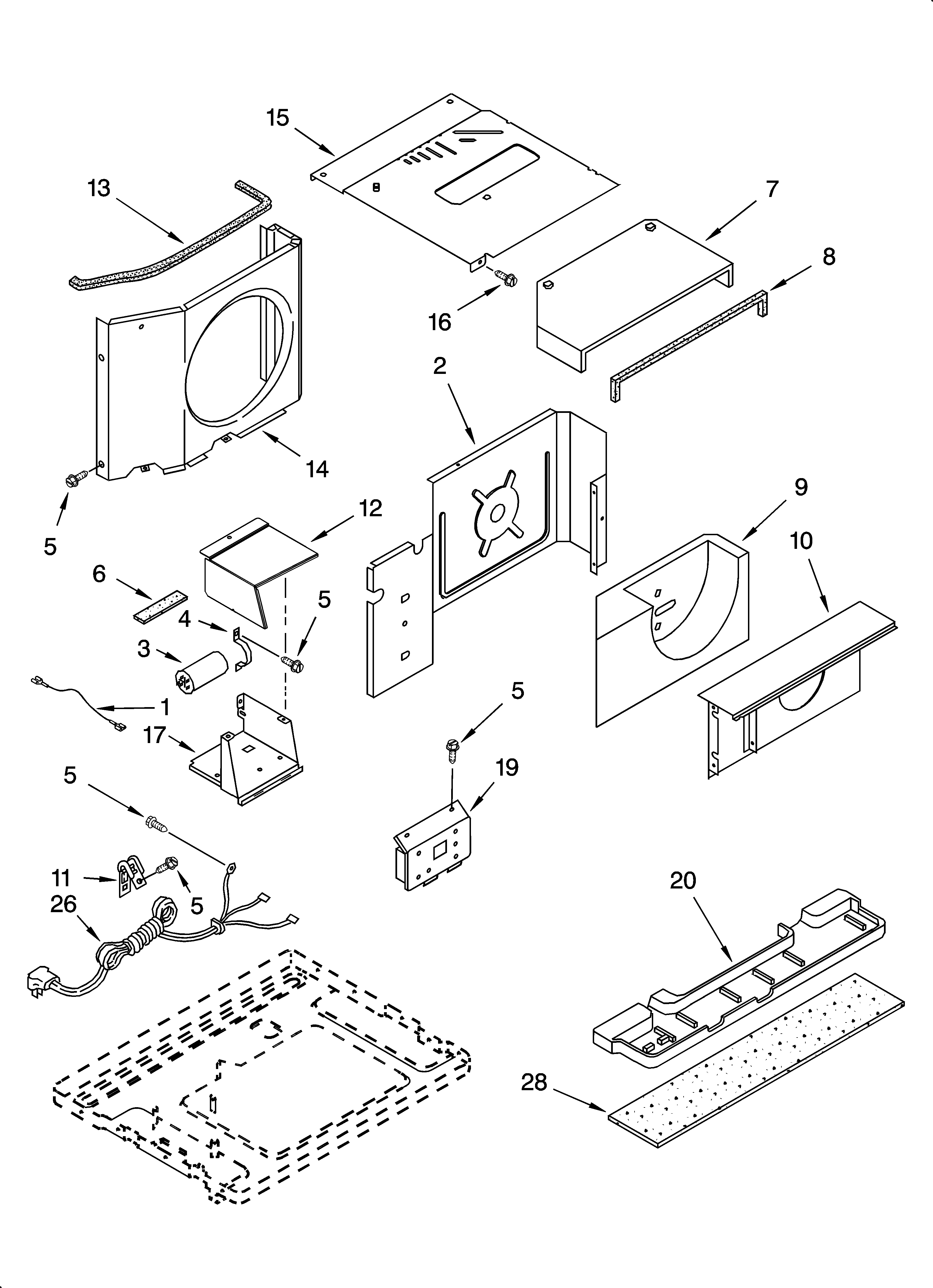

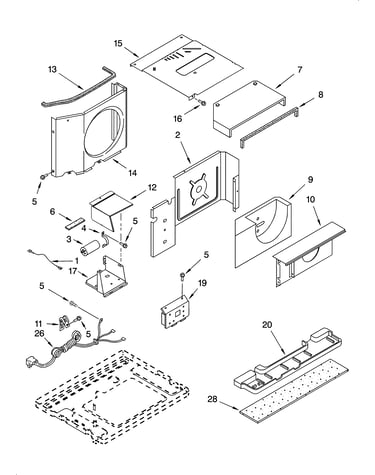

Air flow and control parts diagram

Seal strip

Part #1180698

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 1180698. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Seal 859600
#36

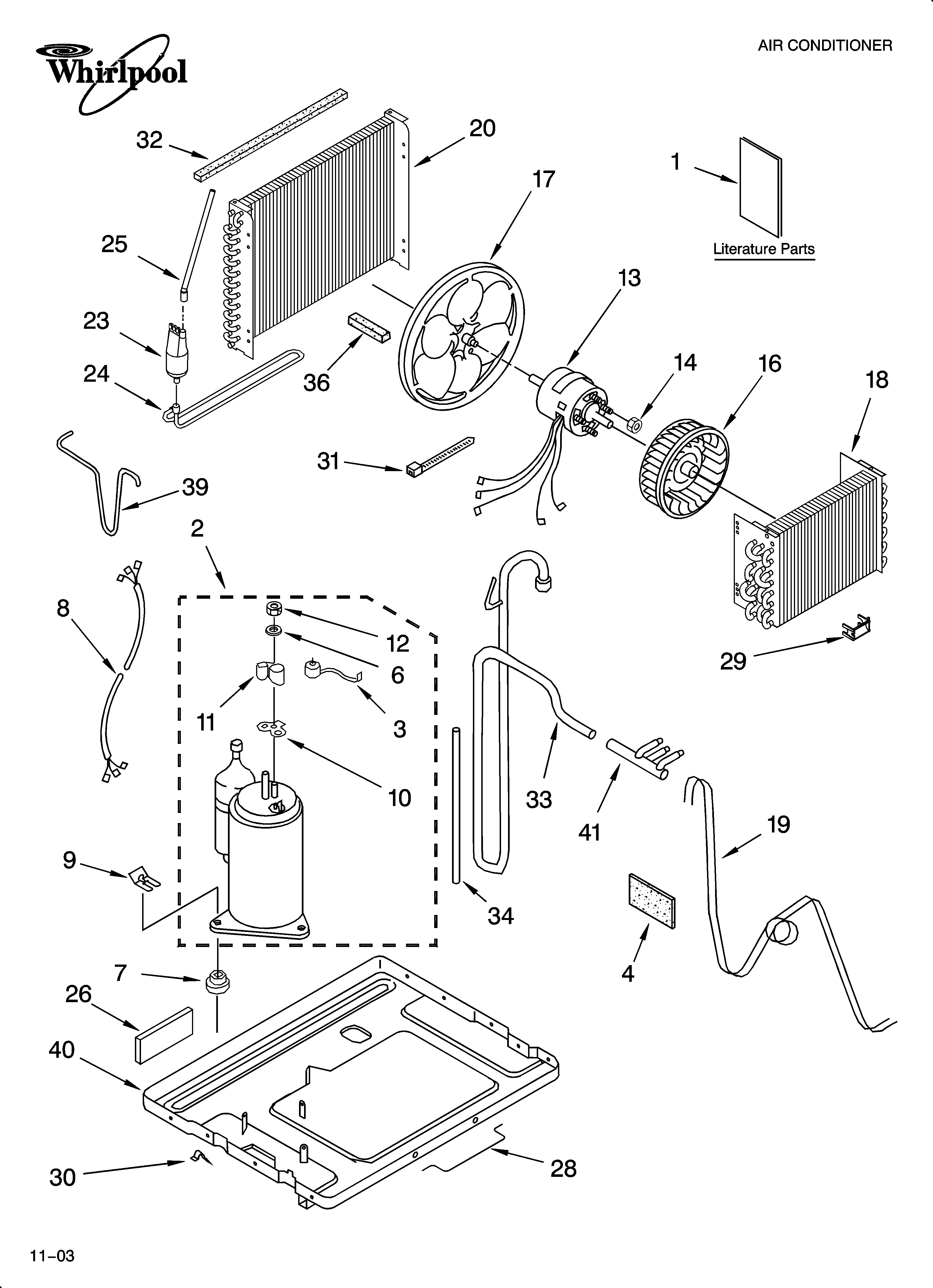

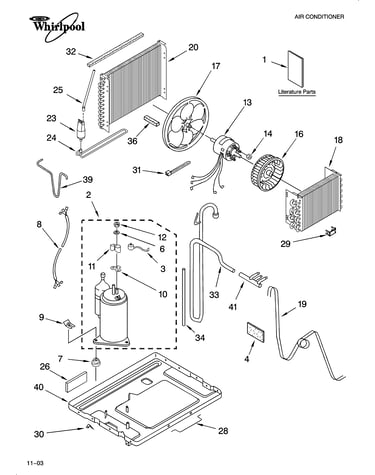

Unit parts diagram

Seal

Part #859600

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 859600. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Ge Room Air Conditioner Outdoor Cover 484184
#14C

Optional parts (not included) diagram

Ge room air conditioner outdoor cover

Part #484184

$54.49 |
10% OFF Phone Price : $60.49
In Stock
Electronic Wire 1186626
#23

Cabinet parts diagram

Electronic wire

Part #1186626

Replaced by #857078

?
Manufacturer substitution
This part replaces 1186626. Substitute parts can look different from the original.
$10.49 |
16% OFF Phone Price : $12.49
In Stock
