Model # 36339400991 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 36339400991 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

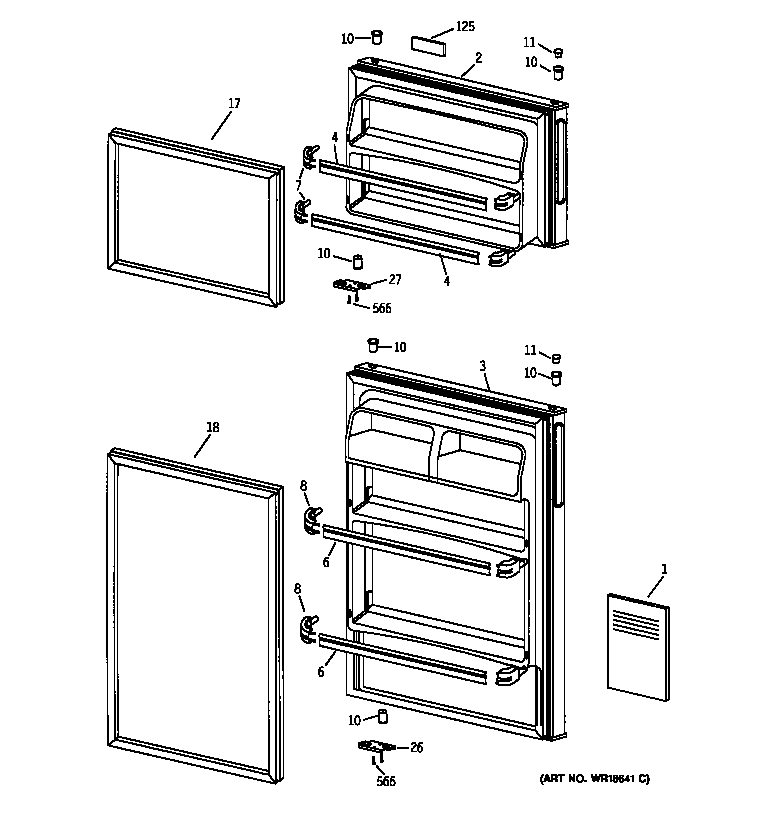

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for36339400991 Refrigerators

  • 40a15/22 STD372402
    #435

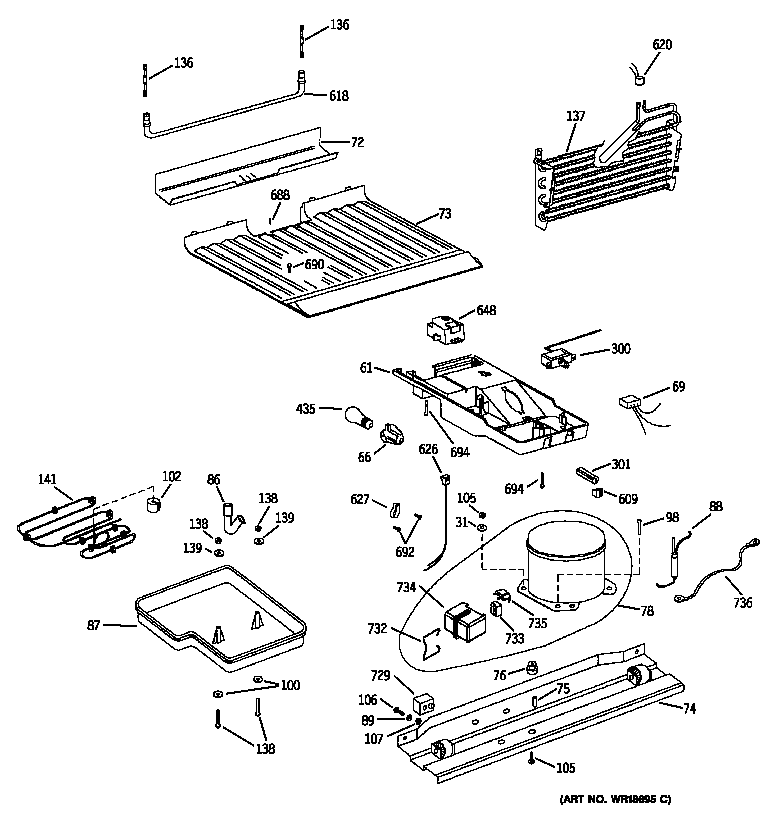

    Unit parts diagram

    40a15/22

    Part #STD372402

    Replaced by #40A15

    ?
    Manufacturer substitution
    This part replaces STD372402. Substitute parts can look different from the original.
    BEST SELLER
    $13.61
    13% OFF Phone Price : $15.61
    In Stock
  • Refrigerator Run Capacitor WR62X79
    #729

    Unit parts diagram

    Refrigerator run capacitor

    Part #WR62X79

    Replaced by #WR55X24064

    ?
    Manufacturer substitution
    This part replaces WR62X79. Substitute parts can look different from the original.
    BEST SELLER
    $55.33
    10% OFF Phone Price : $61.33
    In Stock
  • Foam Washer WR2K10004
    Foam washer

    Part #WR2K10004

    In Stock
  • Refrigerator Water Tubing Clip WR1X5278
    #627

    Unit parts diagram

    Refrigerator water tubing clip

    Part #WR1X5278

    $7.66
    12% OFF Phone Price : $8.66
    In Stock
  • Technician Refrigerator Light Socket WR2X9391
    #66

    Unit parts diagram

    Technician refrigerator light socket

    Part #WR2X9391

    This item is not returnable
    $11.12
    15% OFF Phone Price : $13.12
    In Stock
  • Refrigerator Evaporator Fan Blade WR60X114
    #613A

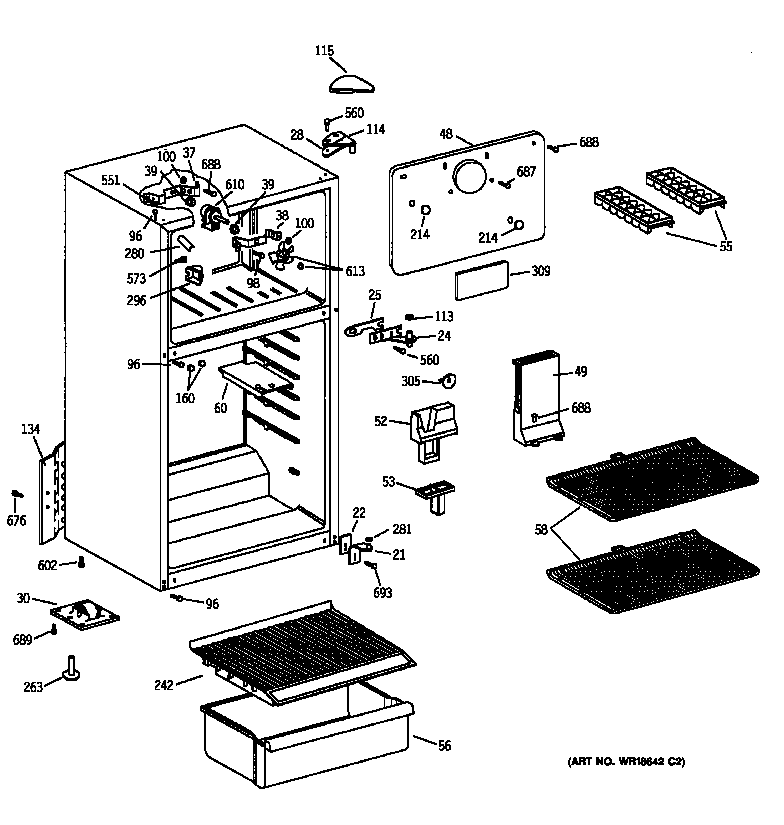

    Cabinet diagram

    Refrigerator evaporator fan blade

    Part #WR60X114

    This item is not returnable
    $20.69
    22% OFF Phone Price : $26.69
    In Stock
  • Refrigerator Defrost Timer WR9X483
    #648

    Unit parts diagram

    Refrigerator defrost timer

    Part #WR9X483

    $41.15
    13% OFF Phone Price : $47.15
    In Stock
  • Refrigerator Button Plug WR2X7148
    #214

    Cabinet diagram

    Refrigerator button plug

    Part #WR2X7148

    Replaced by #WR02X11760

    ?
    Manufacturer substitution
    This part replaces WR2X7148. Substitute parts can look different from the original.
    This item is not returnable
    $7.40
    12% OFF Phone Price : $8.40
    In Stock
  • Refrigerator Fan Blade WR2X3198
    #613B

    Cabinet diagram

    Refrigerator fan blade

    Part #WR2X3198

    Replaced by #WR60X114

    ?
    Manufacturer substitution
    This part replaces WR2X3198. Substitute parts can look different from the original.
    This item is not returnable
    $20.69
    22% OFF Phone Price : $26.69
    In Stock
  • Refrigerator Screw, 2-pack WR1X1754
    #693

    Cabinet diagram

    Refrigerator screw, 2-pack

    Part #WR1X1754

    Replaced by #WR1X1754D

    ?
    Manufacturer substitution
    This part replaces WR1X1754. Substitute parts can look different from the original.
    $27.43
    18% OFF Phone Price : $33.43
    In Stock
