Side-By-Side Refrigerator

Model # CSX22KAXAAD Official Hotpoint non-dispensing refrigerator - 1995

Here are the diagrams and repair parts for Official Hotpoint CSX22KAXAAD non-dispensing refrigerator - 1995, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 206 parts  |
Refrigerator Filter Dryer WR86X96

#740

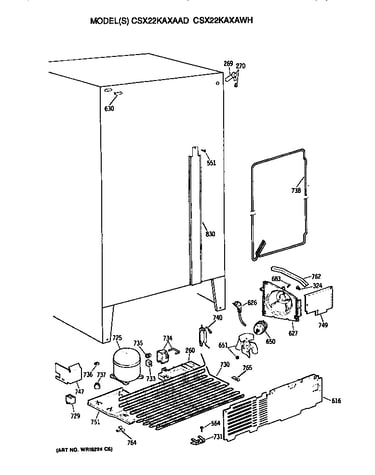

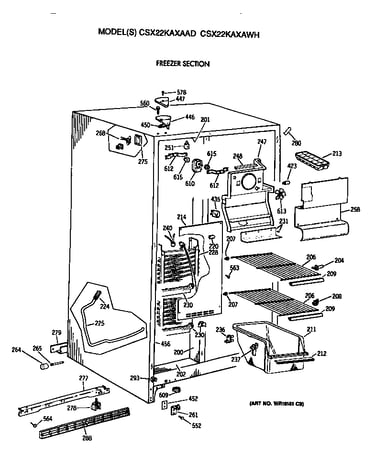

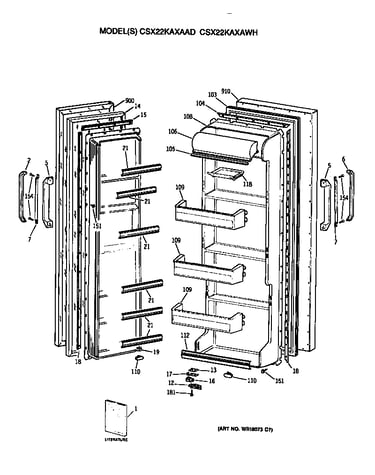

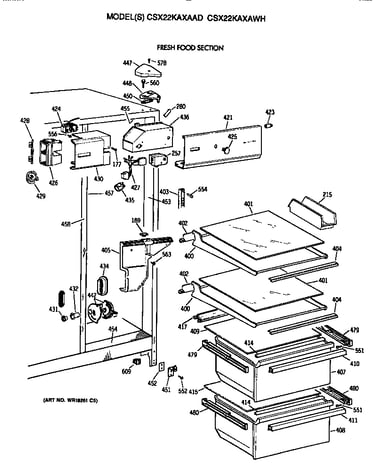

All parts diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402

#435

All parts diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces Wr50x0122, Wr50x10014, Wr50x128) WR50X122

#240

All parts diagram

Refrigerator defrost bi-metal thermostat (replaces wr50x0122, wr50x10014, wr50x128)

Part #WR50X122

BEST SELLER
$37.61 |
14% OFF Phone Price : $43.61
In Stock
Refrigerator Condenser Fan Motor (replaces Swr60x173, Wr60x0187, Wr60x10010, Wr60x165, Wr60x169, Wr60x170, Wr60x173, Wr60x179, Wr60x184, Wr60x233) WR60X187

#650

All parts diagram

Refrigerator condenser fan motor (replaces swr60x173, wr60x0187, wr60x10010, wr60x165, wr60x169, wr60x170, wr60x173, wr60x179, wr60x184, wr60x233)

Part #WR60X187

BEST SELLER
$207.94 |
5% OFF Phone Price : $219.94
In Stock
Refrigerator Drawer Slide Rail (replaces Wr1x2049, Wr72x0240) WR72X240

#479

All parts diagram

Refrigerator drawer slide rail (replaces wr1x2049, wr72x0240)

Part #WR72X240

BEST SELLER
$37.72 |
14% OFF Phone Price : $43.72
In Stock
Refrigerator Grommet WR2X9153

#270

All parts diagram

Refrigerator grommet

Part #WR2X9153

Replaced by #WR2X8474

?
Manufacturer substitution
This part replaces WR2X9153. Substitute parts can look different from the original.
$10.24 |
16% OFF Phone Price : $12.24
In Stock
Refrigerator Evaporator Fan Blade (replaces Swr2x3198, Swr60x114, Wr2x3198, Wr60x0114, Wr60x107, Wr60x113, Wr60x247, Wr60x55, Wr60x80) WR60X114
Refrigerator evaporator fan blade (replaces swr2x3198, swr60x114, wr2x3198, wr60x0114, wr60x107, wr60x113, wr60x247, wr60x55, wr60x80)

Part #WR60X114

This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Fan Blade WR2X3198

#613

All parts diagram

Refrigerator fan blade

Part #WR2X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR2X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Lo-side Kit WR85X282

#228

All parts diagram

Lo-side kit

Part #WR85X282

Replaced by #WR87X28949

?
Manufacturer substitution
This part replaces WR85X282. Substitute parts can look different from the original.
$340.63
In Stock
Refrigerator Relay Protector WR7X200

#733

All parts diagram

Refrigerator relay protector

Part #WR7X200

Replaced by #WR07X10055

?
Manufacturer substitution
This part replaces WR7X200. Substitute parts can look different from the original.
This item is not returnable
$21.30 |
22% OFF Phone Price : $27.30
In Stock
