Power Nailer

Model # 315FS2000 Official Craftsman nailer

Here are the diagrams and repair parts for Official Craftsman 315FS2000 nailer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

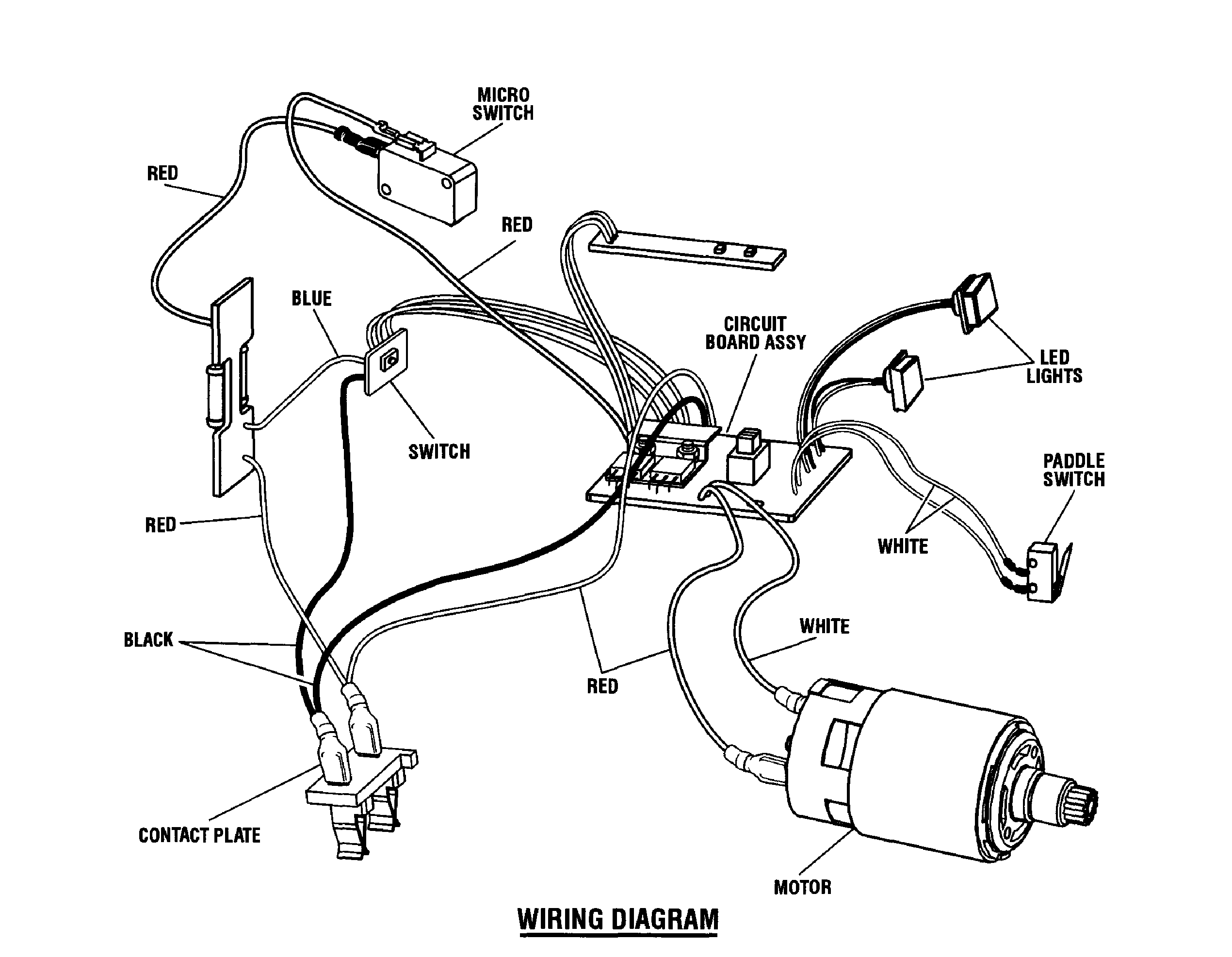

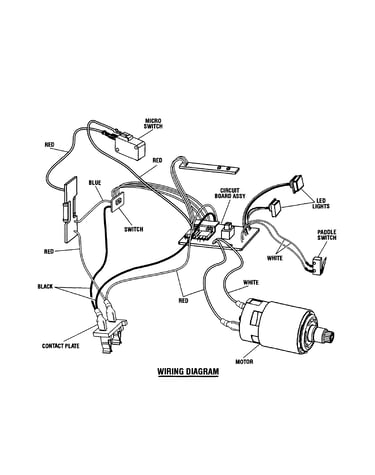

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Crank Case And Gear Assem Bly 202605001
#23

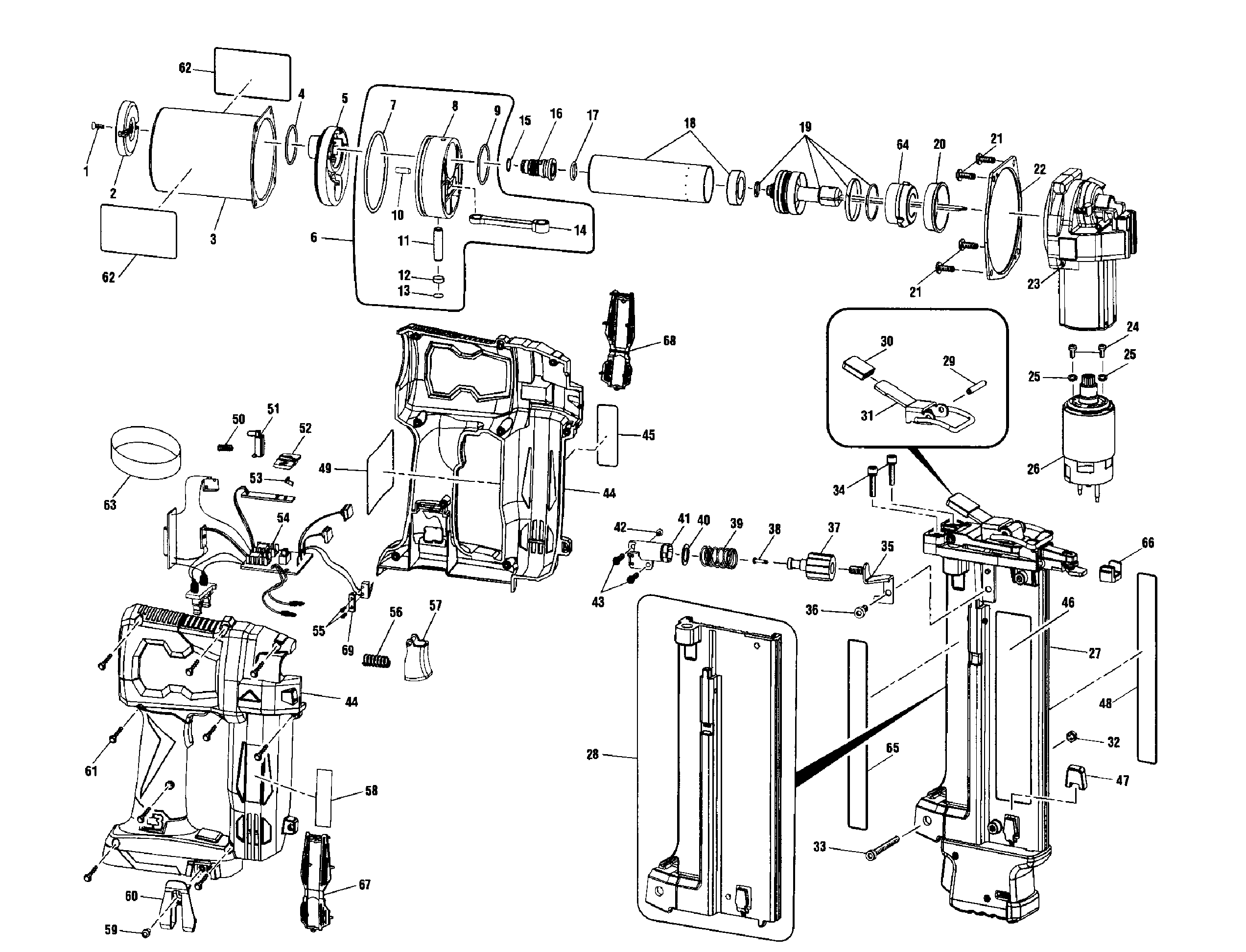

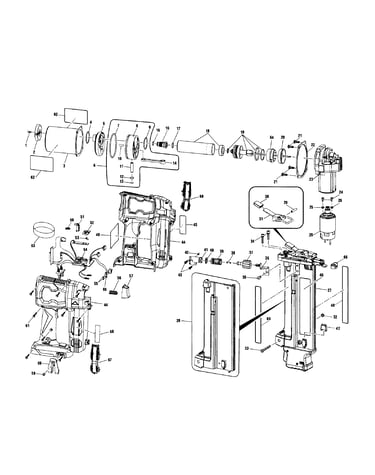

Nailer diagram

Crank case and gear assem bly

Part #202605001

The manufacturer no longer makes this part, and there's no substitute part

Spring Plate 634401001
#53

Nailer diagram

Spring plate

Part #634401001

The manufacturer no longer makes this part, and there's no substitute part

Piston And Rod Assembly 206151001
#6

Nailer diagram

Piston and rod assembly

Part #206151001

The manufacturer no longer makes this part, and there's no substitute part

Depth Adjustment Knob Holder 524688001
#41

Nailer diagram

Depth adjustment knob holder

Part #524688001

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 202606001
#26

Nailer diagram

Motor assembly

Part #202606001

The manufacturer no longer makes this part, and there's no substitute part

Spiral Pin 673107001
#29

Nailer diagram

Spiral pin

Part #673107001

The manufacturer no longer makes this part, and there's no substitute part

Spring 693475001
#39

Nailer diagram

Spring

Part #693475001

The manufacturer no longer makes this part, and there's no substitute part

Led Trigger 524652002
#51

Nailer diagram

Led trigger

Part #524652002

The manufacturer no longer makes this part, and there's no substitute part

Pin 673090001
#11

Nailer diagram

Pin

Part #673090001

The manufacturer no longer makes this part, and there's no substitute part

Screw W/washer M2x14 661902001
#55

Nailer diagram

Screw w/washer m2x14

Part #661902001

The manufacturer no longer makes this part, and there's no substitute part
