Model # KEMS306BAL1 Official KitchenAid built-in oven with microwave
Here are the diagrams and repair parts for Official KitchenAid KEMS306BAL1 built-in oven with microwave, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for

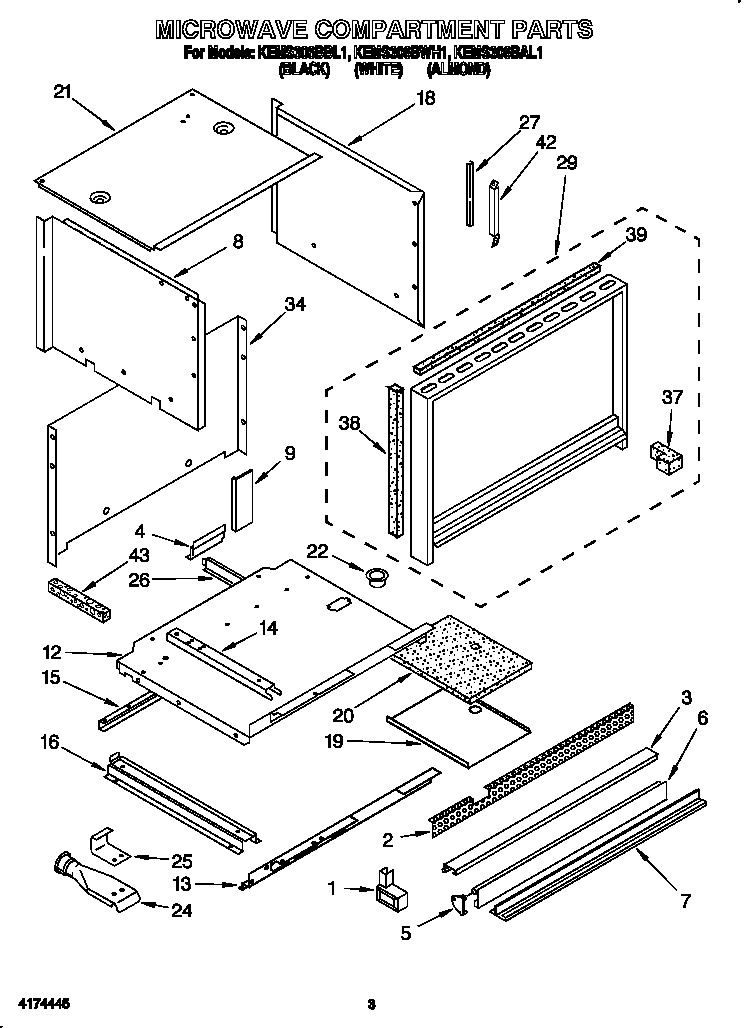

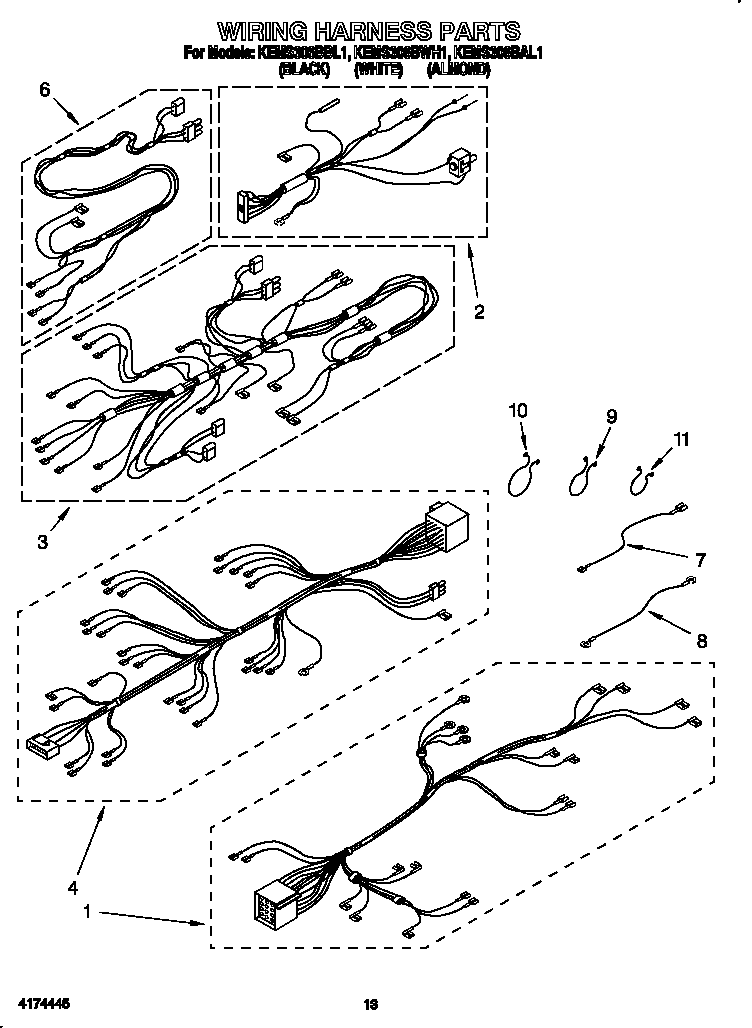

KEMS306BAL1 Built-In Oven with Microwave
#29

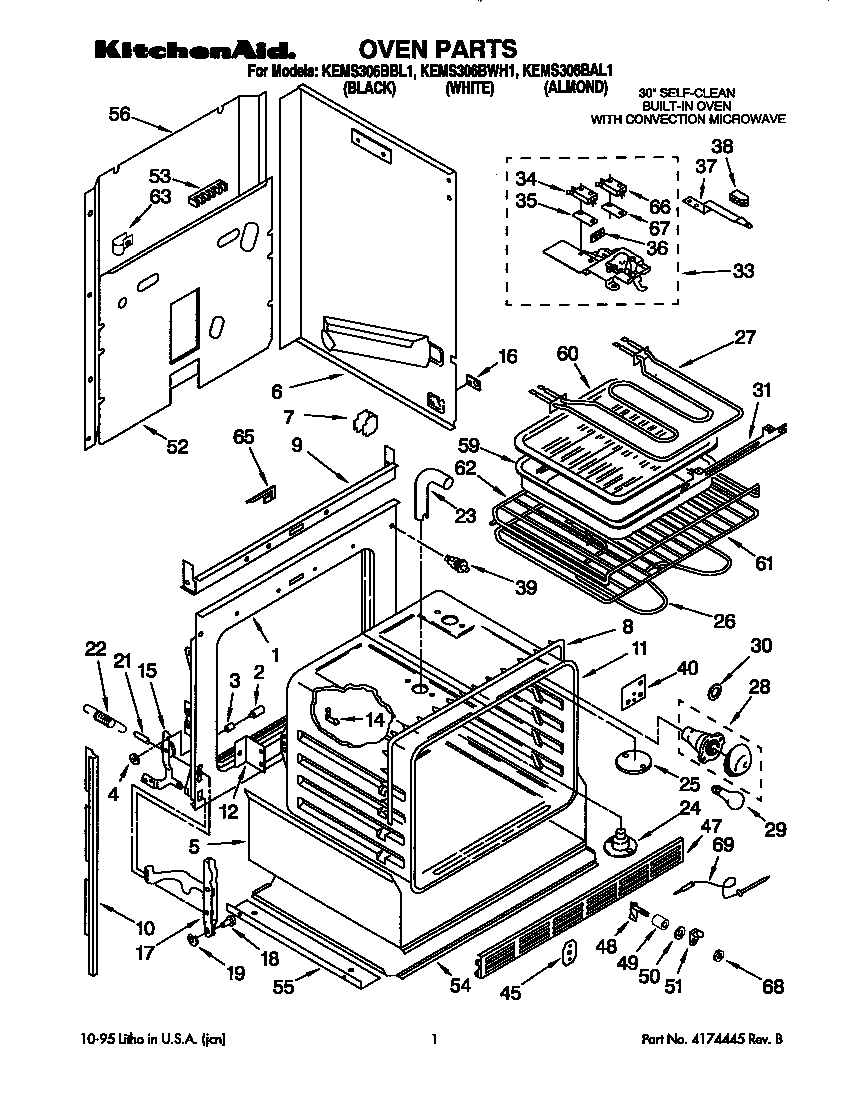

Oven diagram
Light bulb
Part #311255
Replaced by #40A15
?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
$16.73 |
11% OFF Phone Price : $18.73
In Stock
#NI
All parts diagram
Spray w
Part #350930
Replaced by #350930
?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
#NI
All parts diagram
Touchup al
Part #72107
Replaced by #WB32X106
?
Manufacturer substitution
This part replaces 72107. Substitute parts can look different from the original.
$19.42 |
9% OFF Phone Price : $21.42
In Stock
#1

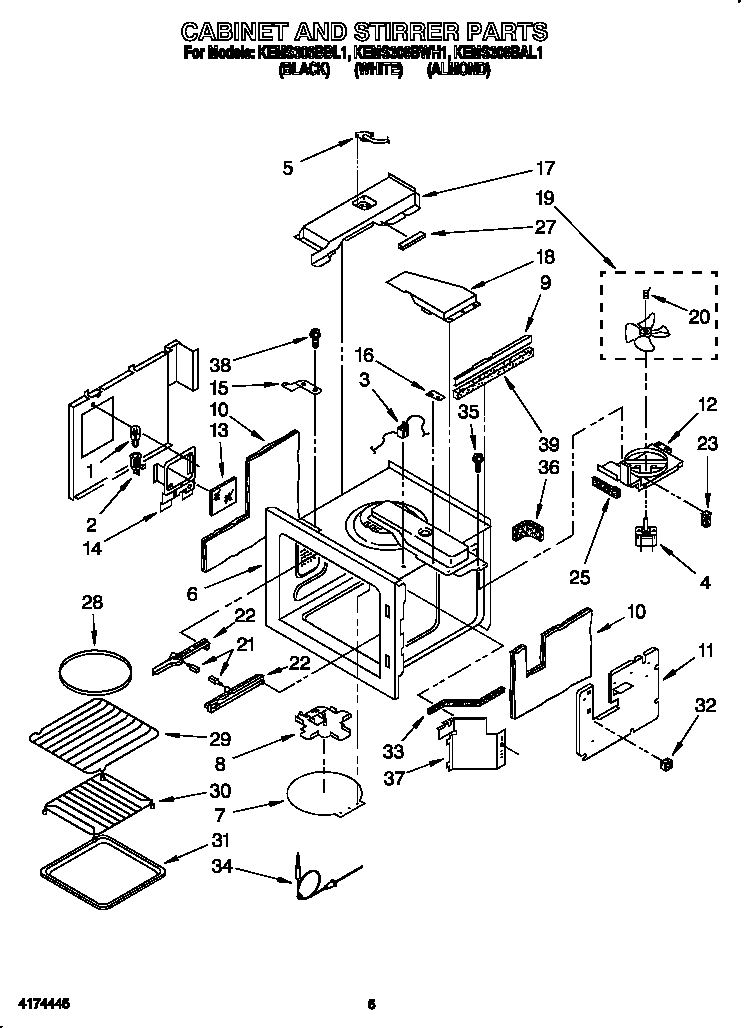

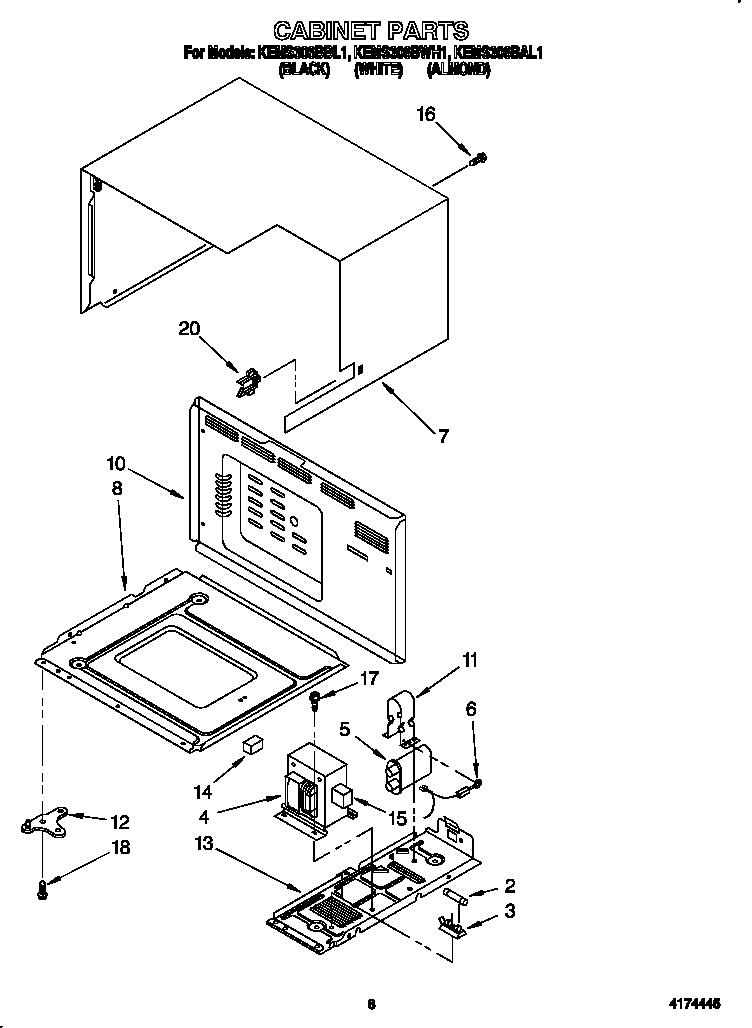

Cabinet and stirrer diagram
Light bulb
Part #4312826
Replaced by #WPA3073101
?
Manufacturer substitution
This part replaces 4312826. Substitute parts can look different from the original.
$18.12 |
10% OFF Phone Price : $20.12
In Stock
#NI
All parts diagram
Touch-up paint (black)
Part #72032
Replaced by #72032
?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
#3

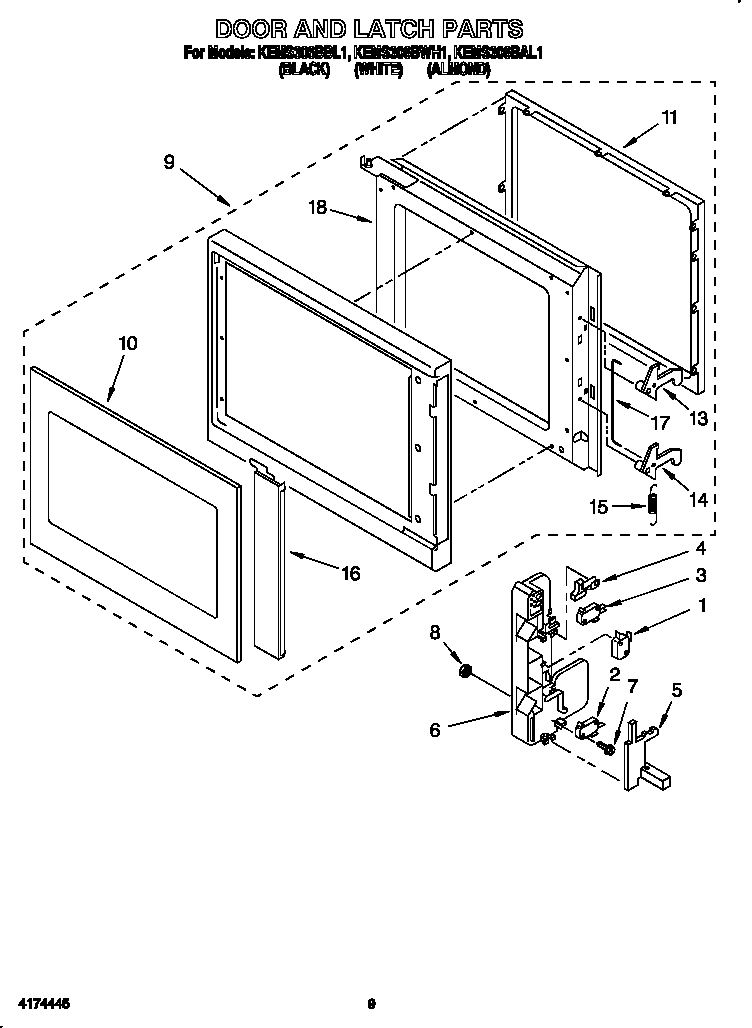

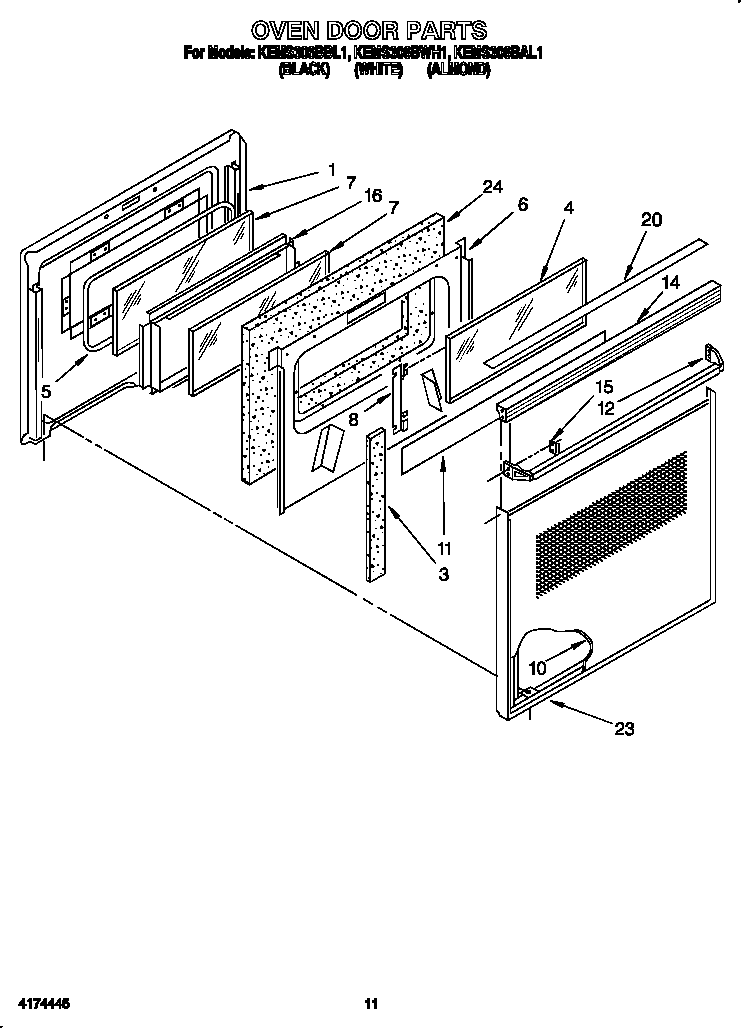

Door and latch diagram
Switch
Part #4312948
Replaced by #4392027
?
Manufacturer substitution
This part replaces 4312948. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
#2
Door and latch diagram
Switch
Part #4313611
Replaced by #4392027
?
Manufacturer substitution
This part replaces 4313611. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
#2

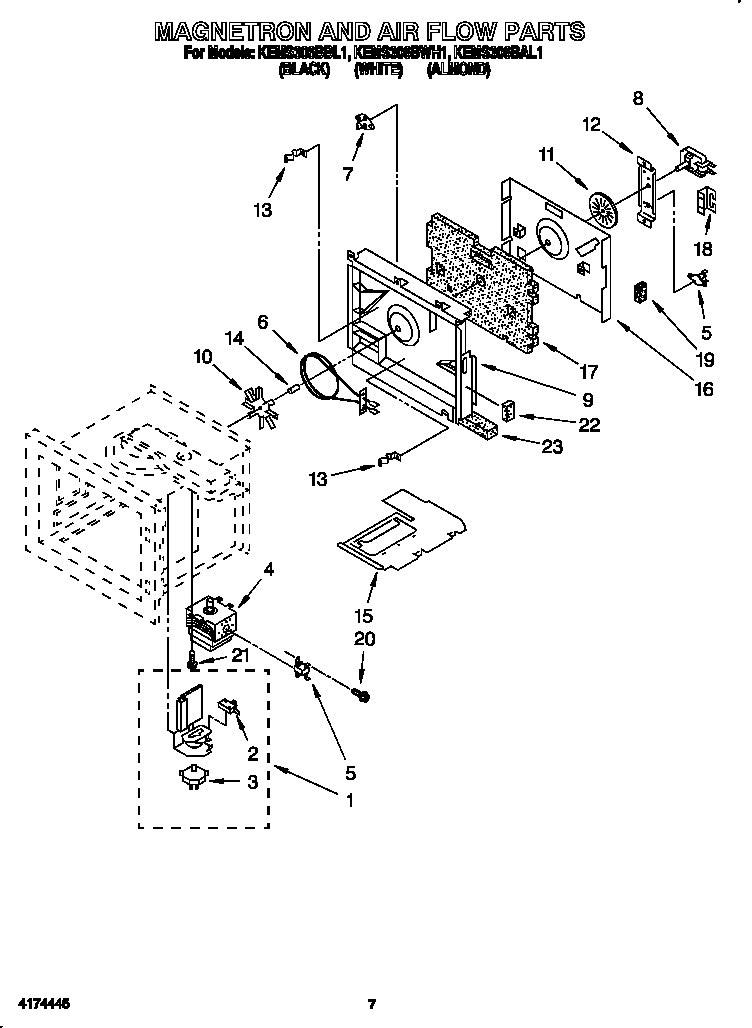

Magnetron and air flow diagram
Switch
Part #4312823
Replaced by #4392027
?
Manufacturer substitution
This part replaces 4312823. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
#24

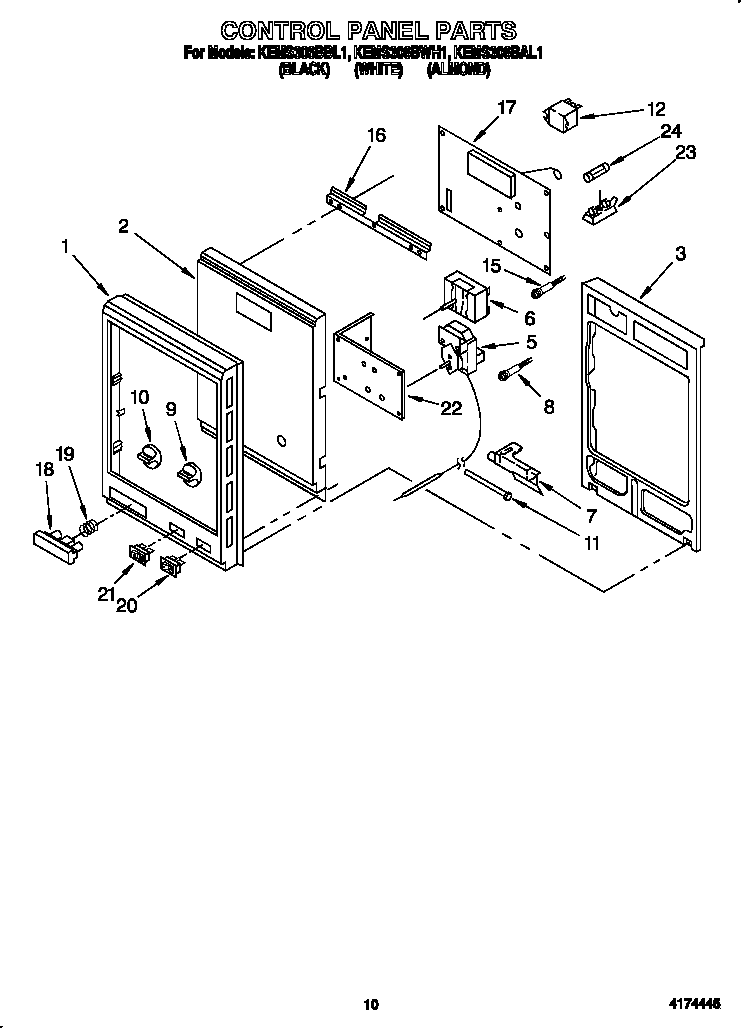

Control panel diagram
Fuse
Part #309796
Replaced by #WPW10017410
?
Manufacturer substitution
This part replaces 309796. Substitute parts can look different from the original.
This item is not returnable
$11.89 |
14% OFF Phone Price : $13.89
In Stock
#28
Oven diagram
Light socket
Part #3150505
Replaced by #W11594027
?
Manufacturer substitution
This part replaces 3150505. Substitute parts can look different from the original.
$56.53 |
10% OFF Phone Price : $62.53
In Stock
