Model # 11319738 Official Craftsman 1/2-hp capacitor start electric motor

Here are the diagrams and repair parts for Official Craftsman 11319738 1/2-hp capacitor start electric motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

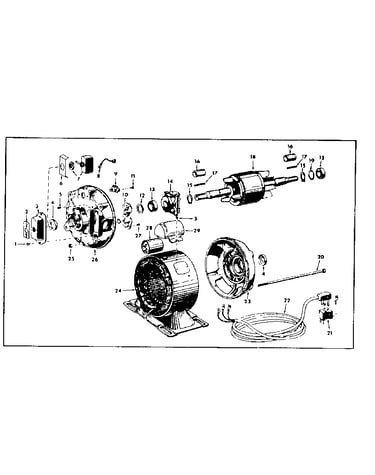

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Retaining Ring 30783
#15

Unit diagram

Retaining ring

Part #30783

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 37163
#19

Unit diagram

Spring washer

Part #37163

The manufacturer no longer makes this part, and there's no substitute part

Screw S-1409
#11

Unit diagram

Screw

Part #S-1409

The manufacturer no longer makes this part, and there's no substitute part

Plate Indica 24248
#2

Unit diagram

Plate indica

Part #24248

The manufacturer no longer makes this part, and there's no substitute part

Shaft Key 30789
#17

Unit diagram

Shaft key

Part #30789

The manufacturer no longer makes this part, and there's no substitute part

Insulation 37175
#6

Unit diagram

Insulation

Part #37175

The manufacturer no longer makes this part, and there's no substitute part

Screw S-1330
#27

Unit diagram

Screw

Part #S-1330

The manufacturer no longer makes this part, and there's no substitute part

Screw S-1412
#5

Unit diagram

Screw

Part #S-1412

The manufacturer no longer makes this part, and there's no substitute part

Rotor Assembly 37292
#18

Unit diagram

Rotor assembly

Part #37292

The manufacturer no longer makes this part, and there's no substitute part

End Shield 37157
#26

Unit diagram

End shield

Part #37157

The manufacturer no longer makes this part, and there's no substitute part
