GE
Electric Wall Oven

Model # JTP20SF5SS Official GE electric oven

Here are the diagrams and repair parts for Official GE JTP20SF5SS electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Oven Lamp WB08T10022
#257

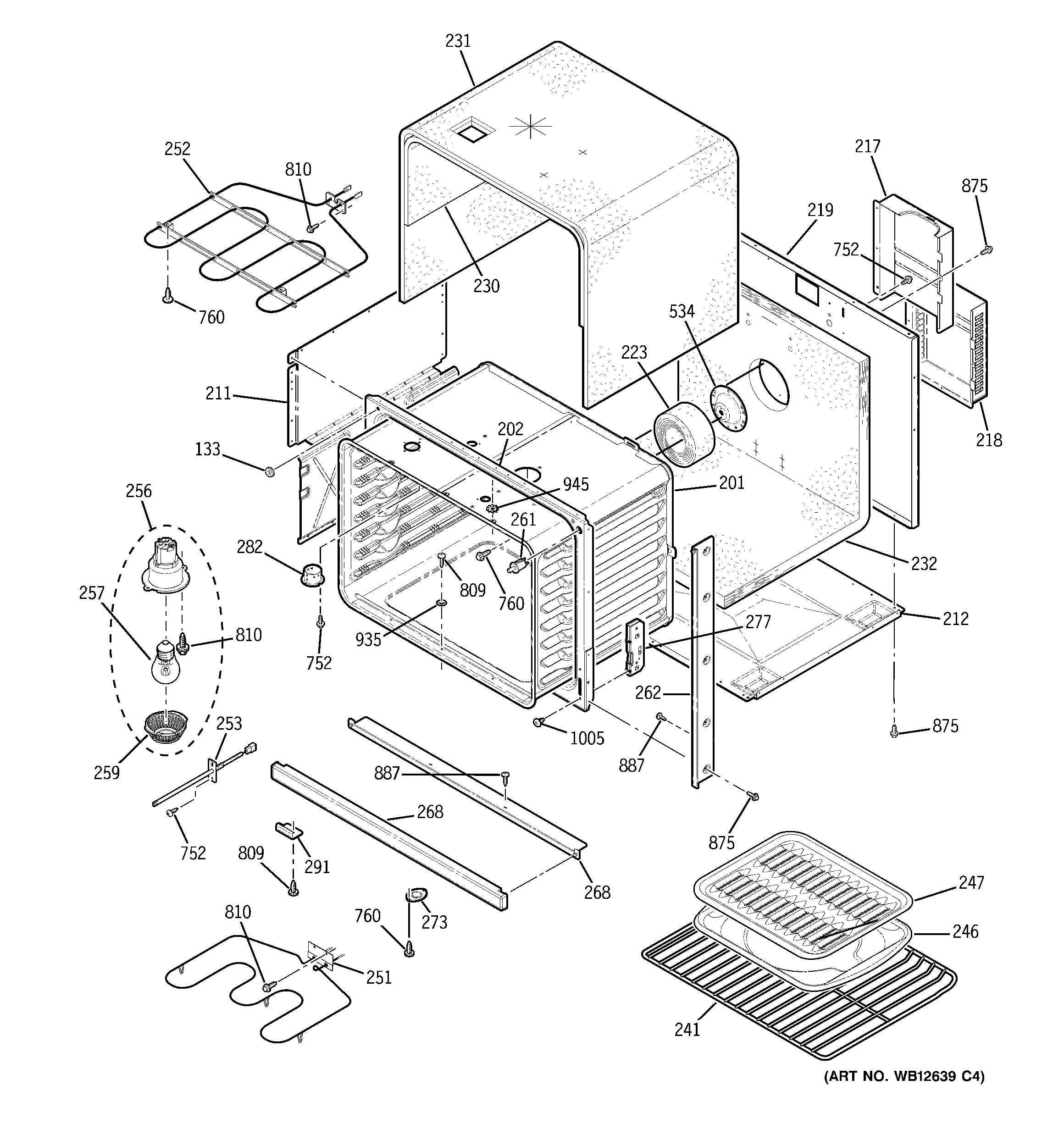

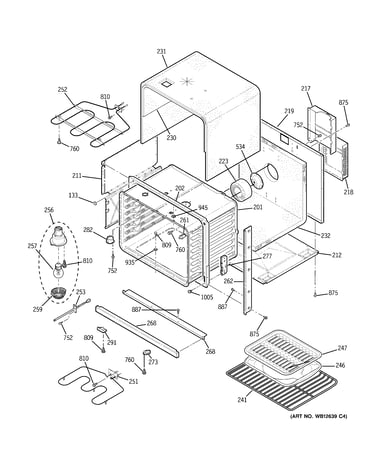

Body parts diagram

Oven lamp

Part #WB08T10022

Replaced by #40A15

?
Manufacturer substitution
This part replaces WB08T10022. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Wall Oven Temperature Sensor WB23T10015
#253

Body parts diagram

Wall oven temperature sensor

Part #WB23T10015

BEST SELLER
$26.19 |
19% OFF Phone Price : $32.19
In Stock
Range Bake Element (replaces Wb44t10025) WB44T10018
#251

Body parts diagram

Range bake element (replaces wb44t10025)

Part #WB44T10018

BEST SELLER
$59.02 |
9% OFF Phone Price : $65.02
In Stock
Range Oven Door Middle Glass (replaces Wb55t10191) WB56T10105
#338

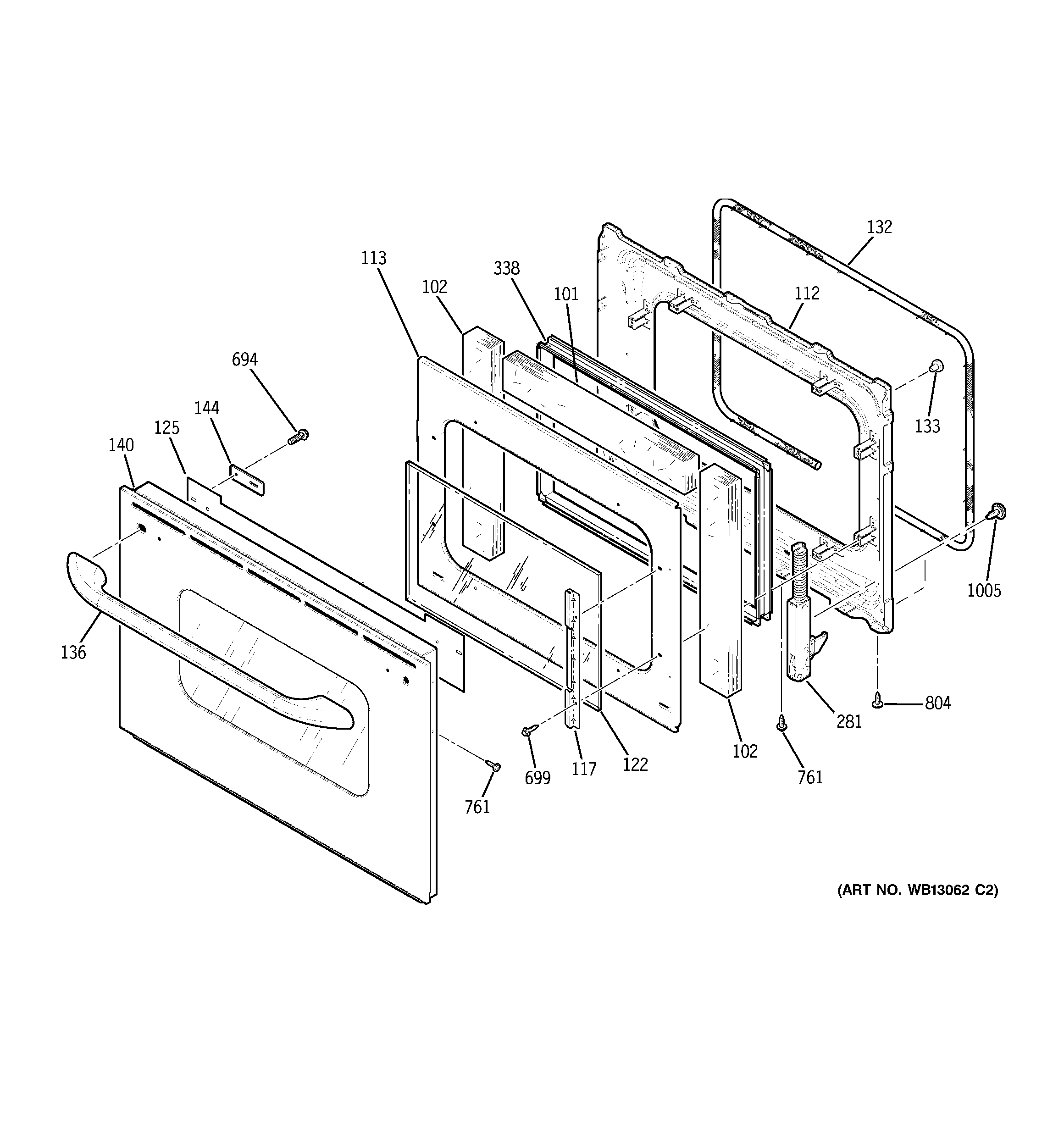

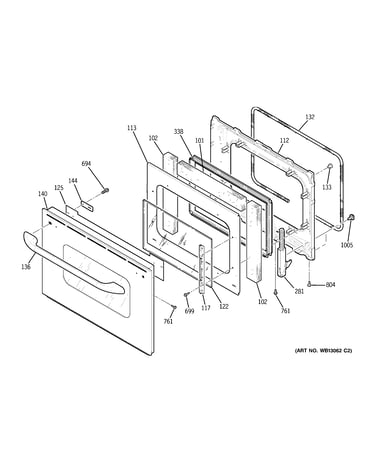

Door diagram

Range oven door middle glass (replaces wb55t10191)

Part #WB56T10105

BEST SELLER
$98.87 |
11% OFF Phone Price : $110.87
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#159

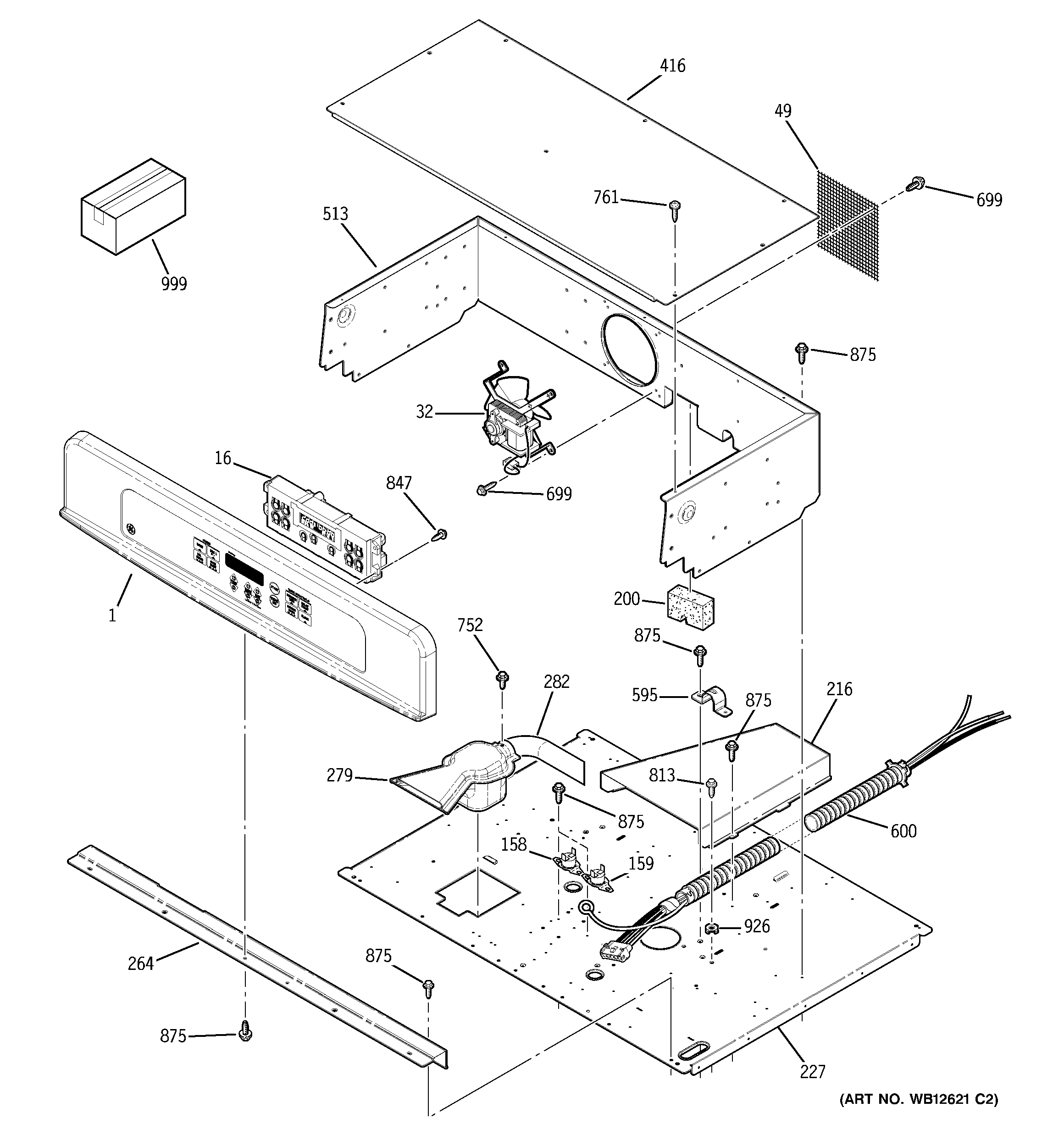

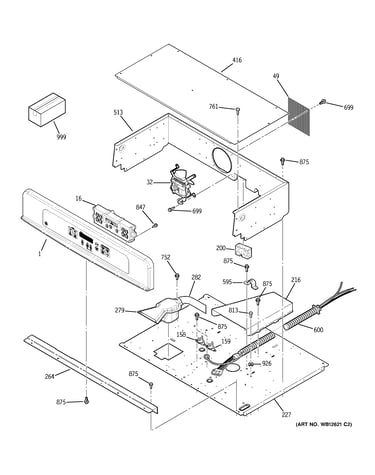

Control panel diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Control Panel WB36T10550
#1

Control panel diagram

Range control panel

Part #WB36T10550

$413.26 |
$12.00 OFF Phone Price : $425.26
In Stock
Screw WB01X1137
#809

Body parts diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01K5028
#760

Body parts diagram

Screw

Part #WB01K5028

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB01K5028. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw St WB01K5173
#887

Body parts diagram

Screw st

Part #WB01K5173

Replaced by #WB1K5173

?
Manufacturer substitution
This part replaces WB01K5173. Substitute parts can look different from the original.
This item is not returnable
$8.11
In Stock
Range Oven Vent WB28T10073
Range oven vent

Part #WB28T10073

Replaced by #WB38X33650

?
Manufacturer substitution
This part replaces WB28T10073. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
