Model # 706461160 Official Craftsman tool chest

Here are the diagrams and repair parts for Official Craftsman 706461160 tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Nameplate 1007302
#2

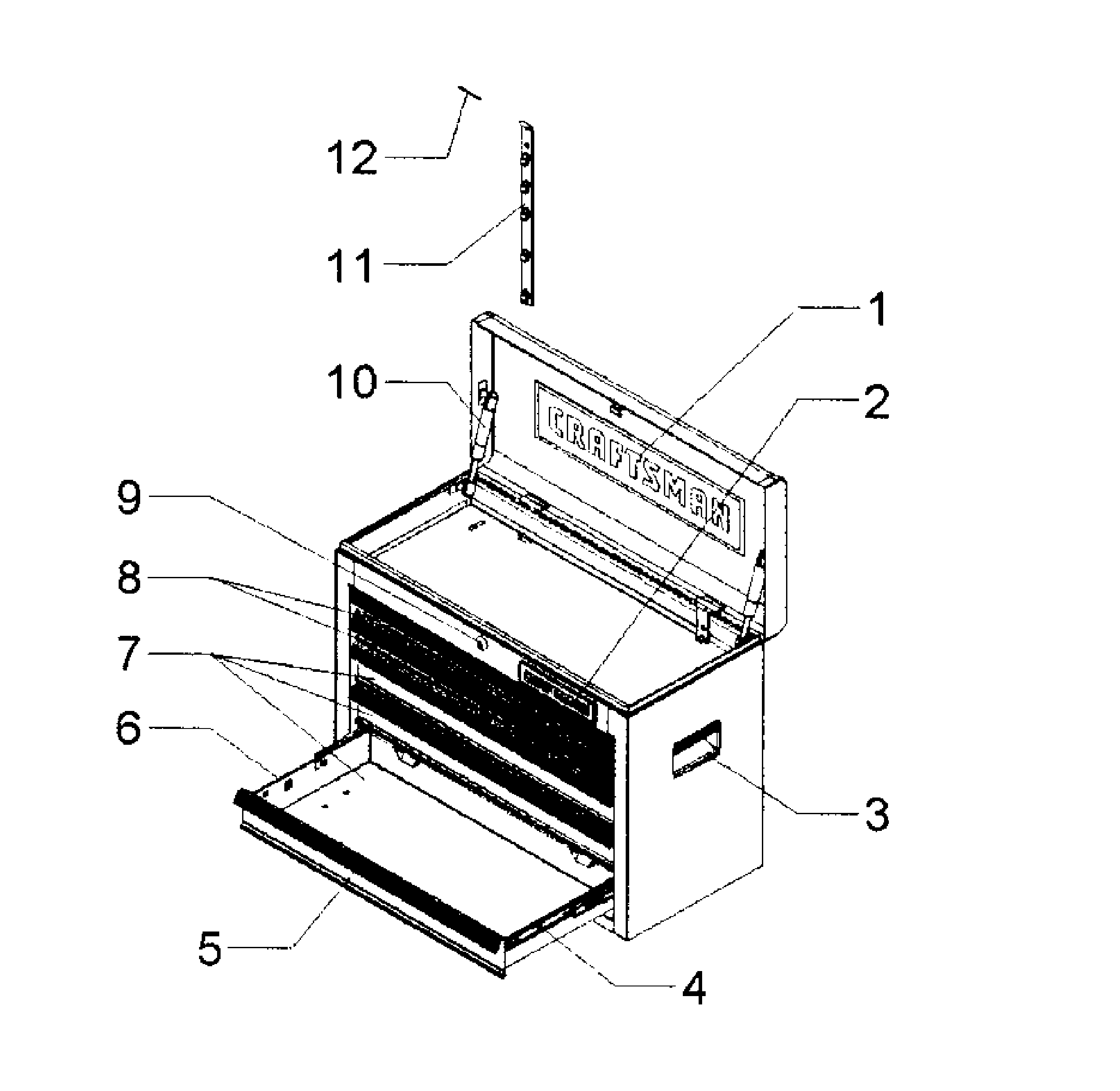

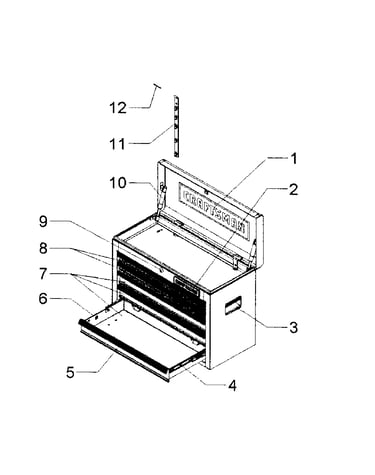

Tool chest diagram

Nameplate

Part #1007302

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer Slide, Left 1008033
#6

Tool chest diagram

Tool chest drawer slide, left

Part #1008033

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer Slide, Right 1008034
#4

Tool chest diagram

Tool chest drawer slide, right

Part #1008034

The manufacturer no longer makes this part, and there's no substitute part

Companion Tool Chest Door Hinge Pin M1495
#12

Tool chest diagram

Companion tool chest door hinge pin

Part #M1495

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lock 1006592
#9

Tool chest diagram

Tool chest lock

Part #1006592

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer, 3-in A17651A1-EBK
#7

Tool chest diagram

Tool chest drawer, 3-in

Part #A17651A1-EBK

The manufacturer no longer makes this part, and there's no substitute part

Lockbar Black 18459-EBK
#11

Tool chest diagram

Lockbar black

Part #18459-EBK

The manufacturer no longer makes this part, and there's no substitute part

Gas Spring 1006587
#10

Tool chest diagram

Gas spring

Part #1006587

The manufacturer no longer makes this part, and there's no substitute part

Instruction Sheet F1913
#NI

Tool chest diagram

Instruction sheet

Part #F1913

The manufacturer no longer makes this part, and there's no substitute part

Drawer Trim 1007301
#5

Tool chest diagram

Drawer trim

Part #1007301

The manufacturer no longer makes this part, and there's no substitute part
