Kenmore
Gas Grill

Model # 14634436410 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 14634436410 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Gas Grill Ignition Module 40800122
#34

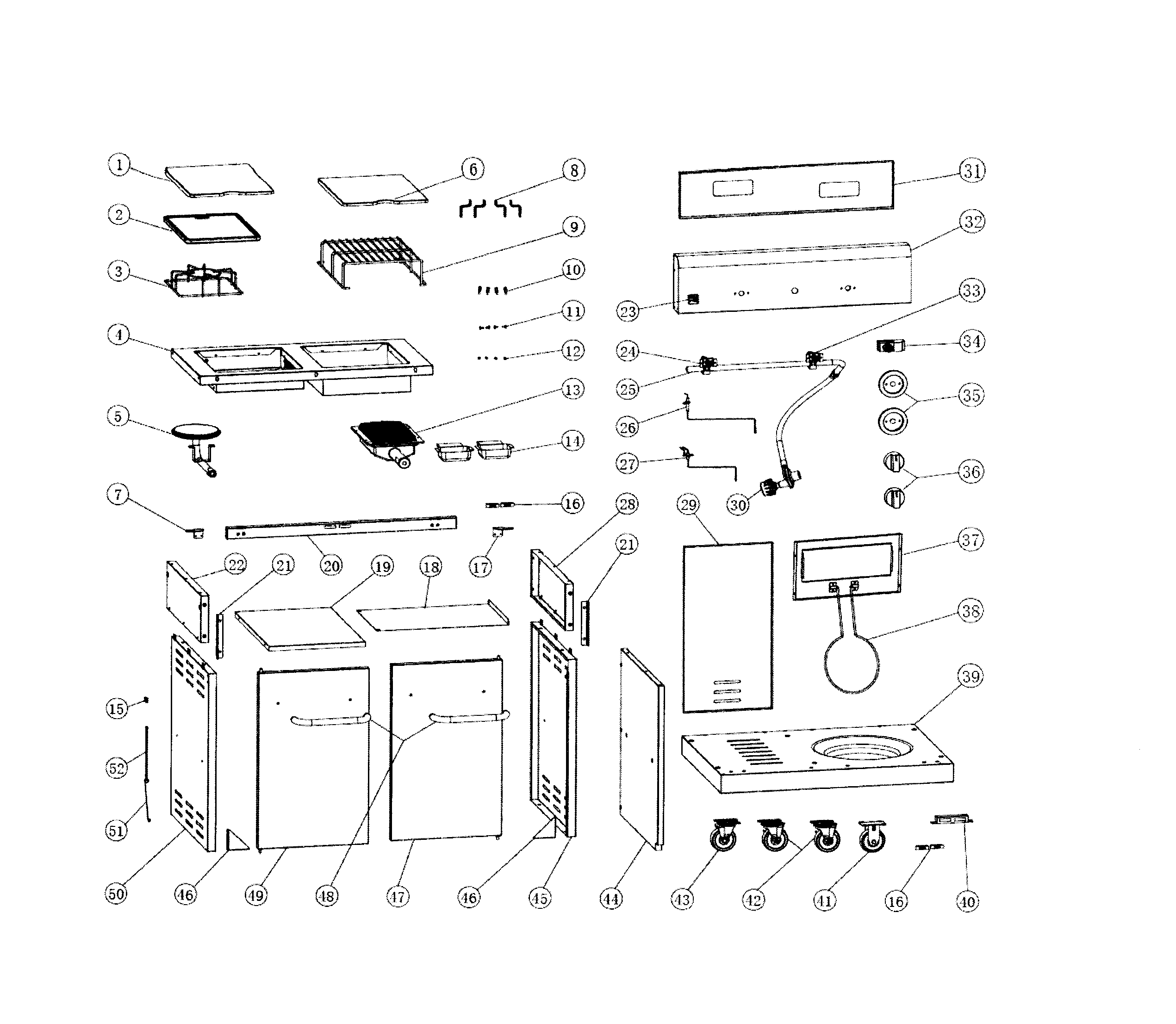

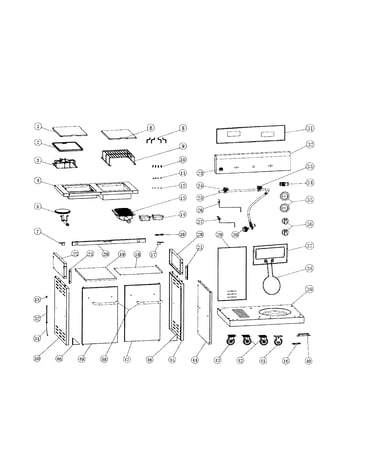

Grill assy diagram

Gas grill ignition module

Part #40800122

$57.39 |
9% OFF Phone Price : $63.39
In Stock
Permasteel Gas Grill Burner Knob 40900206
#36

Grill assy diagram

Permasteel gas grill burner knob

Part #40900206

$10.39 |
16% OFF Phone Price : $12.39
In Stock
Permasteel Gas Grill Burner Knob Bezel 40900036
#35

Grill assy diagram

Permasteel gas grill burner knob bezel

Part #40900036

This item is not returnable
$5.53 |
15% OFF Phone Price : $6.53
In Stock
Gas Grill Door Bracket, Right 40200057
#17

Grill assy diagram

Gas grill door bracket, right

Part #40200057

This item is not returnable
$2.30
In Stock
Gas Grill Door Magnet Box 40200072
#40

Grill assy diagram

Gas grill door magnet box

Part #40200072

$8.77 |
10% OFF Phone Price : $9.77
In Stock
Gas Grill Caster Wheel 40900213
#43

Grill assy diagram

Gas grill caster wheel

Part #40900213

$28.29 |
17% OFF Phone Price : $34.29
In Stock
Gas Grill Door Handle 40900076
#48

Grill assy diagram

Gas grill door handle

Part #40900076

$22.80
In Stock
Gas Grill Side Panel Angle Bracket 40900060
#46

Grill assy diagram

Gas grill side panel angle bracket

Part #40900060

This item is not returnable
$3.53
In Stock
Gas Grill Wheel 40900214
#41

Grill assy diagram

Gas grill wheel

Part #40900214

$22.80
In Stock
Gas Grill Match Holder Retainer 40800129
#15

Grill assy diagram

Gas grill match holder retainer

Part #40800129

This item is not returnable
$6.00
In Stock
