Kenmore
Countertop Microwave

Model # 72162252201 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72162252201 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Microwave Magnetron (replaces 6324w1a001h) 6324W1A001L
#5009

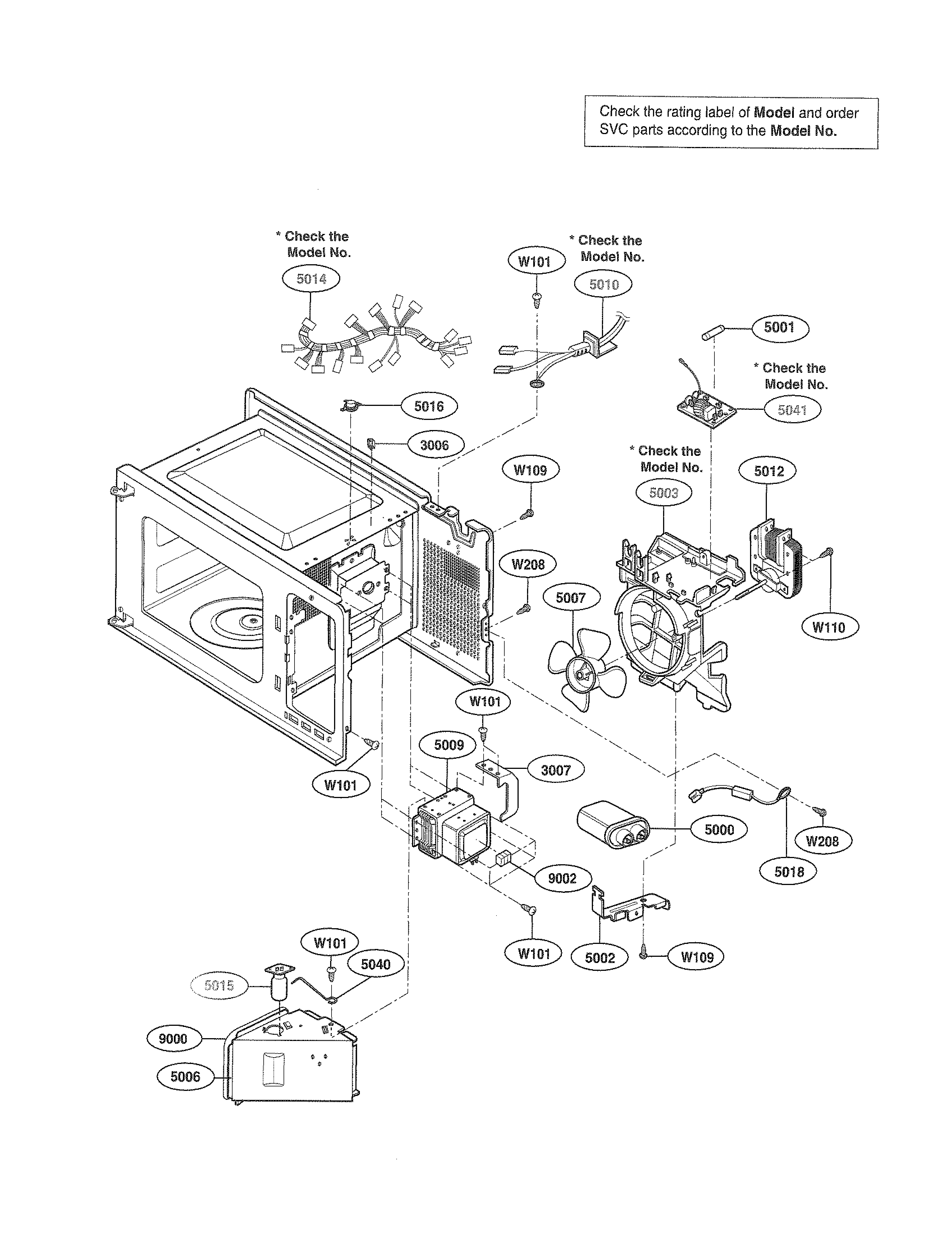

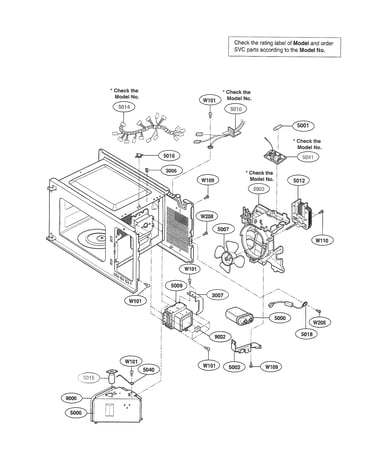

Interior parts diagram

Microwave magnetron (replaces 6324w1a001h)

Part #6324W1A001L

BEST SELLER
$91.94 |
6% OFF Phone Price : $97.94
In Stock
Microwave High-voltage Capacitor (replaces 0czzw1h004l) 0CZZW1H004K
#5000

Interior parts diagram

Microwave high-voltage capacitor (replaces 0czzw1h004l)

Part #0CZZW1H004K

BEST SELLER
$29.72 |
17% OFF Phone Price : $35.72
In Stock
Microwave Door Interlock Switch 6600W1K003D
#4002

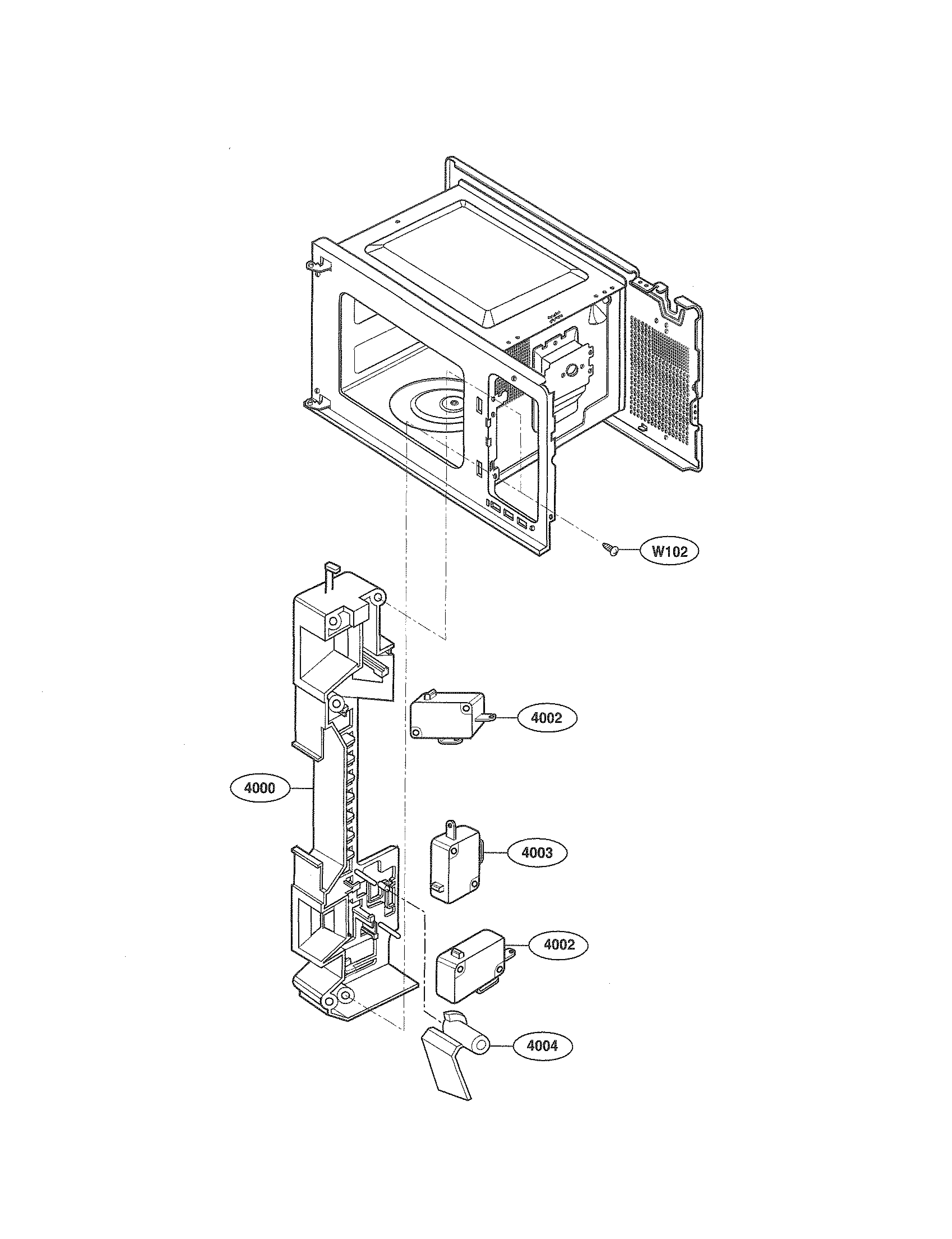

Latch board diagram

Microwave door interlock switch

Part #6600W1K003D

Replaced by #6600W1K001D

?
Manufacturer substitution
This part replaces 6600W1K003D. Substitute parts can look different from the original.
BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Fuse 3B74133Q
#5001

Interior parts diagram

Microwave fuse

Part #3B74133Q

BEST SELLER
This item is not returnable
$5.99 |
14% OFF Phone Price : $6.99
In Stock
Microwave Turntable Tray Support 5889W2A014D
#3008

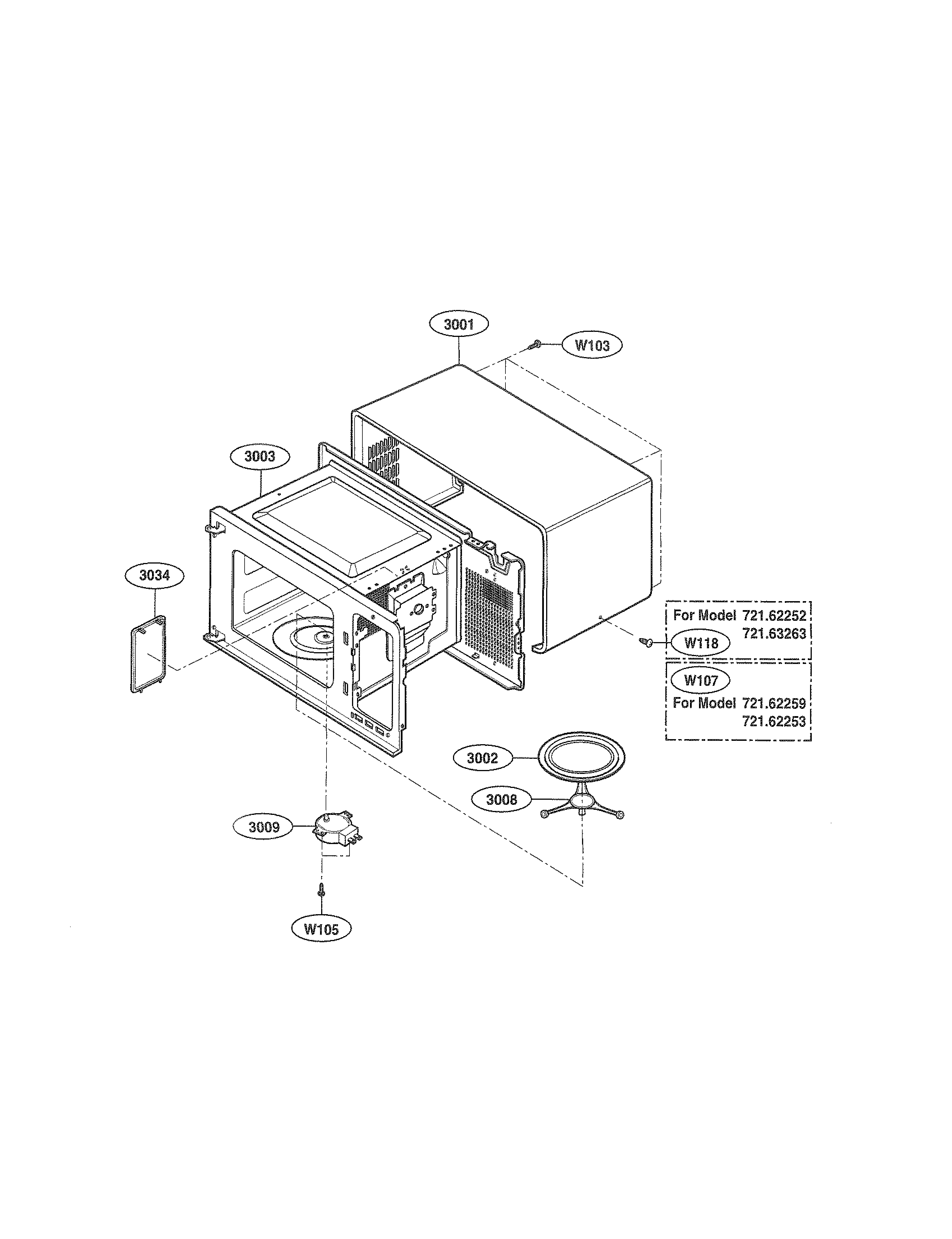

Oven cavity diagram

Microwave turntable tray support

Part #5889W2A014D

This item is not returnable
$12.27 |
14% OFF Phone Price : $14.27
In Stock
Microwave Door Latch Lever 4510W3A012B
#4004

Latch board diagram

Microwave door latch lever

Part #4510W3A012B

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Us Pressed Steel Microwave Screw 1TTL0402818
Us pressed steel microwave screw

Part #1TTL0402818

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Us Pressed Steel Microwave Screw 4B70188C
#W102

Latch board diagram

Us pressed steel microwave screw

Part #4B70188C

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Primary Swtc 6600W1K003C
#4003

Latch board diagram

Primary swtc

Part #6600W1K003C

Replaced by #6600W1K001B

?
Manufacturer substitution
This part replaces 6600W1K003C. Substitute parts can look different from the original.
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Screw 1EBF0402494
#W208

Interior parts diagram

Screw

Part #1EBF0402494

$8.29
In Stock
