GE
Electric Wall Oven

Model # JTP18BW1BB Official GE electric oven

Here are the diagrams and repair parts for Official GE JTP18BW1BB electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

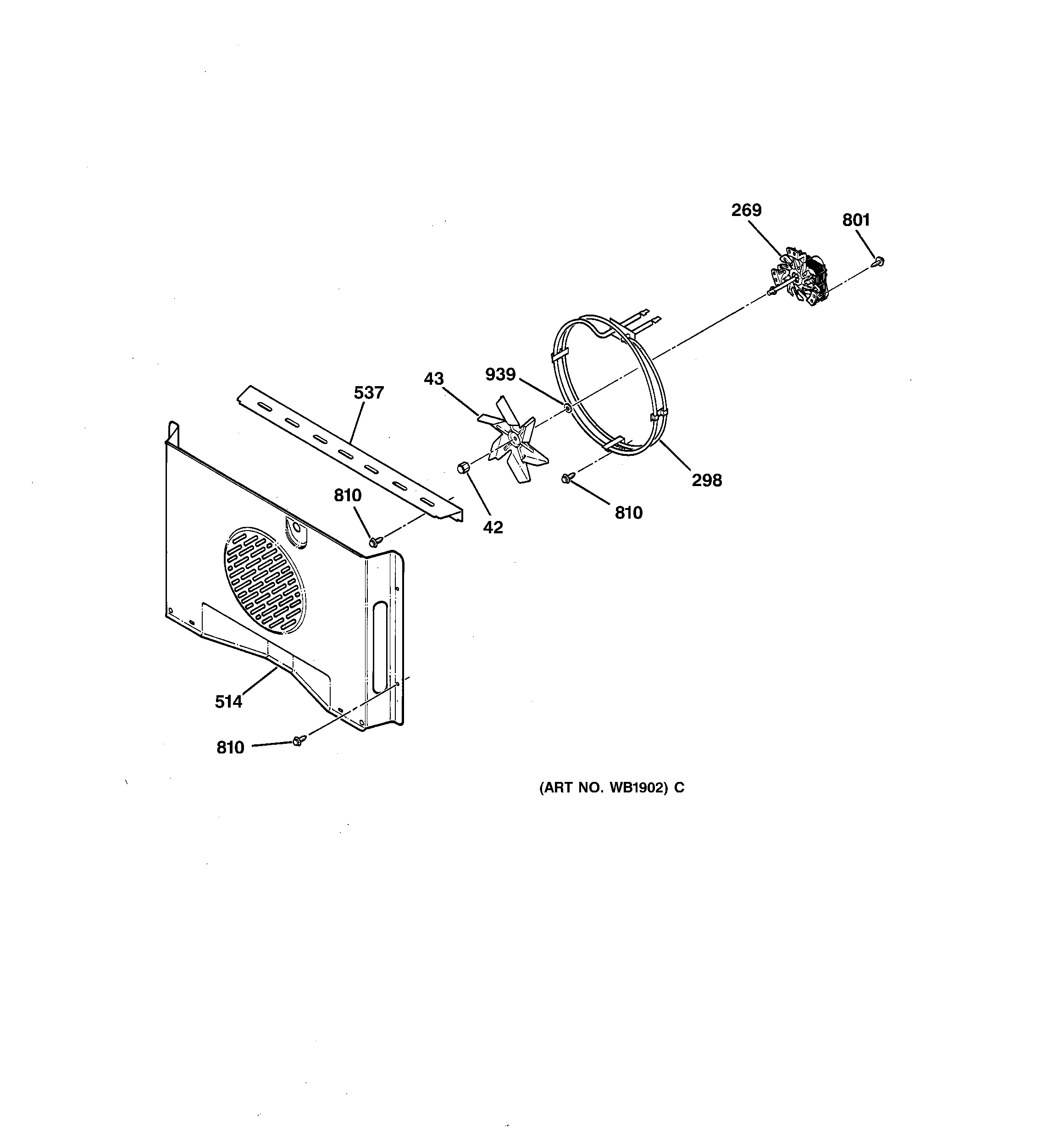

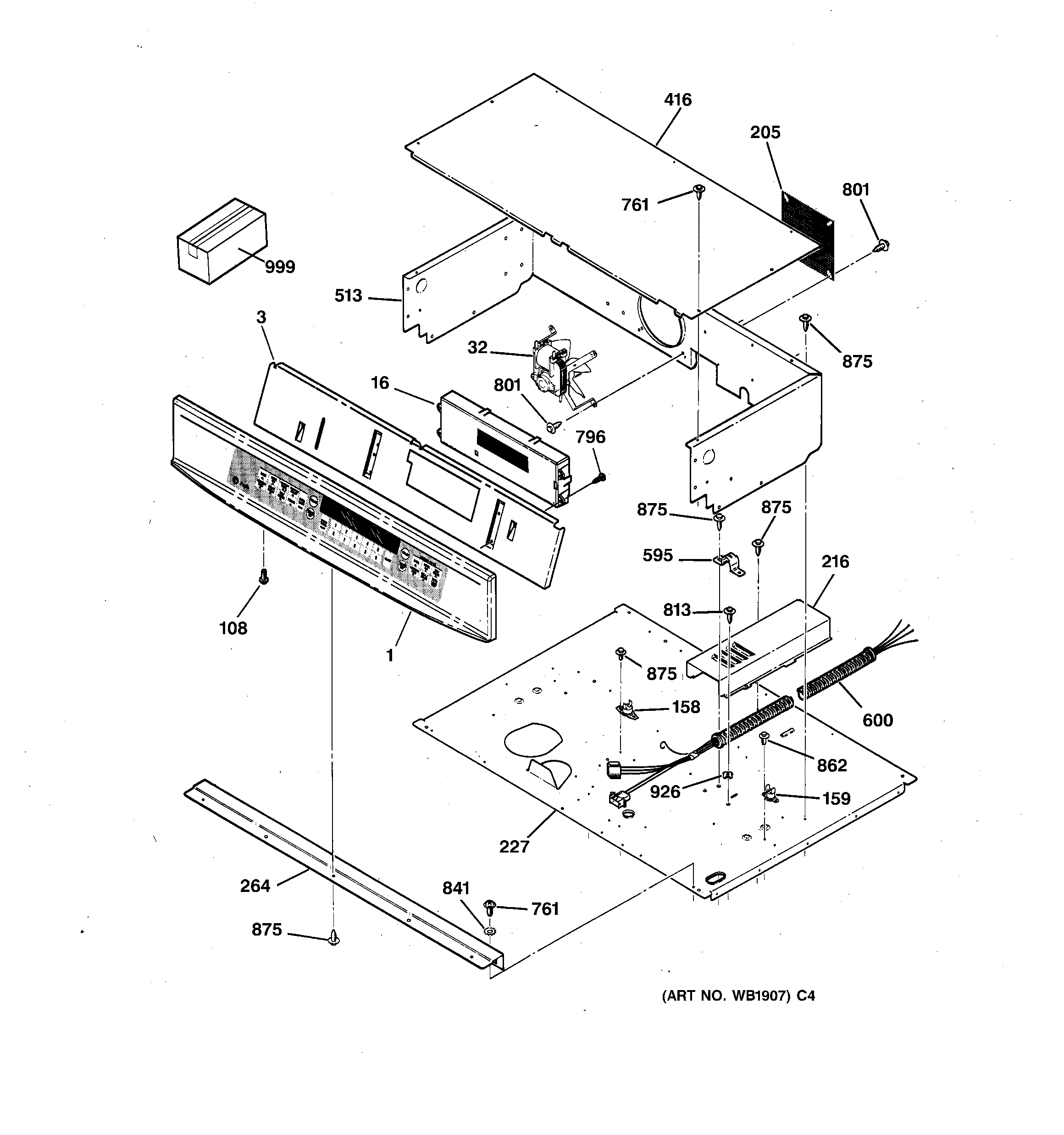

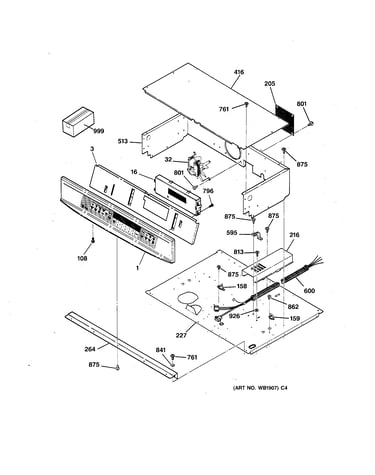

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
40a15bulb STD372401
#257

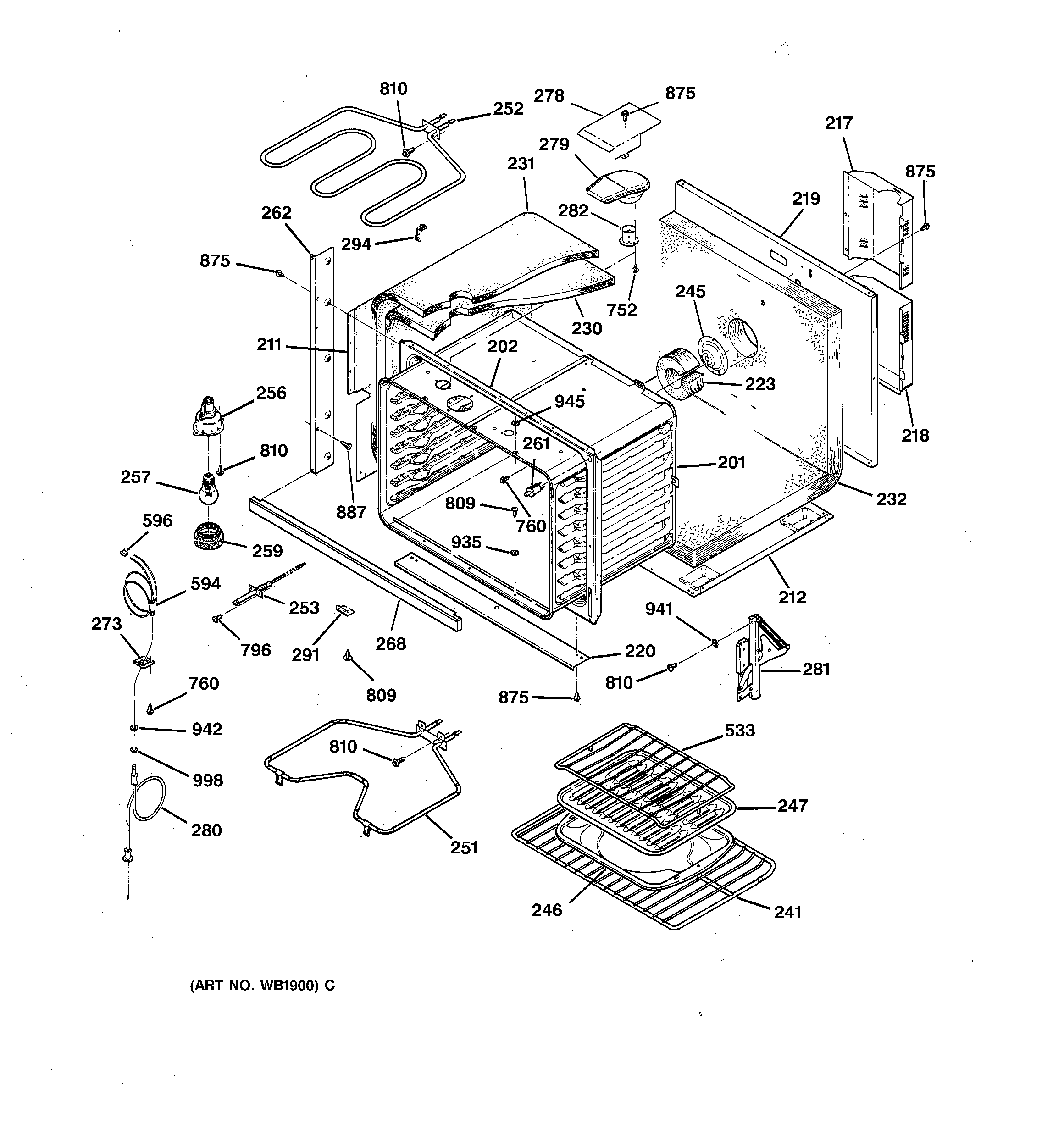

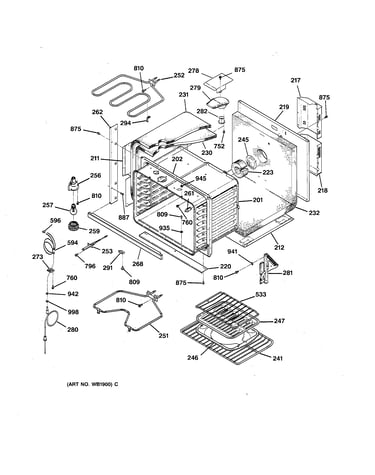

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Sensor WB20K5040
#253

Body parts diagram

Sensor

Part #WB20K5040

Replaced by #WB23X5340

?
Manufacturer substitution
This part replaces WB20K5040. Substitute parts can look different from the original.
BEST SELLER
$126.20 |
10% OFF Was : $140.22
In Stock
Range Bake Element WB44K5018
#251

Body parts diagram

Range bake element

Part #WB44K5018

BEST SELLER
$65.59 |
8% OFF Phone Price : $71.59
In Stock
Broil Support WB02X9719
#294

Body parts diagram

Broil support

Part #WB02X9719

Replaced by #WB2X9719

?
Manufacturer substitution
This part replaces WB02X9719. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Ov Lt Dr Sw WB24K5031
#261

Body parts diagram

Ov lt dr sw

Part #WB24K5031

Replaced by #WB24T10147

?
Manufacturer substitution
This part replaces WB24K5031. Substitute parts can look different from the original.
This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
Screw WB01X1293
#856

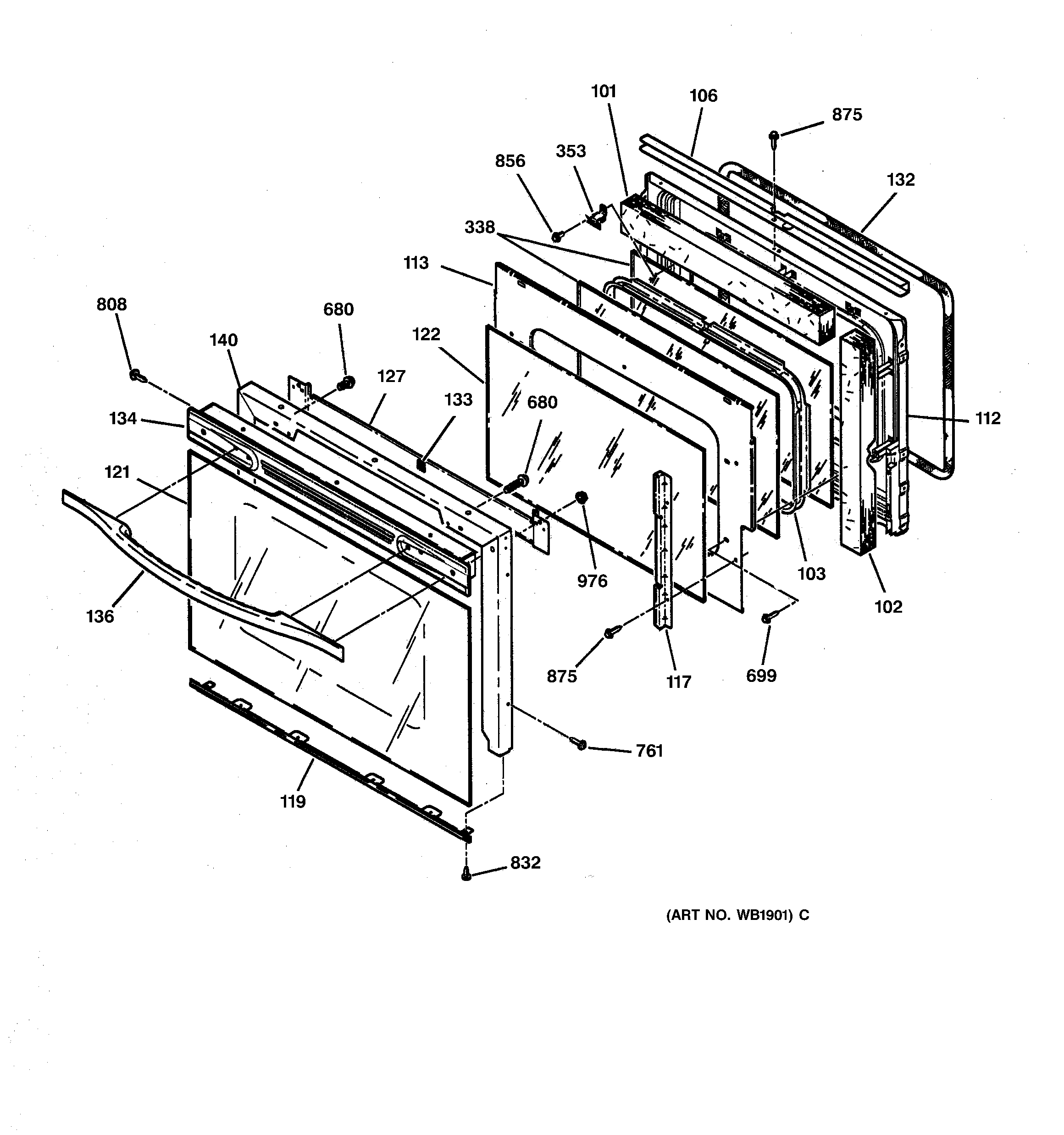

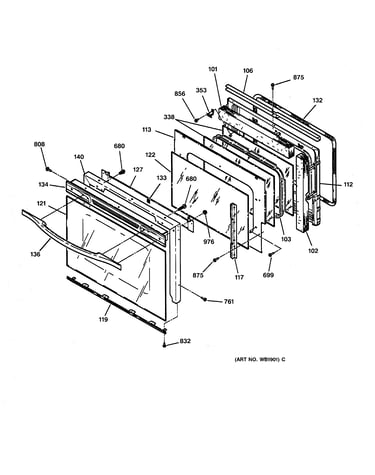

Door diagram

Screw

Part #WB01X1293

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01X1293. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Lock Motor WB26K5030
#151

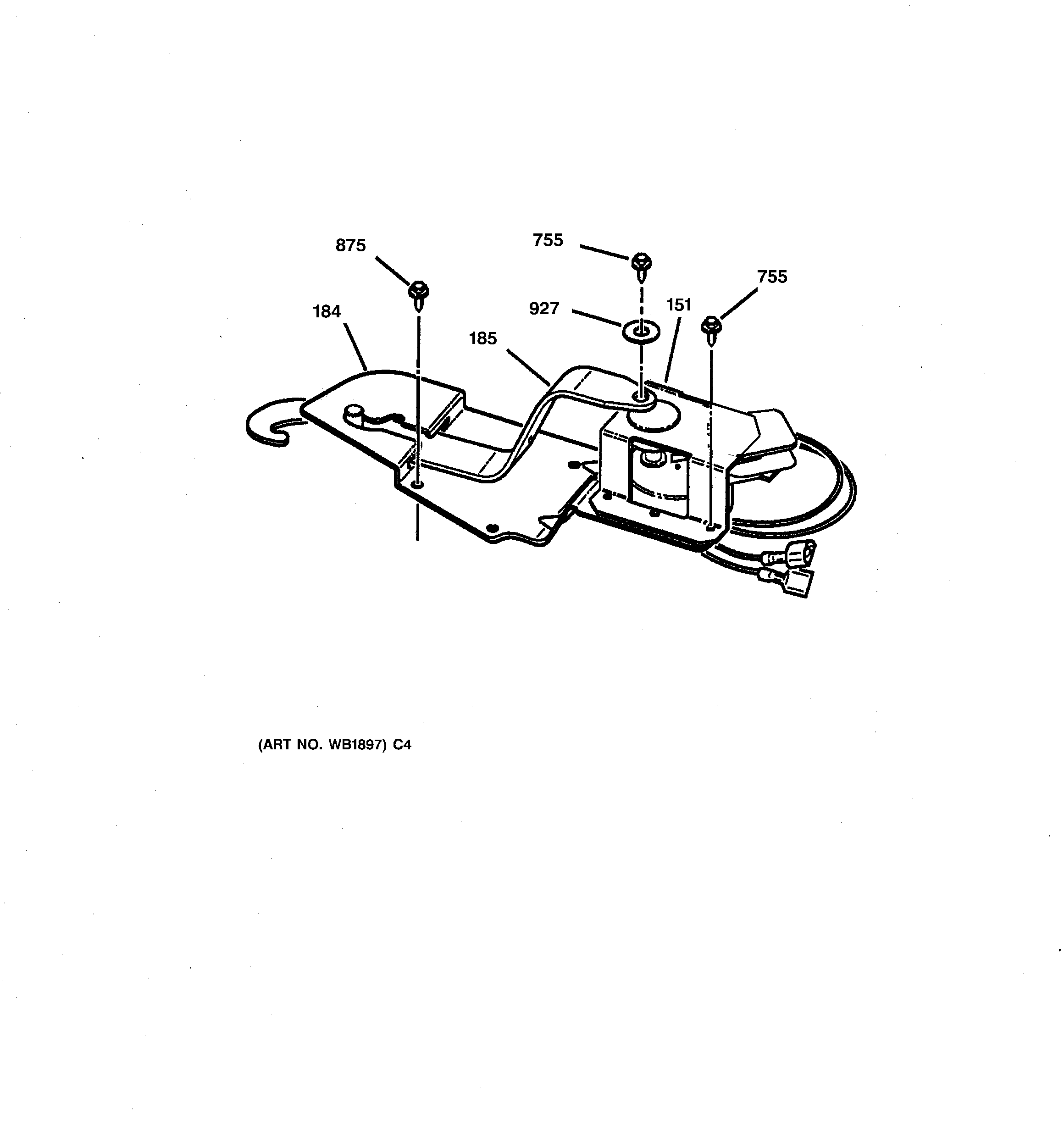

Lock diagram

Lock motor

Part #WB26K5030

Replaced by #WB49T10020

?
Manufacturer substitution
This part replaces WB26K5030. Substitute parts can look different from the original.
$130.30 |
8% OFF Phone Price : $142.30
In Stock
Range Oven Door Inner Glass WB57K5230
#122

Door diagram

Range oven door inner glass

Part #WB57K5230

$121.80 |
9% OFF Phone Price : $133.80
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw, #10-32 X 17/32-in WB01X1253
Screw, #10-32 x 17/32-in

Part #WB01X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
