Amana
Gas Range

Model # SBK26FS0/P1142148NW Official Amana gas range

Here are the diagrams and repair parts for Official Amana SBK26FS0-P1142148NW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Switch 0088874
#20

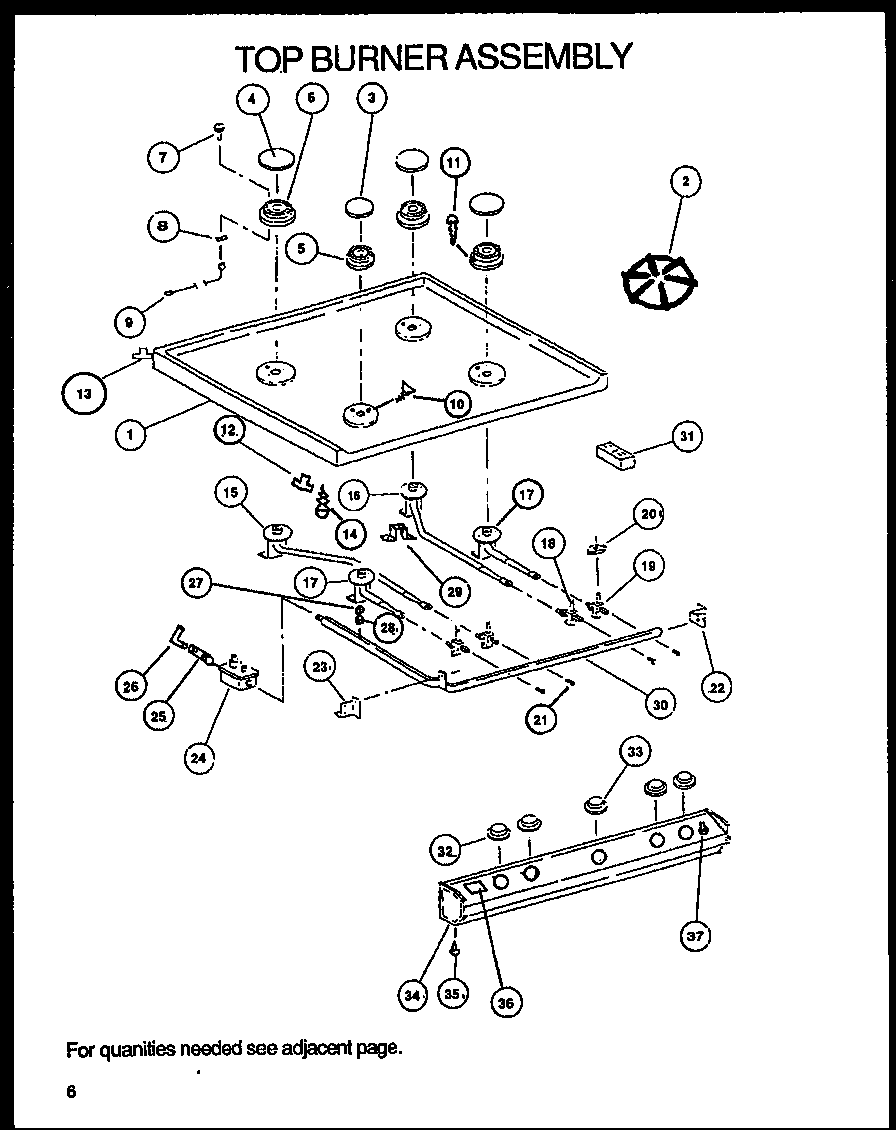

Top burner assembly diagram

Switch

Part #0088874

Replaced by #WP4157180

?
Manufacturer substitution
This part replaces 0088874. Substitute parts can look different from the original.
$47.09 |
11% OFF Phone Price : $53.09
In Stock
Body, Sub, Carriage, Broiler 06522100
#20

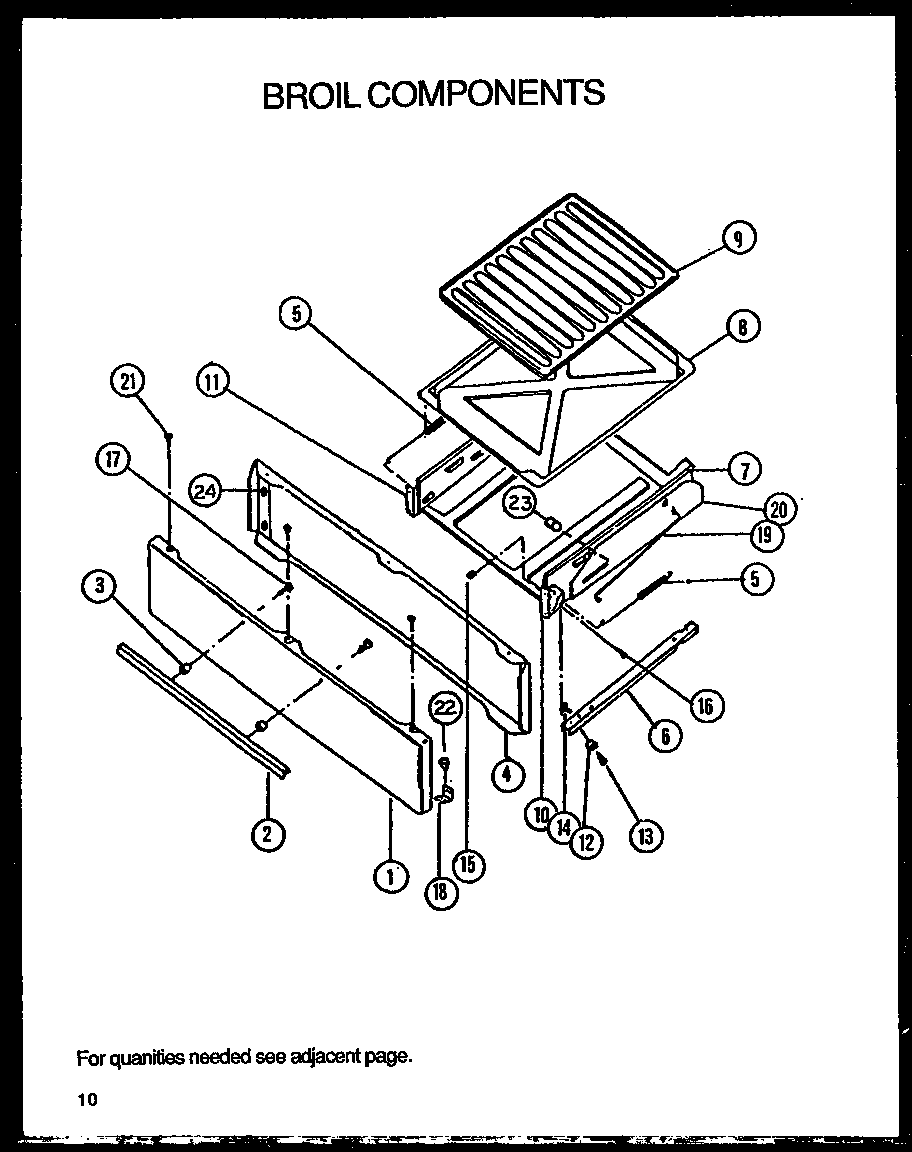

Broil components diagram

Body, sub, carriage, broiler

Part #06522100

The manufacturer no longer makes this part, and there's no substitute part

Locatind Stud Metal 0310036
#13

Top burner assembly diagram

Locatind stud metal

Part #0310036

The manufacturer no longer makes this part, and there's no substitute part

Bracket Clock 0310061
#4

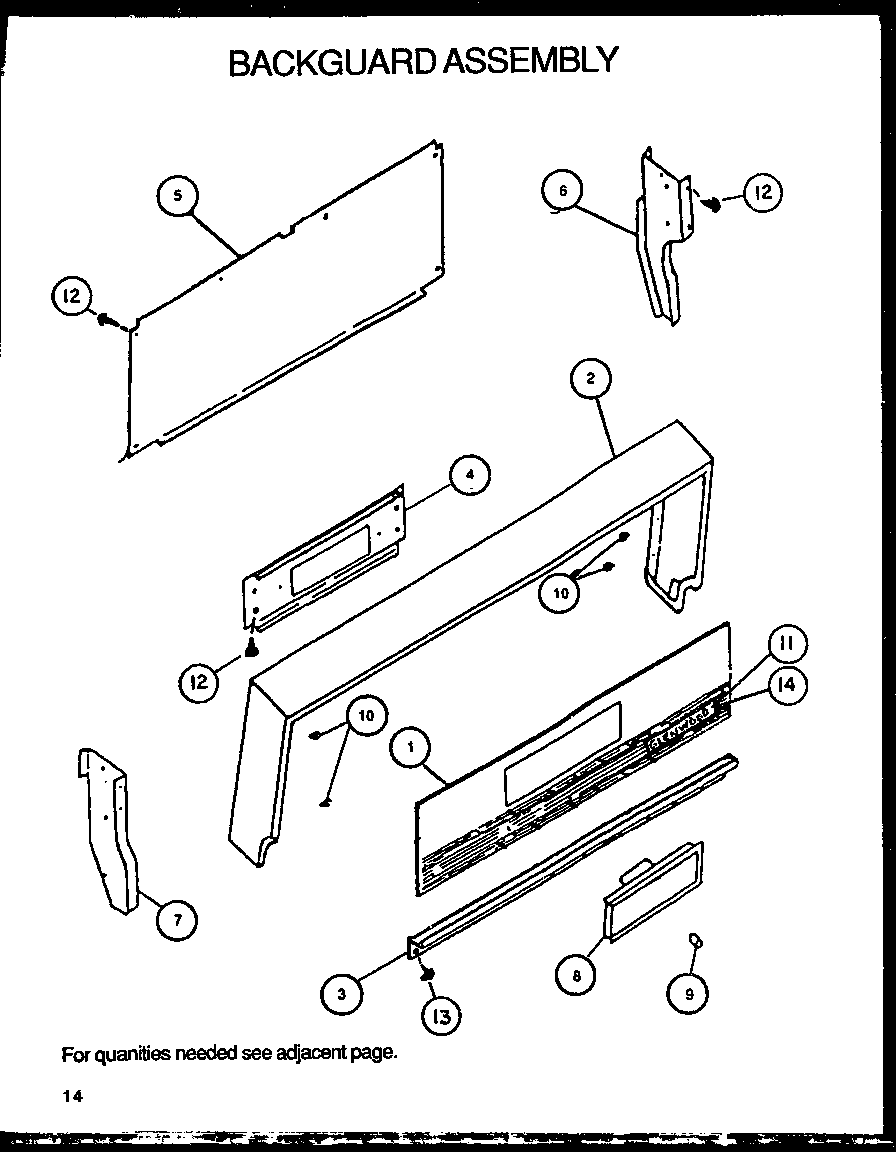

Backguard assembly diagram

Bracket clock

Part #0310061

The manufacturer no longer makes this part, and there's no substitute part

Manifold Pipe 0057336
#30

Top burner assembly diagram

Manifold pipe

Part #0057336

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Manifold R.h. 0057340
#22

Top burner assembly diagram

Bracket, manifold r.h.

Part #0057340

The manufacturer no longer makes this part, and there's no substitute part

Backguard Base 0311611
#3

Backguard assembly diagram

Backguard base

Part #0311611

The manufacturer no longer makes this part, and there's no substitute part

"t" Nut 0088571
#20

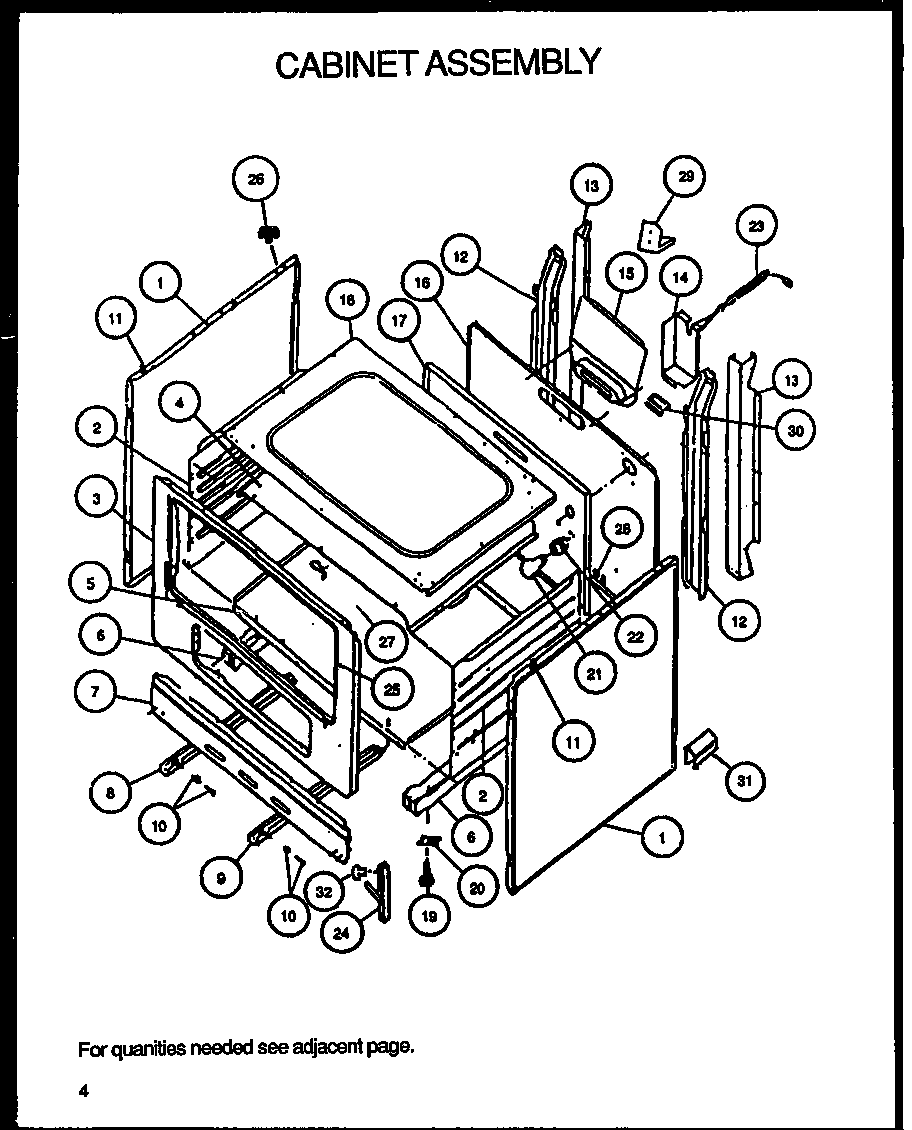

Cabinet assembly diagram

"t" nut

Part #0088571

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve (rls340, 348, 343) 0089062
#9

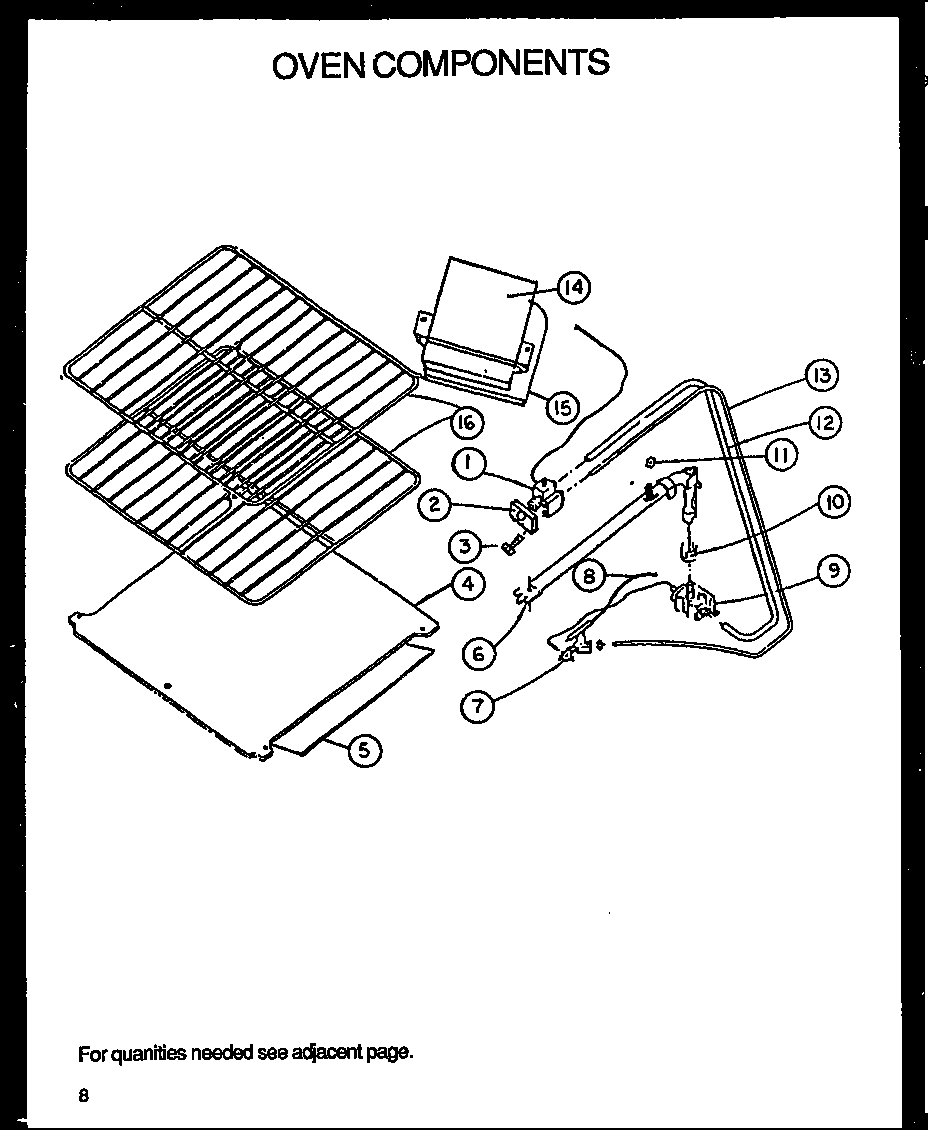

Oven components diagram

Gas valve (rls340, 348, 343)

Part #0089062

The manufacturer no longer makes this part, and there's no substitute part

Baffle, Oven Door, Window 06511800
#3

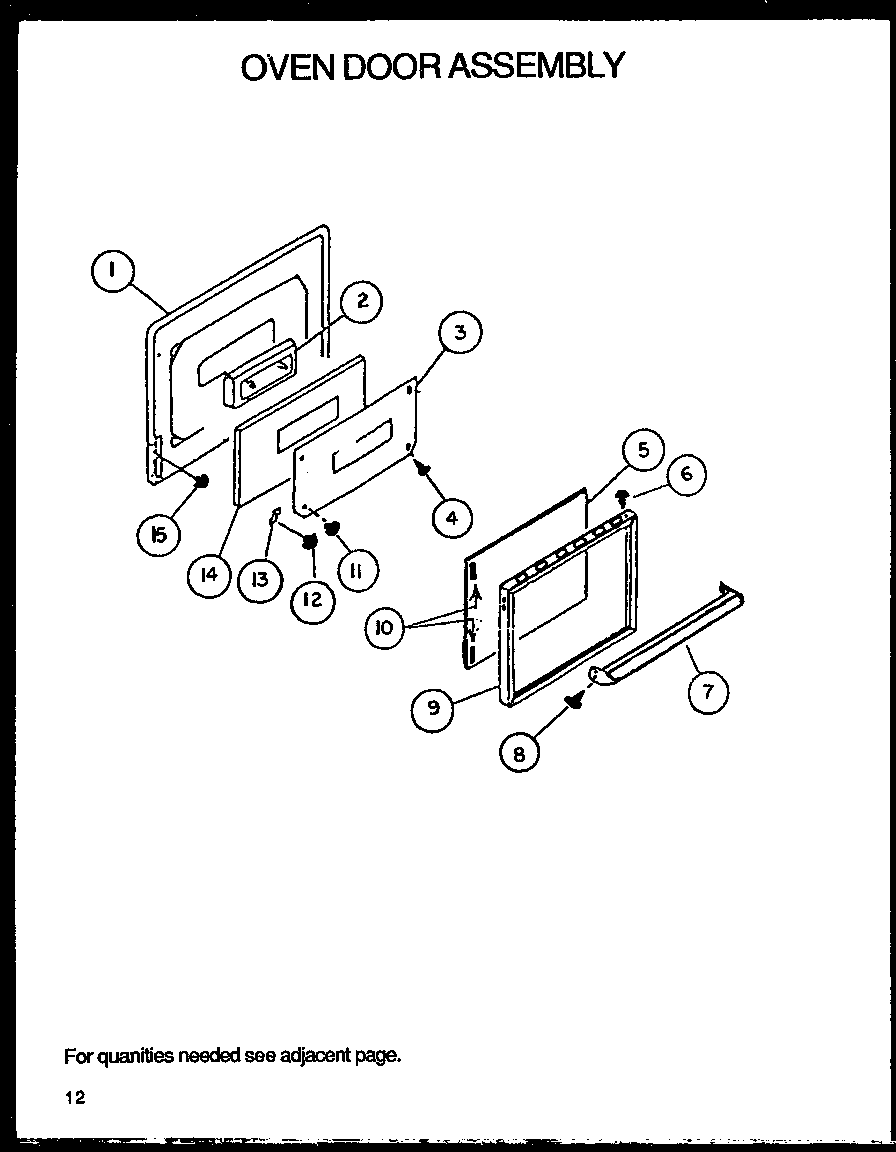

Oven door assembly diagram

Baffle, oven door, window

Part #06511800

The manufacturer no longer makes this part, and there's no substitute part
