Craftsman
Radial Arm Saw

Model # 90023191 Official Craftsman 12" radial arm saw

Here are the diagrams and repair parts for Official Craftsman 90023191 12" radial arm saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

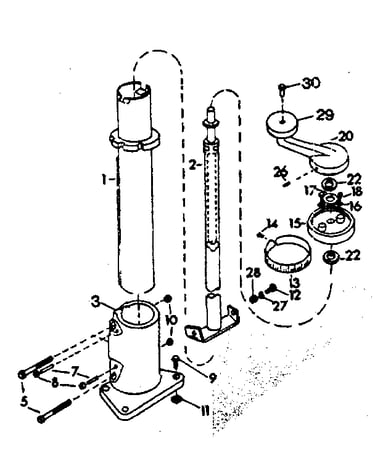

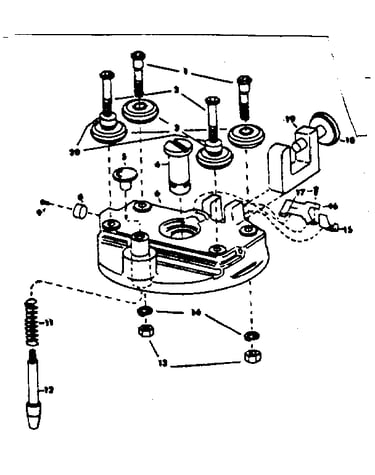

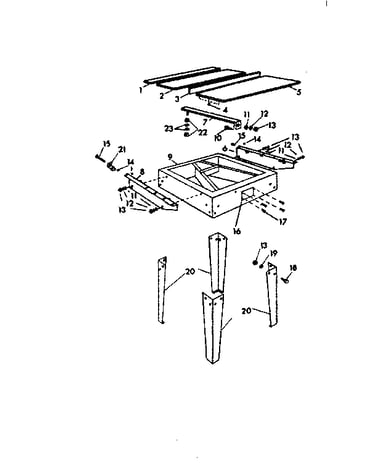

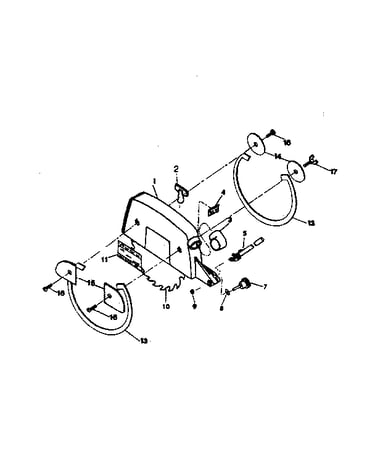

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 215 parts  |
Dewalt Wrench 99056-11

#NI

All parts diagram

Dewalt wrench

Part #99056-11

The manufacturer no longer makes this part, and there's no substitute part

Slf Tap Scrw 52512-00
#14

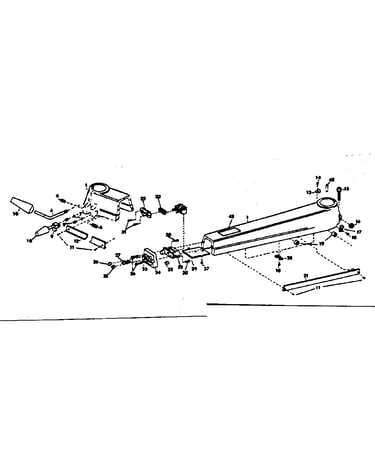

Arm diagram

Slf tap scrw

Part #52512-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Nut 8-32 407-00
#16

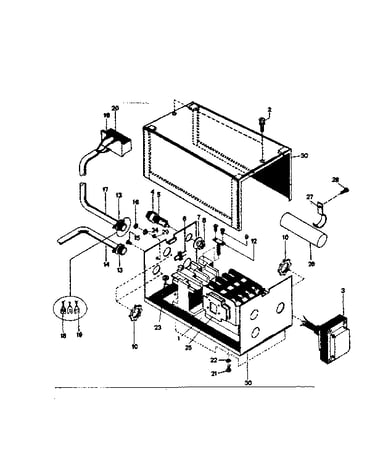

Magnetic starter diagram

Black & decker nut 8-32

Part #407-00

The manufacturer no longer makes this part, and there's no substitute part

Pin 82083-00
#42

Arm diagram

Pin

Part #82083-00

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 32114-01
#46

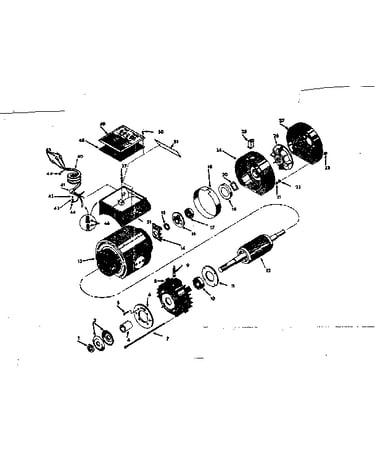

Stator assembly diagram

Twist-on wire connector

Part #32114-01

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Lock Washer 418-00
Black & decker lock washer

Part #418-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Wrench 99056-03

#NI

All parts diagram

Dewalt wrench

Part #99056-03

The manufacturer no longer makes this part, and there's no substitute part

Screw 82387-00
#8

Arm diagram

Screw

Part #82387-00

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw On/off Switch 203824-00
Radial arm saw on/off switch

Part #203824-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 96723-00
#2

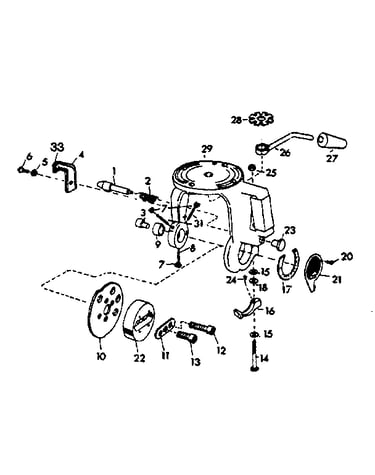

Yoke diagram

Spring

Part #96723-00

The manufacturer no longer makes this part, and there's no substitute part
