Kenmore
Range Hood

Model # 23351841590 Official Kenmore range hood

Here are the diagrams and repair parts for Official Kenmore 23351841590 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

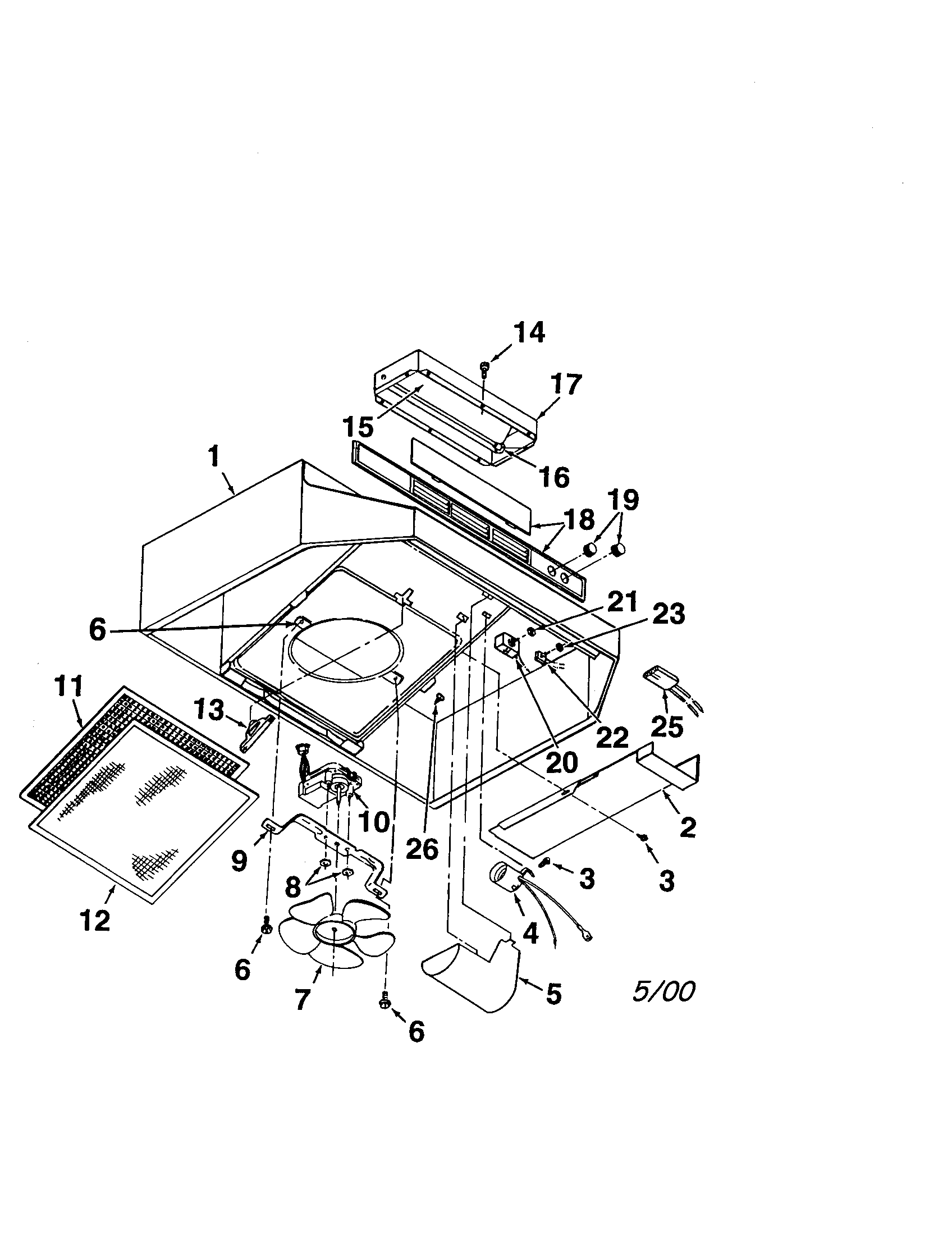

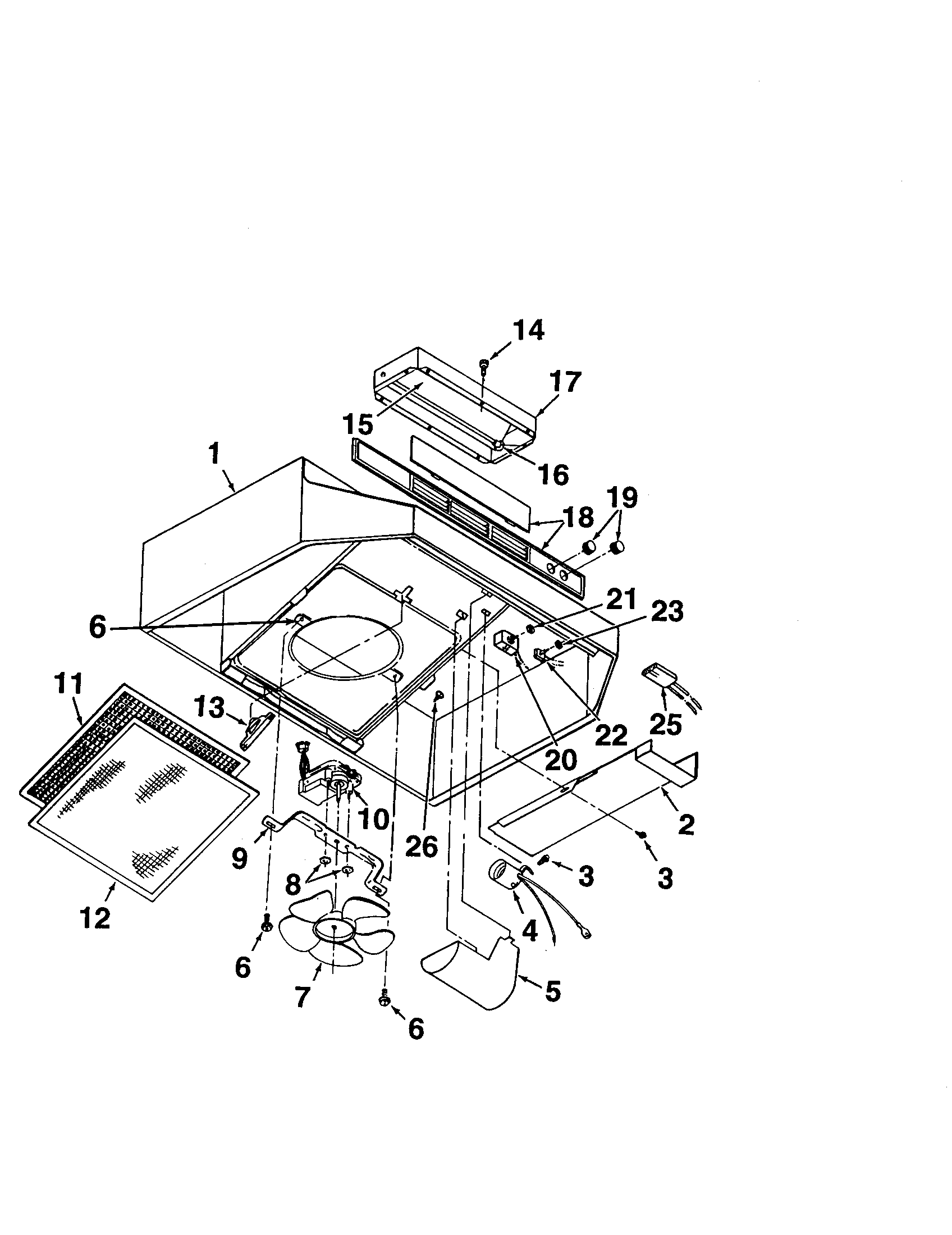

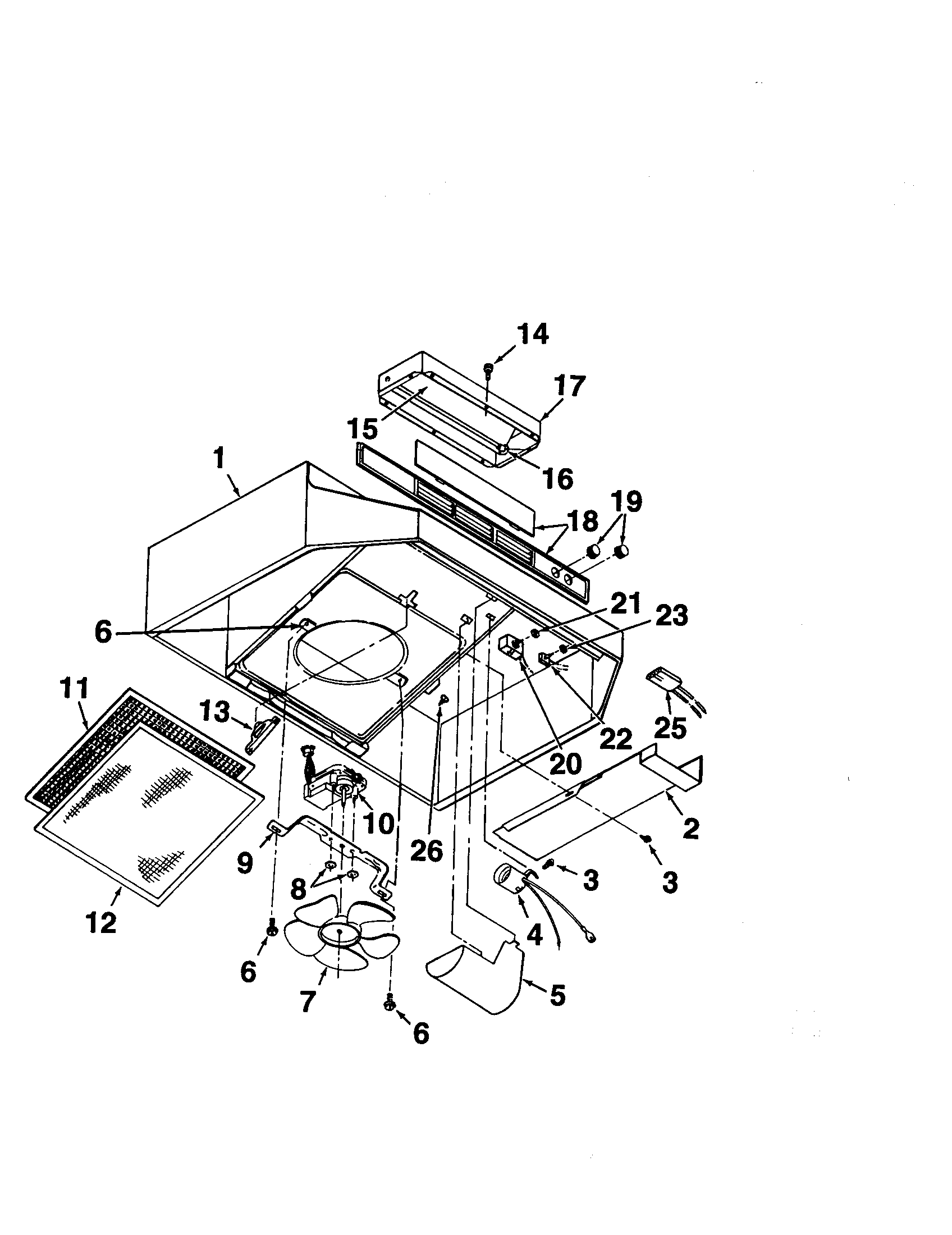

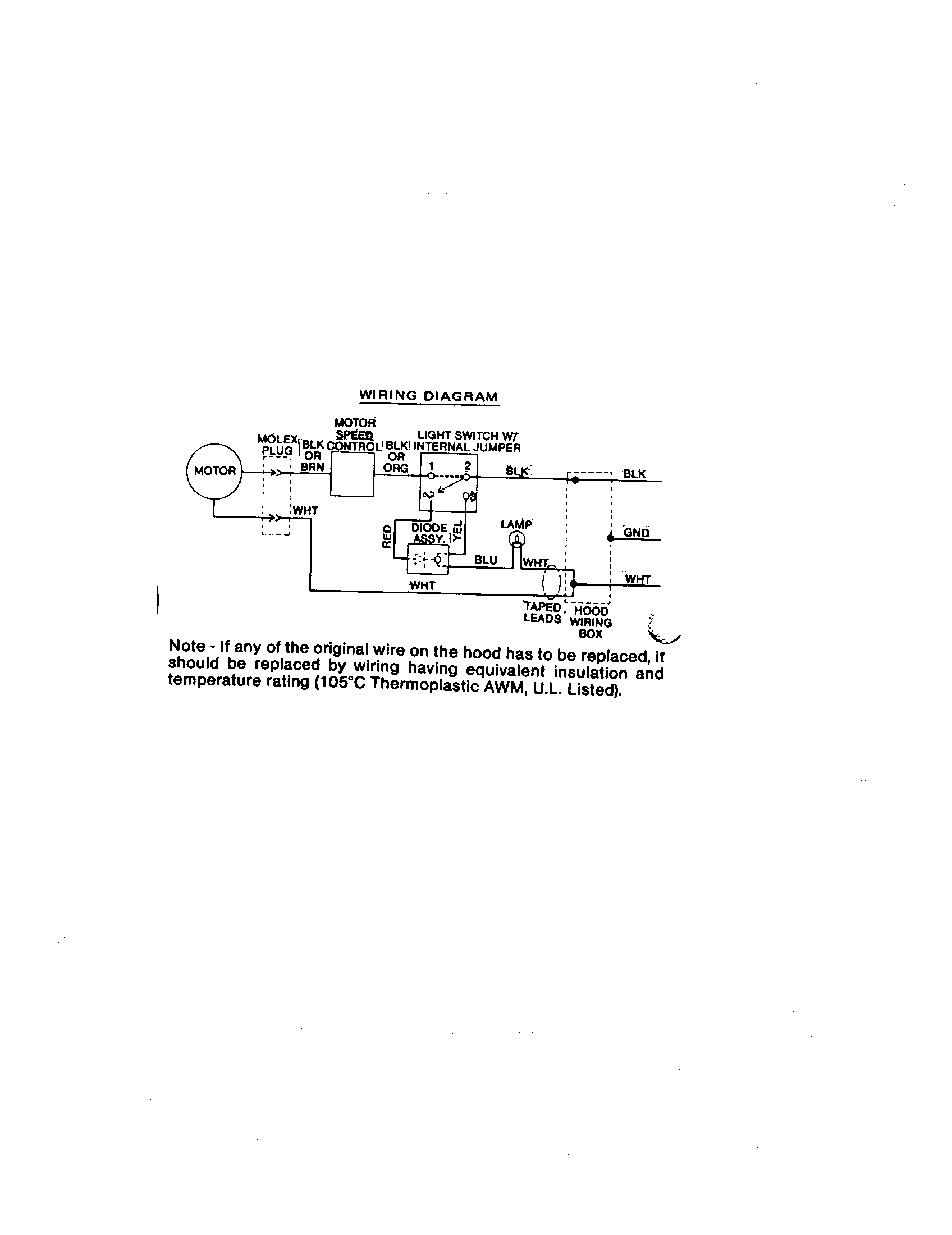

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Fan Blade 99020248
Fan blade

Part #99020248

Replaced by #S99020272

?
Manufacturer substitution
This part replaces 99020248. Substitute parts can look different from the original.
This item is not returnable
$6.44
In Stock
Range Hood Fan Motor 97011224
Range hood fan motor

Part #97011224

Replaced by #S97011224

?
Manufacturer substitution
This part replaces 97011224. Substitute parts can look different from the original.
$84.74 |
7% OFF Phone Price : $90.74
In Stock
Range Hood Filter Latch 99420472
Range hood filter latch

Part #99420472

Replaced by #S99420472

?
Manufacturer substitution
This part replaces 99420472. Substitute parts can look different from the original.
This item is not returnable
$19.92 |
9% OFF Phone Price : $21.92
In Stock
Range Hood Nameplate 97008998
Range hood nameplate

Part #97008998

Replaced by #S97018378

?
Manufacturer substitution
This part replaces 97008998. Substitute parts can look different from the original.
This item is not returnable
$6.54
In Stock
Screw Kit (gray) 97011217
Screw kit (gray)

Part #97011217

Replaced by #S97011217

?
Manufacturer substitution
This part replaces 97011217. Substitute parts can look different from the original.
This item is not returnable
$4.69
In Stock
Range Hood Fan Motor Bracket 98005568
Range hood fan motor bracket

Part #98005568

Replaced by #S98005568

?
Manufacturer substitution
This part replaces 98005568. Substitute parts can look different from the original.
This item is not returnable
$3.39
In Stock
Range Hood Vent Damper 97005544
Range hood vent damper

Part #97005544

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Light Lens 99110437
Range hood light lens

Part #99110437

Replaced by #S99110437

?
Manufacturer substitution
This part replaces 99110437. Substitute parts can look different from the original.
$20.00 |
23% OFF Phone Price : $26.00
In Stock
Range Hood Fan Motor Lock Nut 99260428
Range hood fan motor lock nut

Part #99260428

Replaced by #S99260428

?
Manufacturer substitution
This part replaces 99260428. Substitute parts can look different from the original.
This item is not returnable
$3.33
Back Order
Range Hood Vent Damper Cover 98005221
Range hood vent damper cover

Part #98005221

Replaced by #S98005221

?
Manufacturer substitution
This part replaces 98005221. Substitute parts can look different from the original.
This item is not returnable
$3.70
In Stock
