Model # 300891150 Official Sears talking colt

Here are the diagrams and repair parts for Official Sears 300891150 talking colt, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Base Bolt 653205
#16

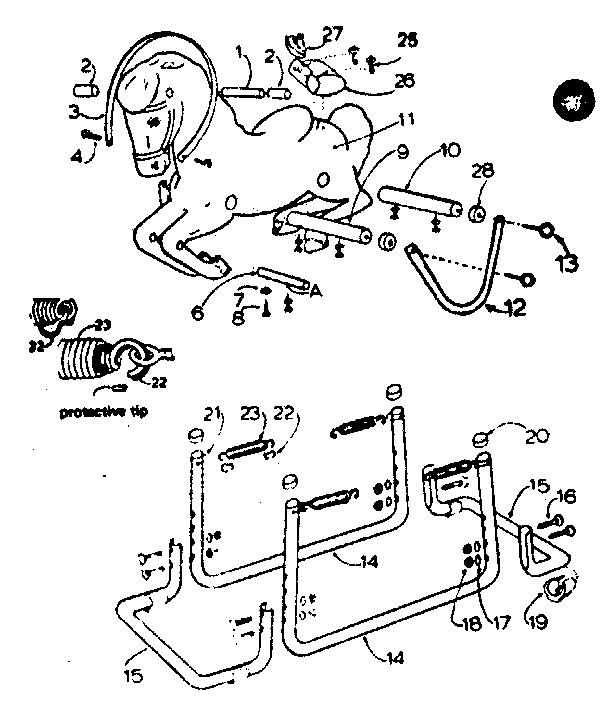

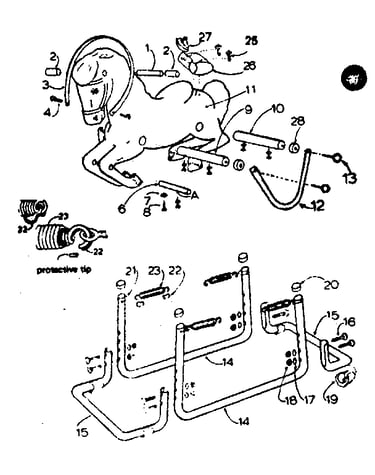

Replacement parts diagram

Base bolt

Part #653205

The manufacturer no longer makes this part, and there's no substitute part

Pin 693114
Pin

Part #693114

The manufacturer no longer makes this part, and there's no substitute part

Foot Base 899336
#19

Replacement parts diagram

Foot base

Part #899336

The manufacturer no longer makes this part, and there's no substitute part

Protect Tip 693112
#29

Replacement parts diagram

Protect tip

Part #693112

The manufacturer no longer makes this part, and there's no substitute part

Screw 653401
#8

Replacement parts diagram

Screw

Part #653401

The manufacturer no longer makes this part, and there's no substitute part

Hook 651009
#22

Replacement parts diagram

Hook

Part #651009

The manufacturer no longer makes this part, and there's no substitute part

End Sect 899555
#15

Replacement parts diagram

End sect

Part #899555

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 653102
#18

Replacement parts diagram

Hex nut

Part #653102

The manufacturer no longer makes this part, and there's no substitute part

Bridle Rein 899481
#3

Replacement parts diagram

Bridle rein

Part #899481

The manufacturer no longer makes this part, and there's no substitute part

Body Dowel-f 842420
#9

Replacement parts diagram

Body dowel-f

Part #842420

The manufacturer no longer makes this part, and there's no substitute part
