Dacor
Electric Wall Oven

Model # CPS130 Official Dacor oven

Here are the diagrams and repair parts for Official Dacor CPS130 oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

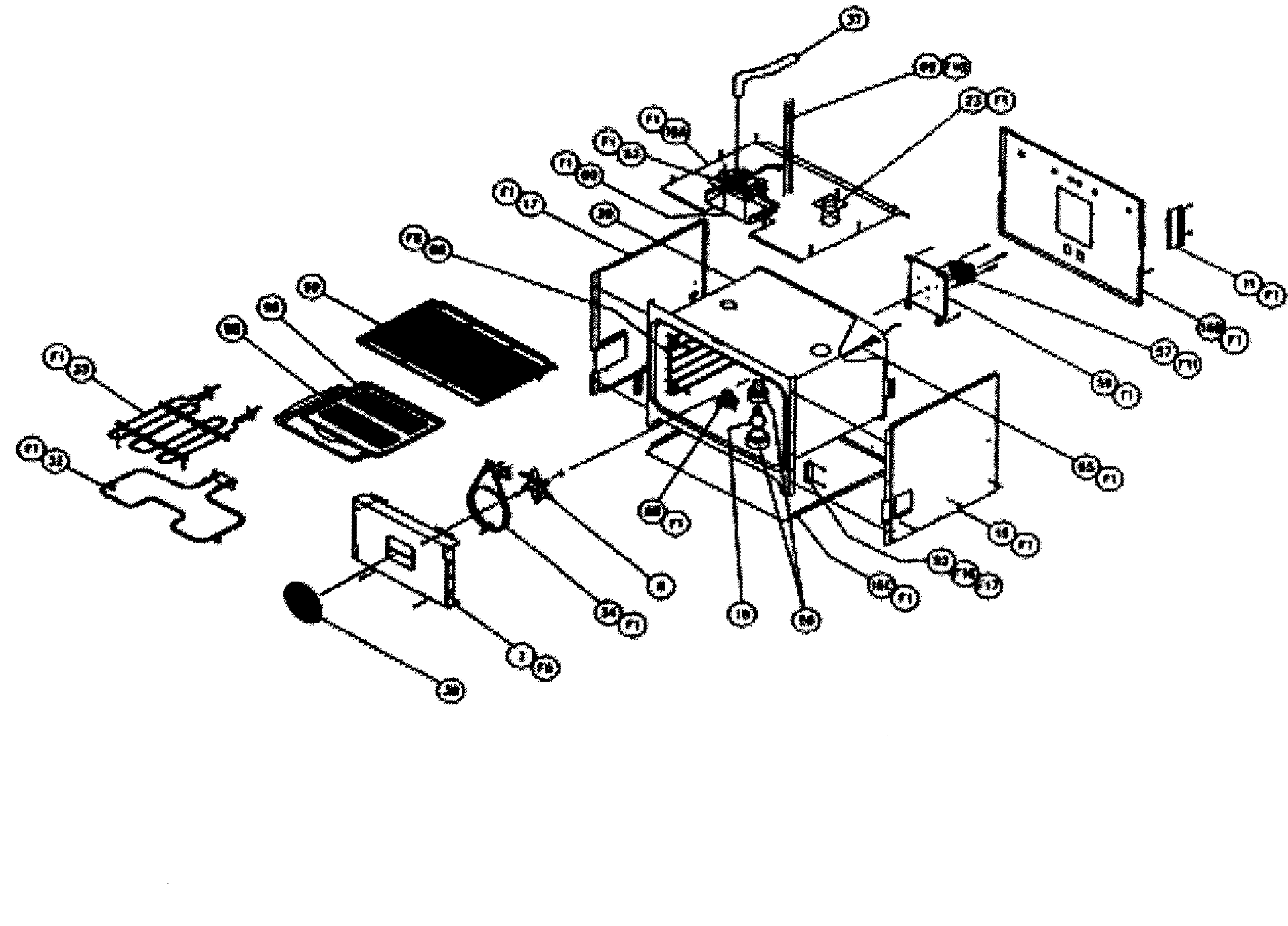

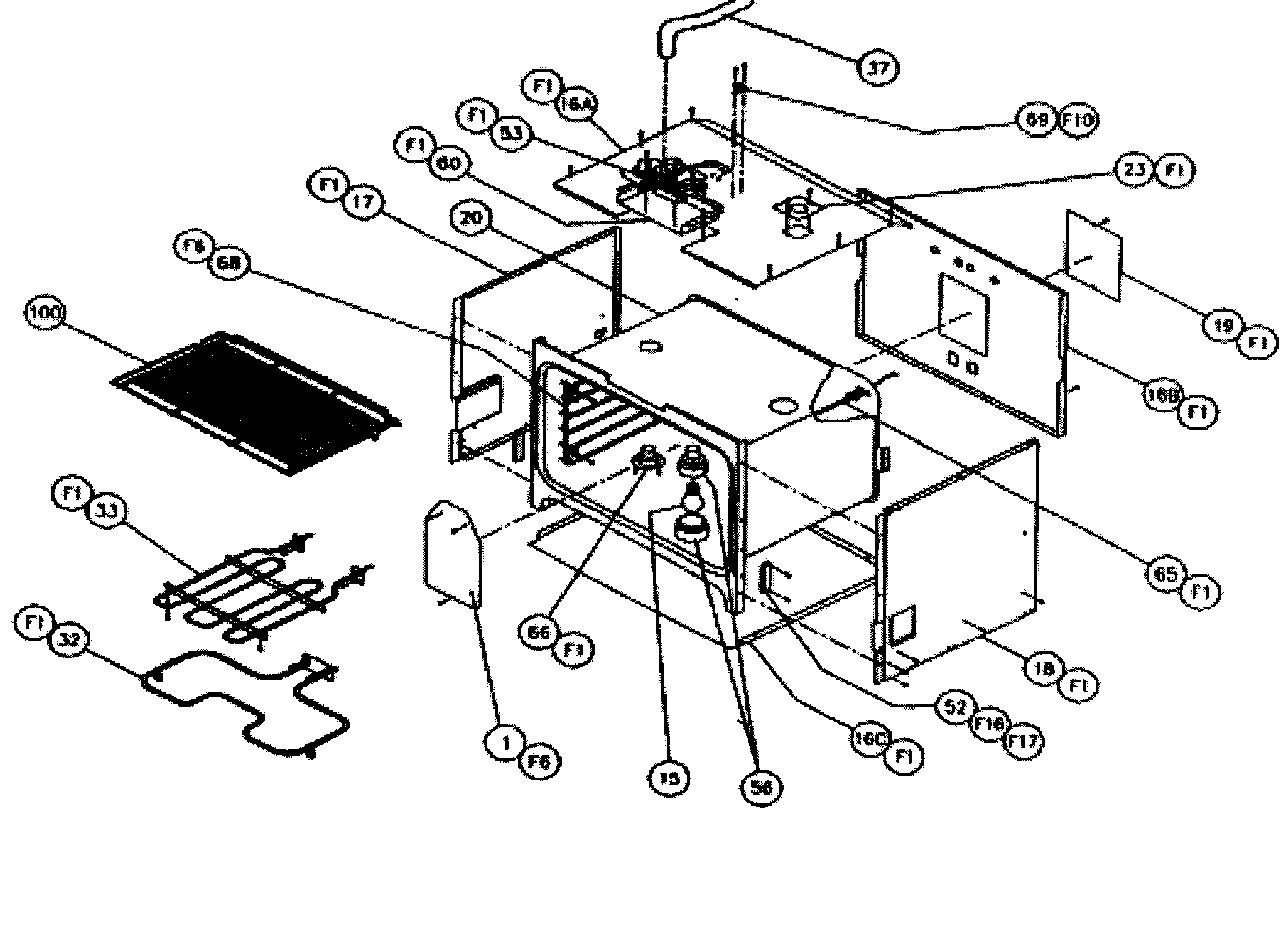

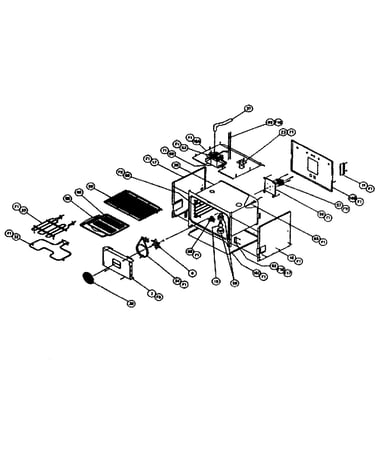

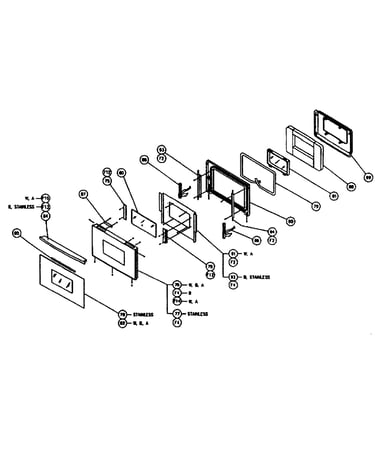

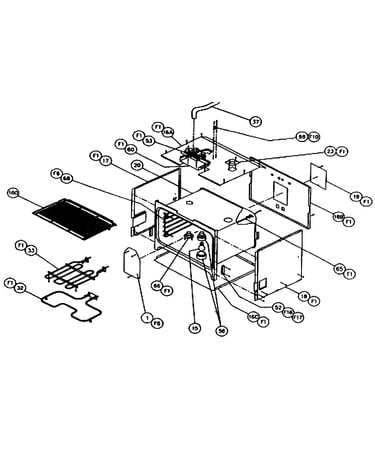

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Oven Door Glass 82216B
Oven door glass

Part #82216B

$58.99
In Stock
Bulb, 40-watt 82089
Bulb, 40-watt

Part #82089

$10.99
In Stock
Appliance Screw, #8 X 3/8-in 83263
Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
$2.16
In Stock
Appliance Screw 83534
Appliance screw

Part #83534

This item is not returnable
$2.16
Back Order
Screw 83571
Screw

Part #83571

Replaced by #83263

?
Manufacturer substitution
This part replaces 83571. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Dacor Wall Oven Trim 27467B
#70A

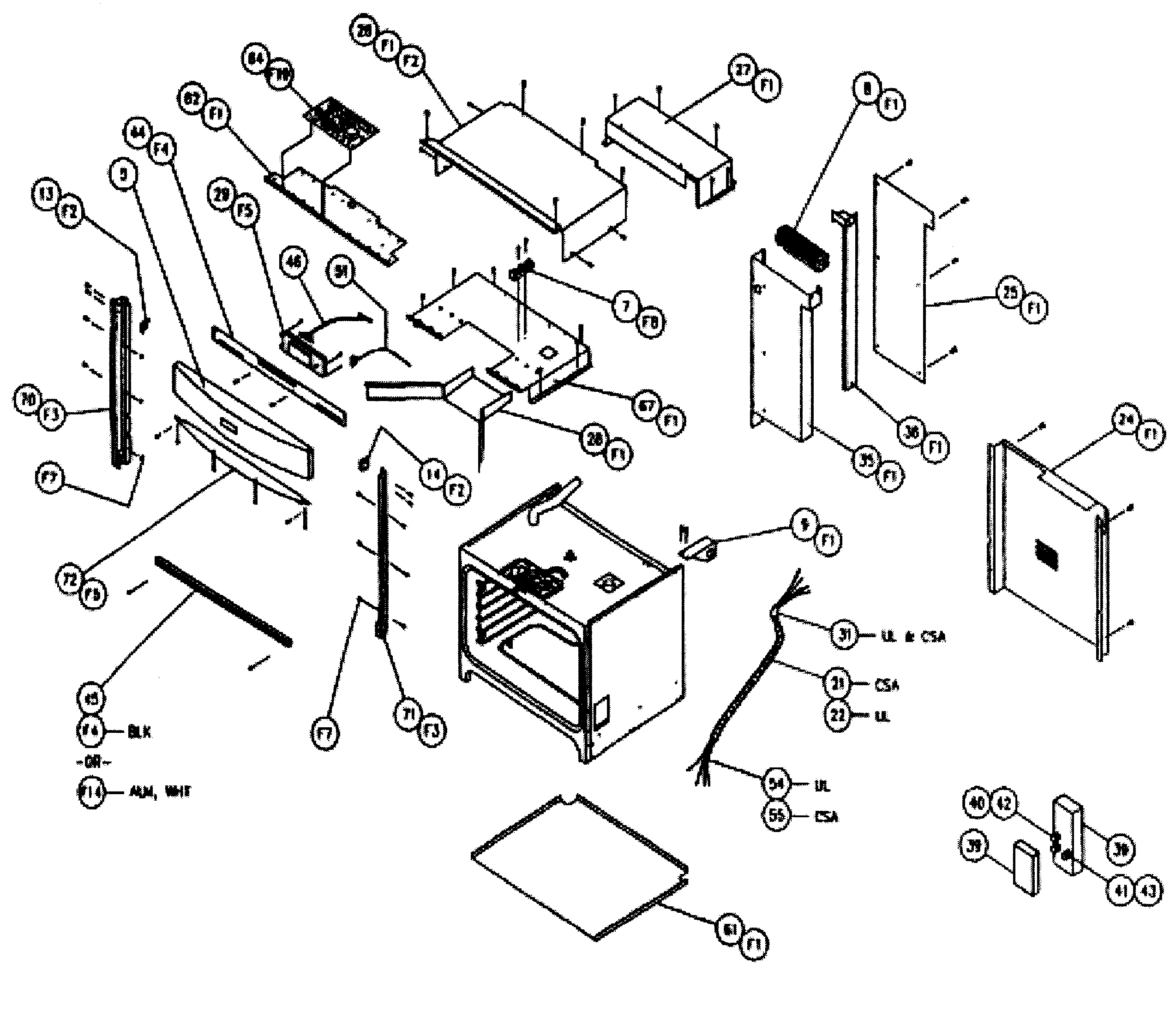

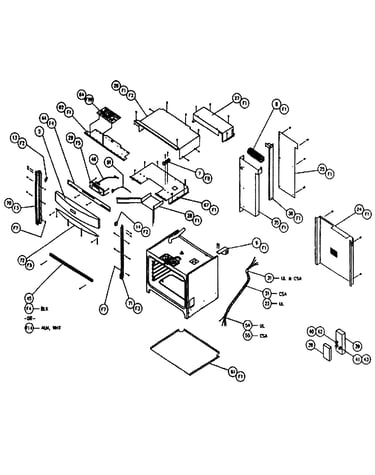

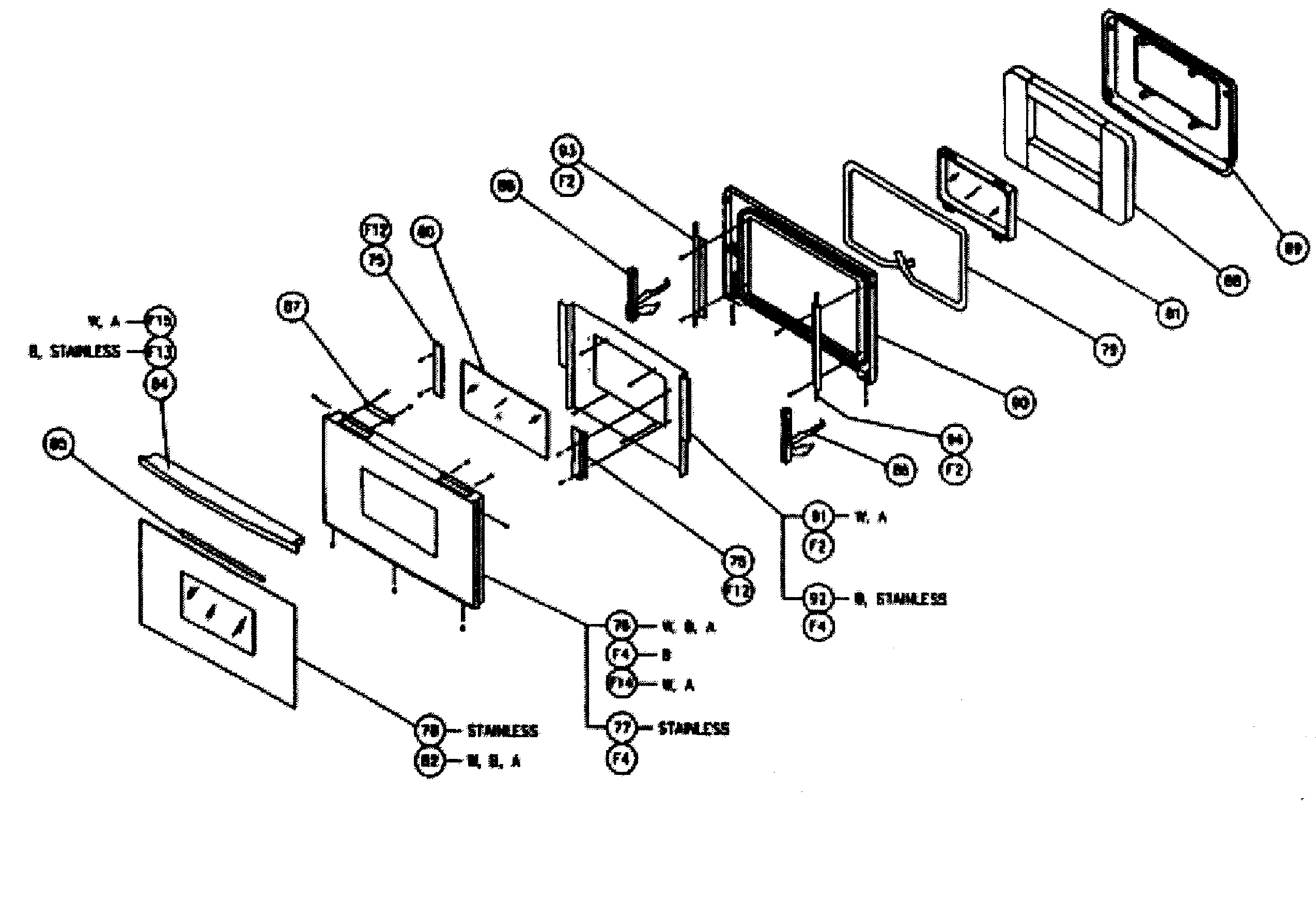

Cabinet parts diagram

Dacor wall oven trim

Part #27467B

$38.96 |
13% OFF Phone Price : $44.96
In Stock
Oven Grille Exhaust 82229A
#45

Cabinet parts diagram

Oven grille exhaust

Part #82229A

$64.99
In Stock
Oven Grille Exhaust 82229R
#45C

Cabinet parts diagram

Oven grille exhaust

Part #82229R

$79.49
In Stock
Dacor Wall Oven Vent Trim (white) 82229W
#45B

Cabinet parts diagram

Dacor wall oven vent trim (white)

Part #82229W

$187.56 |
6% OFF Phone Price : $199.56
In Stock
Screw 83026
#F3

Cabinet parts diagram

Screw

Part #83026

This item is not returnable
$2.16
In Stock
