Model # CPEF3081KFC Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire CPEF3081KFC electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

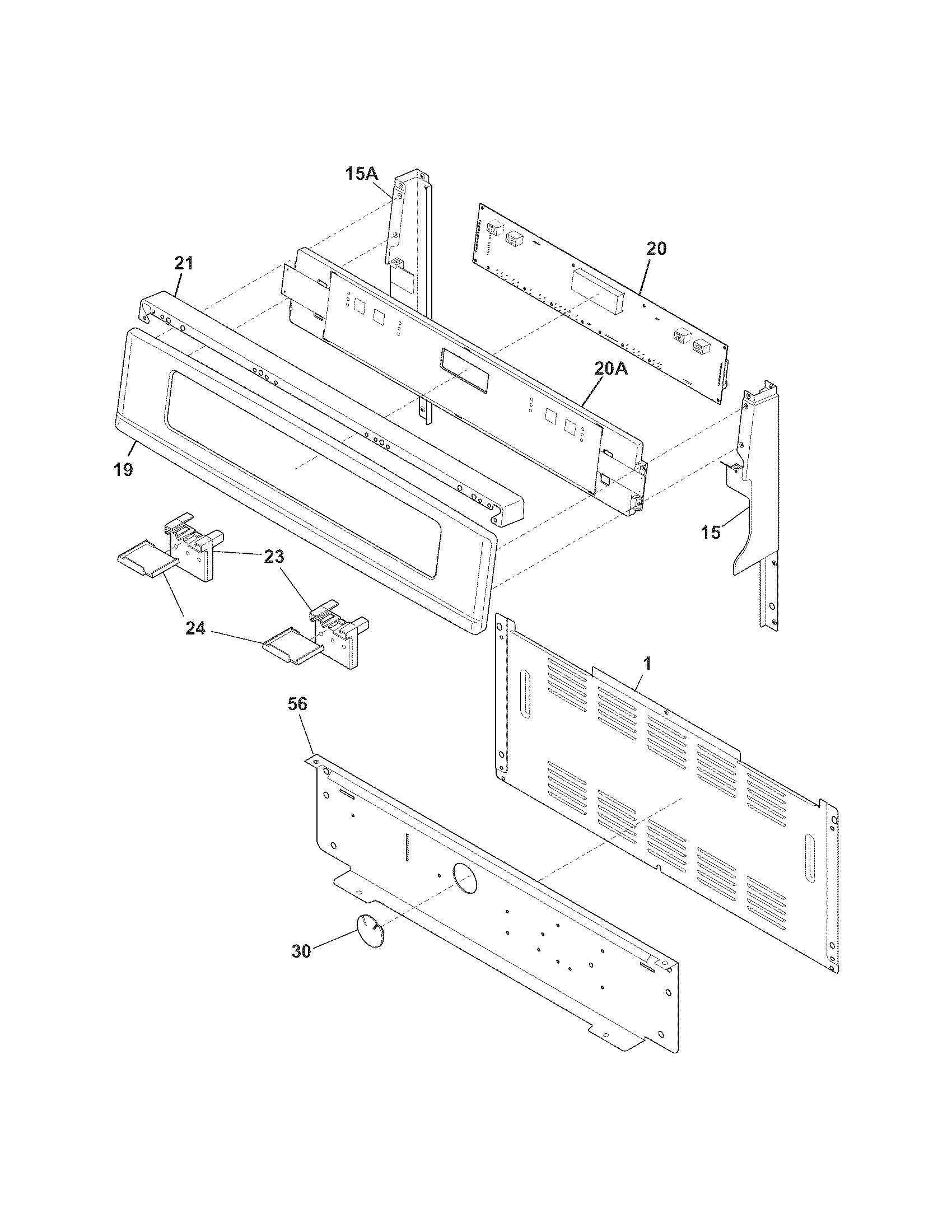

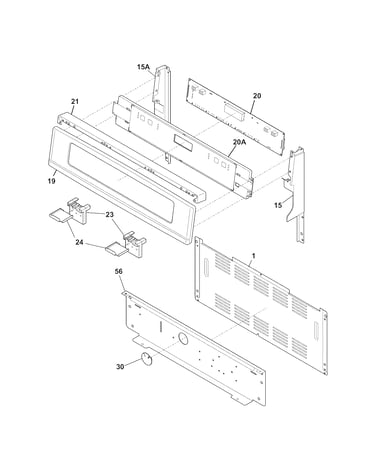

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Universal/multiflex (frigidaire) Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

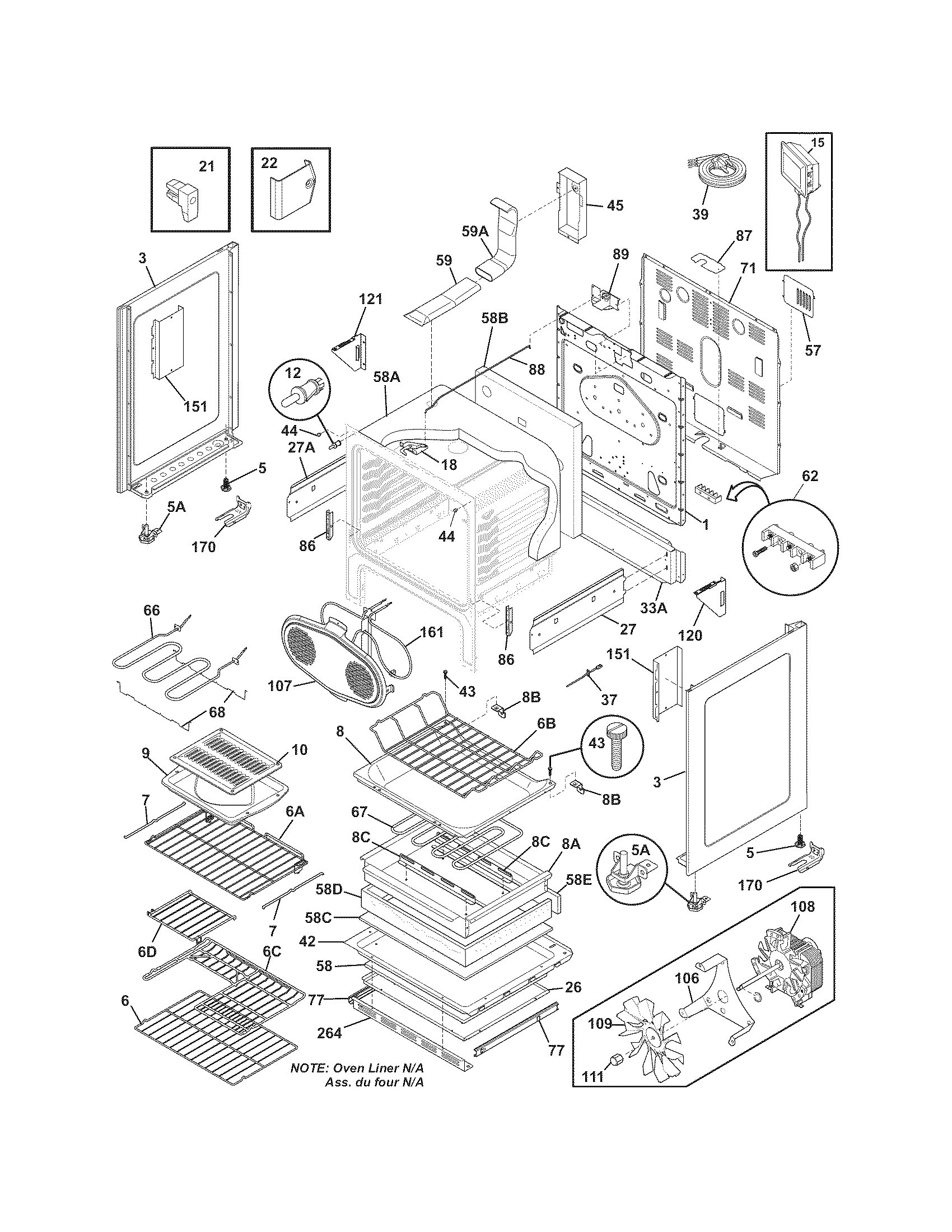

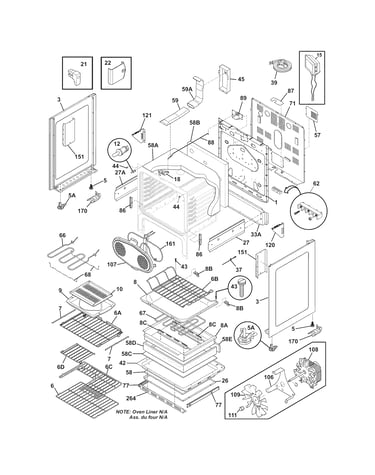

Body diagram

Universal/multiflex (frigidaire) range oven temperature sensor (replaces 316490003)

Part #316490000

BEST SELLER
$33.05 |
15% OFF Phone Price : $39.05
In Stock
Range Radiant Surface Element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110) 318178110
#15

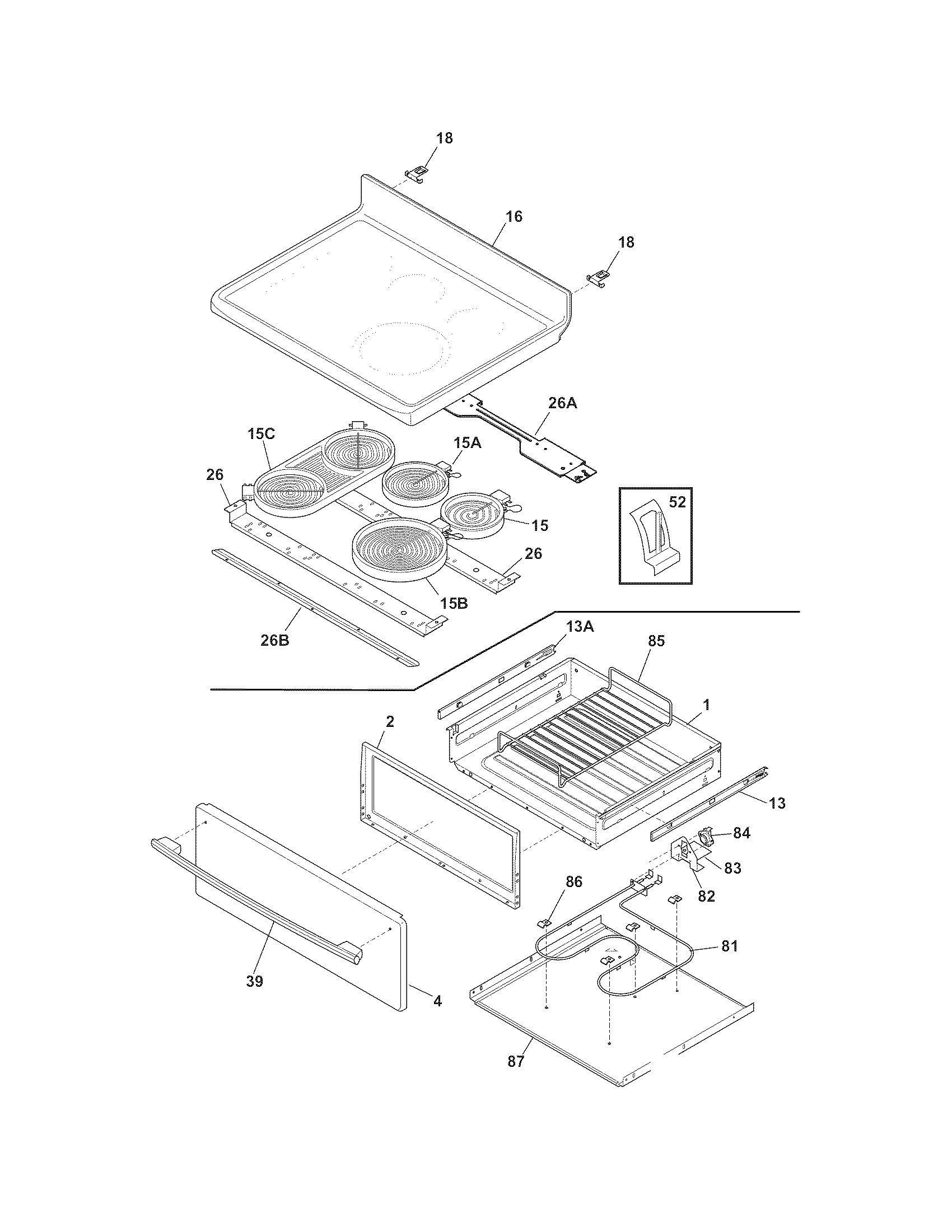

Top/drawer diagram

Range radiant surface element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110)

Part #318178110

BEST SELLER
$138.09 |
8% OFF Phone Price : $150.09
In Stock
Range Radiant Surface Element 316530000
#15B

Top/drawer diagram

Range radiant surface element

Part #316530000

Replaced by #316530001

?
Manufacturer substitution
This part replaces 316530000. Substitute parts can look different from the original.
BEST SELLER
$158.22 |
7% OFF Phone Price : $170.22
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Oven Door Lock Motor And Switch Assembly 316464300
#89

Body diagram

Range oven door lock motor and switch assembly

Part #316464300

Replaced by #5304528973

?
Manufacturer substitution
This part replaces 316464300. Substitute parts can look different from the original.
BEST SELLER
$41.22 |
13% OFF Phone Price : $47.22
In Stock
Universal/multiflex (frigidaire) Range Oven Door Seal (replaces 316405001) 316405000
#12

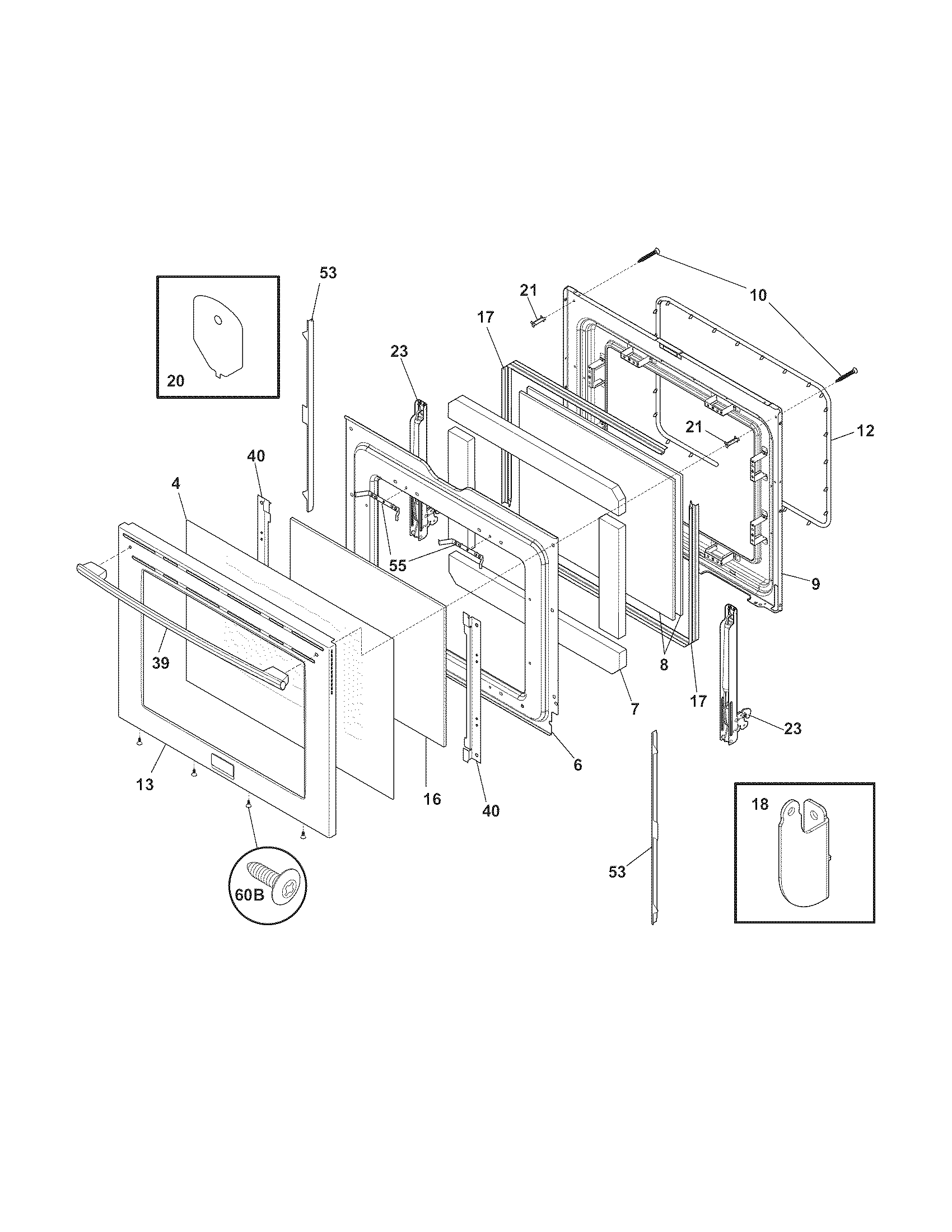

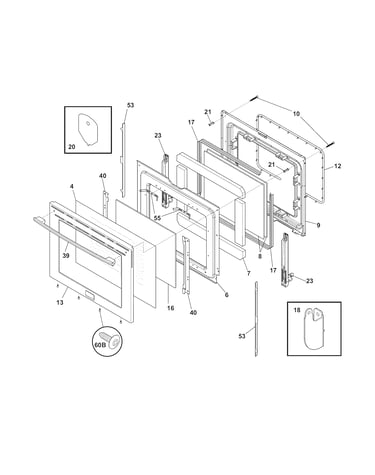

Door diagram

Universal/multiflex (frigidaire) range oven door seal (replaces 316405001)

Part #316405000

BEST SELLER
$121.62 |
9% OFF Phone Price : $133.62
In Stock
Range Convection Fan Blade 316136400
#109

Body diagram

Range convection fan blade

Part #316136400

The manufacturer no longer makes this part, and there's no substitute part

Range Oven Rack 316496207
#6

Body diagram

Range oven rack

Part #316496207

Replaced by #316496201

?
Manufacturer substitution
This part replaces 316496207. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$86.40 |
6% OFF Phone Price : $92.40
In Stock
Universal/multiflex (frigidaire) Range Oven Door Switch (replaces 316407100, 316445507, 7316445500) 316445500
#12

Body diagram

Universal/multiflex (frigidaire) range oven door switch (replaces 316407100, 316445507, 7316445500)

Part #316445500

BEST SELLER
$47.51 |
11% OFF Phone Price : $53.51
In Stock
Range Convection Fan Blade Nut (replaces 318399800, 5303311205, 7316136600) 316136600
#111

Body diagram

Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)

Part #316136600

BEST SELLER
$19.99 |
9% OFF Phone Price : $21.99
In Stock
