Model # 1066690602 Official Kenmore 21.4 cubic foot coldspot refrigerator
Here are the diagrams and repair parts for Official Kenmore 1066690602 21.4 cubic foot coldspot refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for1066690602 21.4 Cubic Foot Coldspot Refrigerator
#NI

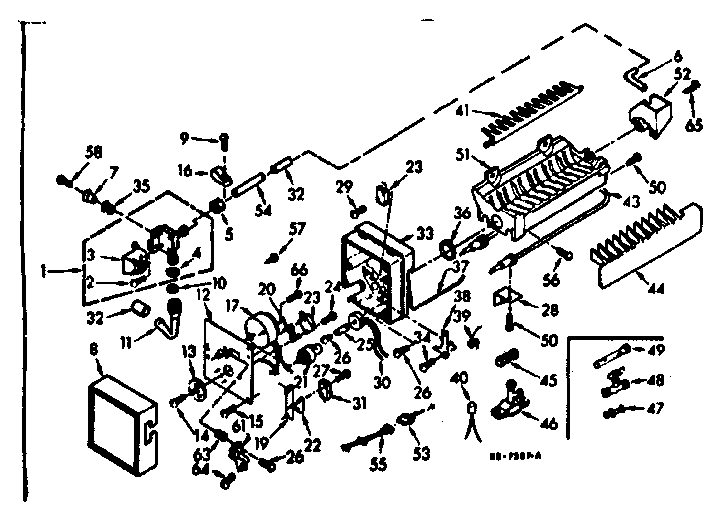

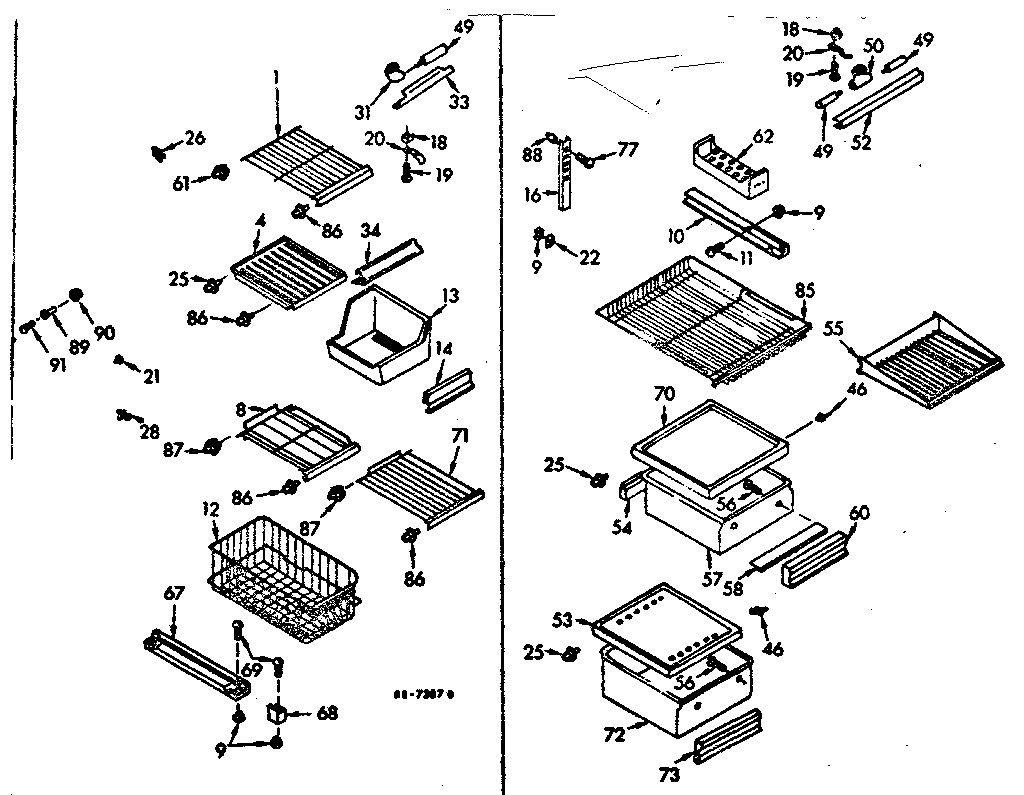

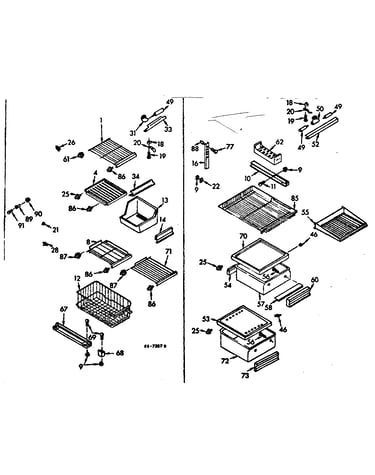

All parts diagram

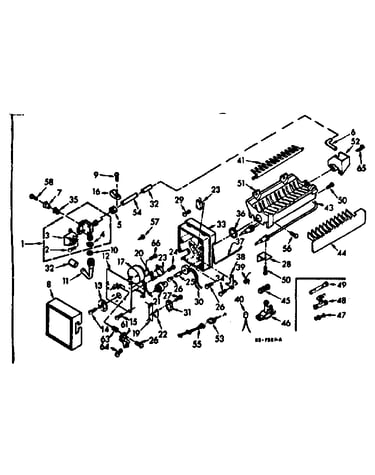

Ice makerPart #482394
Replaced by #4317943
?Manufacturer substitutionThis part replaces 482394. Substitute parts can look different from the original.$97.75 |11% OFF Phone Price : $109.75In Stock- #13

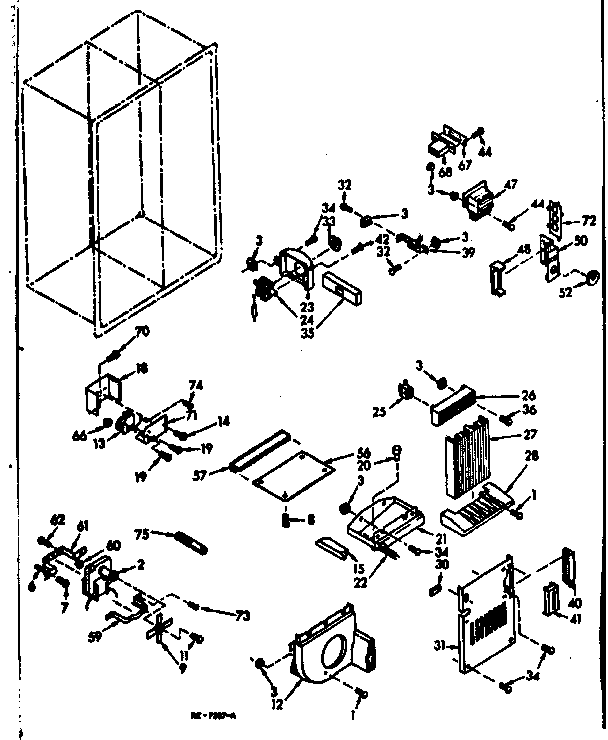

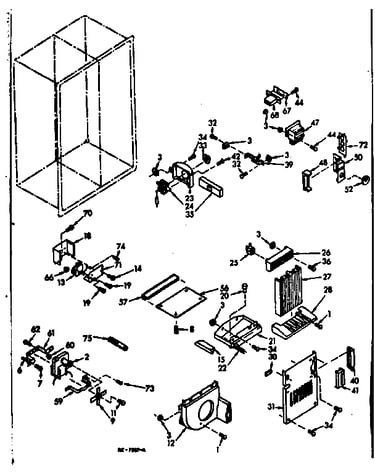

Air flow and control parts diagram
Refrigerator timerPart #548140
Replaced by #W10822278
?Manufacturer substitutionThis part replaces 548140. Substitute parts can look different from the original.$27.67 |18% OFF Phone Price : $33.67In Stock - #7

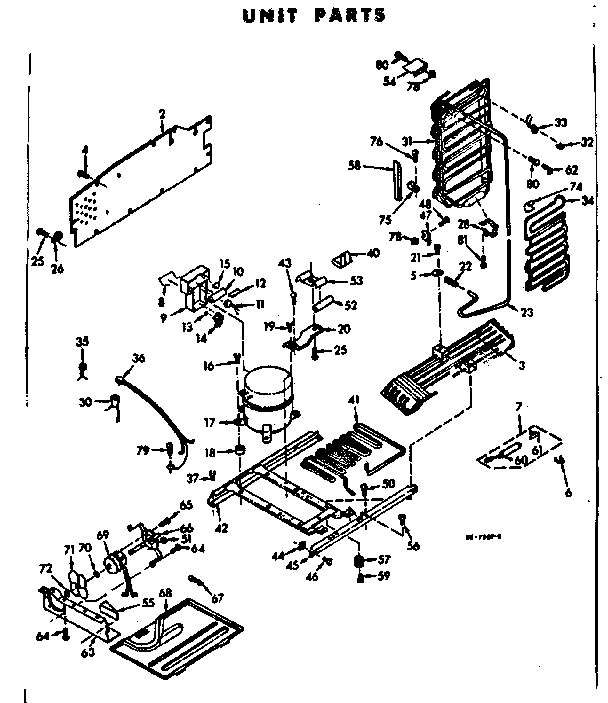

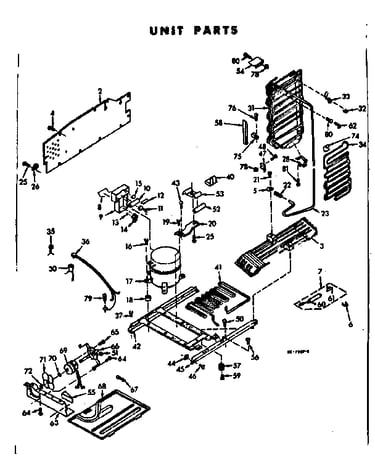

Unit parts diagram
Drier kitPart #480095
Replaced by #W10843121
?Manufacturer substitutionThis part replaces 480095. Substitute parts can look different from the original.$30.51 |16% OFF Phone Price : $36.51In Stock - #60
Unit parts diagram
DrierPart #480017
Replaced by #W10843121
?Manufacturer substitutionThis part replaces 480017. Substitute parts can look different from the original.$30.51 |16% OFF Phone Price : $36.51In Stock - Refrigerator tube
Part #653200
Replaced by #W10823511
?Manufacturer substitutionThis part replaces 653200. Substitute parts can look different from the original.$32.17 |16% OFF Phone Price : $38.17In Stock - #69
Unit parts diagram
Fan motorPart #531106
Replaced by #833697
?Manufacturer substitutionThis part replaces 531106. Substitute parts can look different from the original.$53.93 |10% OFF Phone Price : $59.93In Stock - #61

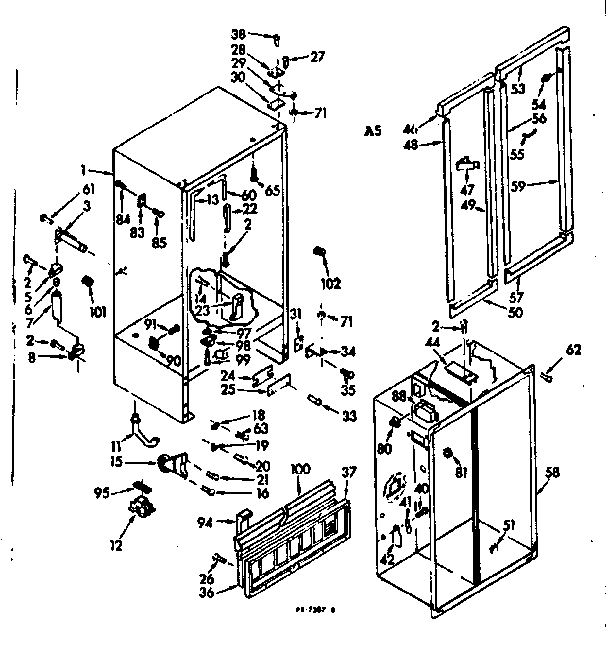

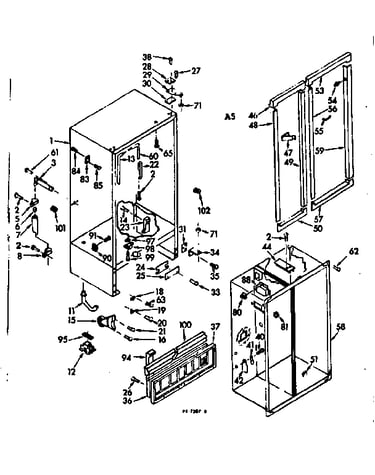

Cabinet parts diagram
ScrewPart #488356
Replaced by #WP488729
?Manufacturer substitutionThis part replaces 488356. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock - #64
Unit parts diagram
ScrewPart #488212
Replaced by #WP90767
?Manufacturer substitutionThis part replaces 488212. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock - #20

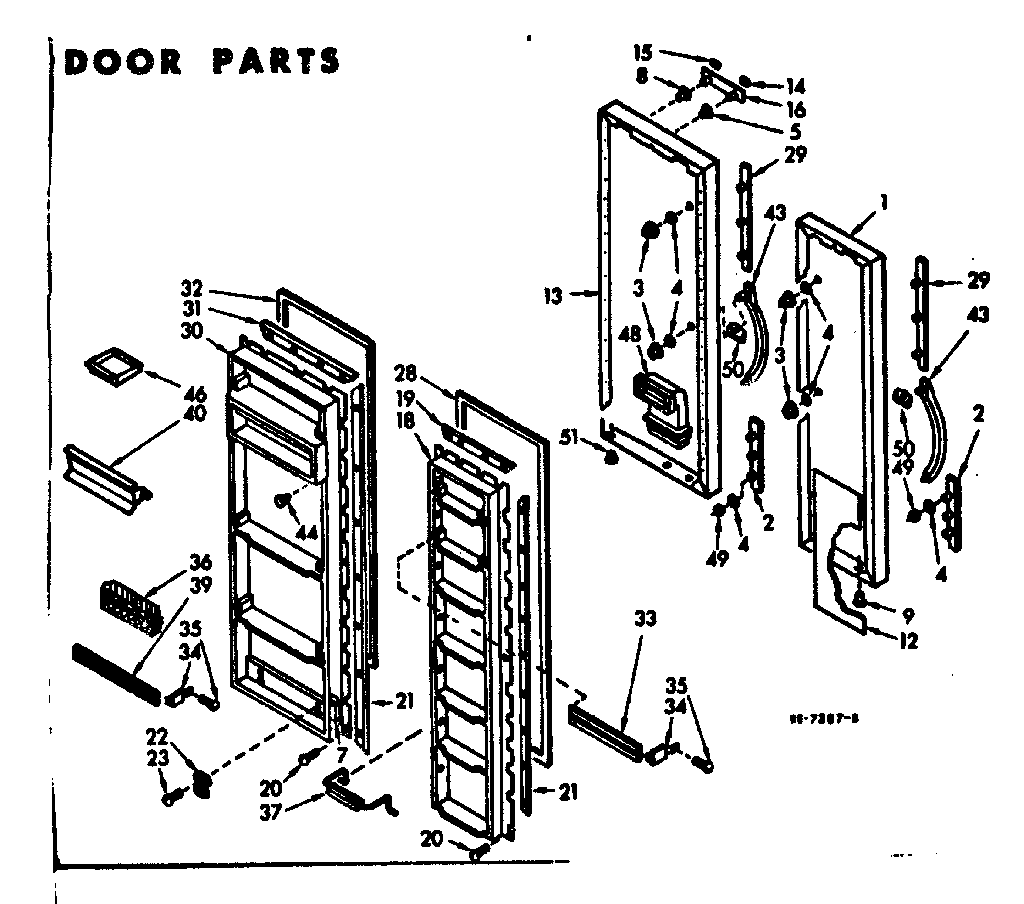

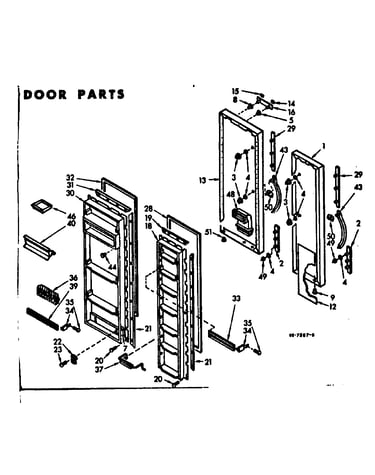

Door parts diagram
ScrewPart #488344
Replaced by #WP308685
?Manufacturer substitutionThis part replaces 488344. Substitute parts can look different from the original.This item is not returnable$4.36 |19% OFF Phone Price : $5.36In Stock - #8
Air flow and control parts diagram
ScrewPart #487361
Replaced by #WP308685
?Manufacturer substitutionThis part replaces 487361. Substitute parts can look different from the original.This item is not returnable$4.36 |19% OFF Phone Price : $5.36In Stock
