Model # DVM7195EK3ES Official GE microwave/hood combo

Here are the diagrams and repair parts for Official GE DVM7195EK3ES microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

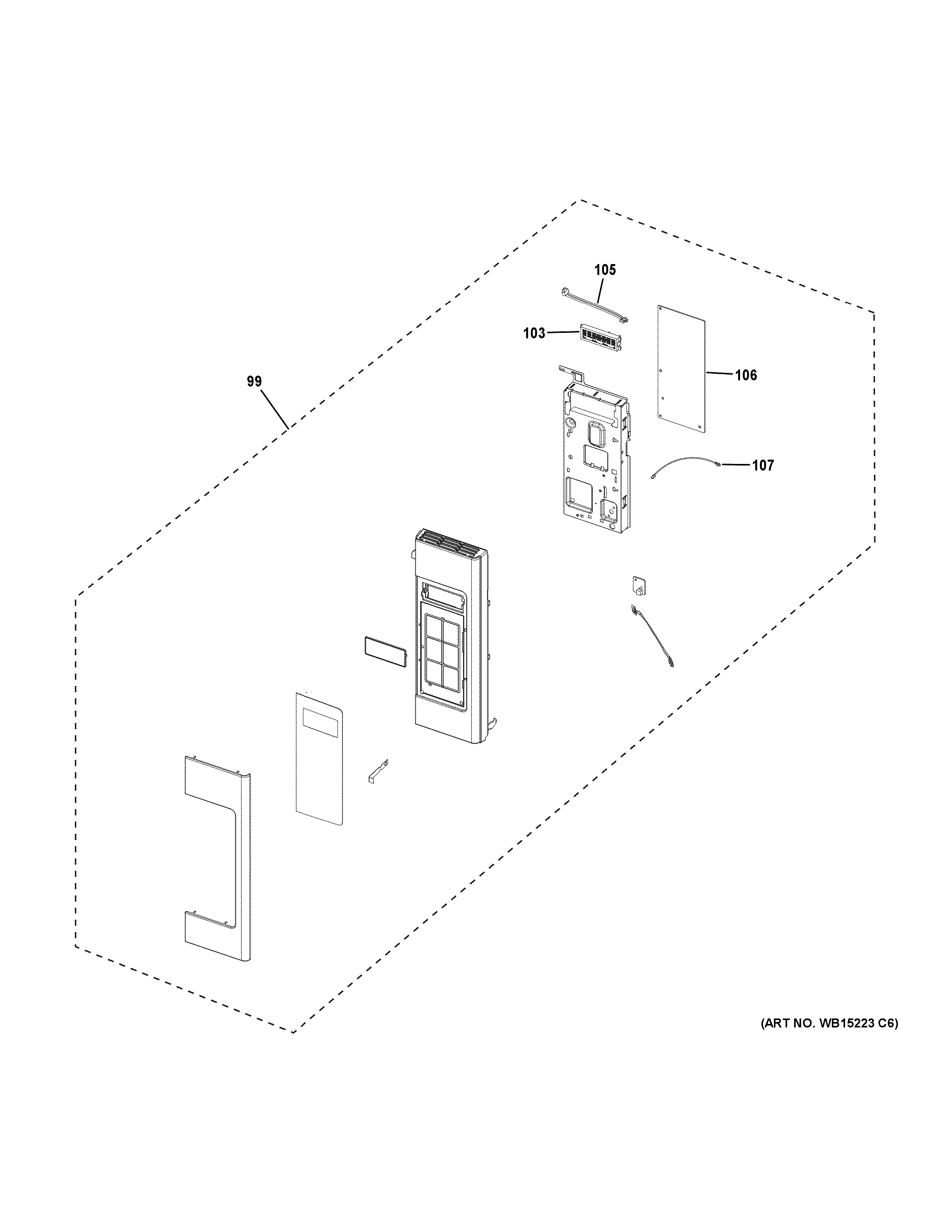

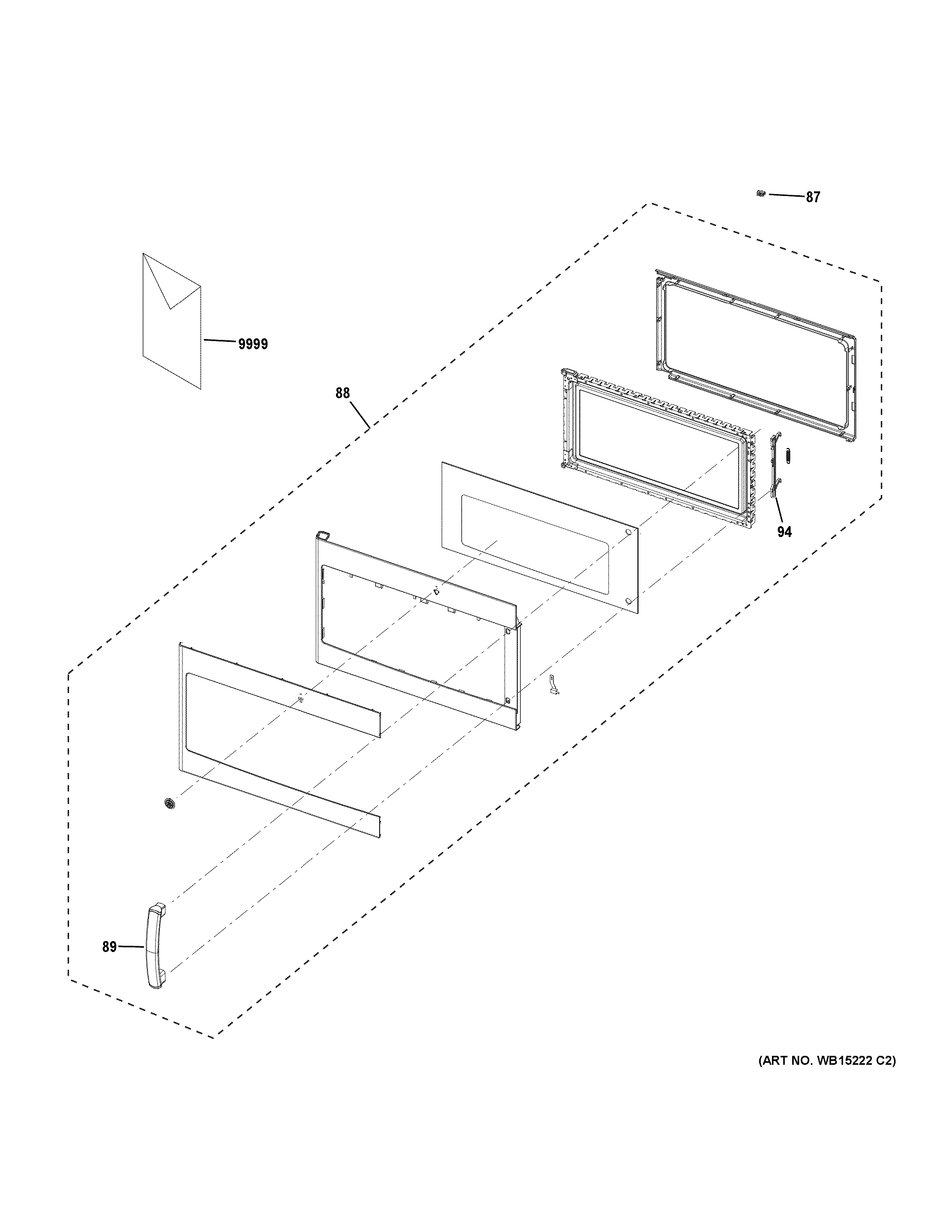

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Switch-micro WB24X10038
#39

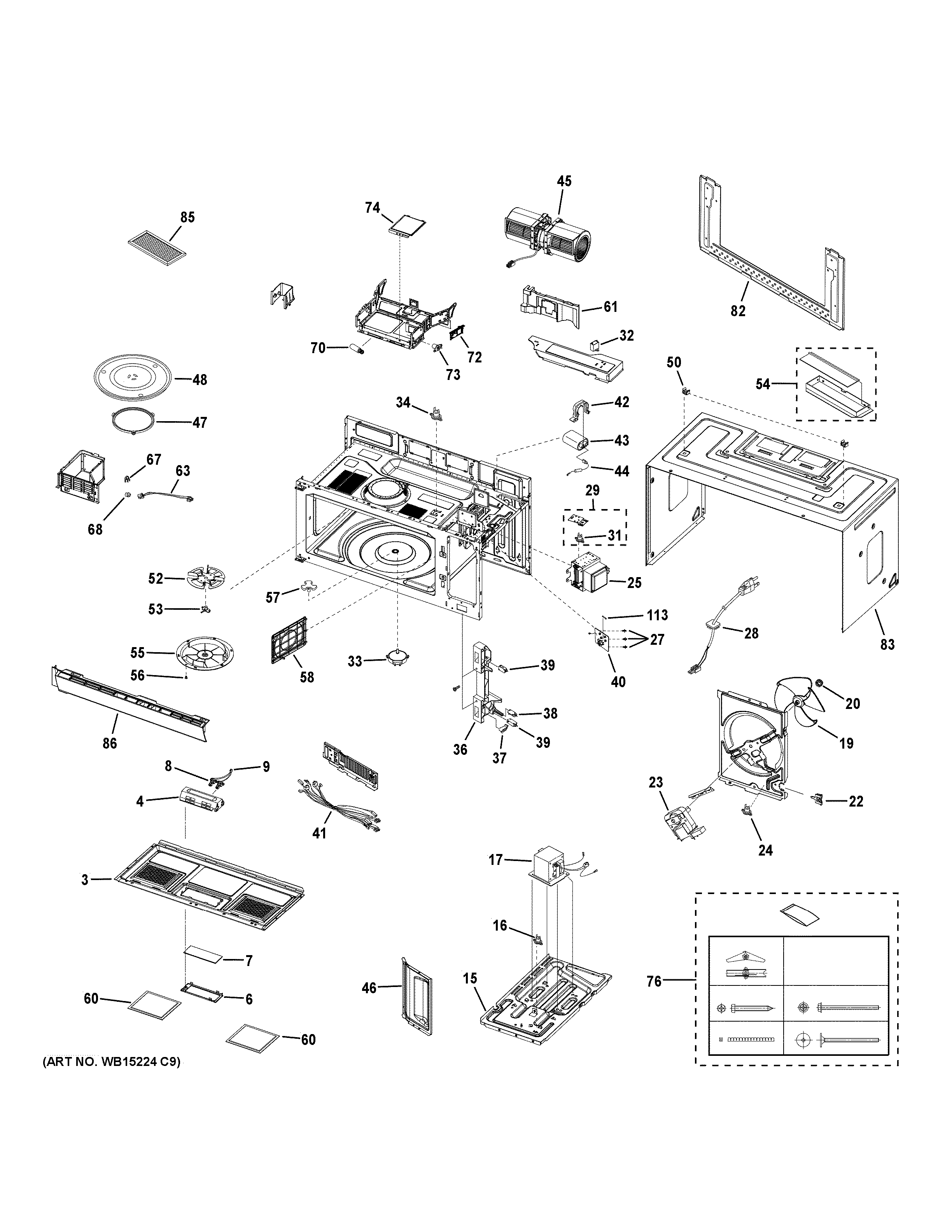

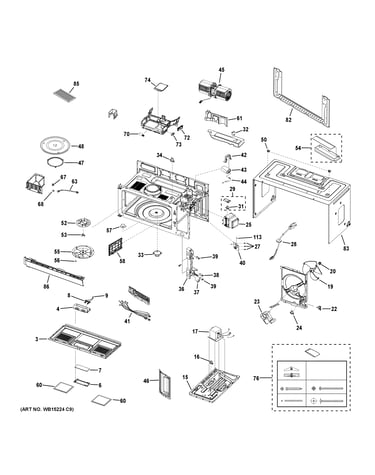

Oven cavity parts diagram

Switch-micro

Part #WB24X10038

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X10038. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Fuse Cartridge WB27X10474
#113

Oven cavity parts diagram

Fuse cartridge

Part #WB27X10474

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10474. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave High-voltage Capacitor (replaces Wb27x585) WB27X10011
#43

Oven cavity parts diagram

Microwave high-voltage capacitor (replaces wb27x585)

Part #WB27X10011

BEST SELLER
$46.74 |
11% OFF Phone Price : $52.74
In Stock
Micro-switch WB24X10075
#38

Oven cavity parts diagram

Micro-switch

Part #WB24X10075

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X10075. Substitute parts can look different from the original.
BEST SELLER
$26.26 |
19% OFF Phone Price : $32.26
In Stock
Microwave Magnetron (replaces Wb27t10545) WB27X11079
#25

Oven cavity parts diagram

Microwave magnetron (replaces wb27t10545)

Part #WB27X11079

BEST SELLER
$125.59 |
9% OFF Phone Price : $137.59
In Stock
Microwave High-voltage Diode (replaces Wb27x608) WB27X1160
#44

Oven cavity parts diagram

Microwave high-voltage diode (replaces wb27x608)

Part #WB27X1160

BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Microwave Gas Sensor (replaces Wb24x0799) WB24X799
#67

Oven cavity parts diagram

Microwave gas sensor (replaces wb24x0799)

Part #WB24X799

BEST SELLER
$151.05 |
7% OFF Phone Price : $163.05
In Stock
Microwave Thermal Cut-off WB24X26785
#29

Oven cavity parts diagram

Microwave thermal cut-off

Part #WB24X26785

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Maytag Microwave Thermostat (replaces Wb27x0709) WB27X709
#24

Oven cavity parts diagram

Maytag microwave thermostat (replaces wb27x0709)

Part #WB27X709

BEST SELLER
This item is not returnable
$26.60 |
18% OFF Phone Price : $32.60
In Stock
Microwave Halogen Light Bulb WB36X10213
#8

Oven cavity parts diagram

Microwave halogen light bulb

Part #WB36X10213

BEST SELLER
$13.83 |
13% OFF Phone Price : $15.83
In Stock
