Model # SU200PXW1 Official White-Westinghouse 24" built-in dishwasher - 5995203766

Here are the diagrams and repair parts for Official White-Westinghouse SU200PXW1 24" built-in dishwasher - 5995203766, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

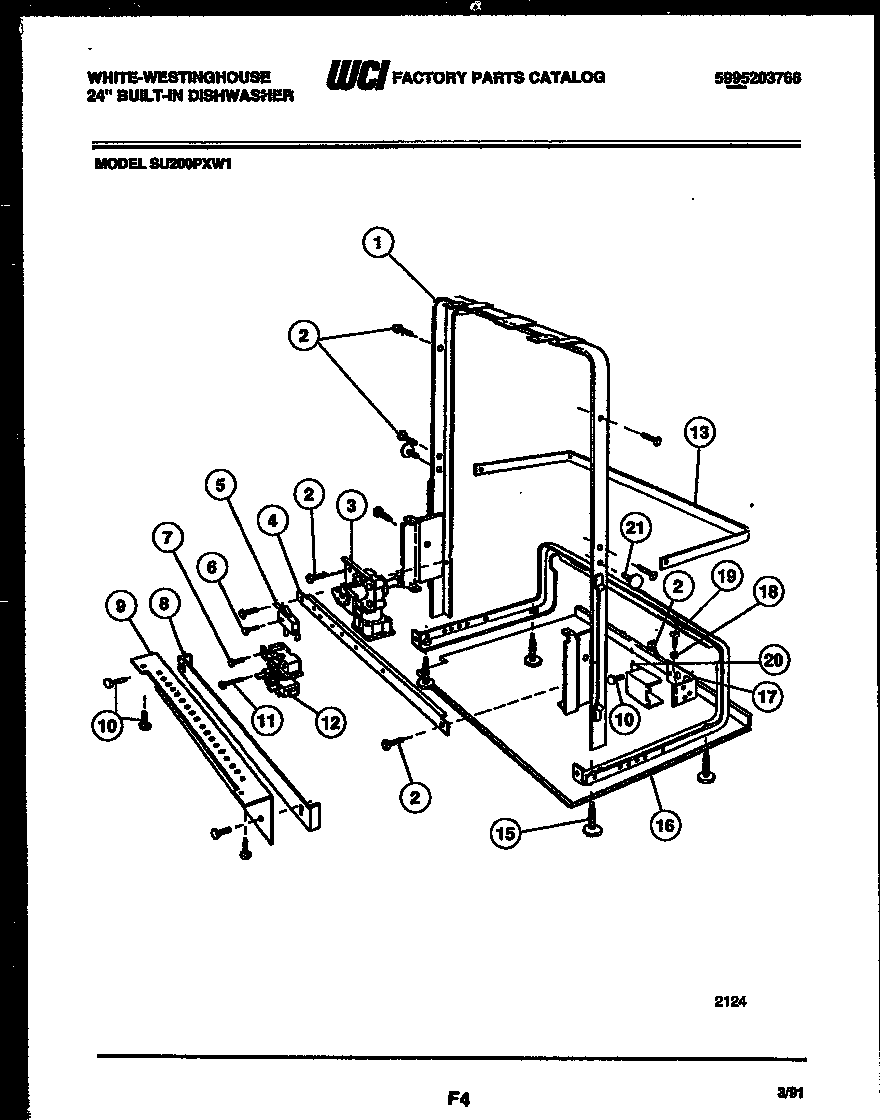

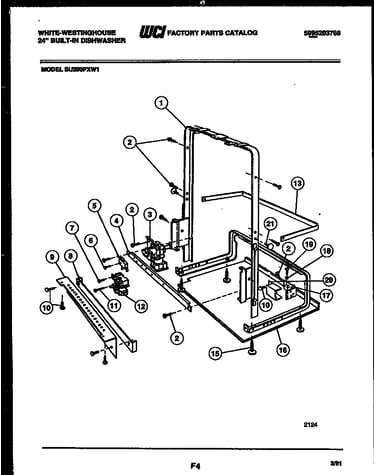

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Dishwasher Dishrack Roller, Lower 5300809640
#7

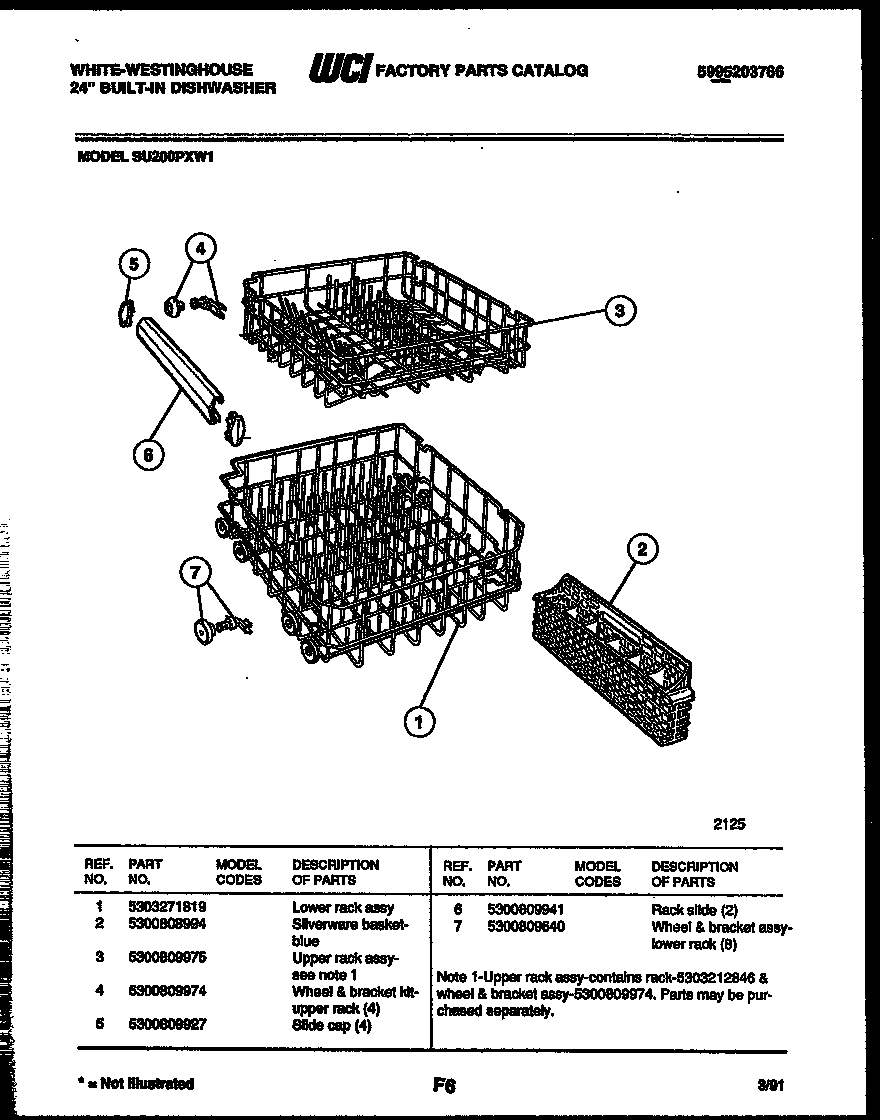

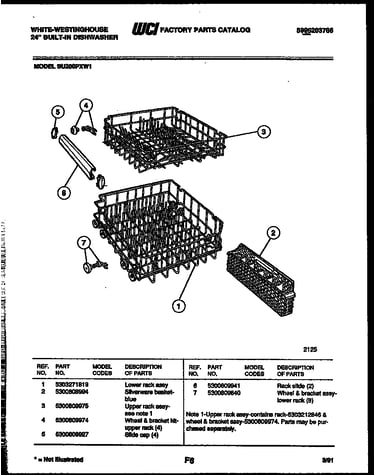

Racks and trays diagram

Dishwasher dishrack roller, lower

Part #5300809640

Replaced by #5304532229

?
Manufacturer substitution
This part replaces 5300809640. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.74 |
17% OFF Phone Price : $5.74
In Stock
Basket 5300808994
#2

Racks and trays diagram

Basket

Part #5300808994

Replaced by #5304509753

?
Manufacturer substitution
This part replaces 5300808994. Substitute parts can look different from the original.
This item is not returnable
$28.93 |
17% OFF Phone Price : $34.93
In Stock
Lock Nut 5300808470
#5

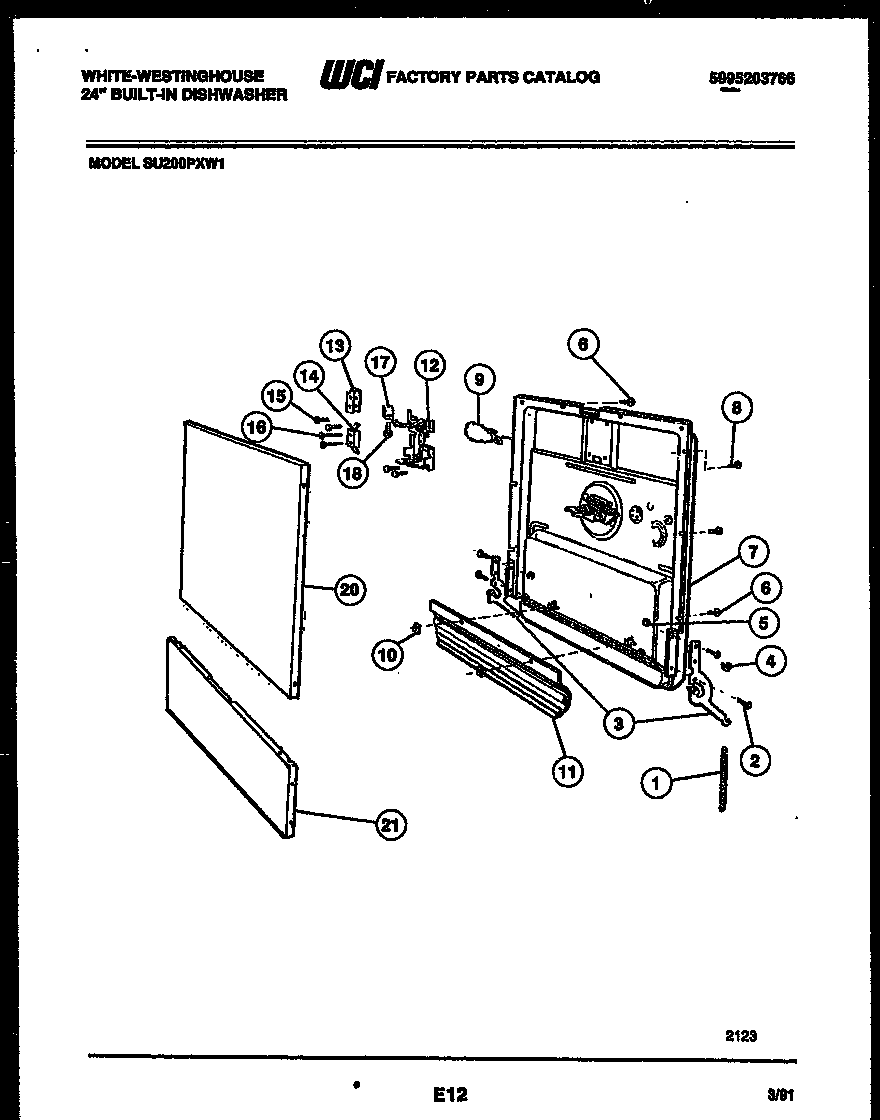

Door parts diagram

Lock nut

Part #5300808470

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 5300808470. Substitute parts can look different from the original.
This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Tub Roller 5300809917
#6

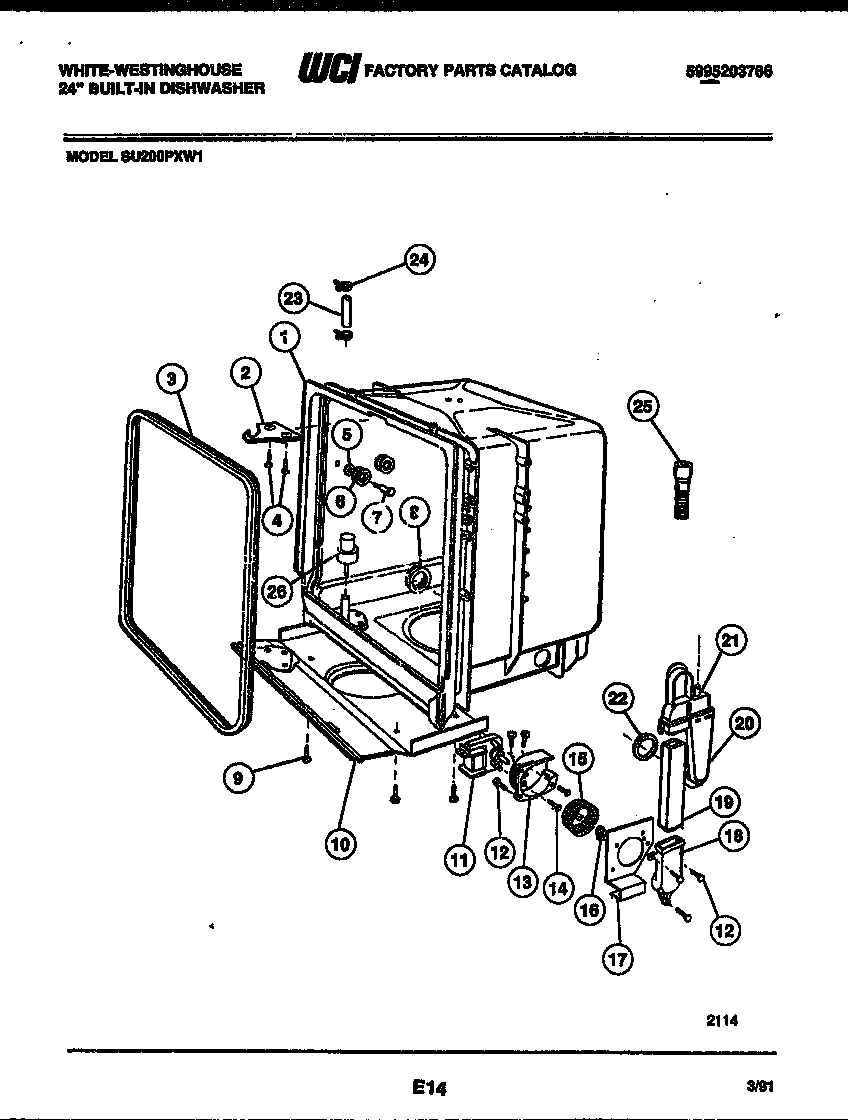

Tub and frame parts diagram

Tub roller

Part #5300809917

Replaced by #5304507405

?
Manufacturer substitution
This part replaces 5300809917. Substitute parts can look different from the original.
This item is not returnable
$16.71
In Stock
Screw 5300808618
#16

Door parts diagram

Screw

Part #5300808618

This item is not returnable
$2.16
In Stock
Dishwasher Door Spring 5300809703
#1

Door parts diagram

Dishwasher door spring

Part #5300809703

$34.36 |
15% OFF Phone Price : $40.36
In Stock
Kenmore Screw 5303270892
#4

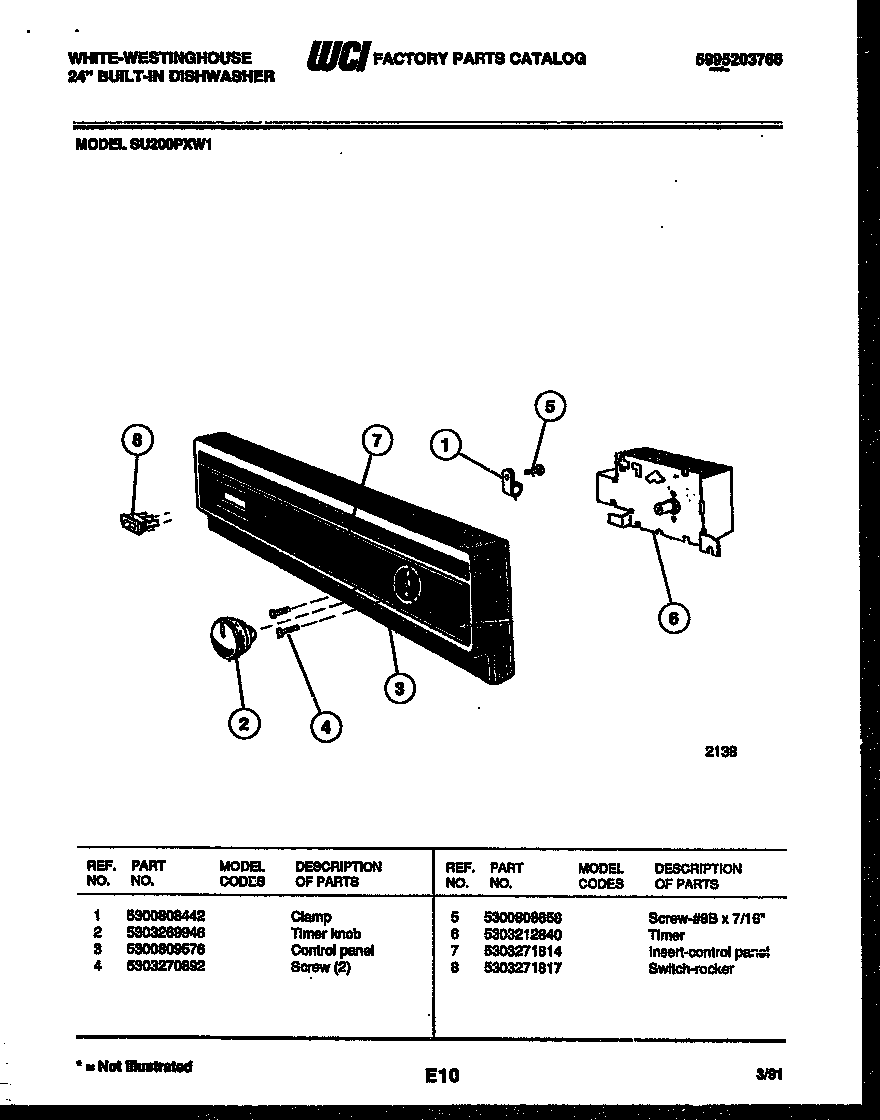

Console and control parts diagram

Kenmore screw

Part #5303270892

This item is not returnable
$2.16
In Stock
Dishwasher Detergent Dispenser Door Compression Spring 5300806567
#4

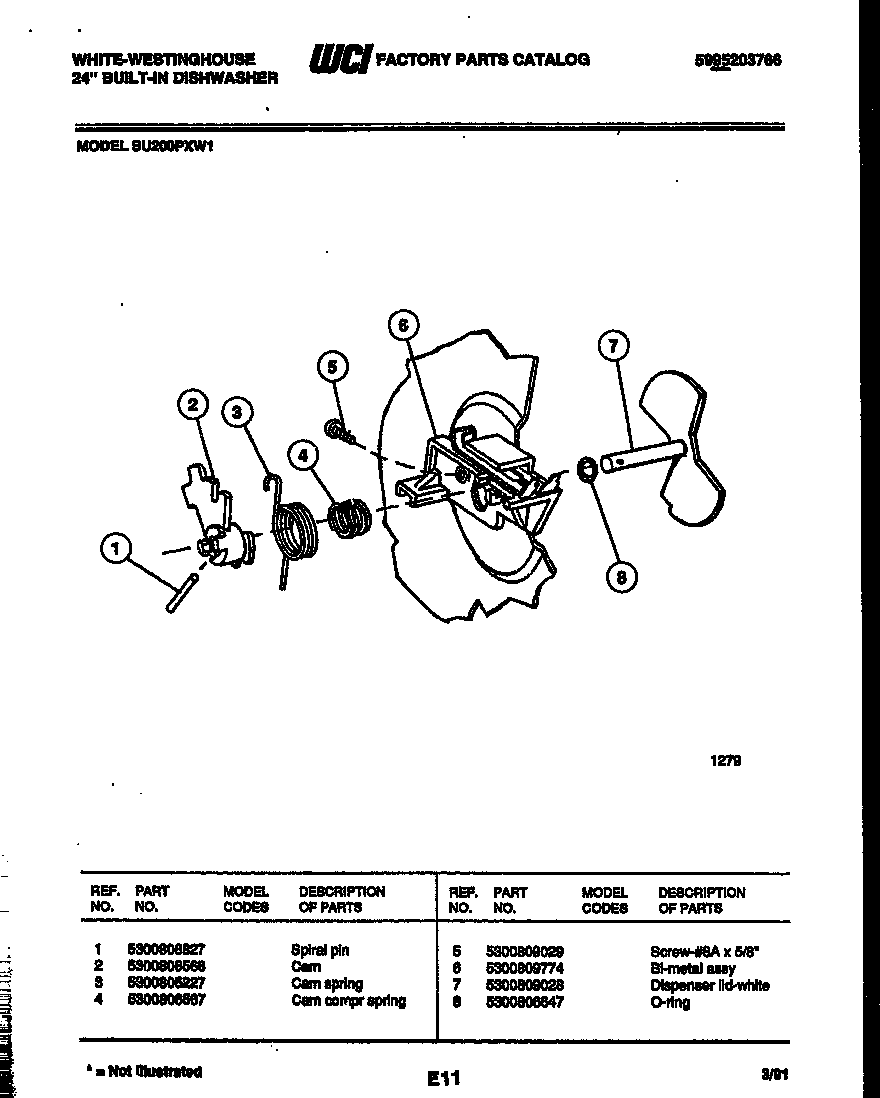

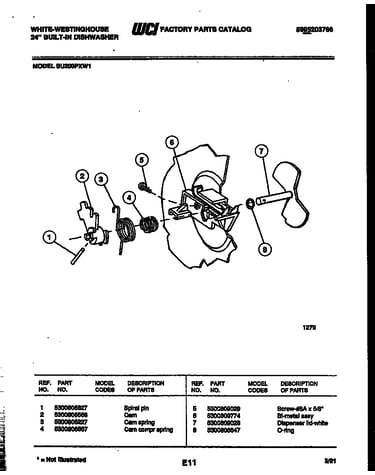

Cam diagram

Dishwasher detergent dispenser door compression spring

Part #5300806567

$29.93
In Stock
Dishwasher O-ring 5300806521
#9

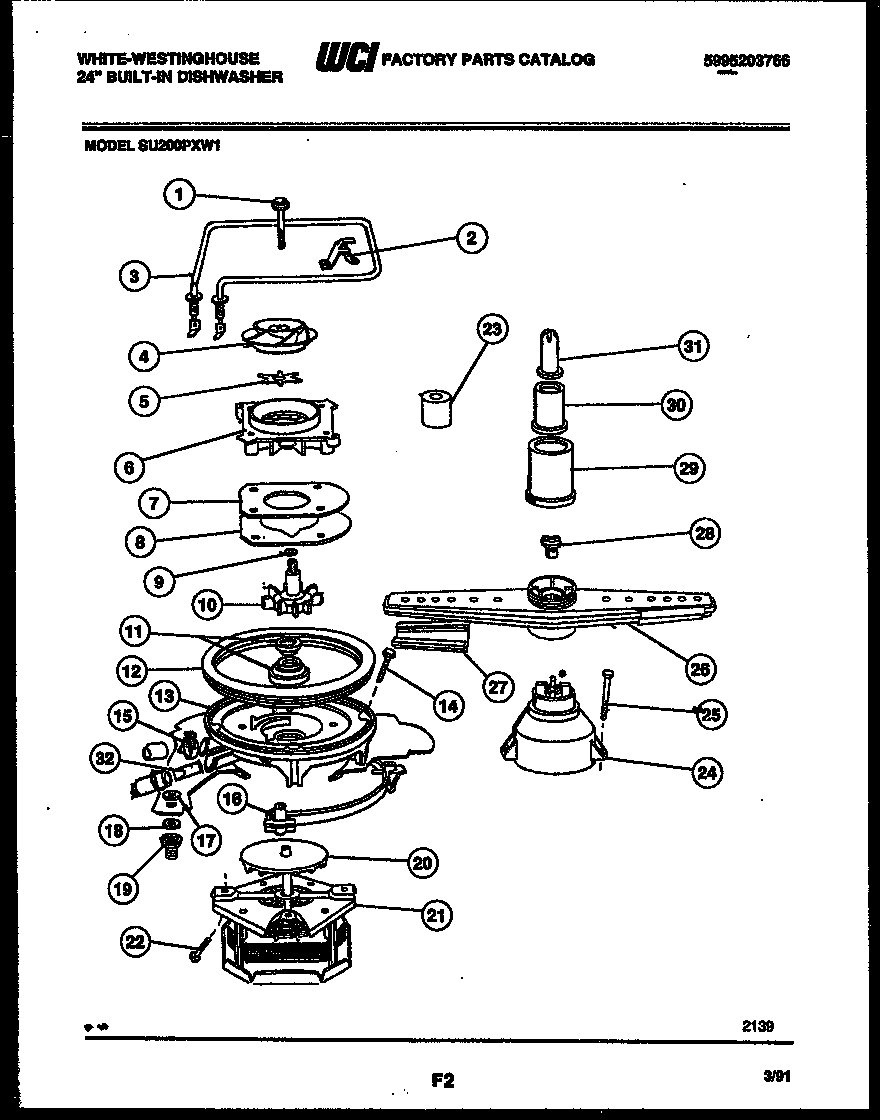

Motor pump parts diagram

Dishwasher o-ring

Part #5300806521

$24.89
In Stock
Dishwasher Sump Gasket 5300809586
#12

Motor pump parts diagram

Dishwasher sump gasket

Part #5300809586

$83.69 |
7% OFF Phone Price : $89.69
In Stock
