Thermador
Gas Cooktop

Model # SGC456RB Official Thermador gas steel cooktop with full service grate

Here are the diagrams and repair parts for Official Thermador SGC456RB gas steel cooktop with full service grate, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

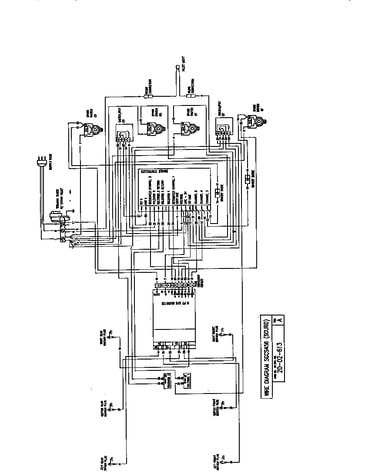

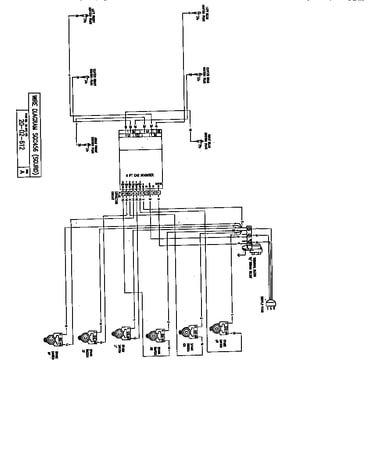

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Plug 20-02-377
Plug

Part #20-02-377

Replaced by #00189324

?
Manufacturer substitution
This part replaces 20-02-377. Substitute parts can look different from the original.
$35.49 |
14% OFF Phone Price : $41.49
In Stock
Solenoid 20-02-500
#7

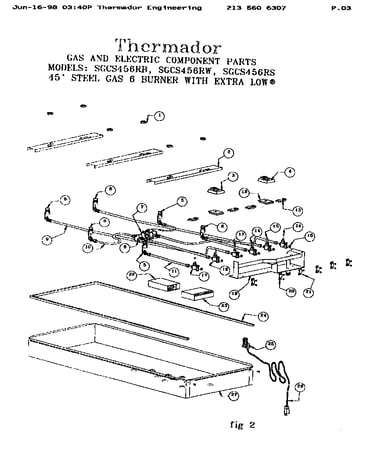

Gas and electric components (sgcs456rb) (sgcs456rs) (sgcs456rw) diagram

Solenoid

Part #20-02-500

Replaced by #00411253

?
Manufacturer substitution
This part replaces 20-02-500. Substitute parts can look different from the original.
$192.49 |
6% OFF Phone Price : $204.49
In Stock
Cooktop Burner Cap 20-02-021-04
Cooktop burner cap

Part #20-02-021-04

Replaced by #00189336

?
Manufacturer substitution
This part replaces 20-02-021-04. Substitute parts can look different from the original.
$77.49 |
7% OFF Phone Price : $83.49
In Stock

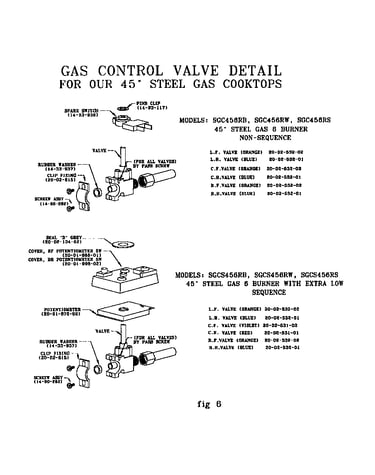

Oven Switch 14-33-936
Oven switch

Part #14-33-936

Replaced by #00189008

?
Manufacturer substitution
This part replaces 14-33-936. Substitute parts can look different from the original.
$33.59 |
15% OFF Phone Price : $39.59
In Stock

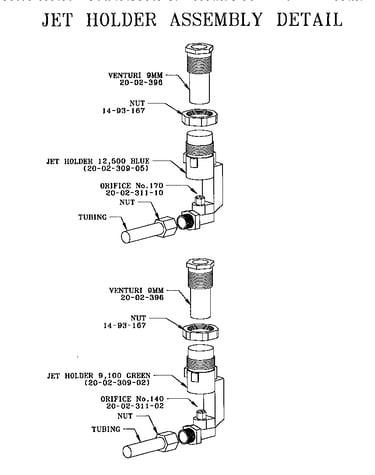

Venturi 20-02-396
Venturi

Part #20-02-396

Replaced by #00189321

?
Manufacturer substitution
This part replaces 20-02-396. Substitute parts can look different from the original.
$46.44
In Stock
Main Top 20-02-573-02
#25

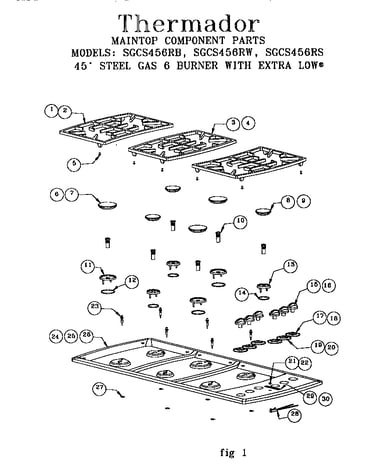

Maintop (sgcs456rb) (sgcs456rs) (sgcs456rw) diagram

Main top

Part #20-02-573-02

$263.99
In Stock

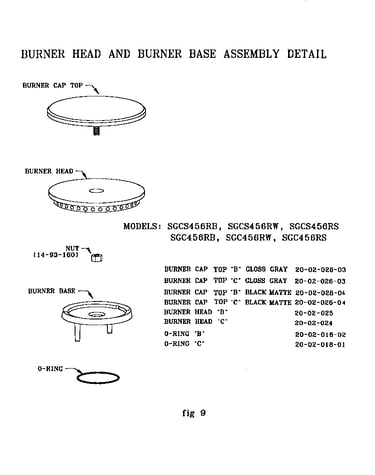

O-ring 20-02-018-02
O-ring

Part #20-02-018-02

This item is not returnable
$4.52
In Stock

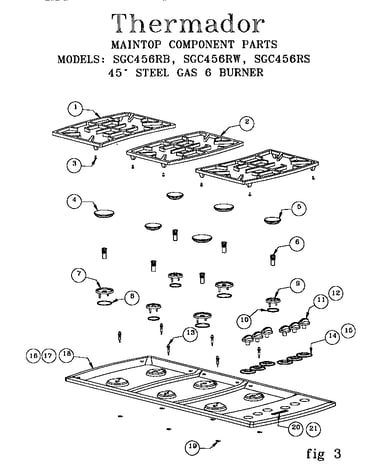

Range Surface Burner Cap (gloss Gray) 20-02-020-03
#7

Maintop (sgcs456rb) (sgcs456rs) (sgcs456rw) diagram

Range surface burner cap (gloss gray)

Part #20-02-020-03

$61.49
In Stock

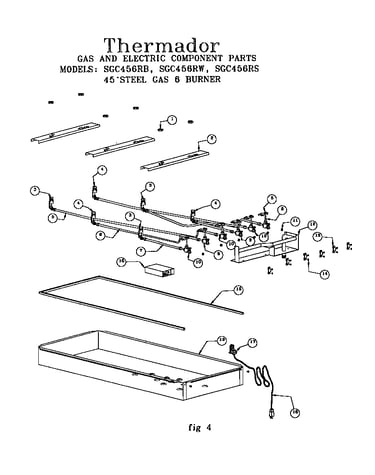

Cover 20-01-998-01
#3

Gas and electric components (sgcs456rb) (sgcs456rs) (sgcs456rw) diagram

Cover

Part #20-01-998-01

This item is not returnable
$3.49
In Stock
Ring 20-02-042
Ring

Part #20-02-042

This item is not returnable
$3.99
Back Order
