Bosch
Wall Oven/Microwave Combo

Model # HBL8751UCC/02 Official Bosch built-in oven with microwave

Here are the diagrams and repair parts for Official Bosch HBL8751UCC-02 built-in oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

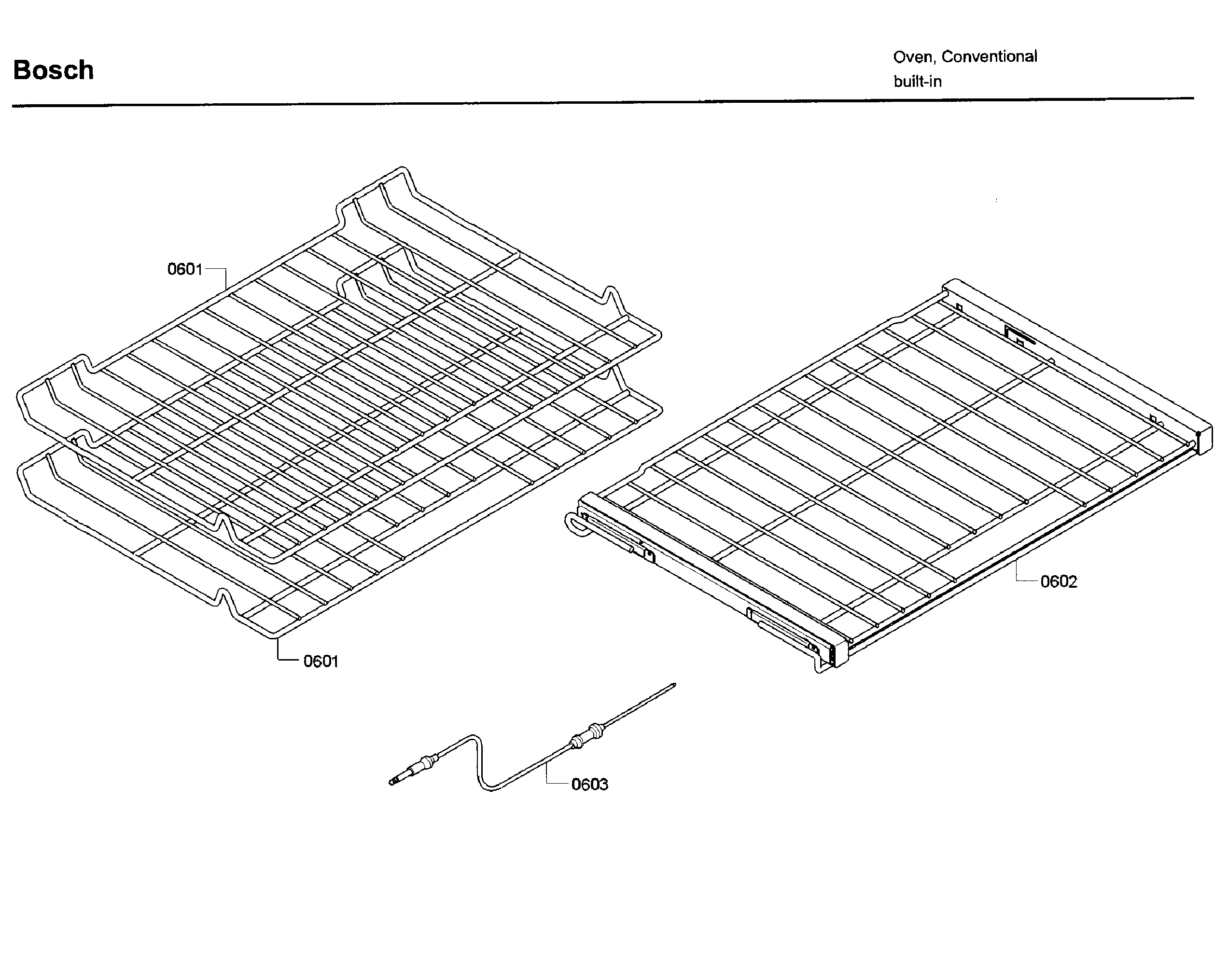

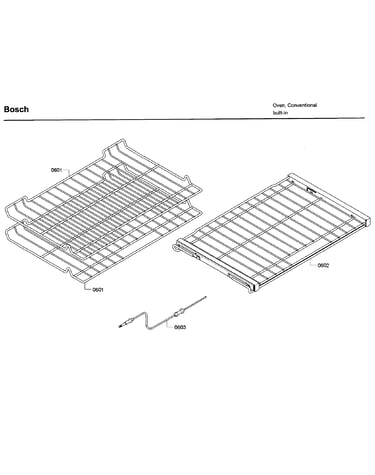

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Wall Oven Display Control Board 00758968
#102

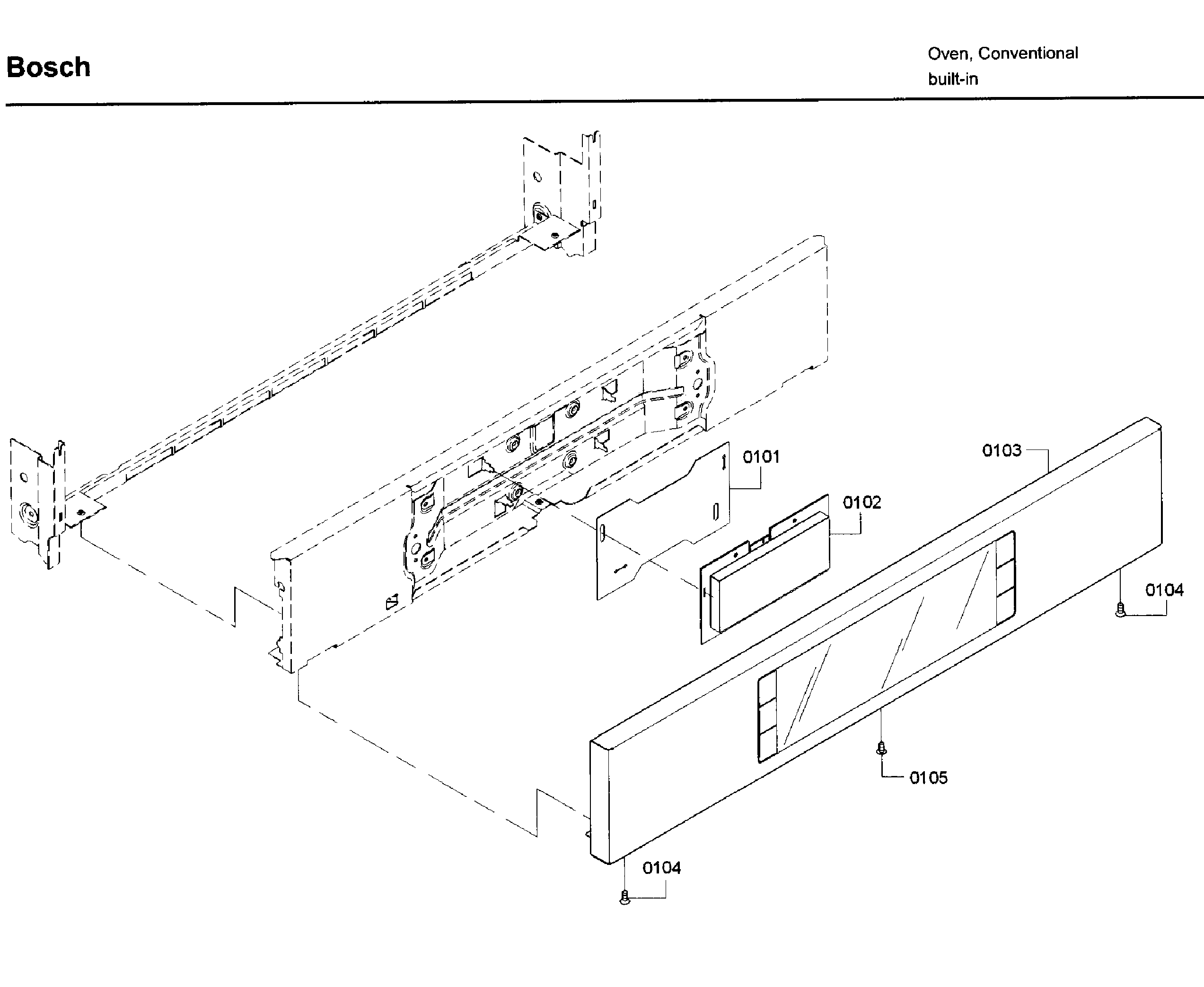

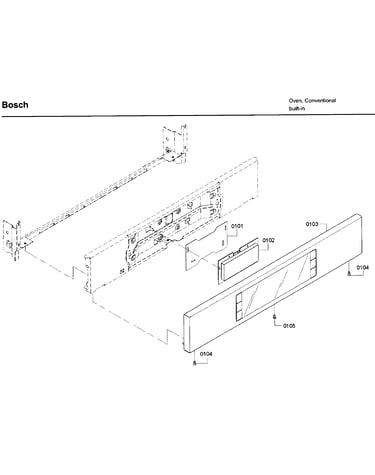

Control panel diagram

Wall oven display control board

Part #00758968

Replaced by #12029207

?
Manufacturer substitution
This part replaces 00758968. Substitute parts can look different from the original.
BEST SELLER
$160.40 |
7% OFF Phone Price : $172.40
In Stock
Wall Oven Temperature Sensor (replaces 630873) 00630873
#309

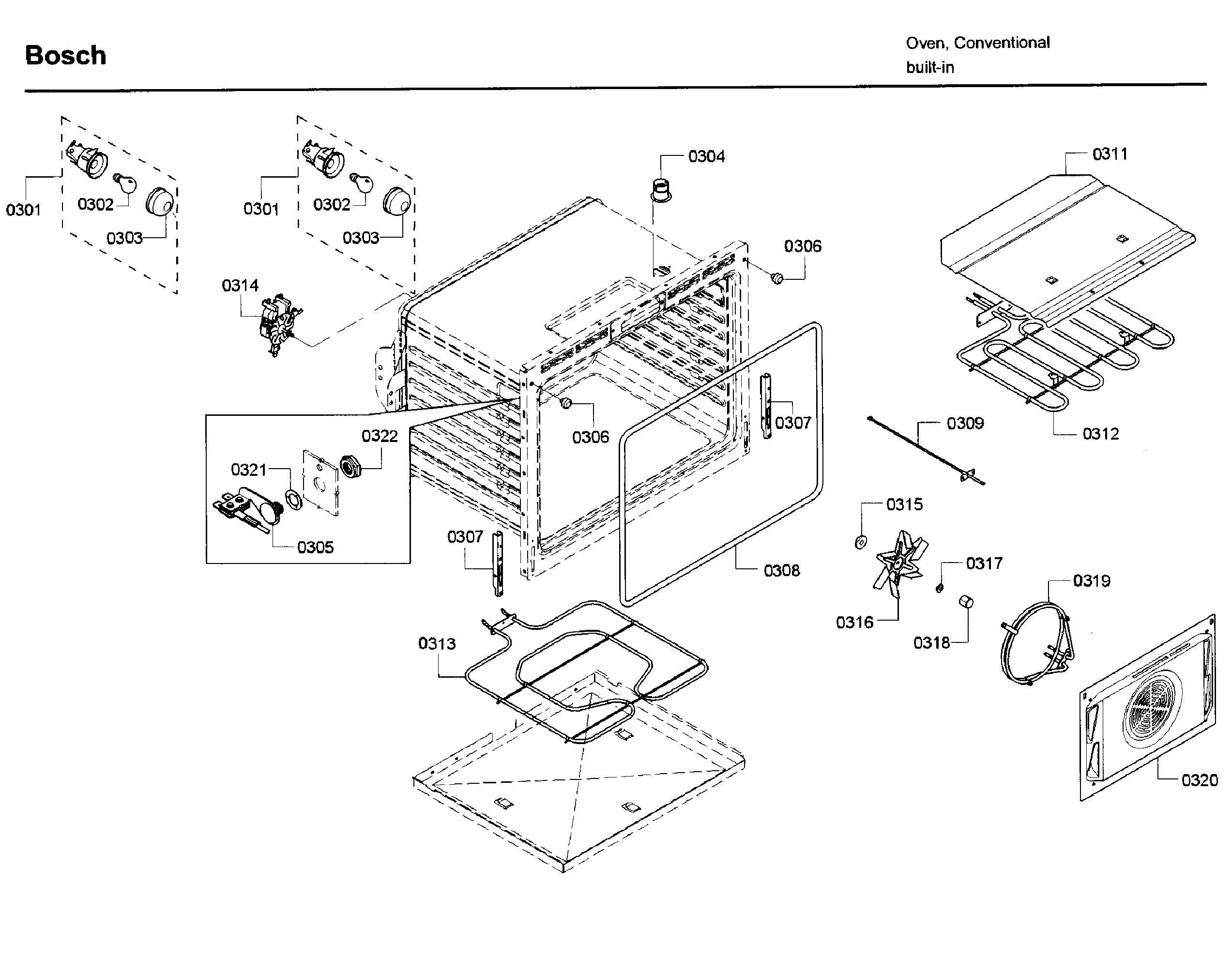

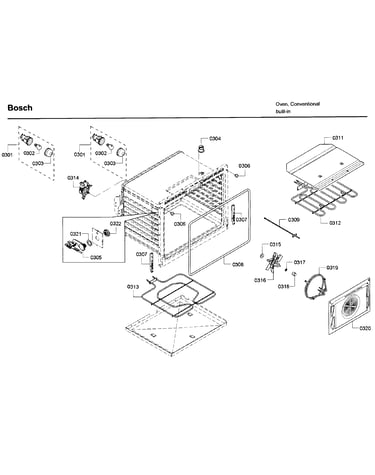

Cavity diagram

Wall oven temperature sensor (replaces 630873)

Part #00630873

BEST SELLER
$50.89 |
11% OFF Phone Price : $56.89
In Stock
Temperature Limit 00631344
#211

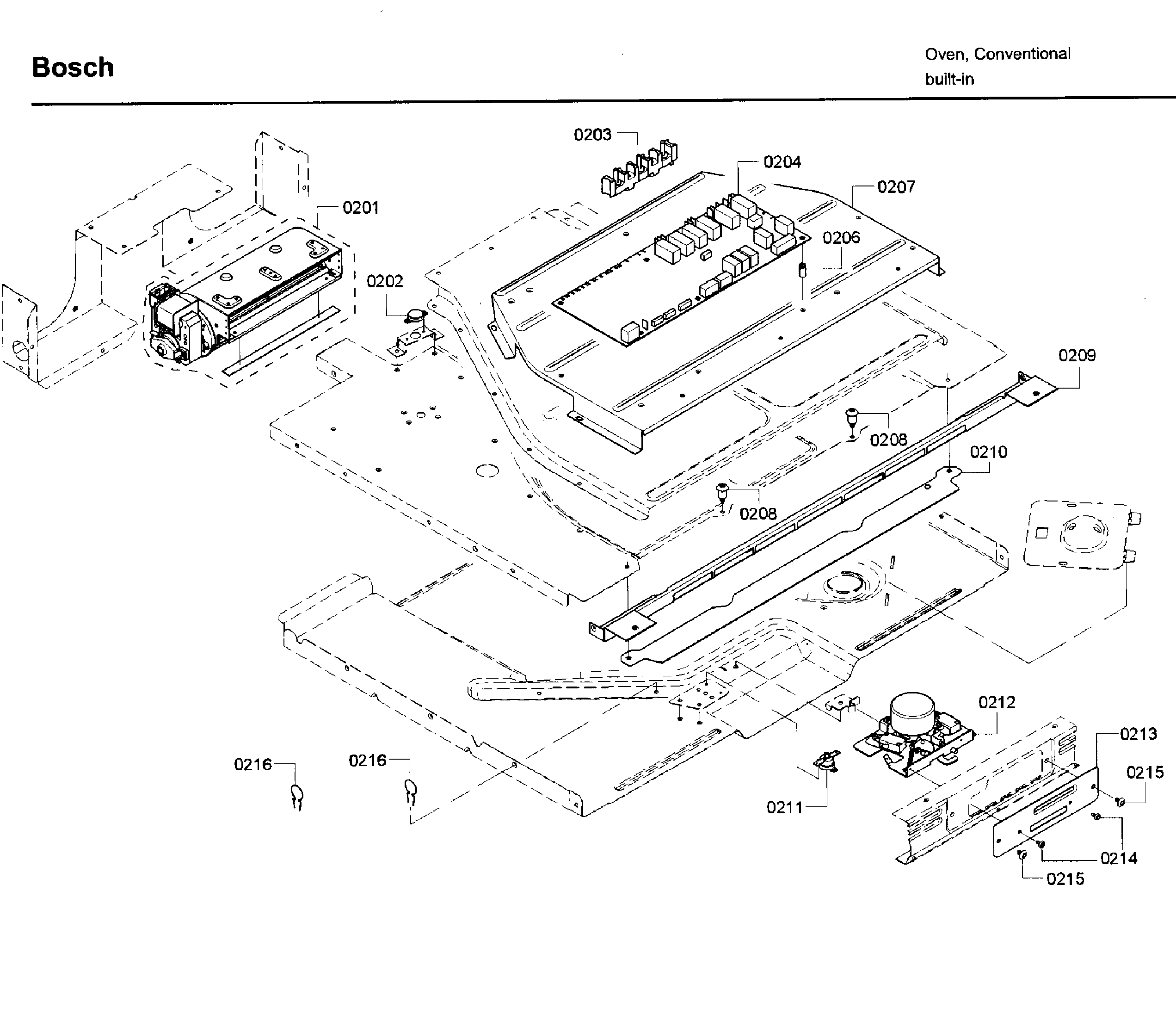

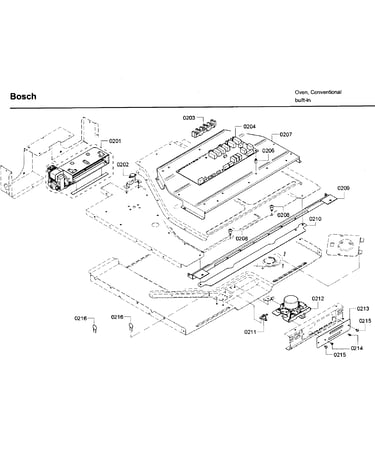

Latch diagram

Temperature limit

Part #00631344

Replaced by #10012286

?
Manufacturer substitution
This part replaces 00631344. Substitute parts can look different from the original.
$44.09
In Stock
Element 00791643
#312

Cavity diagram

Element

Part #00791643

Replaced by #11021971

?
Manufacturer substitution
This part replaces 00791643. Substitute parts can look different from the original.
$115.17 |
9% OFF Phone Price : $127.17
In Stock
Screw 00617527
#554

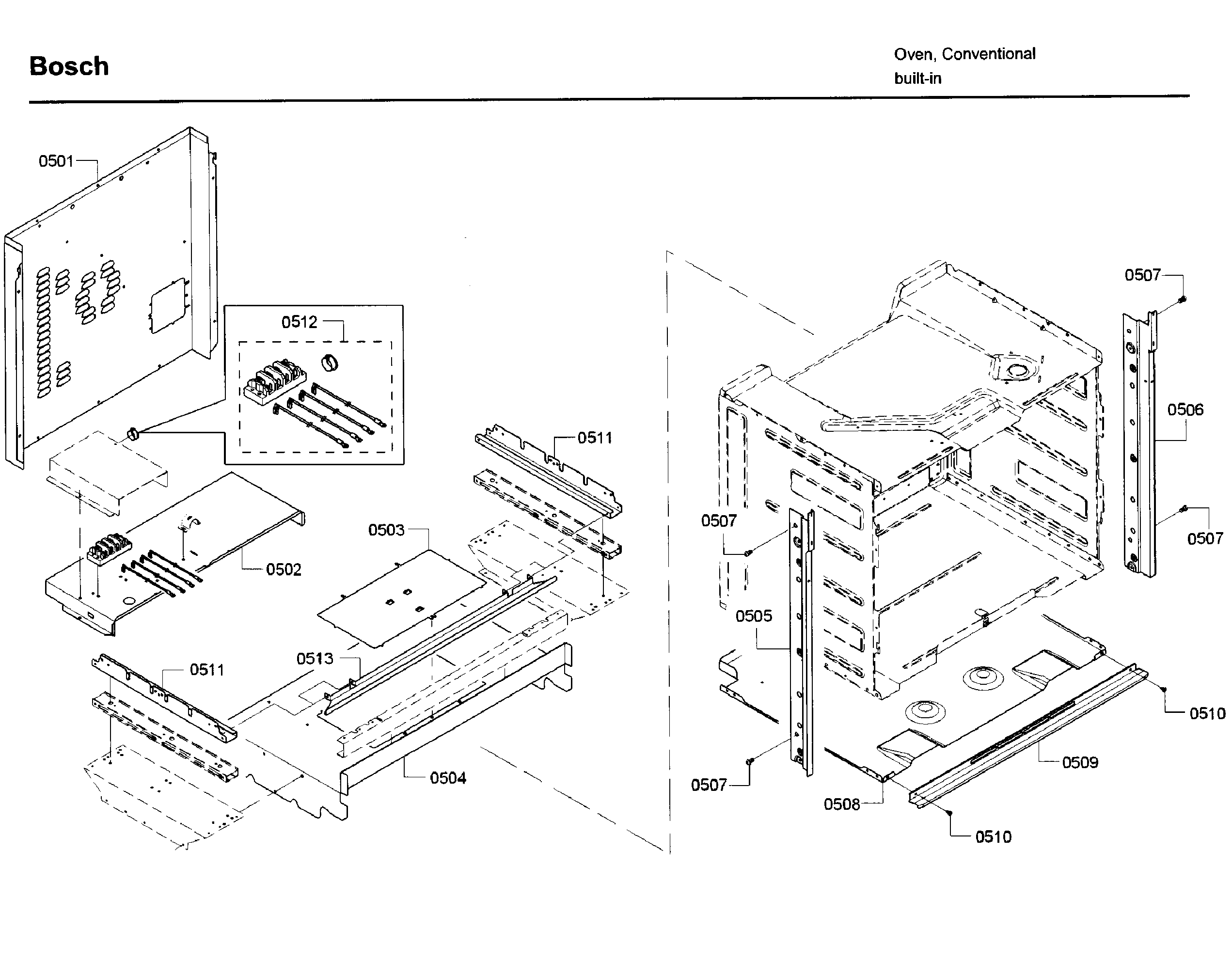

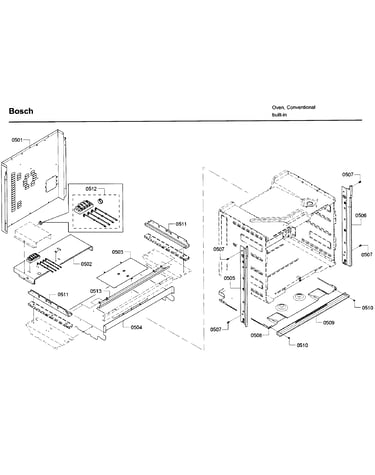

Frame diagram

Screw

Part #00617527

$15.20
In Stock
Wall Oven Cooling Fan Assembly 00759374
#201

Latch diagram

Wall oven cooling fan assembly

Part #00759374

$106.22
In Stock
Wall Oven Light Bulb, 40-watt (replaces 623710) 00623710
#302

Cavity diagram

Wall oven light bulb, 40-watt (replaces 623710)

Part #00623710

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Thermador Wall Oven Convection Fan Motor 00642845
#314

Cavity diagram

Thermador wall oven convection fan motor

Part #00642845

$165.59 |
7% OFF Phone Price : $177.59
In Stock
Wall Oven Door Inner Glass (replaces 791632) 00791632
#403

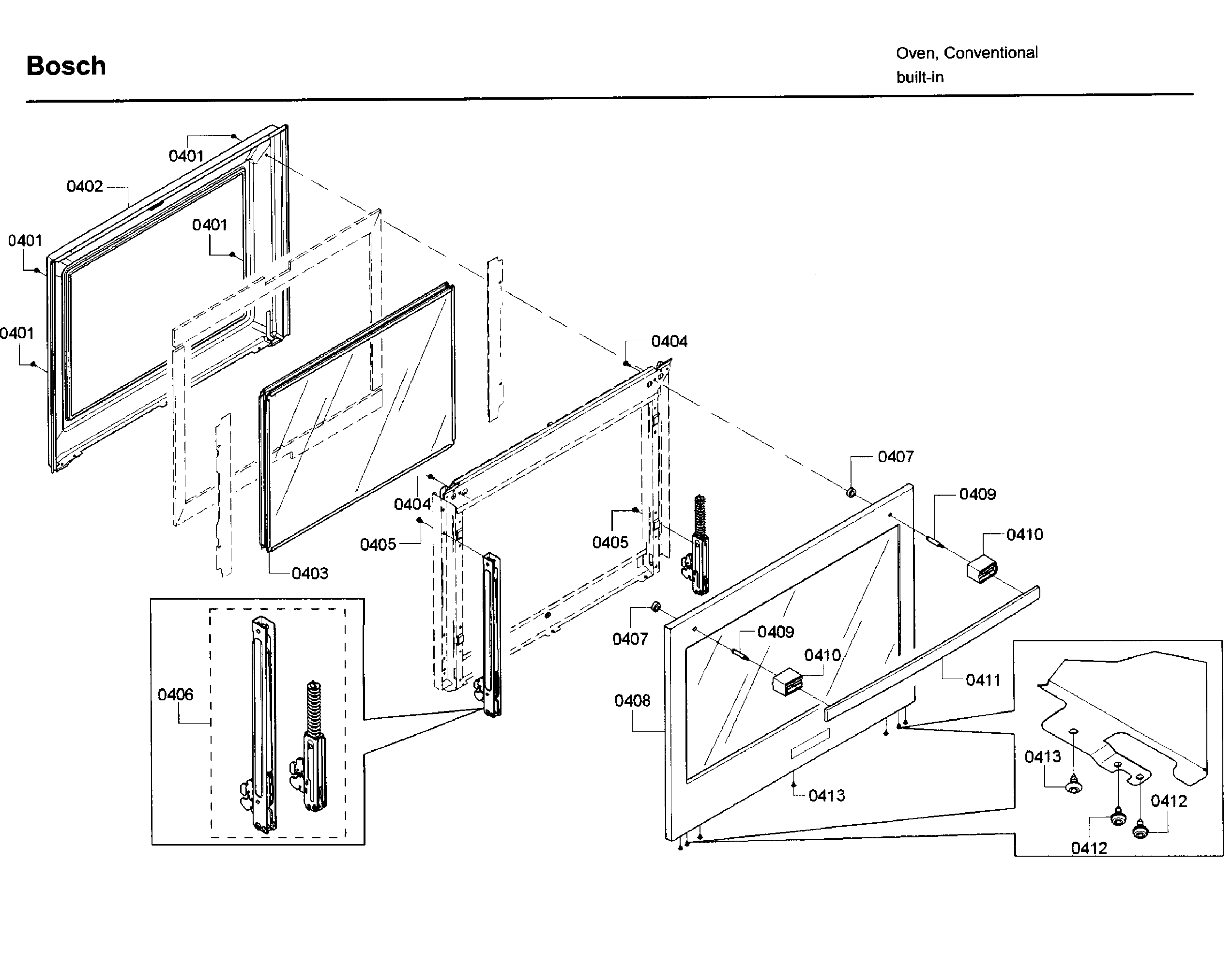

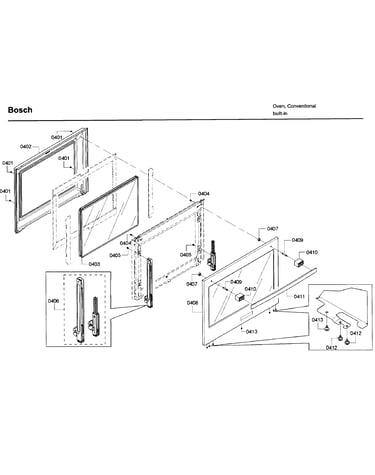

Door diagram

Wall oven door inner glass (replaces 791632)

Part #00791632

$174.69 |
6% OFF Phone Price : $186.69
In Stock
Wall Oven Door Lock Assembly 00631192
#212

Latch diagram

Wall oven door lock assembly

Part #00631192

$66.59 |
8% OFF Phone Price : $72.59
In Stock
