Model # MR1032BB/XAA Official Samsung microwave
Here are the diagrams and repair parts for Official Samsung MR1032BB/XAA microwave, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
MR1032BB/XAA Microwaves
#6

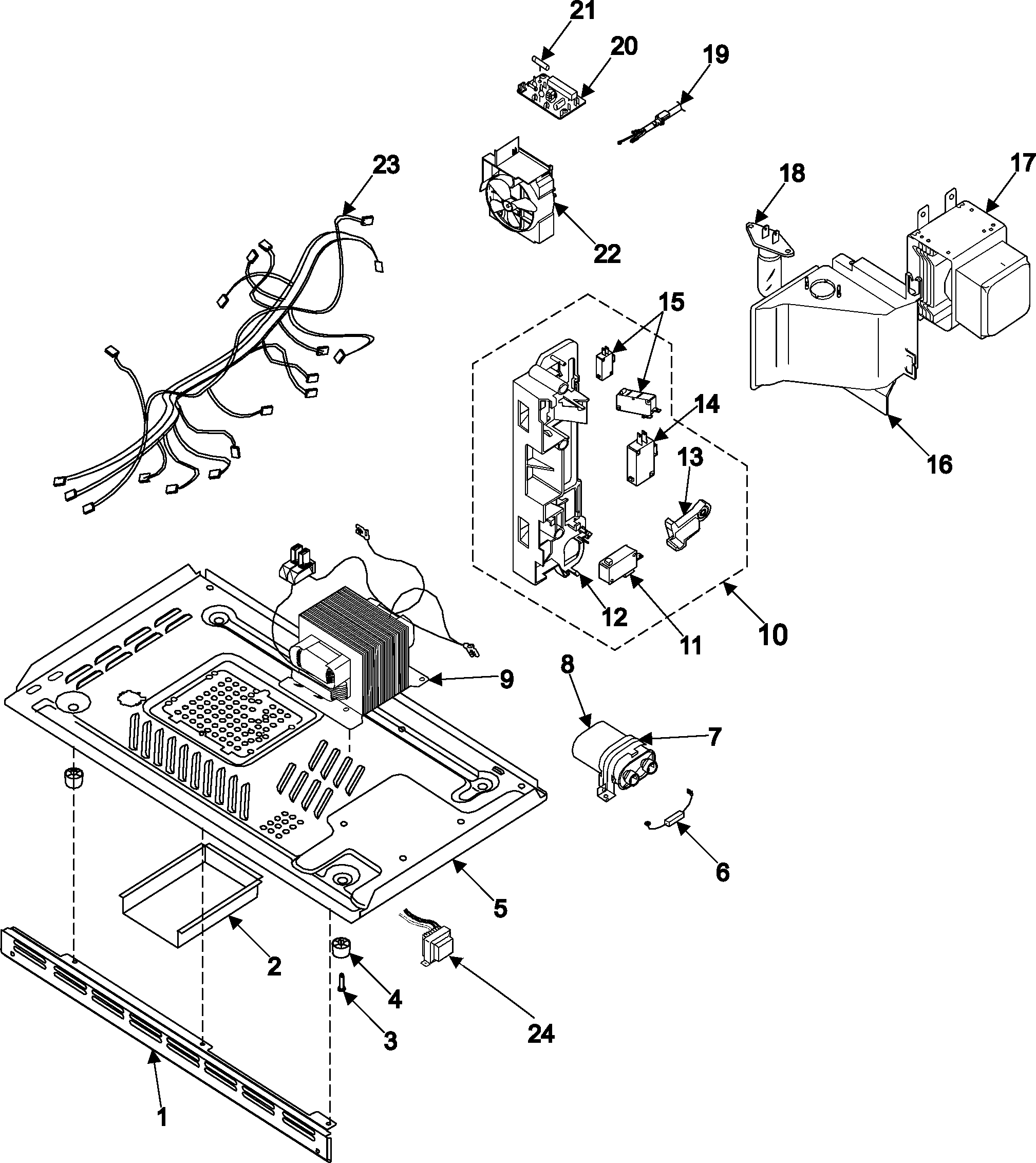

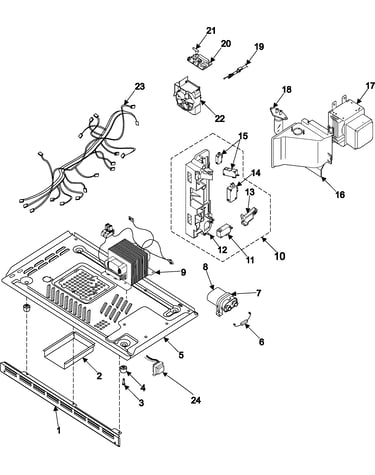

Internal control/latch asy/base diagram
Microwave diode
Part #DE91-70063A
Replaced by #DE91-70063D
?
Manufacturer substitution
This part replaces DE91-70063A. Substitute parts can look different from the original.
$22.16 |
21% OFF Phone Price : $28.16
In Stock
#15
Internal control/latch asy/base diagram
Microwave door interlock switch (replaces 3405-000178)
Part #3405-001034
$25.69 |
19% OFF Phone Price : $31.69
Back Order
#12
Internal control/latch asy/base diagram
Switch
Part #3405-001042
Replaced by #3405-001034
?
Manufacturer substitution
This part replaces 3405-001042. Substitute parts can look different from the original.
$25.69 |
19% OFF Phone Price : $31.69
Back Order
#7

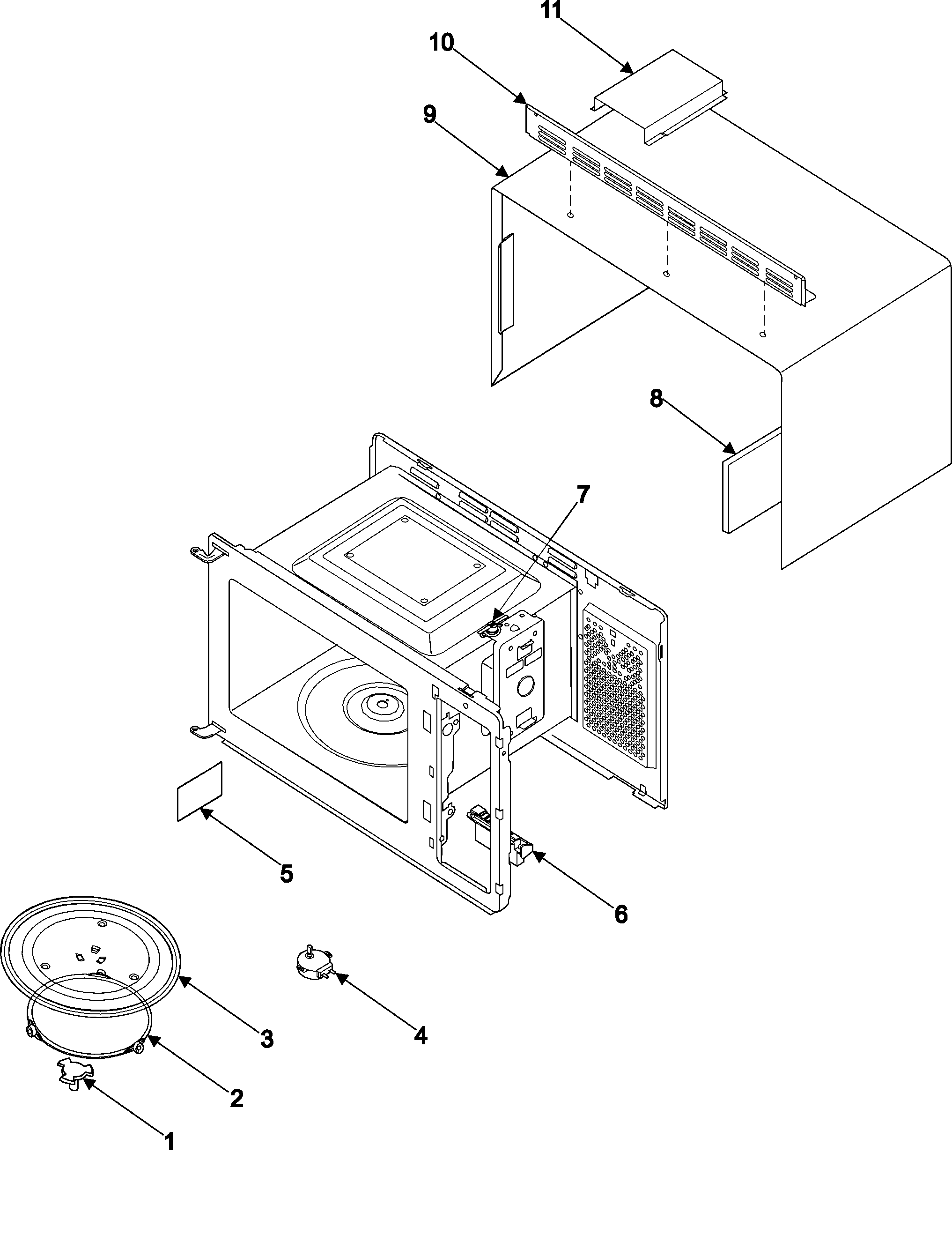

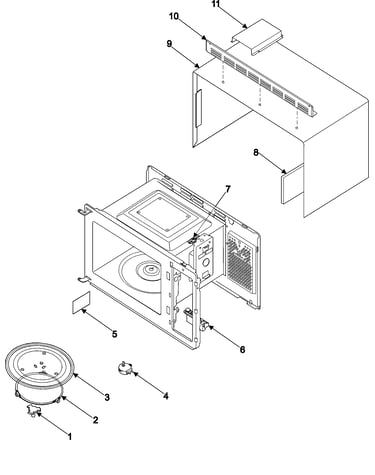

Body/cavity/elements diagram
Microwave thermostat
Part #DE47-20173A
This item is not returnable
$20.38 |
23% OFF Phone Price : $26.38
In Stock
#18
Internal control/latch asy/base diagram
Incandescent lamp
Part #4713-001012
Replaced by #4713-001102
?
Manufacturer substitution
This part replaces 4713-001012. Substitute parts can look different from the original.
This item is not returnable
$21.58 |
22% OFF Phone Price : $27.58
In Stock
#4
Body/cavity/elements diagram
Microwave turntable
Part #DE31-10154A
$27.62
In Stock
#16
Internal control/latch asy/base diagram
Cup unit
Part #DE71-60458A
$17.29
In Stock
#11
Body/cavity/elements diagram
Air duct
Part #DE72-50092B
$19.37
In Stock
#6

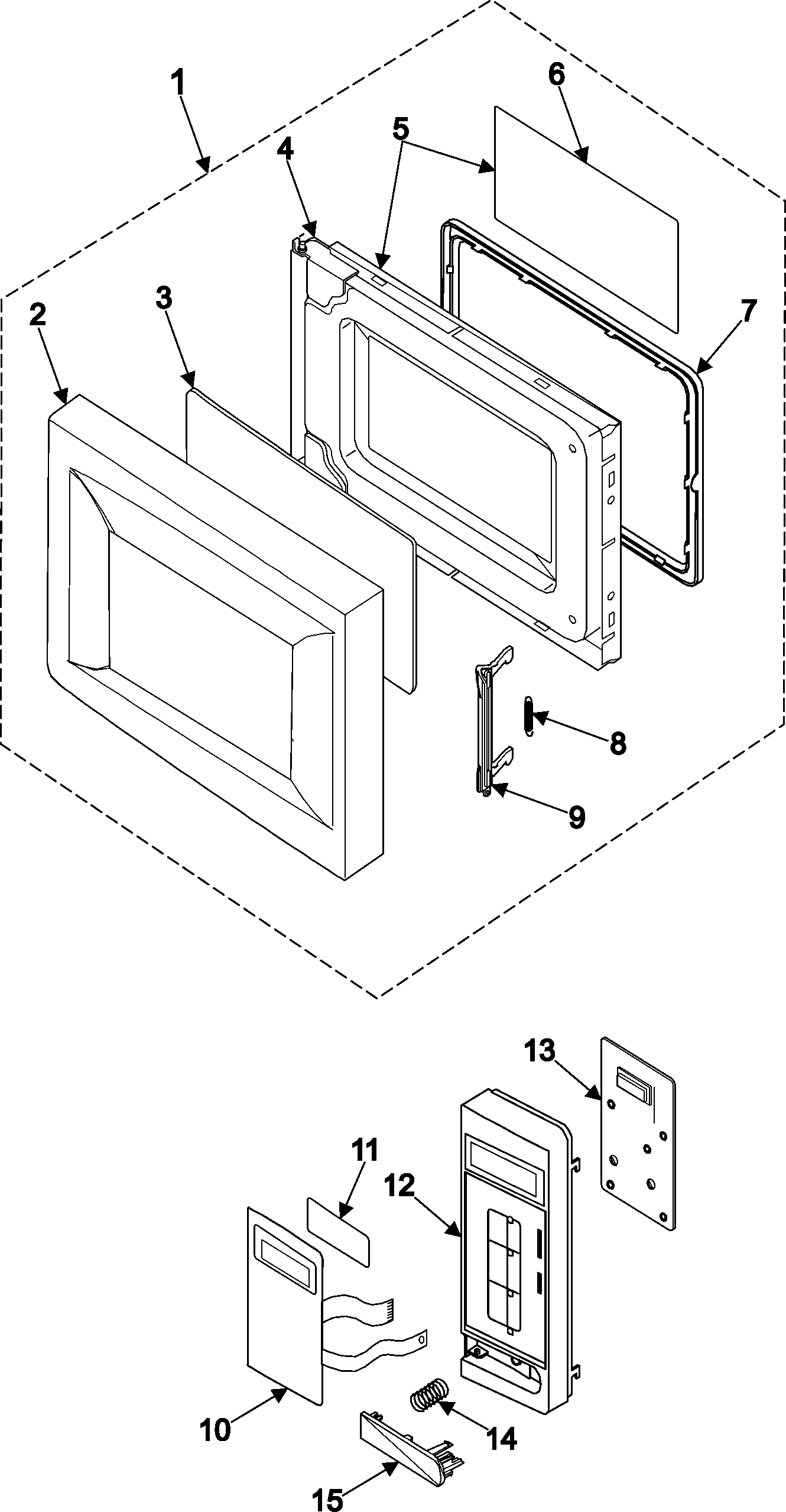

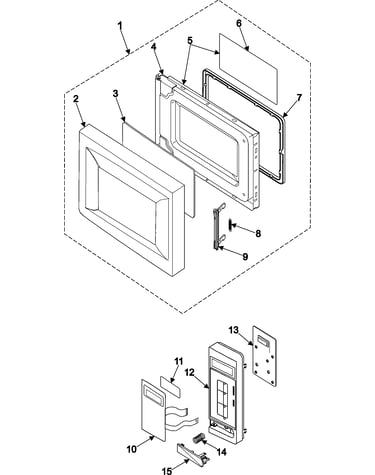

Control panel/door assembly diagram
Choke cover
Part #DE01-00118A
$13.13 |
13% OFF Phone Price : $15.13
In Stock
#14
Control panel/door assembly diagram
Spring
Part #DE61-70076A
$22.34
In Stock
