Model # 6358314501 Official Kenmore electronic air cleaner
Here are the diagrams and repair parts for Official Kenmore 6358314501 electronic air cleaner, as well as links to manuals and error code tables, if available.

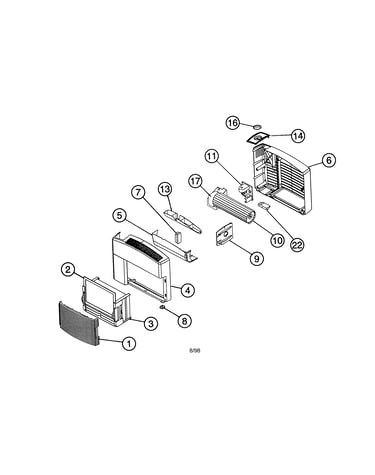

By Schematic
SELECT DIAGRAM
Browse Parts for
6358314501 Electronic Air Cleaner
#17
None diagram
Motor
Part #350084-001
The manufacturer no longer makes this part, and there's no substitute part
#11
None diagram
Supply-pwr
Part #349960-001
The manufacturer no longer makes this part, and there's no substitute part
#1
None diagram
Grill
Part #350065-001
The manufacturer no longer makes this part, and there's no substitute part
#20
None diagram
Switch
Part #242404-001
The manufacturer no longer makes this part, and there's no substitute part
#14
None diagram
Control panel
Part #350080-001
The manufacturer no longer makes this part, and there's no substitute part
#21
None diagram
Needle
Part #150627-001
The manufacturer no longer makes this part, and there's no substitute part
#7A
None diagram
Generator
Part #150970-007
The manufacturer no longer makes this part, and there's no substitute part
#11A
None diagram
Power supply
Part #252565-001
The manufacturer no longer makes this part, and there's no substitute part
#19
None diagram
Owner's manual
Part #150077-001
The manufacturer no longer makes this part, and there's no substitute part
#8
None diagram
Foot
Part #150505-001
The manufacturer no longer makes this part, and there's no substitute part
