Room Air Conditioner

Model # AZ28E12EACM2 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ28E12EACM2 zoneline air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
AZ28E12EACM2 Zoneline Air Conditioner
Room Air Conditioner Control Knob WP12X10002
#1108

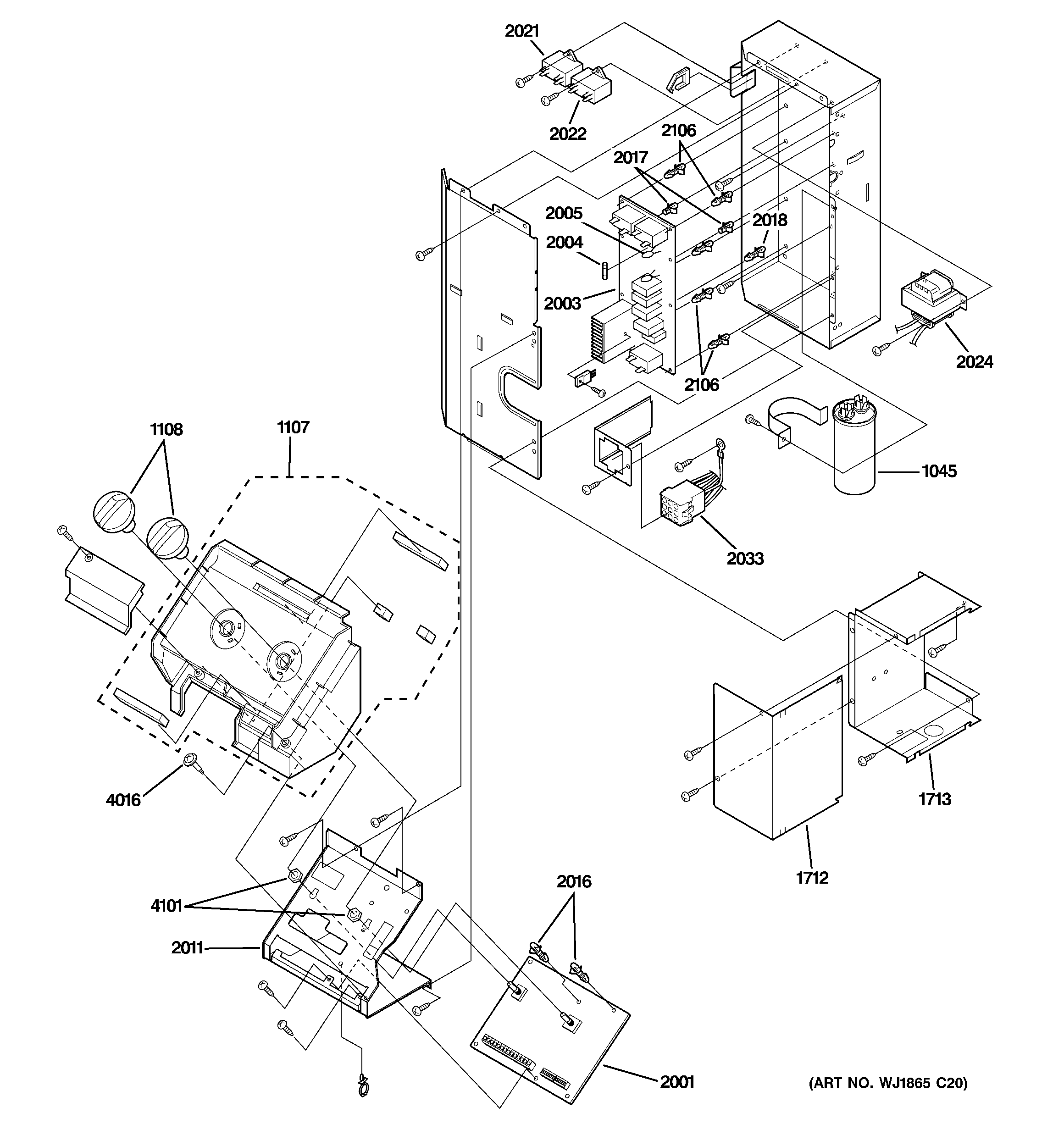

Control parts diagram

Room air conditioner control knob

Part #WP12X10002

$28.25 |
18% OFF Phone Price : $34.25
In Stock
Room Air Conditioner Air Filter WP85X10008
#1021

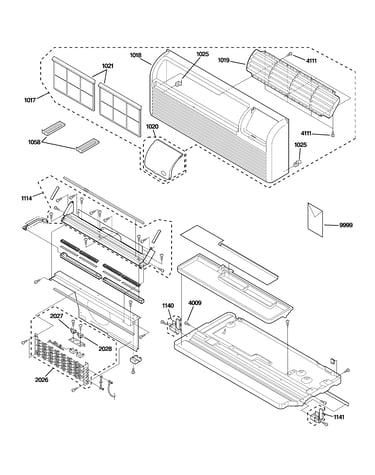

Grille, heater & base pan parts diagram

Room air conditioner air filter

Part #WP85X10008

This item is not returnable
$26.13 |
19% OFF Phone Price : $32.13
In Stock
Room Air Conditioner Heater High-limit Thermostat WP28X10013
#2027

Grille, heater & base pan parts diagram

Room air conditioner heater high-limit thermostat

Part #WP28X10013

$53.86 |
10% OFF Phone Price : $59.86
In Stock
Bulkhead Insert WJ40X10015
#1014

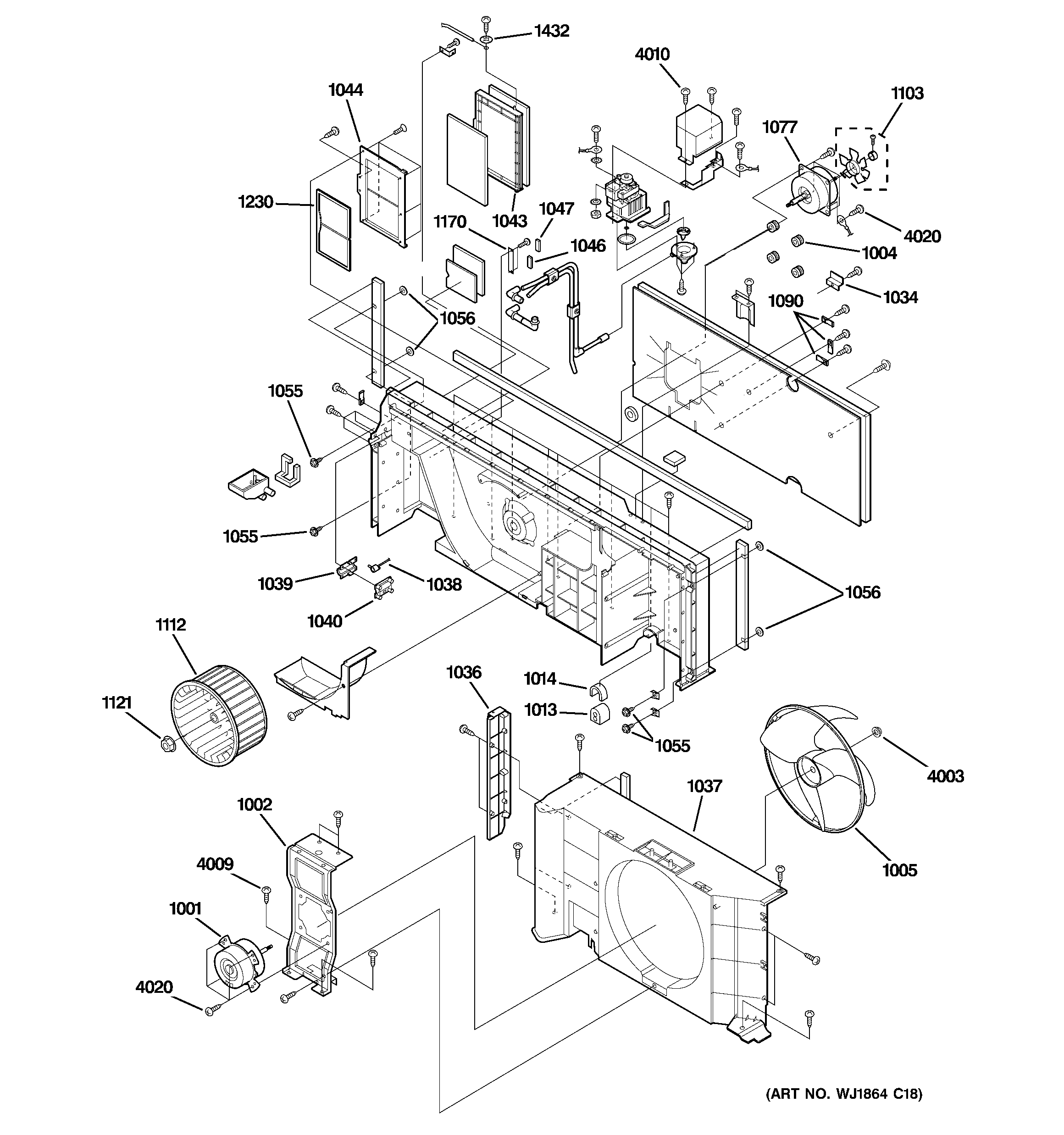

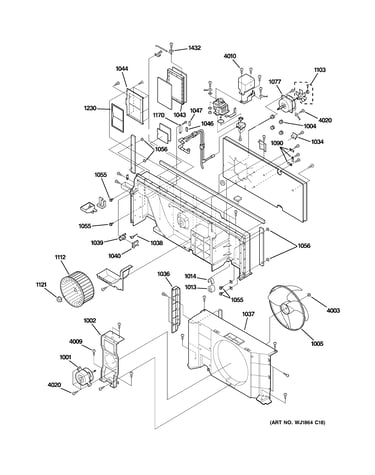

Motor & chassis parts diagram

Bulkhead insert

Part #WJ40X10015

$8.37
In Stock
Tap Tight Sc WP01X10026
#4111

Grille, heater & base pan parts diagram

Tap tight sc

Part #WP01X10026

$8.37
In Stock
Special Nut WP01X10015
#4004

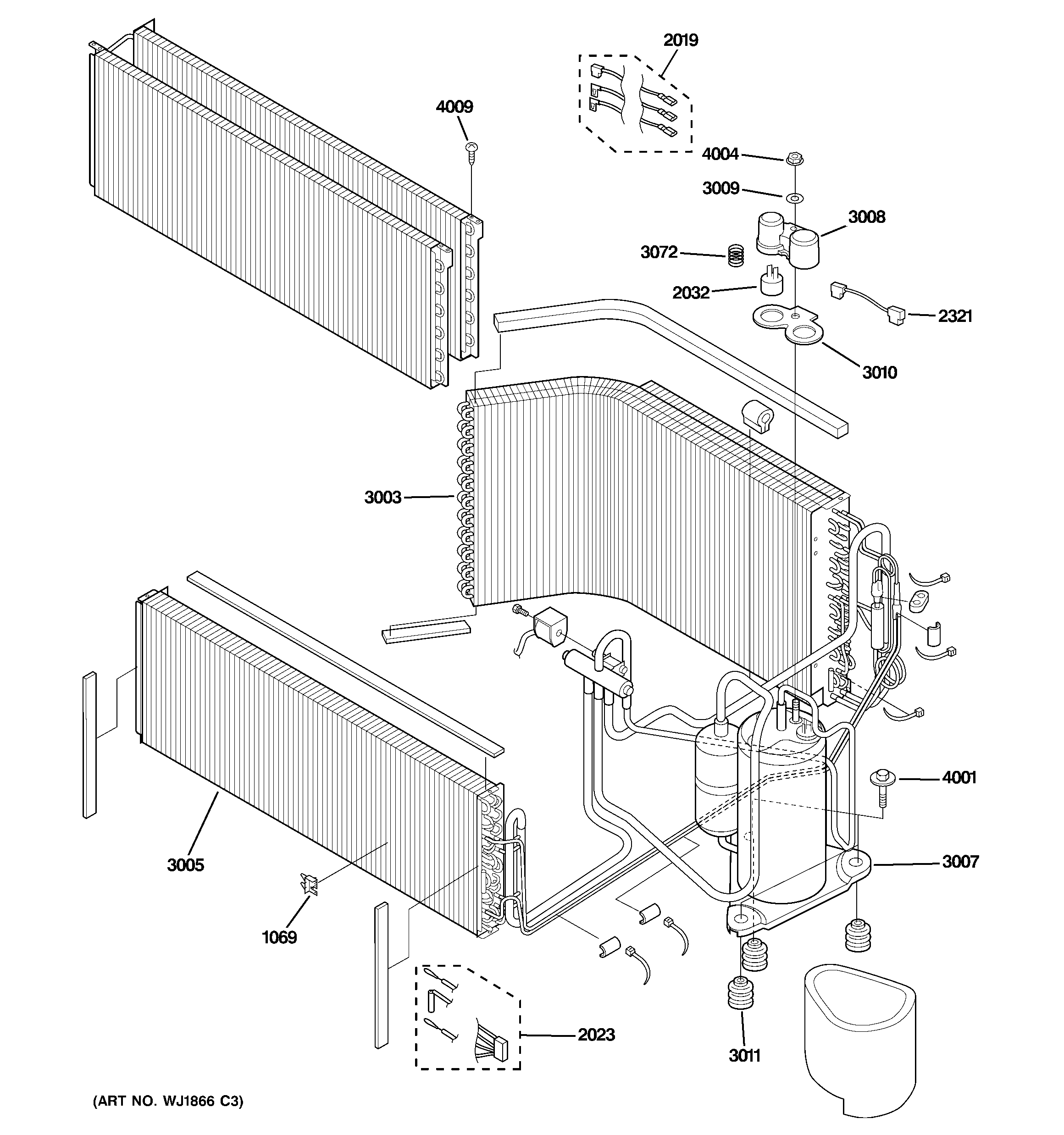

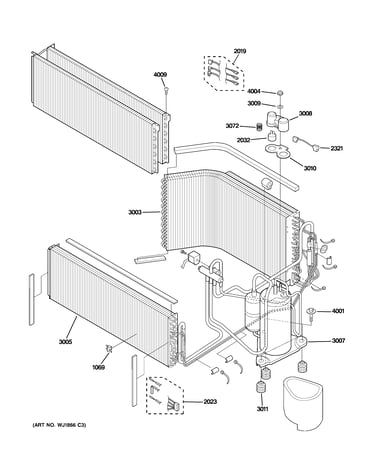

Unit parts diagram

Special nut

Part #WP01X10015

$9.71
In Stock
J-box WP76X10024
#1713

Control parts diagram

J-box

Part #WP76X10024

$27.49
In Stock
Fan Motor Capacitor WP20X10026
#2022

Control parts diagram

Fan motor capacitor

Part #WP20X10026

$24.38 |
20% OFF Phone Price : $30.38
In Stock
J-box Cover WP79X10013
#1712

Control parts diagram

J-box cover

Part #WP79X10013

$18.11
In Stock
Damper Lever WP70X10031
#1038

Motor & chassis parts diagram

Damper lever

Part #WP70X10031

$8.71
In Stock
