Amana
Dryer

Model # 4KNED4605FW0 Official Amana dryer

Here are the diagrams and repair parts for Official Amana 4KNED4605FW0 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Dryer Thermal Fuse 3392519
#7

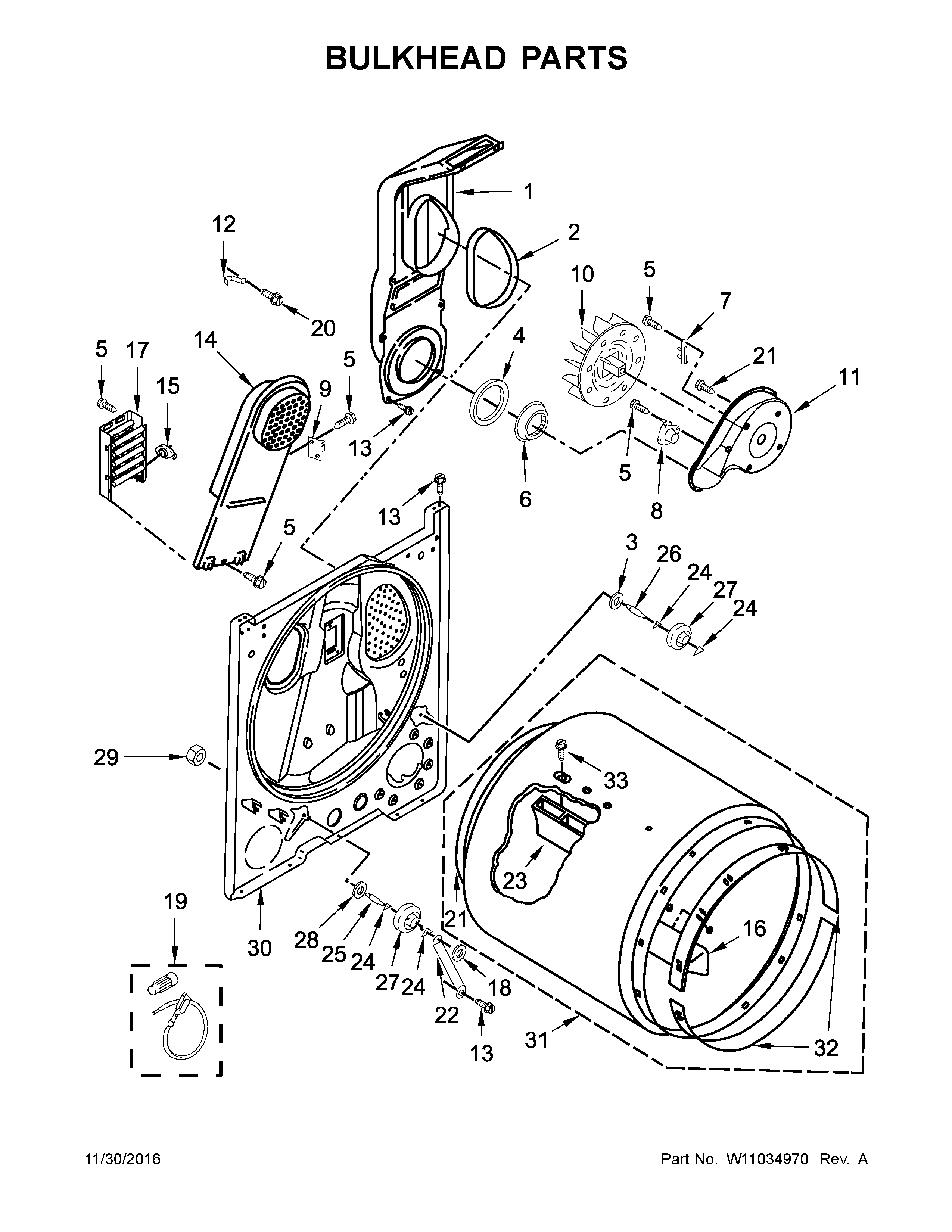

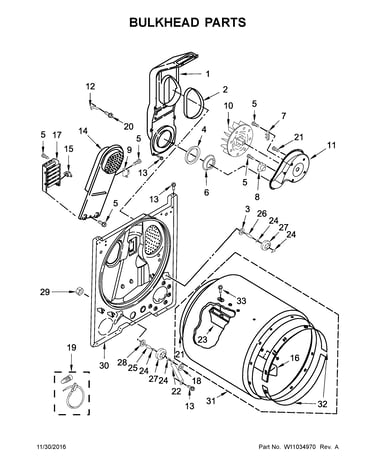

Bulkhead parts diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
$18.56 |
10% OFF Phone Price : $20.56
In Stock
Belt W10131364
#37

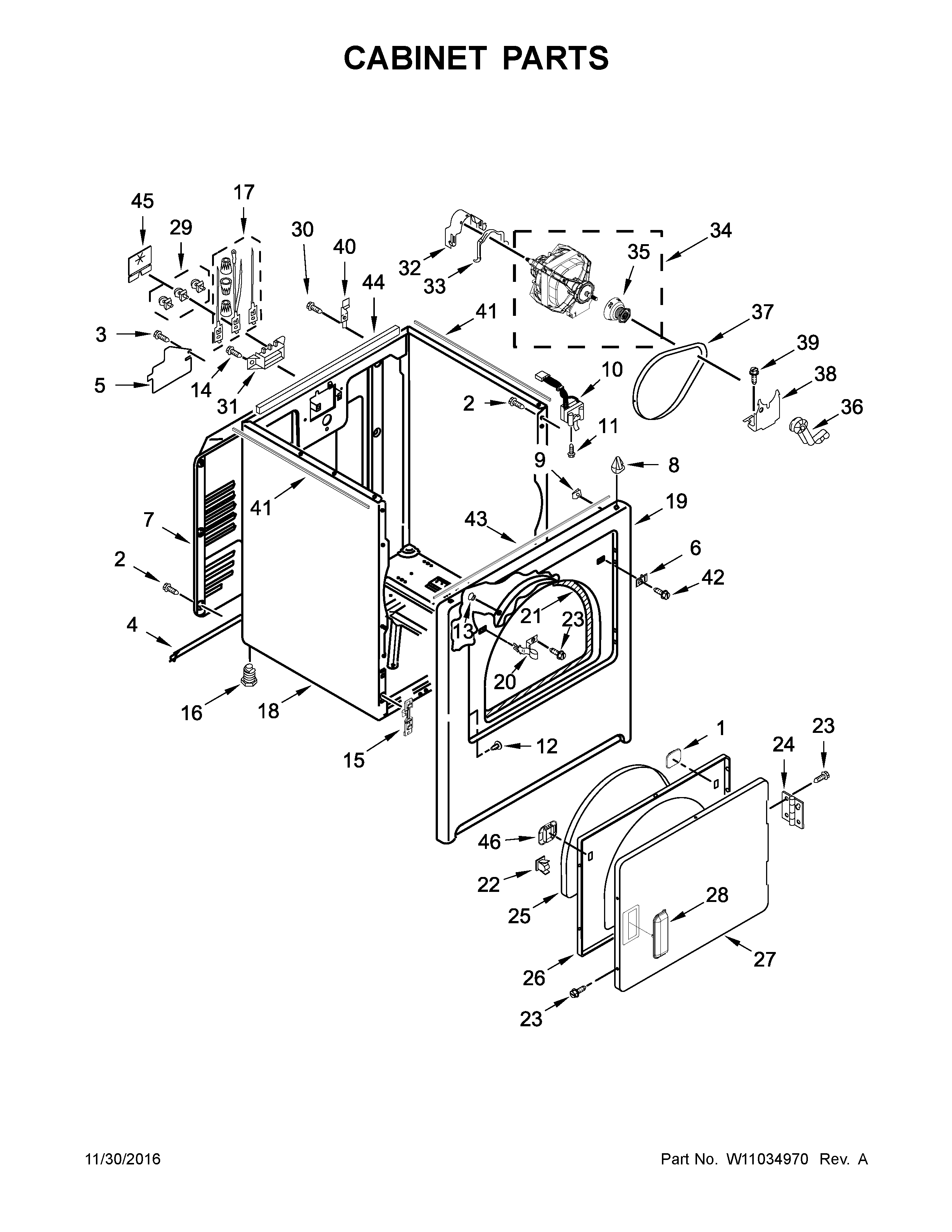

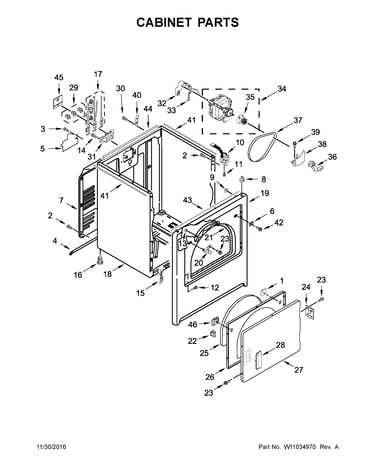

Cabinet parts diagram

Belt

Part #W10131364

Replaced by #341241

?
Manufacturer substitution
This part replaces W10131364. Substitute parts can look different from the original.
BEST SELLER
$12.56 |
14% OFF Phone Price : $14.56
In Stock
Dryer Idler Pulley 691366
#36

Cabinet parts diagram

Dryer idler pulley

Part #691366

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 691366. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Dryer Repair Kit 80047
#NI

Optional parts (not included) diagram

Dryer repair kit

Part #80047

Replaced by #4392067

?
Manufacturer substitution
This part replaces 80047. Substitute parts can look different from the original.
BEST SELLER
$47.88 |
11% OFF Phone Price : $53.88
In Stock
Dryer Blower Wheel 694089
#10

Bulkhead parts diagram

Dryer blower wheel

Part #694089

Replaced by #WP694089

?
Manufacturer substitution
This part replaces 694089. Substitute parts can look different from the original.
BEST SELLER
$26.63 |
18% OFF Phone Price : $32.63
In Stock
Dryer Lint Screen W10717210
#15

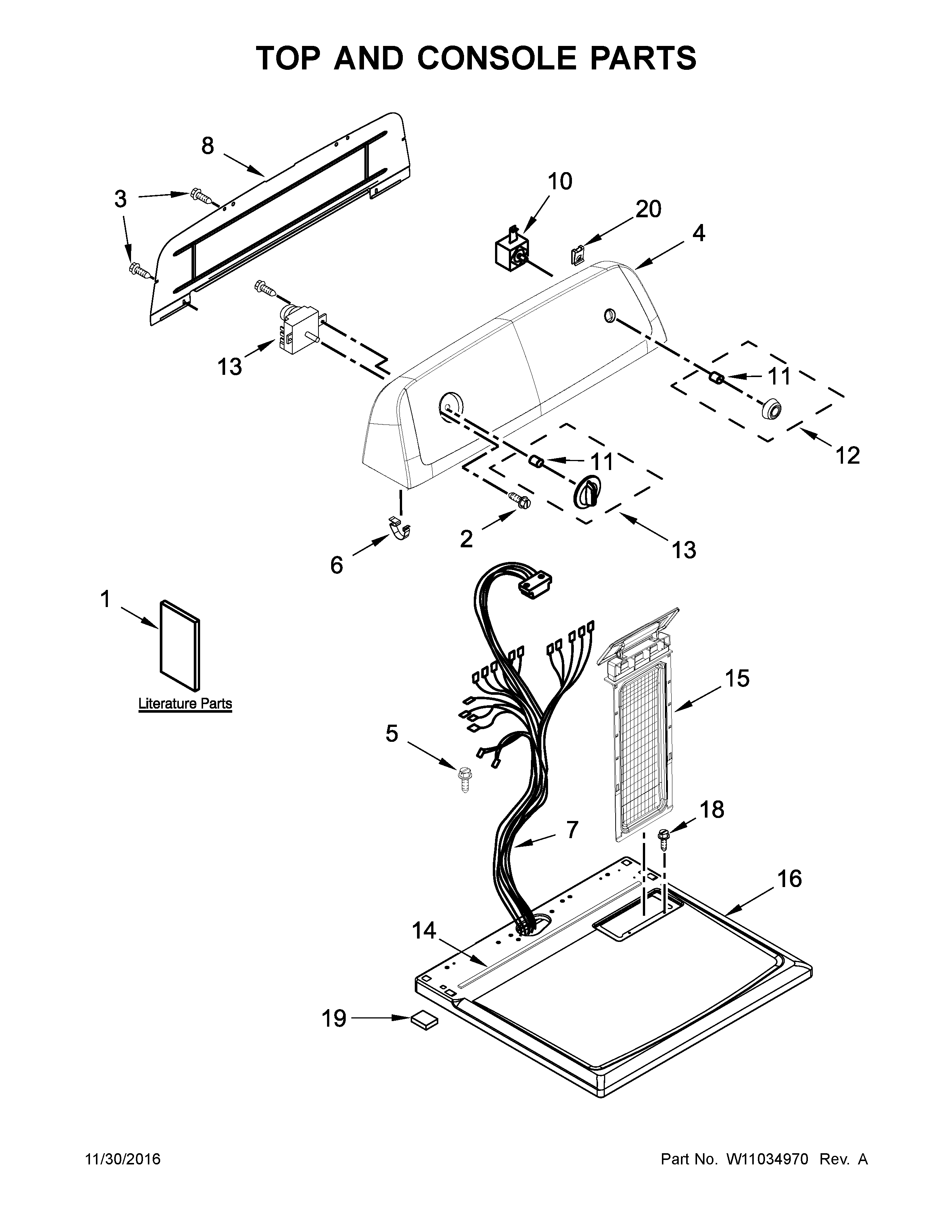

Top and console parts diagram

Dryer lint screen

Part #W10717210

Replaced by #WPW10717210

?
Manufacturer substitution
This part replaces W10717210. Substitute parts can look different from the original.
BEST SELLER
$33.96 |
15% OFF Phone Price : $39.96
In Stock
Dryer High-limit Thermostat 3977767
#15

Bulkhead parts diagram

Dryer high-limit thermostat

Part #3977767

Replaced by #WP3977767

?
Manufacturer substitution
This part replaces 3977767. Substitute parts can look different from the original.
BEST SELLER
$17.27 |
10% OFF Phone Price : $19.27
In Stock
Dryer Door Handle W10714516
#28

Cabinet parts diagram

Dryer door handle

Part #W10714516

Replaced by #W10861225

?
Manufacturer substitution
This part replaces W10714516. Substitute parts can look different from the original.
BEST SELLER
$32.08 |
16% OFF Phone Price : $38.08
In Stock
Dryer Heating Element Wire Kit 279457
#19

Bulkhead parts diagram

Dryer heating element wire kit

Part #279457

BEST SELLER
$8.87 |
10% OFF Phone Price : $9.87
In Stock
Dryer Door Catch W10610880
#22

Cabinet parts diagram

Dryer door catch

Part #W10610880

Replaced by #WPW10610880

?
Manufacturer substitution
This part replaces W10610880. Substitute parts can look different from the original.
BEST SELLER
$18.04 |
10% OFF Phone Price : $20.04
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your dryers

Choose a symptom to see related dryer repairs.

View all

Why won't my dryer heat?

Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, c…

Read more

Why is my dryer making a rattling noise?

Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive …

Read more

Why won't my dryer door stay shut?

Main causes: damaged door strike, worn door catch…

Read more

Why does my dryer start then stop?

Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, fau…

Read more

Why won't my dryer start?

Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failur…

Read more

Why isn't my dryer getting my laundry dry?

Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure…

Read more

Why won't my dryer shut off?

Main causes: bad timer or electronic control board, door switch failure…

Read more

Why doesn't my dryer work?

Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door s…

Read more
