Model # 758140100 Official Kenmore humidifier

Here are the diagrams and repair parts for Official Kenmore 758140100 humidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Screw 29433
#2

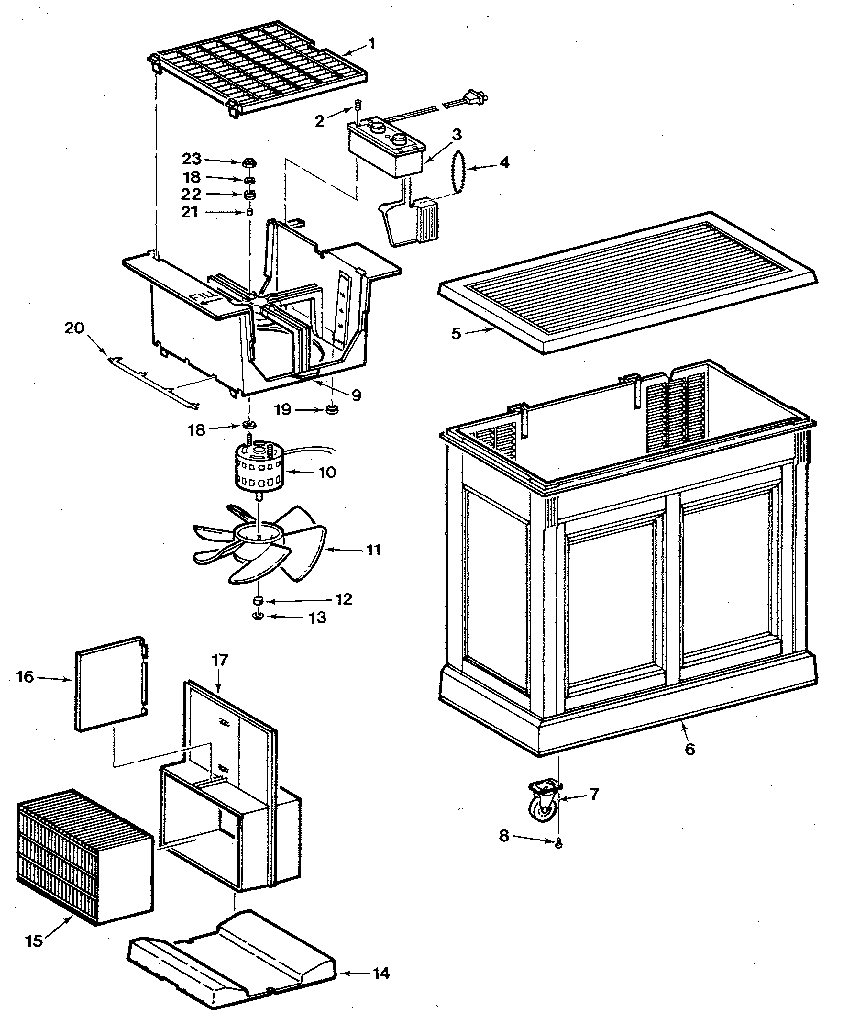

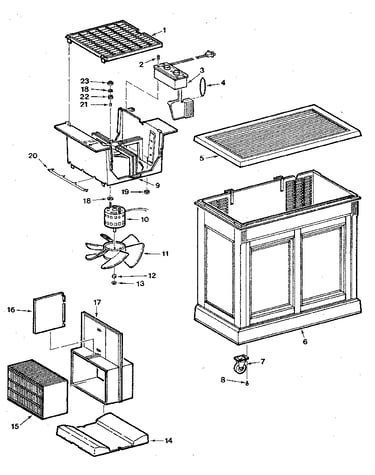

Unit parts diagram

Screw

Part #29433

The manufacturer no longer makes this part, and there's no substitute part

Filter 42-14000
#15

Unit parts diagram

Filter

Part #42-14000

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual SP5231

#NI

All parts diagram

Owner's manual

Part #SP5231

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 817970
#11

Unit parts diagram

Fan blade

Part #817970

The manufacturer no longer makes this part, and there's no substitute part

Hsing-filter 817196
#17

Unit parts diagram

Hsing-filter

Part #817196

The manufacturer no longer makes this part, and there's no substitute part

Hsing-finish 817190
#6

Unit parts diagram

Hsing-finish

Part #817190

The manufacturer no longer makes this part, and there's no substitute part

Motor 818087
#10

Unit parts diagram

Motor

Part #818087

The manufacturer no longer makes this part, and there's no substitute part

Lid 817452
#5

Unit parts diagram

Lid

Part #817452

The manufacturer no longer makes this part, and there's no substitute part

Spacer V27219
#21

Unit parts diagram

Spacer

Part #V27219

The manufacturer no longer makes this part, and there's no substitute part

Nut 803144-2
#13

Unit parts diagram

Nut

Part #803144-2

The manufacturer no longer makes this part, and there's no substitute part
