Model # GC5SHGXKQ00 Official Whirlpool refrigerator
Here are the diagrams and repair parts for Official Whirlpool GC5SHGXKQ00 refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

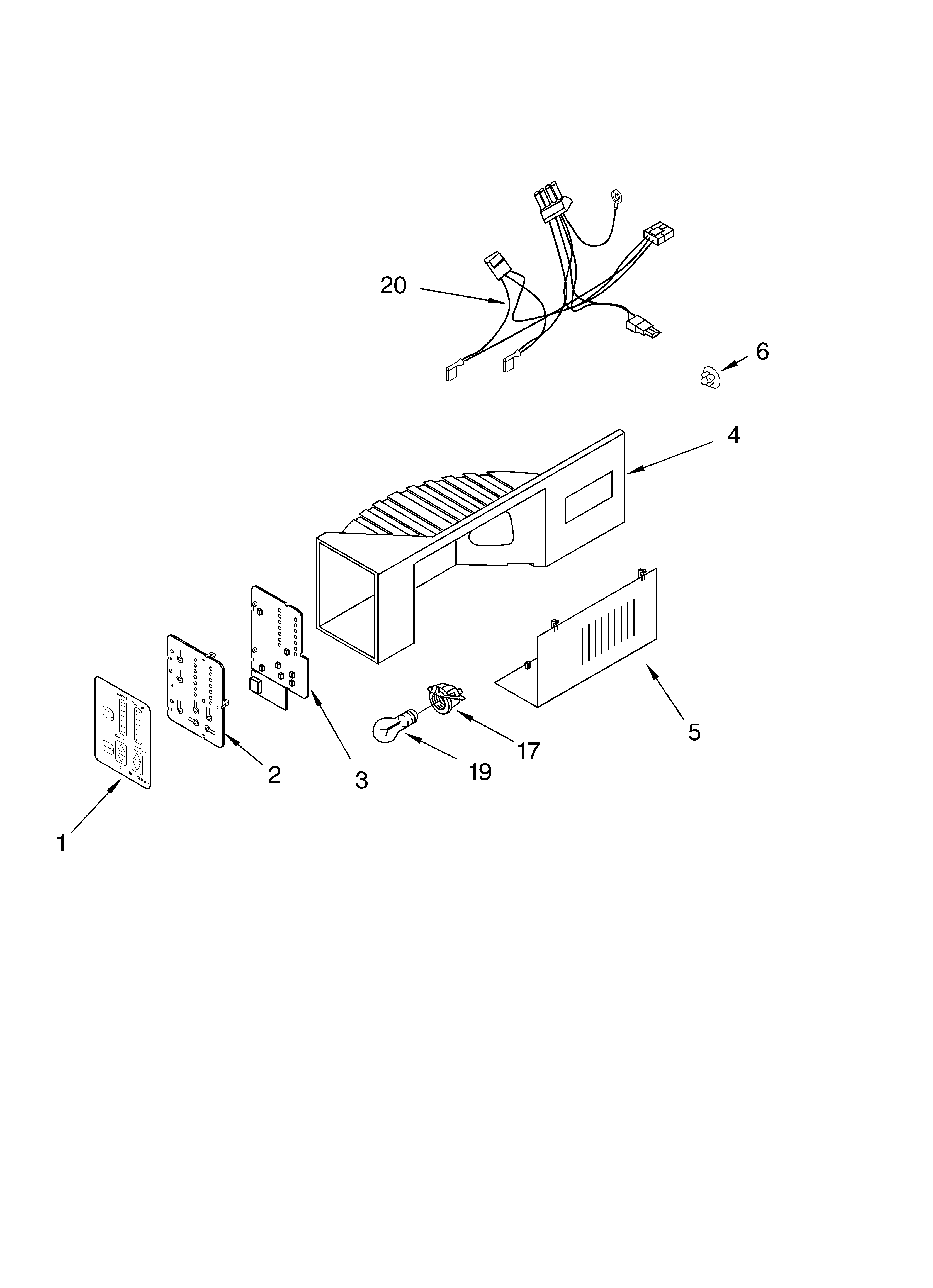

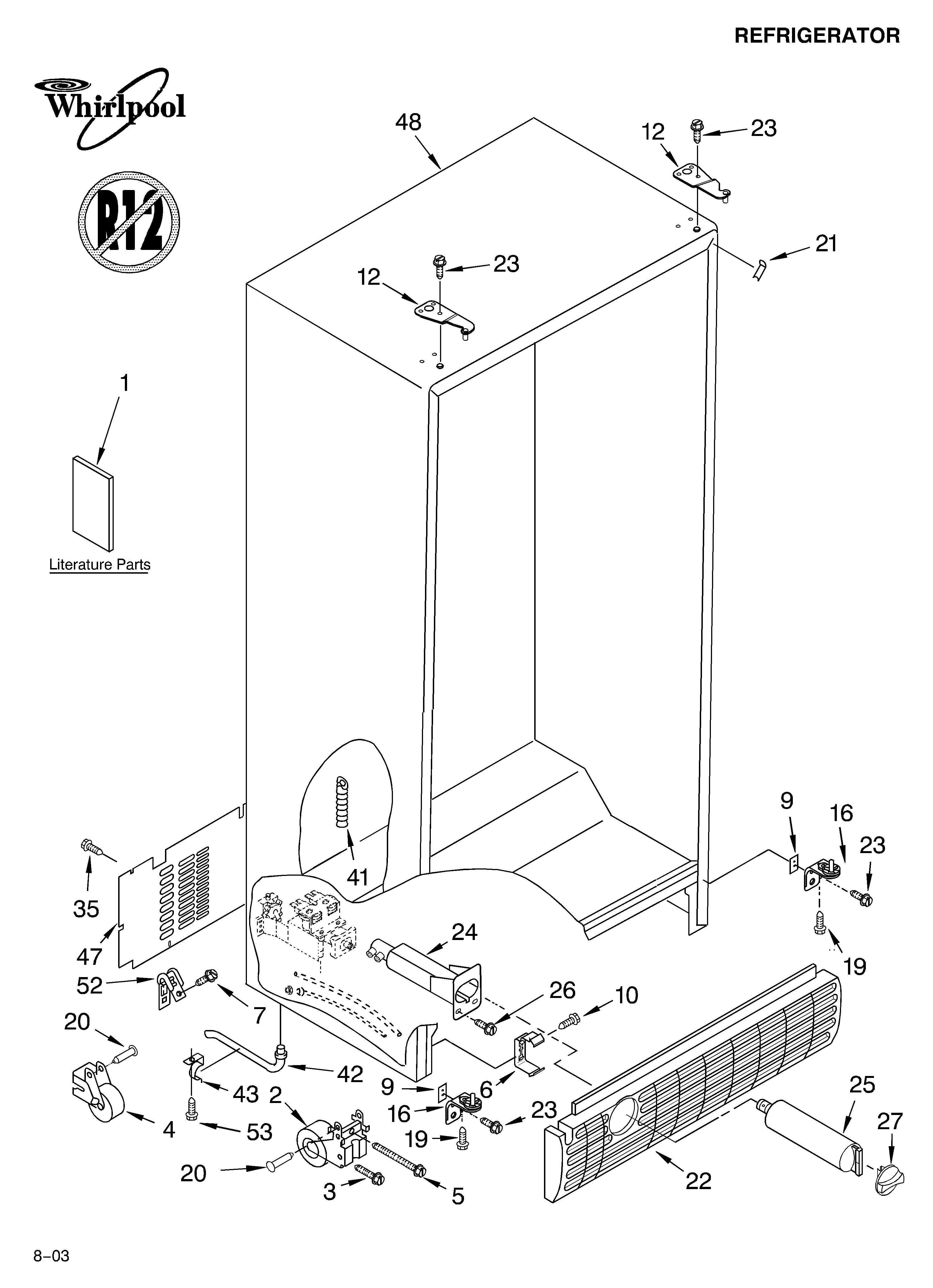

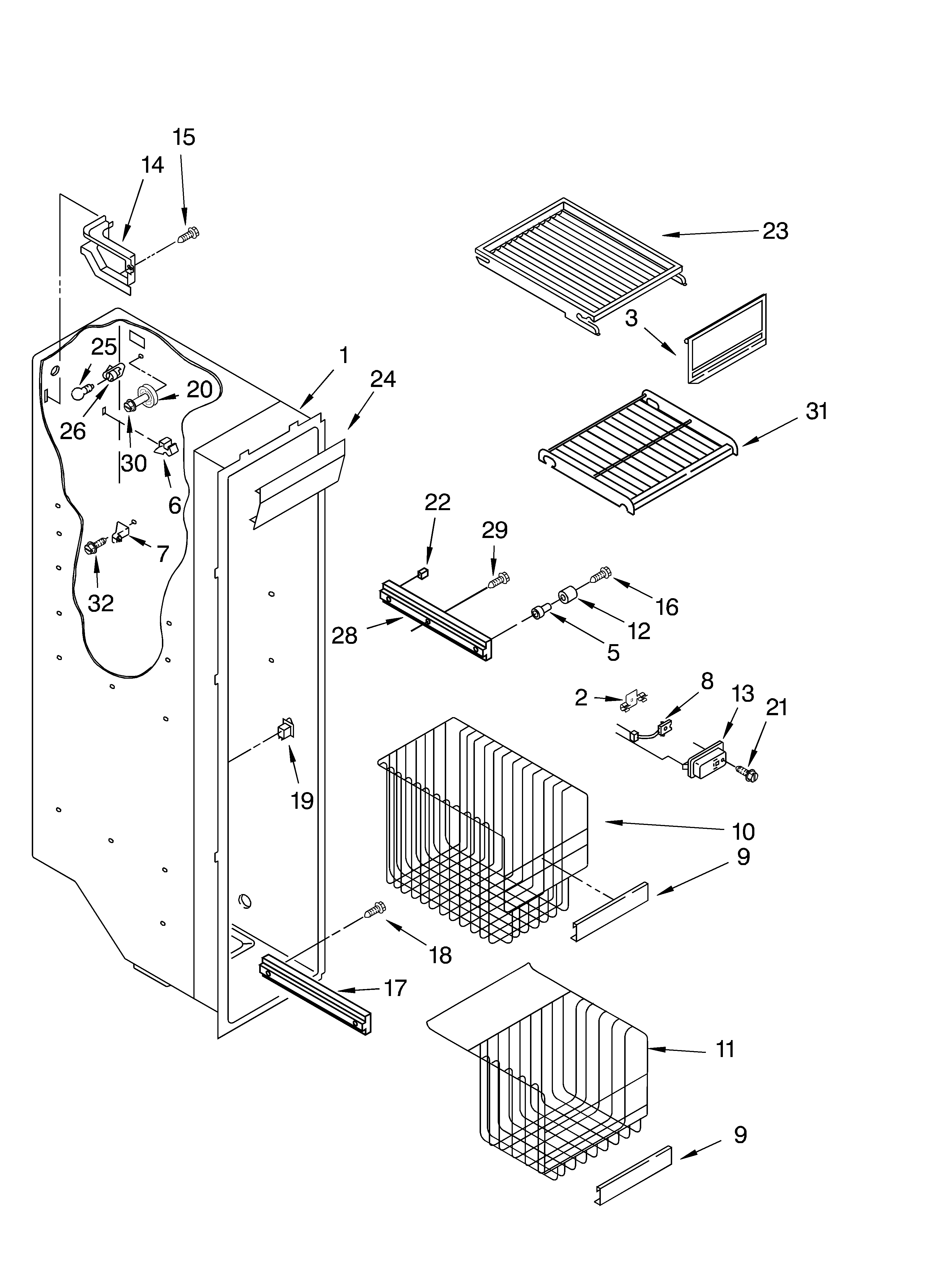

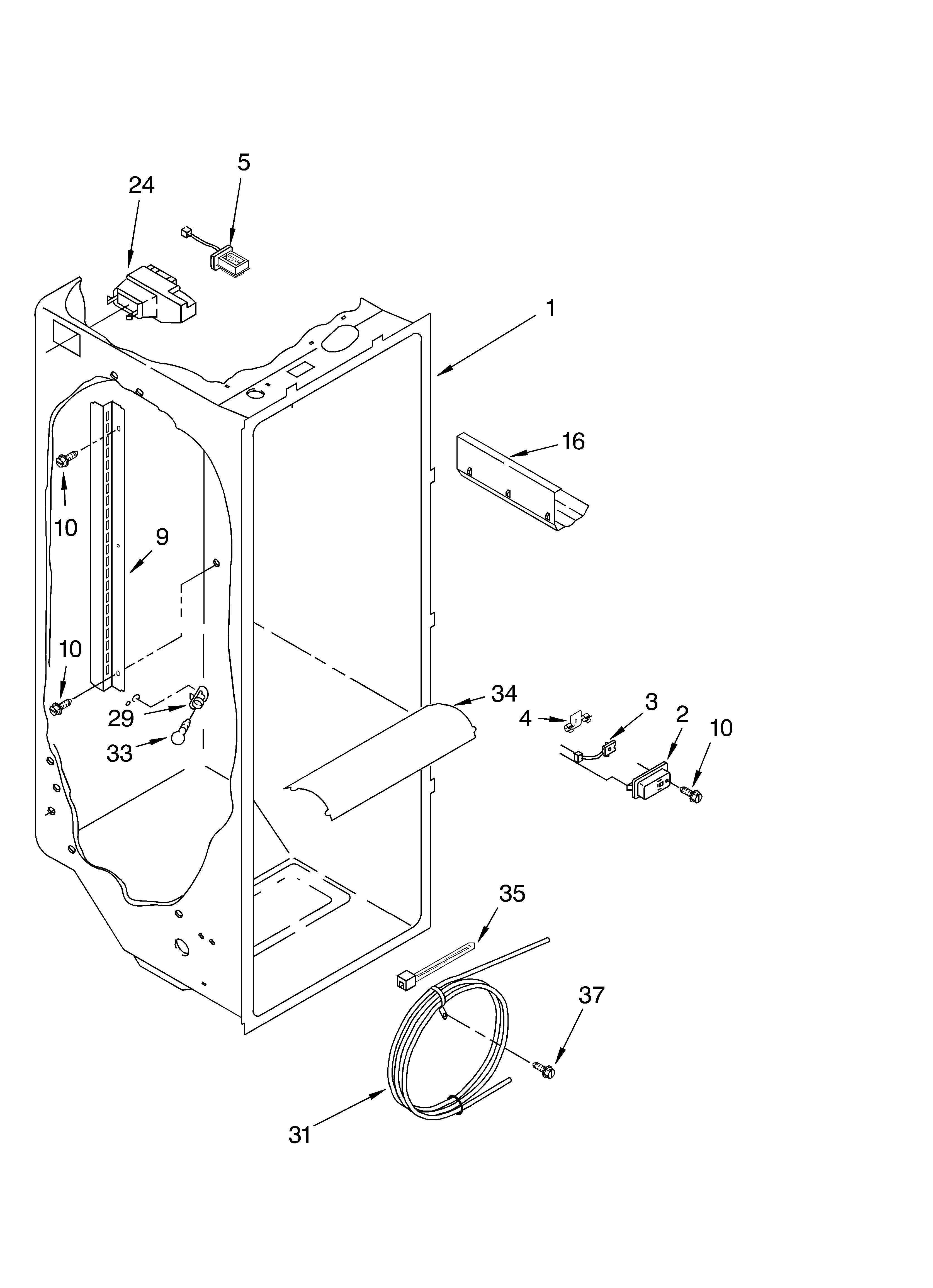

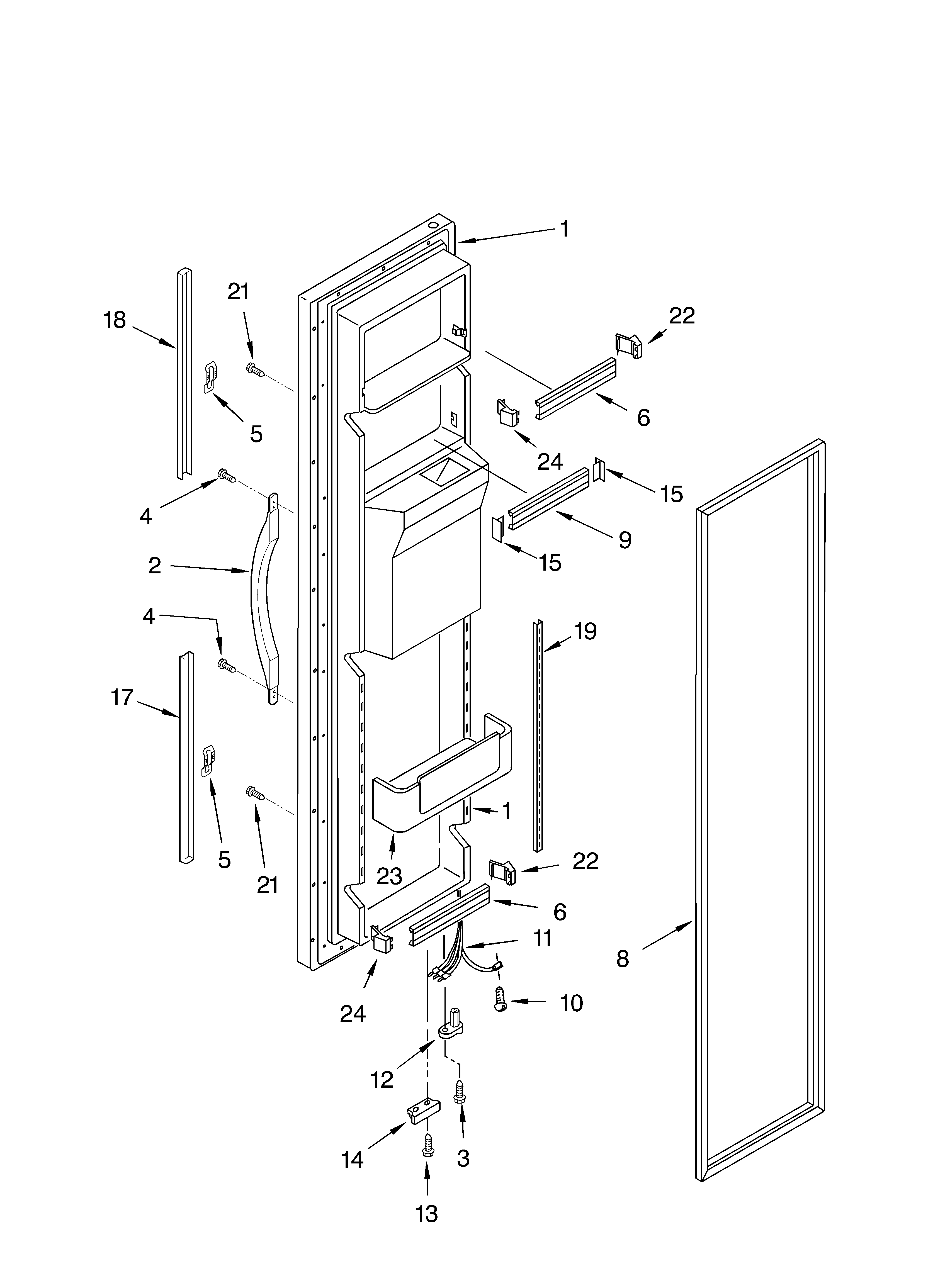

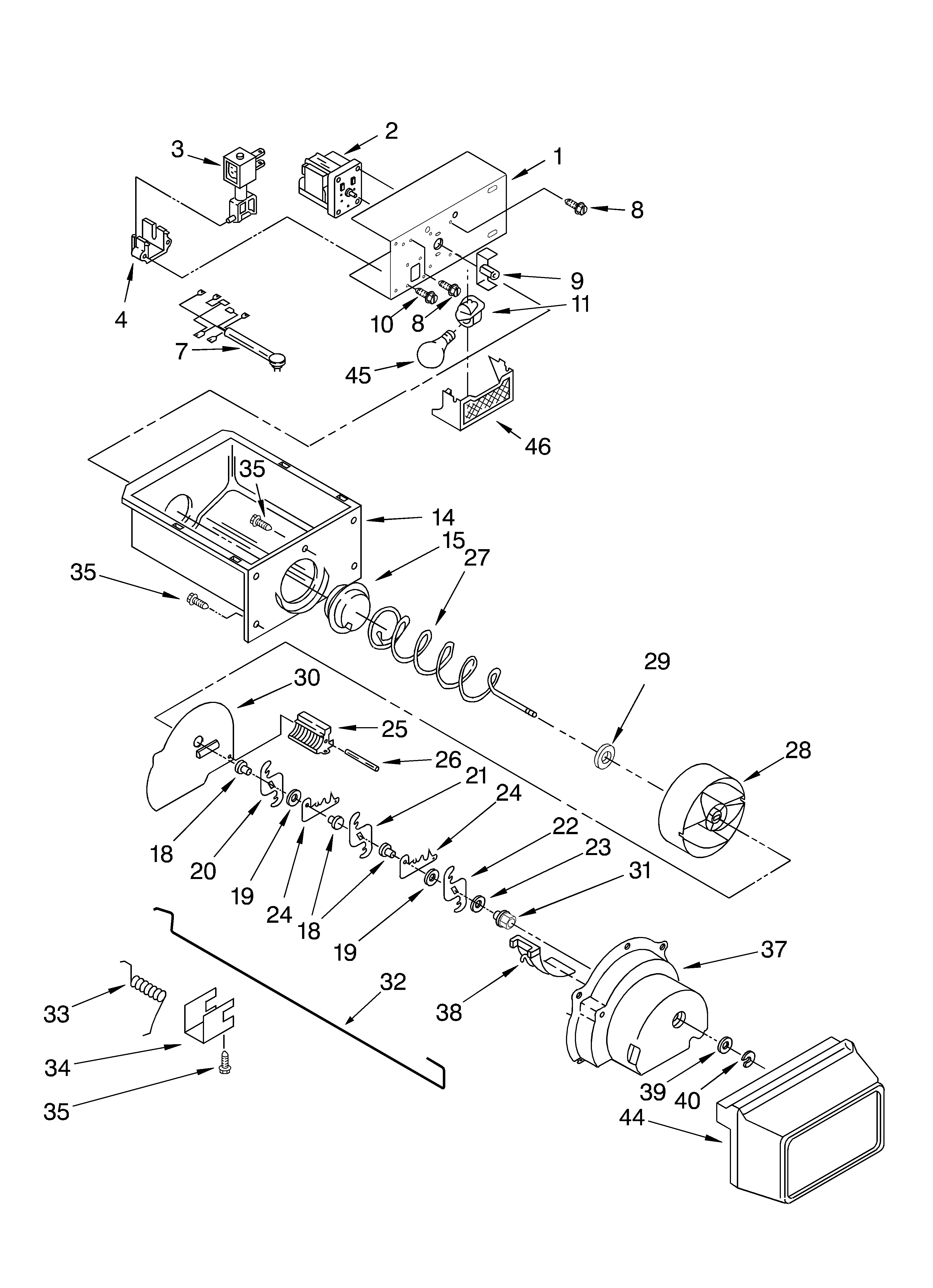

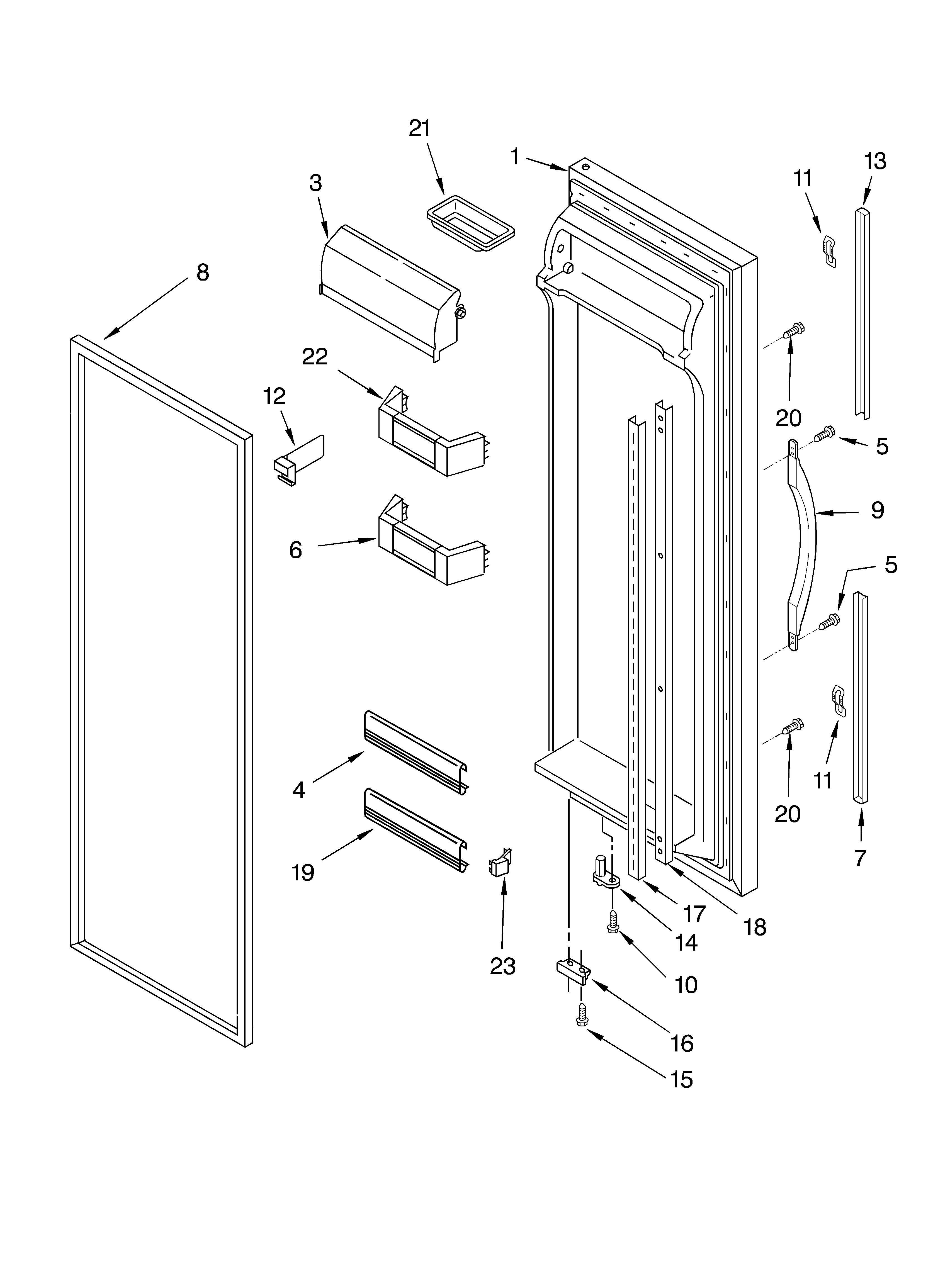

SELECT DIAGRAM
Browse Parts forGC5SHGXKQ00 Refrigerators
- #100

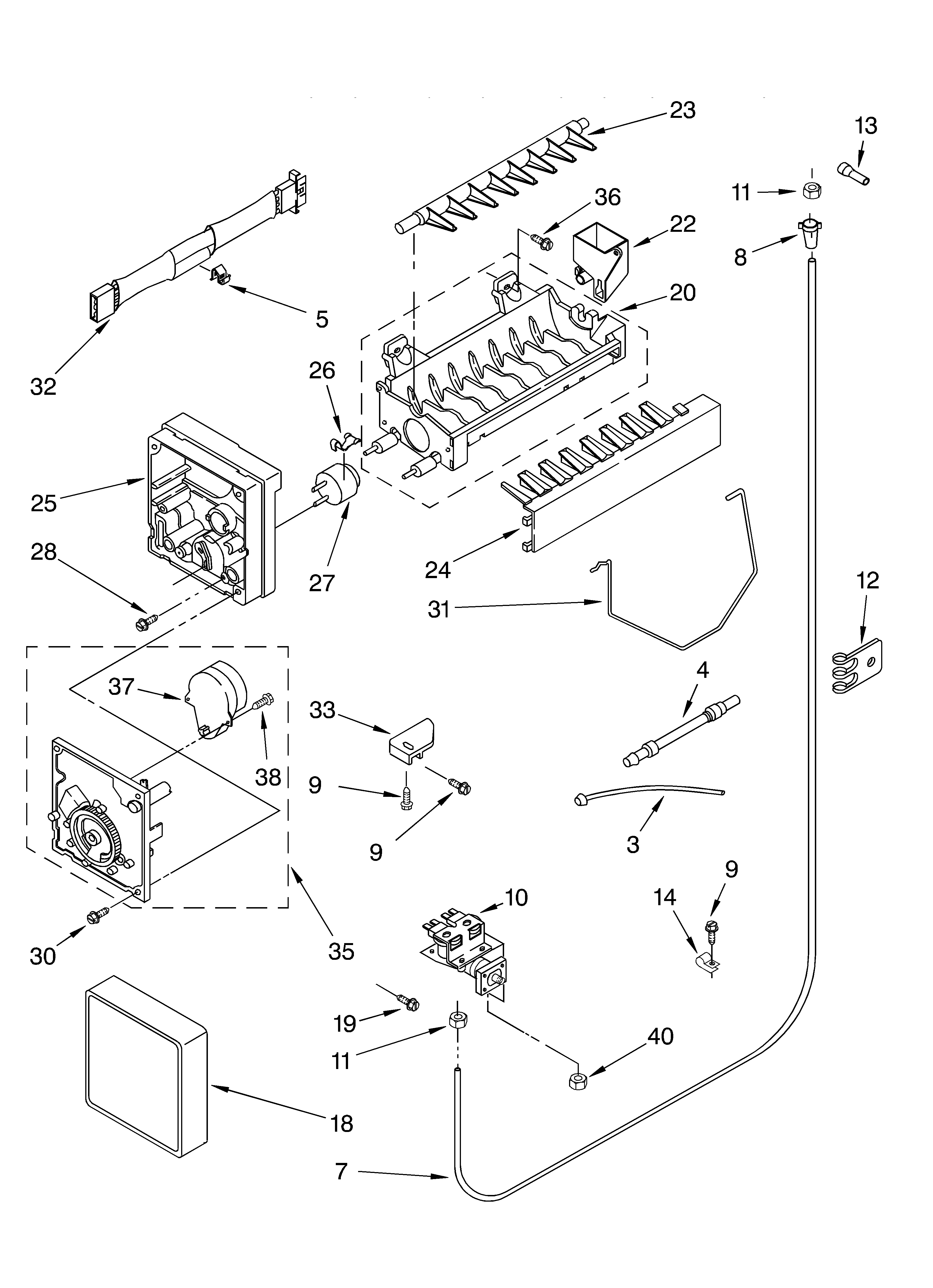

Icemaker parts, parts not illustrated diagram
Ice maker assembly - refrigerator ice maker by whirlpoolPart #4317943
$105.68 |10% OFF Phone Price : $117.68In Stock - #10

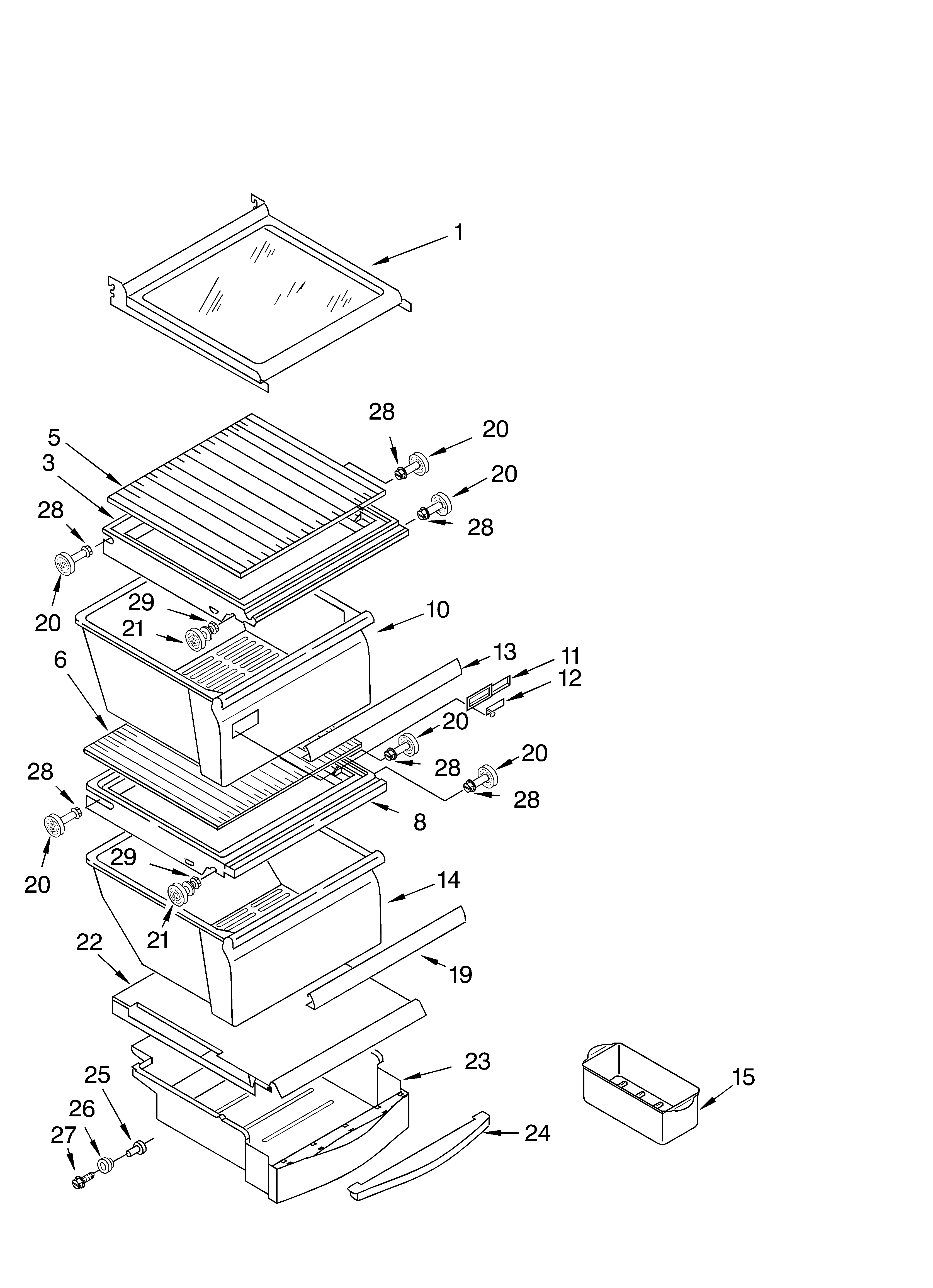

Refrigerator shelf parts diagram
Refrigerator crisper panPart #2196160
Replaced by #WP2188656
?Manufacturer substitutionThis part replaces 2196160. Substitute parts can look different from the original.$69.83 |8% OFF Phone Price : $75.83In Stock - #41

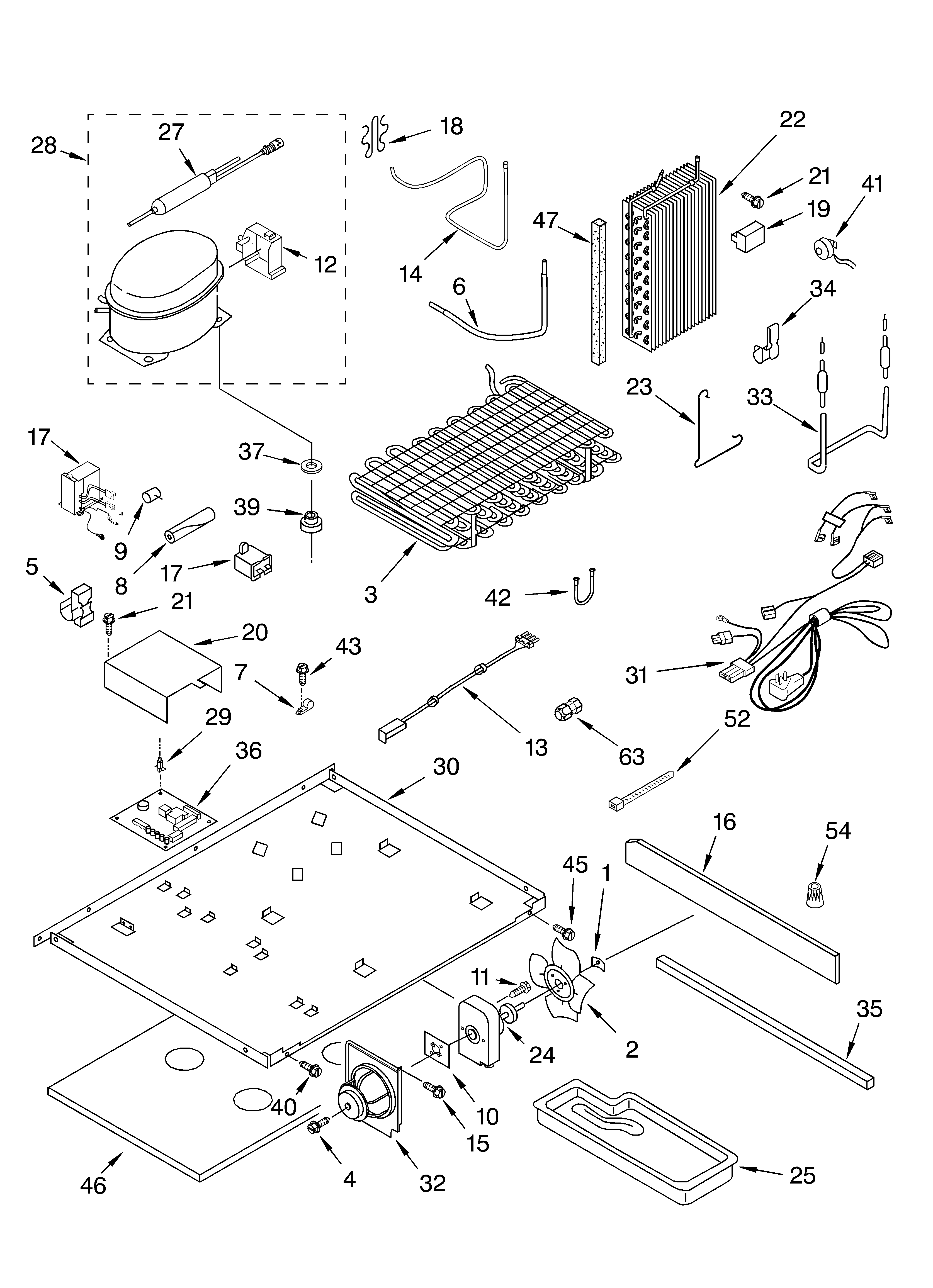

Unit parts diagram
Refrigerator defrost bi-metalPart #2196155
Replaced by #WPW10225581
?Manufacturer substitutionThis part replaces 2196155. Substitute parts can look different from the original.$28.80 |17% OFF Phone Price : $34.80In Stock - Refrigerator door closer cam
Part #2182179
Replaced by #WP2182179
?Manufacturer substitutionThis part replaces 2182179. Substitute parts can look different from the original.$10.94 |15% OFF Phone Price : $12.94In Stock - #15

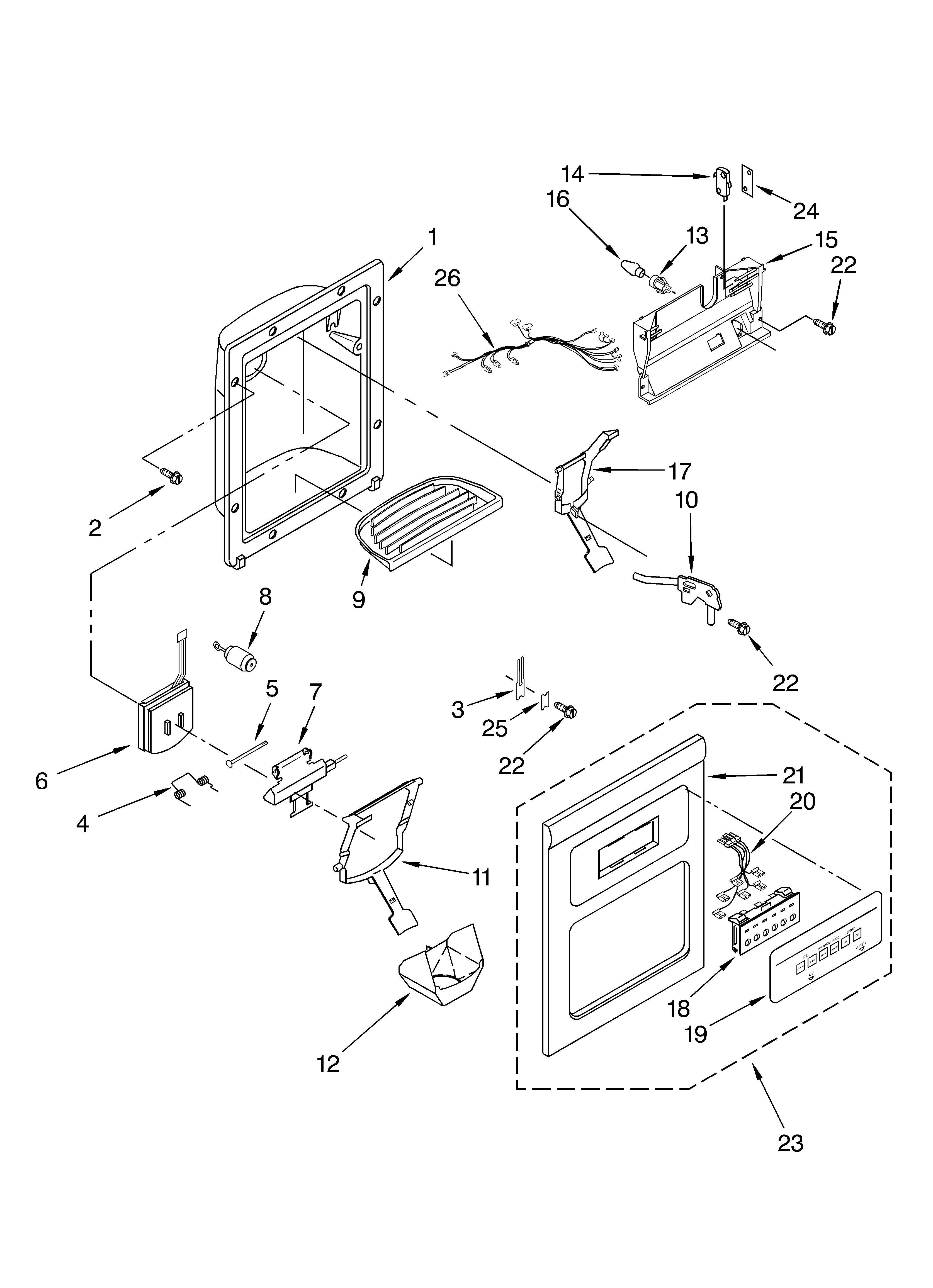

Dispenser front parts diagram
Refrigerator bracketPart #2183771
Replaced by #WP2180226
?Manufacturer substitutionThis part replaces 2183771. Substitute parts can look different from the original.$18.11 |10% OFF Phone Price : $20.11In Stock - #22
Unit parts diagram
Refrigerator evaporatorPart #2209611
Replaced by #WP2188823
?Manufacturer substitutionThis part replaces 2209611. Substitute parts can look different from the original.$279.03 |5% OFF Was : $293.72In Stock - #27
Unit parts diagram
Drier-tuePart #2199167
Replaced by #W10843121
?Manufacturer substitutionThis part replaces 2199167. Substitute parts can look different from the original.$30.82 |16% OFF Phone Price : $36.82In Stock - #8

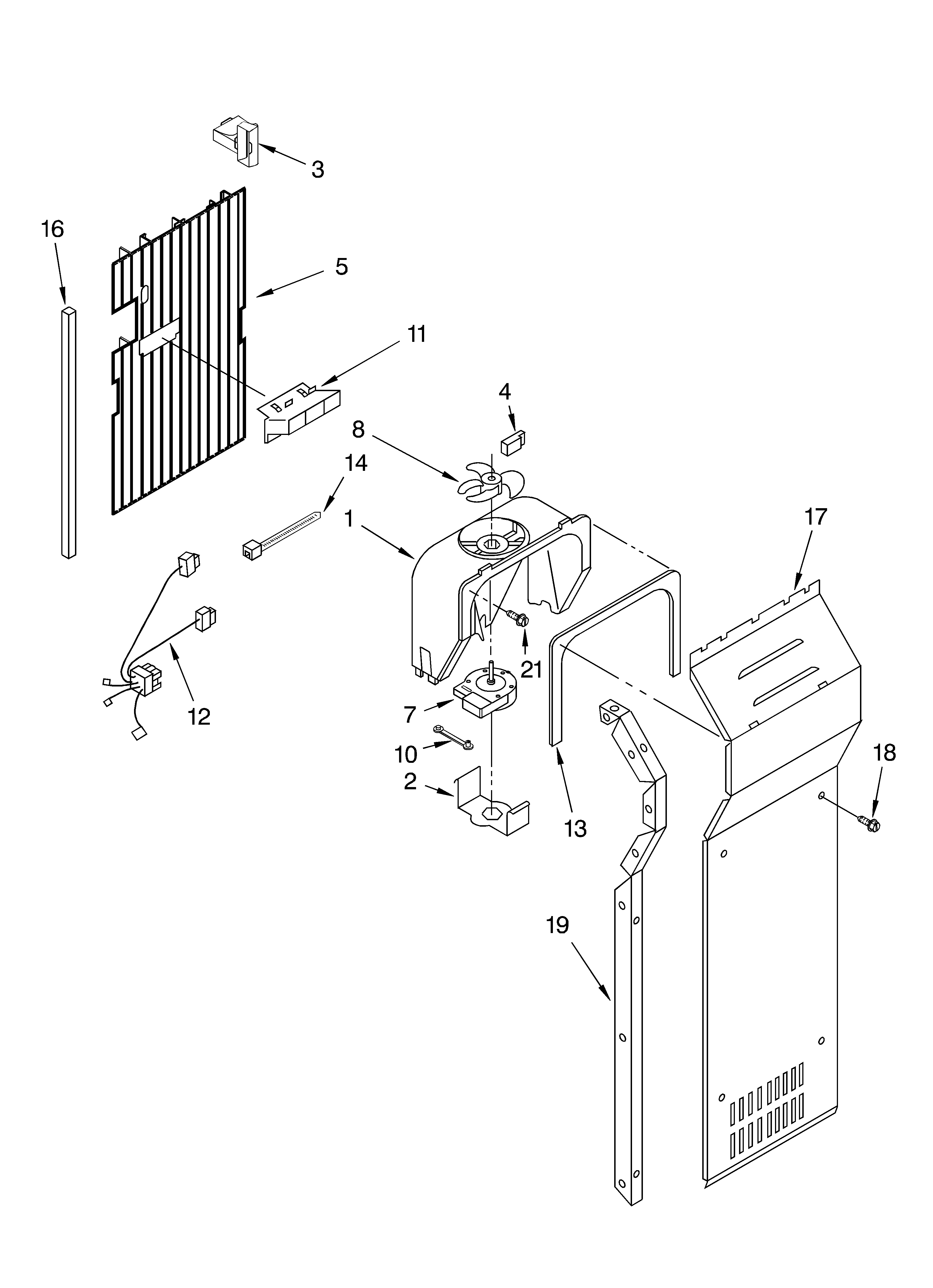

Air flow parts diagram
Refrigerator evaporator fan bladePart #2169142
Replaced by #WP2169142
?Manufacturer substitutionThis part replaces 2169142. Substitute parts can look different from the original.$31.74 |16% OFF Phone Price : $37.74In Stock - #12
Dispenser front parts diagram
Refrigerator ice chutePart #2180224
Replaced by #WP2180224
?Manufacturer substitutionThis part replaces 2180224. Substitute parts can look different from the original.$13.07 |13% OFF Phone Price : $15.07In Stock - #16
Dispenser front parts diagram
Dispenser bulbPart #3406124
Replaced by #WP22002263
?Manufacturer substitutionThis part replaces 3406124. Substitute parts can look different from the original.$11.53 |15% OFF Phone Price : $13.53In Stock
