Model # DW896 TYPE 3 Official DeWalt 16-gauge nibbler

Here are the diagrams and repair parts for Official DeWalt DW896-TYPE-3 16-gauge nibbler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Gear And Pin 869219-04
#12

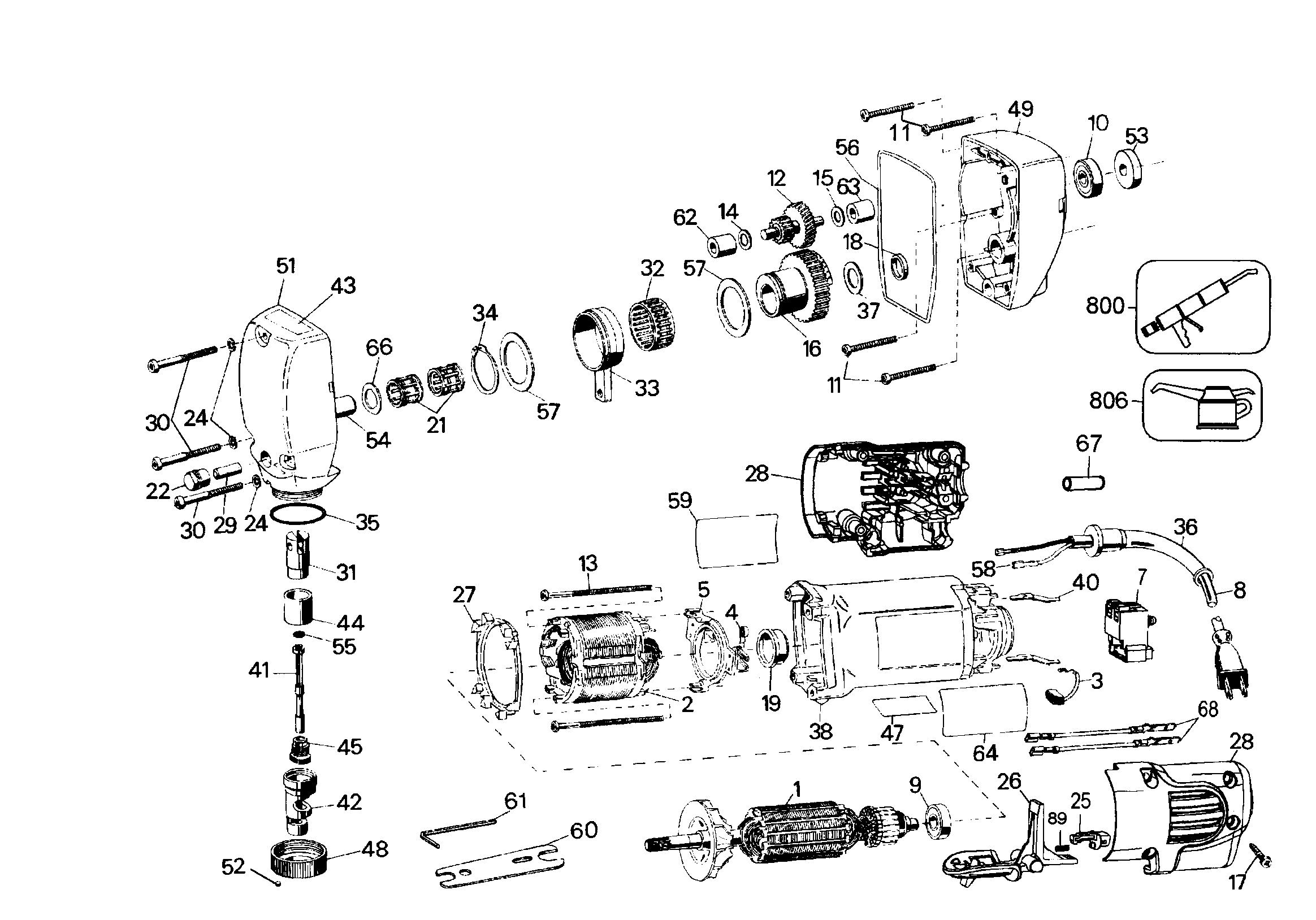

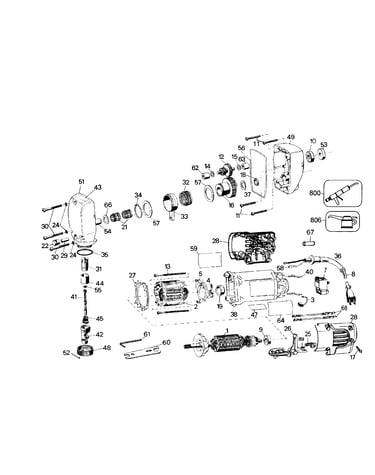

Main asy diagram

Gear and pin

Part #869219-04

The manufacturer no longer makes this part, and there's no substitute part

Shaft 935858-00
#31

Main asy diagram

Shaft

Part #935858-00

The manufacturer no longer makes this part, and there's no substitute part

Bearing 930302-00
#63

Main asy diagram

Bearing

Part #930302-00

The manufacturer no longer makes this part, and there's no substitute part

Nut 935856-00
#45

Main asy diagram

Nut

Part #935856-00

The manufacturer no longer makes this part, and there's no substitute part

Ring 935847-00
#34

Main asy diagram

Ring

Part #935847-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Power Tool Wire Terminal 464228-00
#58

Main asy diagram

Black & decker power tool wire terminal

Part #464228-00

The manufacturer no longer makes this part, and there's no substitute part

Die 935851-00
#42

Main asy diagram

Die

Part #935851-00

The manufacturer no longer makes this part, and there's no substitute part

Gasket 868970-00
#56

Main asy diagram

Gasket

Part #868970-00

The manufacturer no longer makes this part, and there's no substitute part

Sears Screw 448269-00
#13

Main asy diagram

Sears screw

Part #448269-00

The manufacturer no longer makes this part, and there's no substitute part

Lock Button 397659-00
#25

Main asy diagram

Lock button

Part #397659-00

The manufacturer no longer makes this part, and there's no substitute part
