Model # 91FY-3KW Official Magic Chef gas range
Here are the diagrams and repair parts for Official Magic Chef 91FY-3KW gas range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for91FY-3KW Ranges
- #4

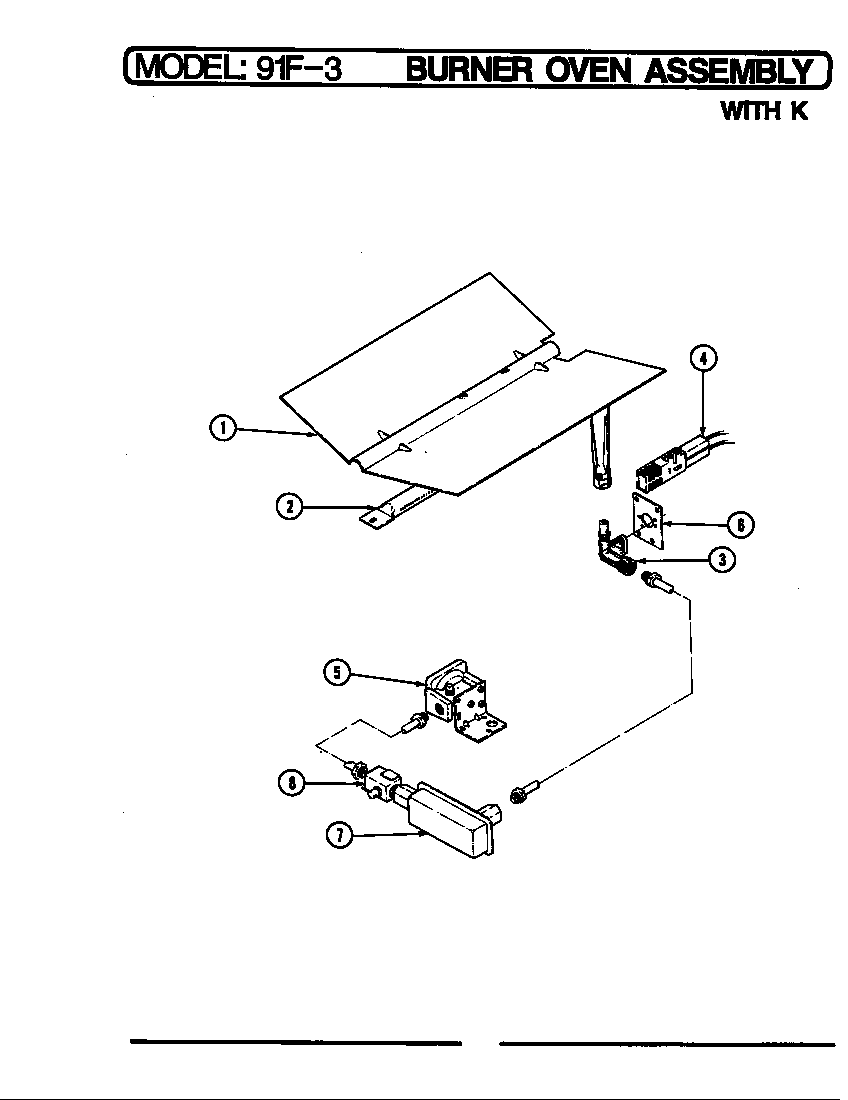

Oven burner assembly diagram
Bake igniterPart #7432P051-60
Replaced by #12400035
?Manufacturer substitutionThis part replaces 7432P051-60. Substitute parts can look different from the original.$35.33 |15% OFF Phone Price : $41.33In Stock - #4A
Oven burner assembly diagram
Oven igniterPart #7432P067-60
Replaced by #12400035
?Manufacturer substitutionThis part replaces 7432P067-60. Substitute parts can look different from the original.$35.33 |15% OFF Phone Price : $41.33In Stock - #5

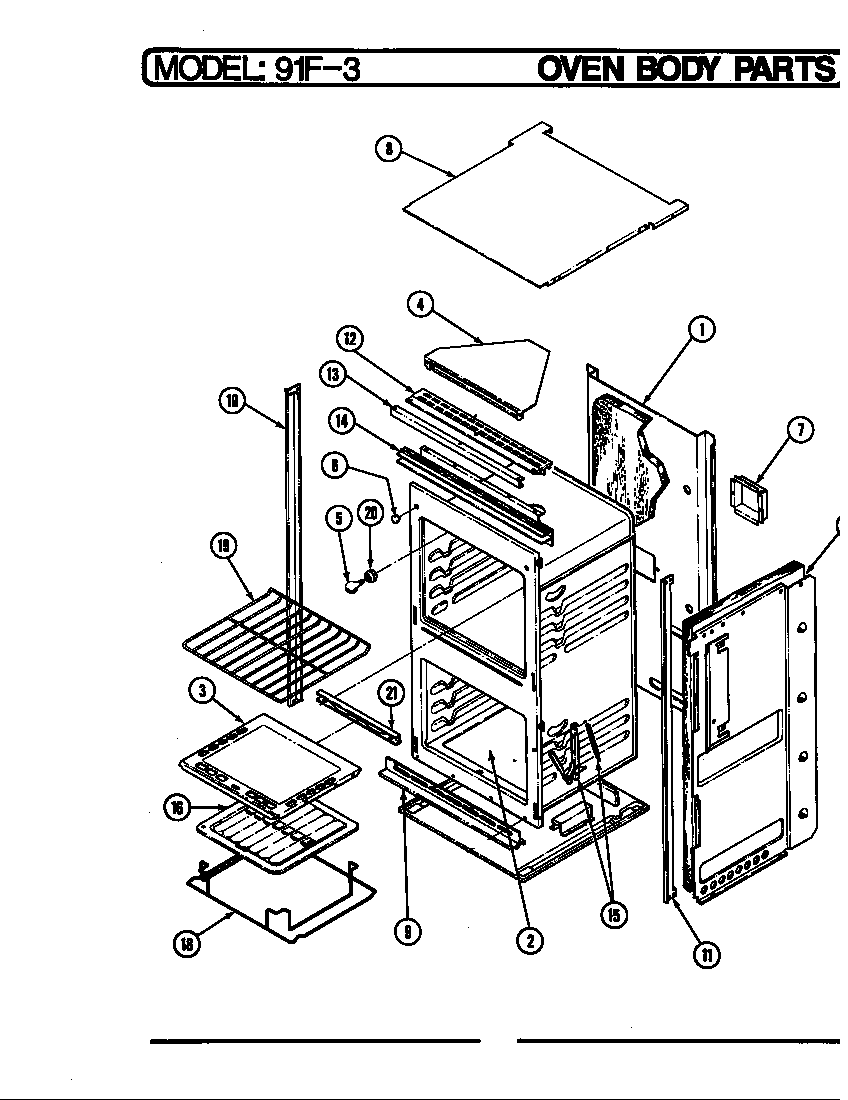

Body diagram
Oven bulbPart #7407P026-60
Replaced by #8009
?Manufacturer substitutionThis part replaces 7407P026-60. Substitute parts can look different from the original.This item is not returnable$12.57 |14% OFF Phone Price : $14.57In Stock - Range oven door seal
Part #7212P006-60
Replaced by #WP7212P006-60
?Manufacturer substitutionThis part replaces 7212P006-60. Substitute parts can look different from the original.$48.66 |11% OFF Phone Price : $54.66In Stock - #16
Body diagram
Broiler panPart #3401F004-23
Replaced by #4396923
?Manufacturer substitutionThis part replaces 3401F004-23. Substitute parts can look different from the original.$29.55 |17% OFF Phone Price : $35.55In Stock - #8
Body diagram
Cover box wrapPart #4005F152-51
Replaced by #W10204425
?Manufacturer substitutionThis part replaces 4005F152-51. Substitute parts can look different from the original.$35.13 |15% OFF Phone Price : $41.13In Stock - #11
Body diagram
Extrusion, sidePart #7706P113-60
The manufacturer no longer makes this part, and there's no substitute part
- #5

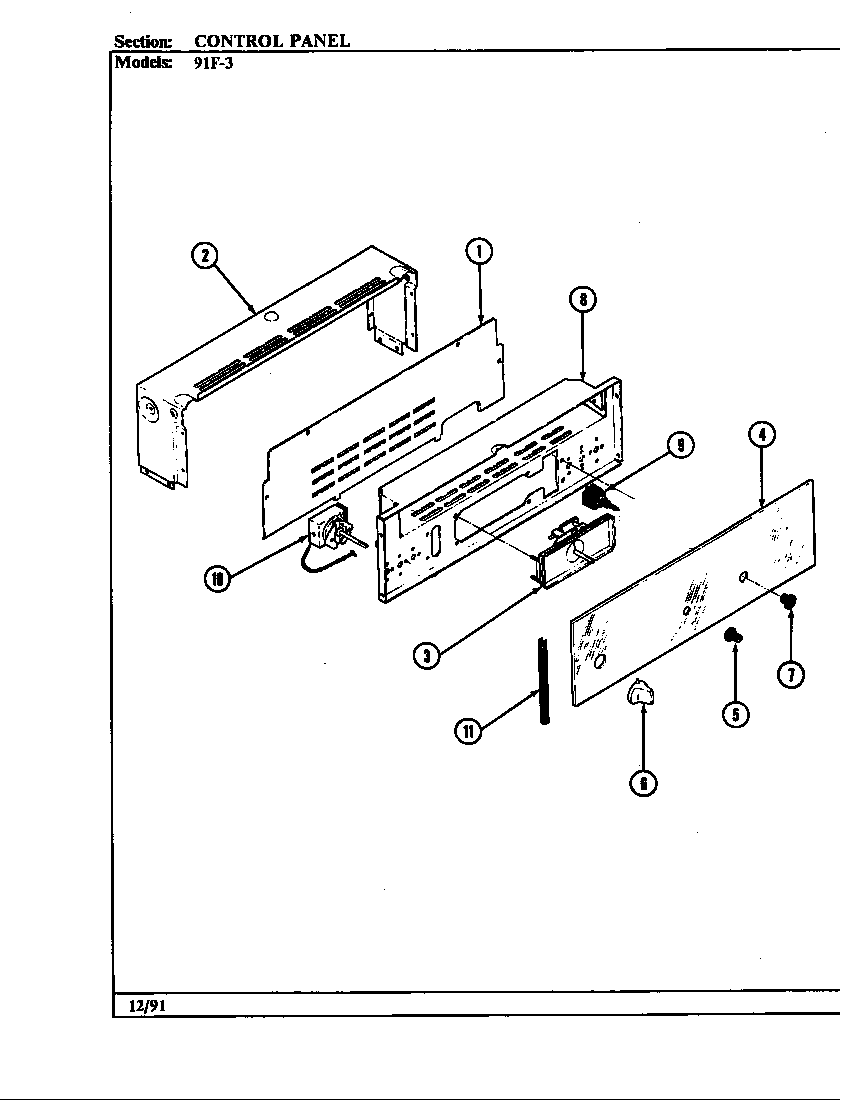

Control panel diagram
Clock knobPart #7711P007-60
The manufacturer no longer makes this part, and there's no substitute part
- #5B
Oven burner assembly diagram
Regulator prPart #7510P036-60
The manufacturer no longer makes this part, and there's no substitute part
- #2

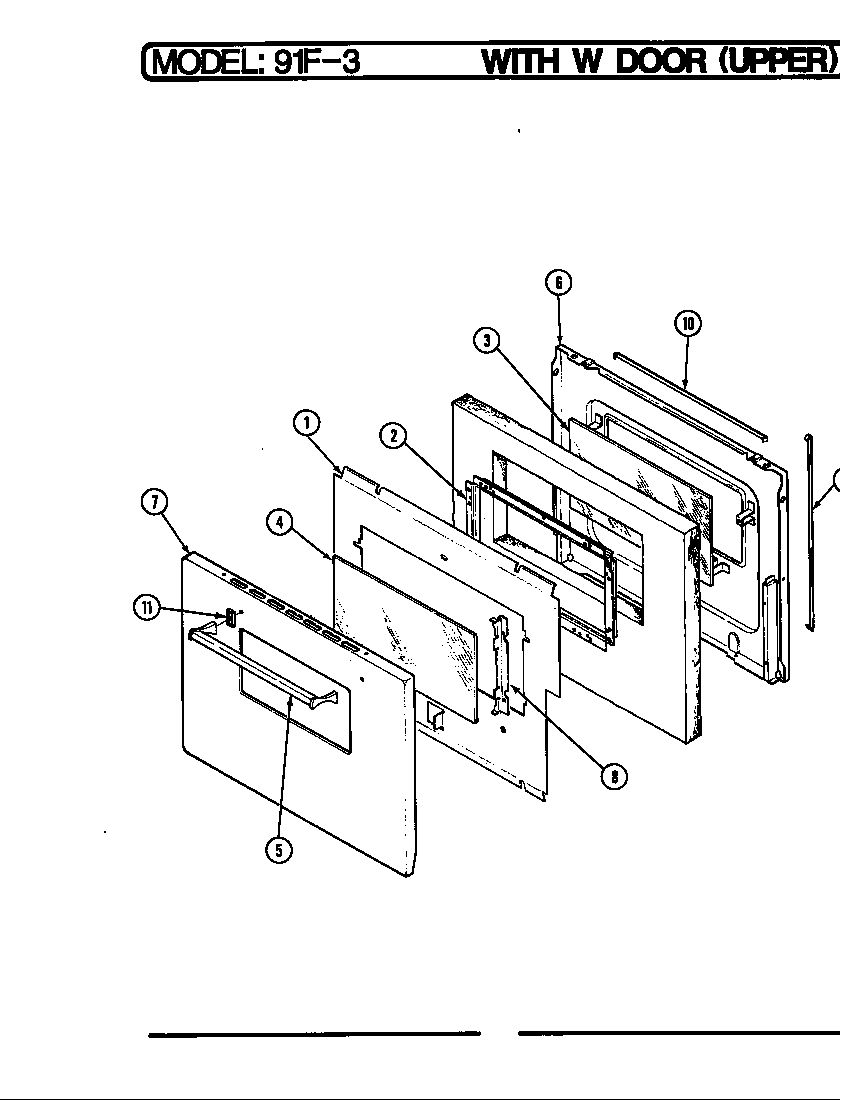

Door (upper) diagram
Window framePart #3603F013-70
The manufacturer no longer makes this part, and there's no substitute part
