Model # 1674303890 Official Sears swimming pool water filter

Here are the diagrams and repair parts for Official Sears 1674303890 swimming pool water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Teflon Tape 089-6713

#NI

All parts diagram

Teflon tape

Part #089-6713

The manufacturer no longer makes this part, and there's no substitute part

Plate 205-9458
#26

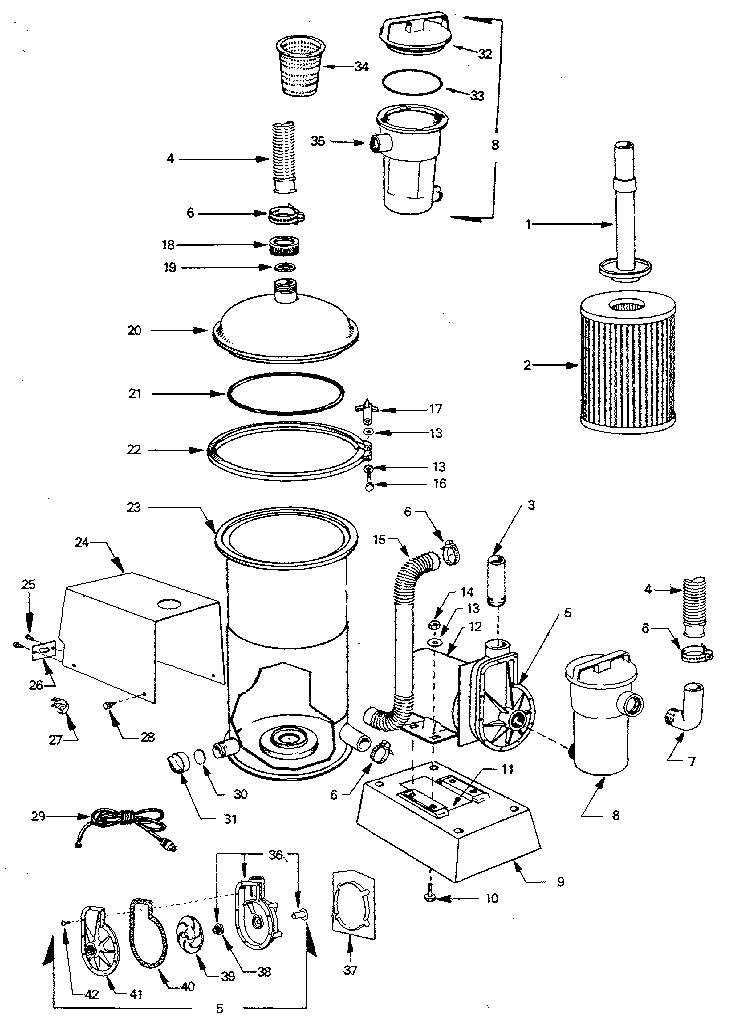

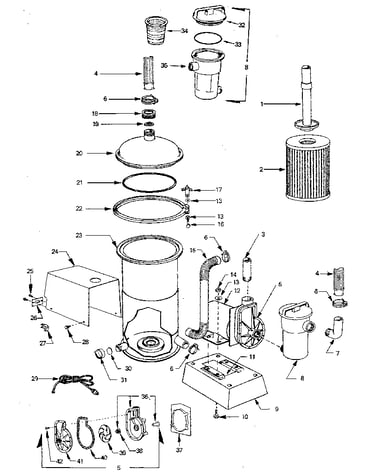

Replacement parts diagram

Plate

Part #205-9458

The manufacturer no longer makes this part, and there's no substitute part

Screw 054-3797
#25

Replacement parts diagram

Screw

Part #054-3797

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 051-3735
#14

Replacement parts diagram

Hex nut

Part #051-3735

The manufacturer no longer makes this part, and there's no substitute part

Drain Cap 098-7007
#31

Replacement parts diagram

Drain cap

Part #098-7007

The manufacturer no longer makes this part, and there's no substitute part

Pump Cover 098-7125
#41

Replacement parts diagram

Pump cover

Part #098-7125

The manufacturer no longer makes this part, and there's no substitute part

Washer Gasket 038-3400
#30

Replacement parts diagram

Washer gasket

Part #038-3400

The manufacturer no longer makes this part, and there's no substitute part

Bolt 050-3725
#16

Replacement parts diagram

Bolt

Part #050-3725

The manufacturer no longer makes this part, and there's no substitute part

Pump Housing 09-4000
#36

Replacement parts diagram

Pump housing

Part #09-4000

The manufacturer no longer makes this part, and there's no substitute part

Hose 102-7041
#4

Replacement parts diagram

Hose

Part #102-7041

The manufacturer no longer makes this part, and there's no substitute part
