Countertop Microwave

Model # JEI83101 Official GE microwave

Here are the diagrams and repair parts for Official GE JEI83101 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Primary Switch WB24X439
#1446

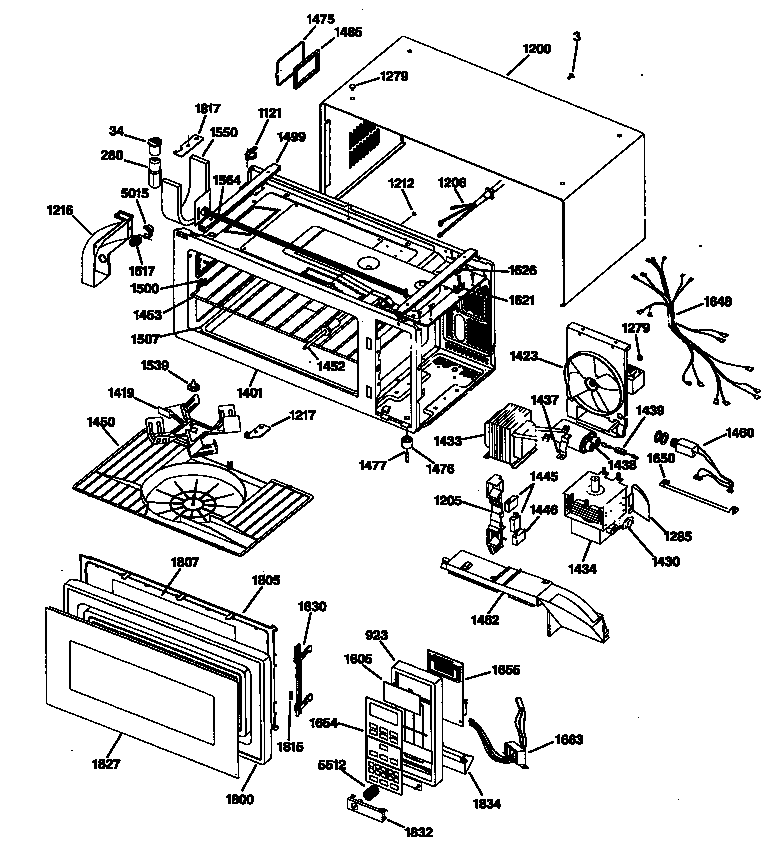

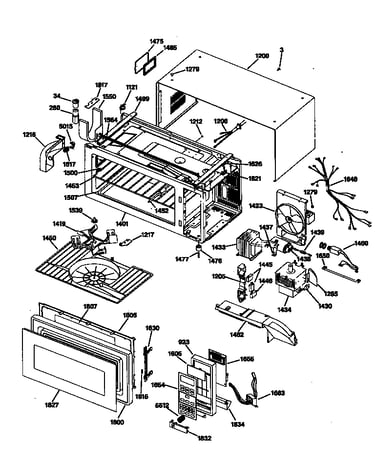

Microwave diagram

Primary switch

Part #WB24X439

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X439. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Motor Switch WB24X441
#1445

Microwave diagram

Motor switch

Part #WB24X441

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X441. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Diode WB27X505
#1439

Microwave diagram

Diode

Part #WB27X505

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X505. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Template 31-1144

#NI

All parts diagram

Template

Part #31-1144

$8.49
In Stock
Installation Instructions 31-1143

#NI

All parts diagram

Installation instructions

Part #31-1143

This item is not returnable
$5.99
In Stock
Gas Sensor WB2X4513
#1517

Microwave diagram

Gas sensor

Part #WB2X4513

Replaced by #WB27X1170

?
Manufacturer substitution
This part replaces WB2X4513. Substitute parts can look different from the original.
$98.78 |
11% OFF Phone Price : $110.78
In Stock
Magnetron WB27X764
#1434

Microwave diagram

Magnetron

Part #WB27X764

Replaced by #WB27X10249

?
Manufacturer substitution
This part replaces WB27X764. Substitute parts can look different from the original.
$245.85 |
5% OFF Phone Price : $257.85
In Stock
Flame Sensor WB20X141
#1121

Microwave diagram

Flame sensor

Part #WB20X141

Replaced by #WB27X10195

?
Manufacturer substitution
This part replaces WB20X141. Substitute parts can look different from the original.
$24.89 |
19% OFF Phone Price : $30.89
In Stock
Holder Sensor WB6X193
#5015

Microwave diagram

Holder sensor

Part #WB6X193

Replaced by #WB6X549

?
Manufacturer substitution
This part replaces WB6X193. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Lead Wire WB18X455
#1650

Microwave diagram

Lead wire

Part #WB18X455

The manufacturer no longer makes this part, and there's no substitute part
