Kenmore
Canister Vacuum

Model # 1163235090C Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1163235090C vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Bag, Dust (available At Any Sears Retail Store) Sears No. 20-5045 746084
#23

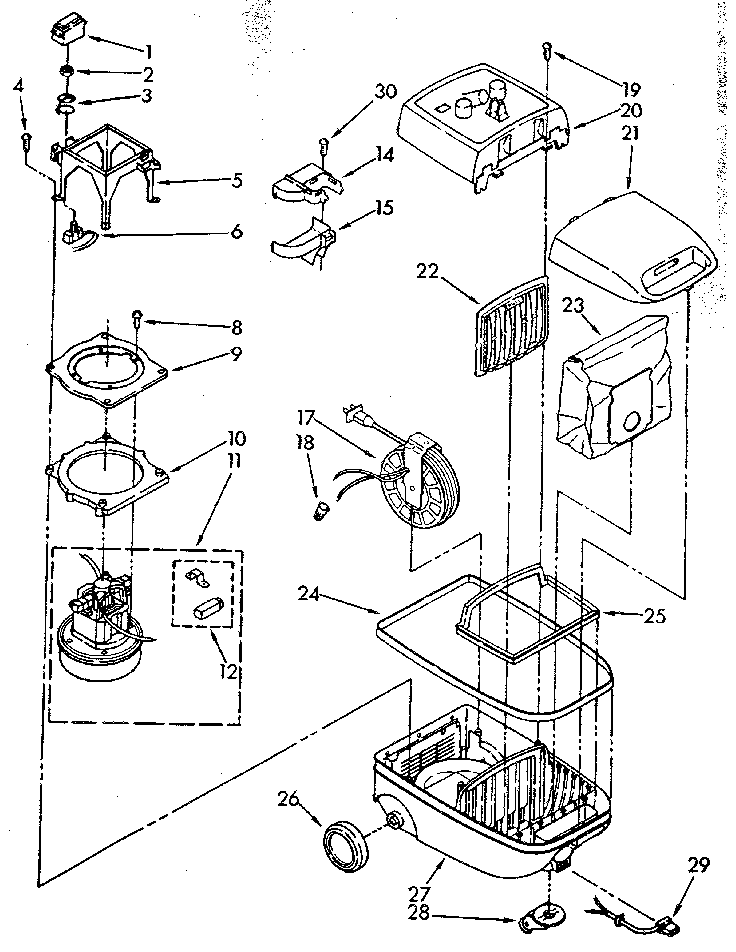

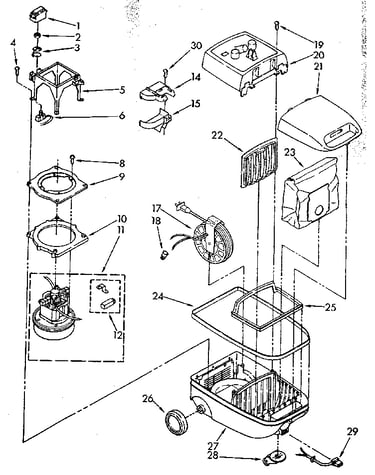

Base assembly diagram

Bag, dust (available at any sears retail store) sears no. 20-5045

Part #746084

The manufacturer no longer makes this part, and there's no substitute part

Motor Mount 744426
#10

Base assembly diagram

Motor mount

Part #744426

The manufacturer no longer makes this part, and there's no substitute part

Bumper Base 4147888
#24

Base assembly diagram

Bumper base

Part #4147888

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter (white) 744444
#22

Base assembly diagram

Vacuum filter (white)

Part #744444

The manufacturer no longer makes this part, and there's no substitute part

Housing 4150455
#14

Base assembly diagram

Housing

Part #4150455

The manufacturer no longer makes this part, and there's no substitute part

Hood 4154563
#21

Base assembly diagram

Hood

Part #4154563

The manufacturer no longer makes this part, and there's no substitute part

Hose 4153859
#1

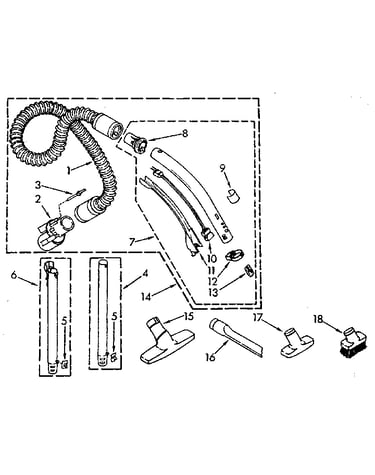

Hose and attachment diagram

Hose

Part #4153859

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Repair Parts List LIT4154566

#NI

All parts diagram

Repair parts list

Part #LIT4154566

The manufacturer no longer makes this part, and there's no substitute part

Repair Parts List (mini) LIT4154567

#NI

All parts diagram

Repair parts list (mini)

Part #LIT4154567

The manufacturer no longer makes this part, and there's no substitute part
