Maytag
Side-By-Side Refrigerator

Model # MSD2351KES Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag MSD2351KES refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

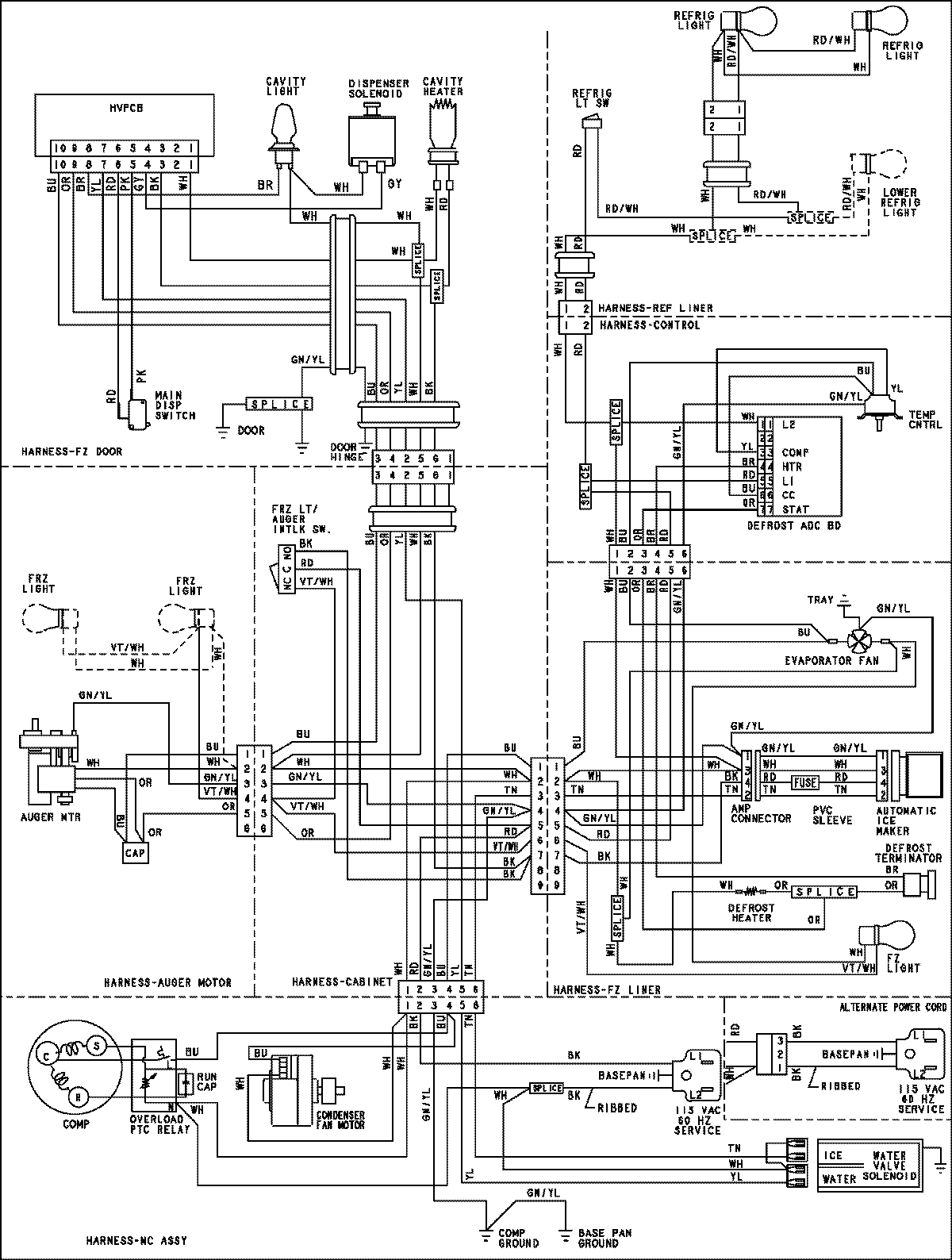

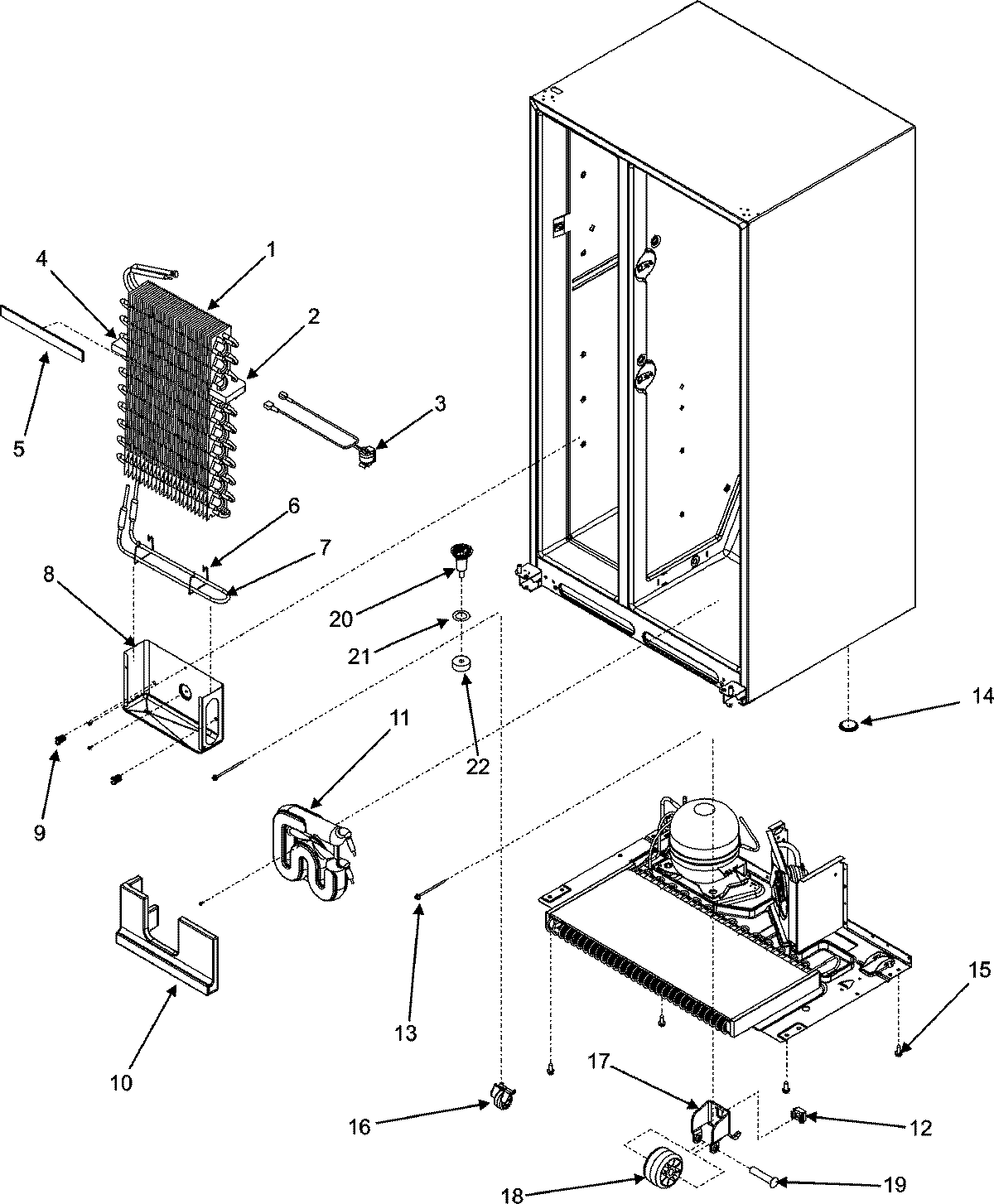

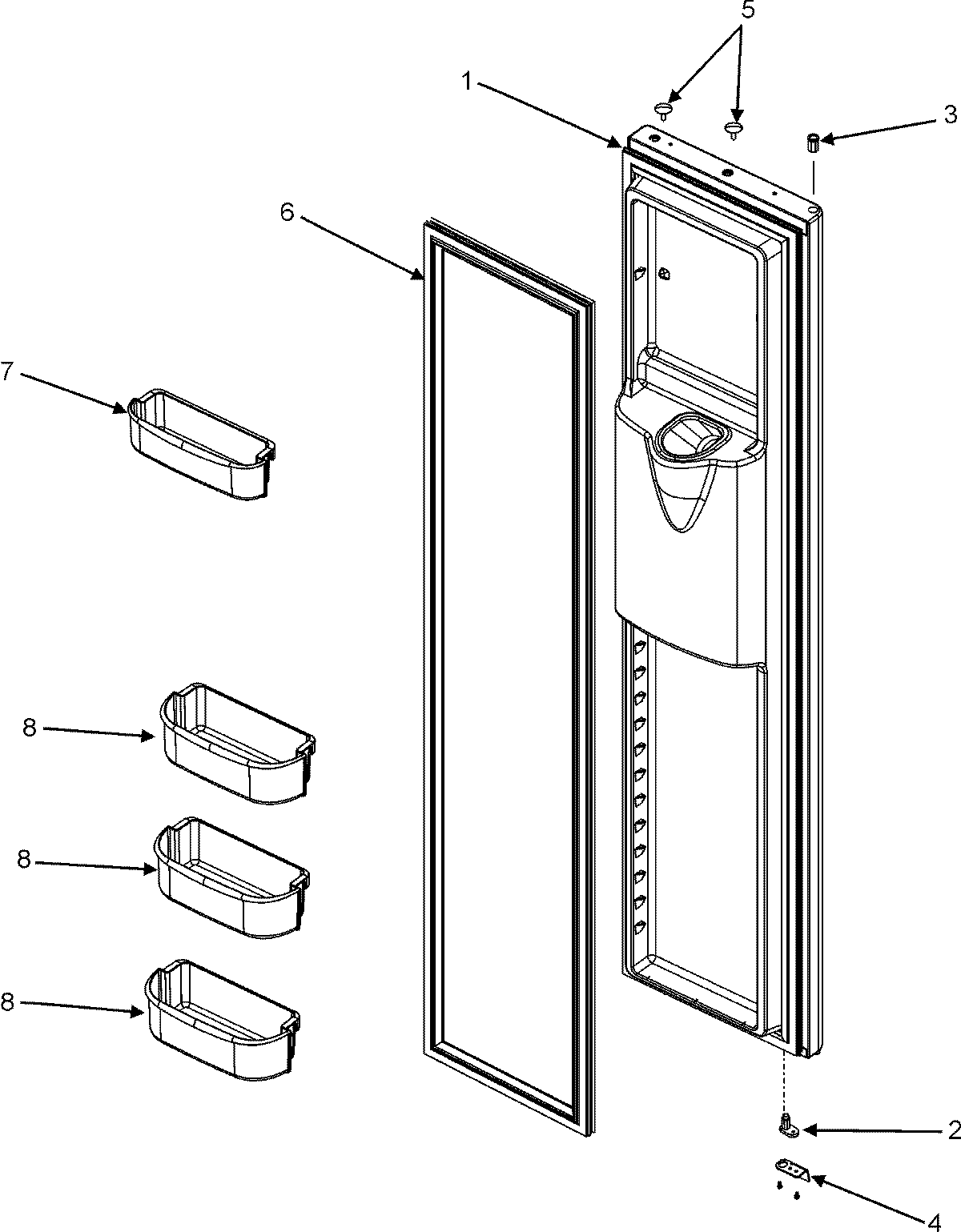

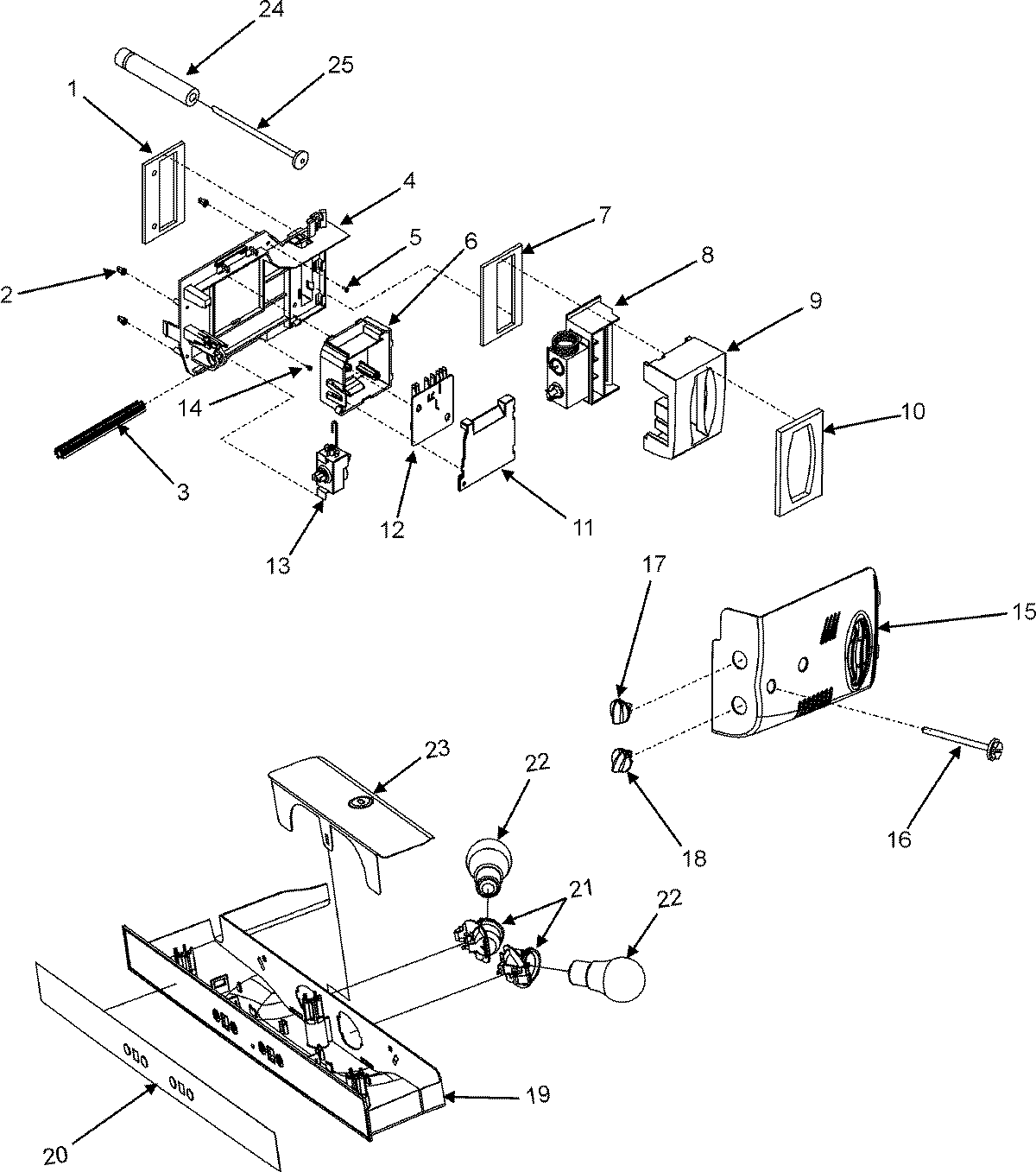

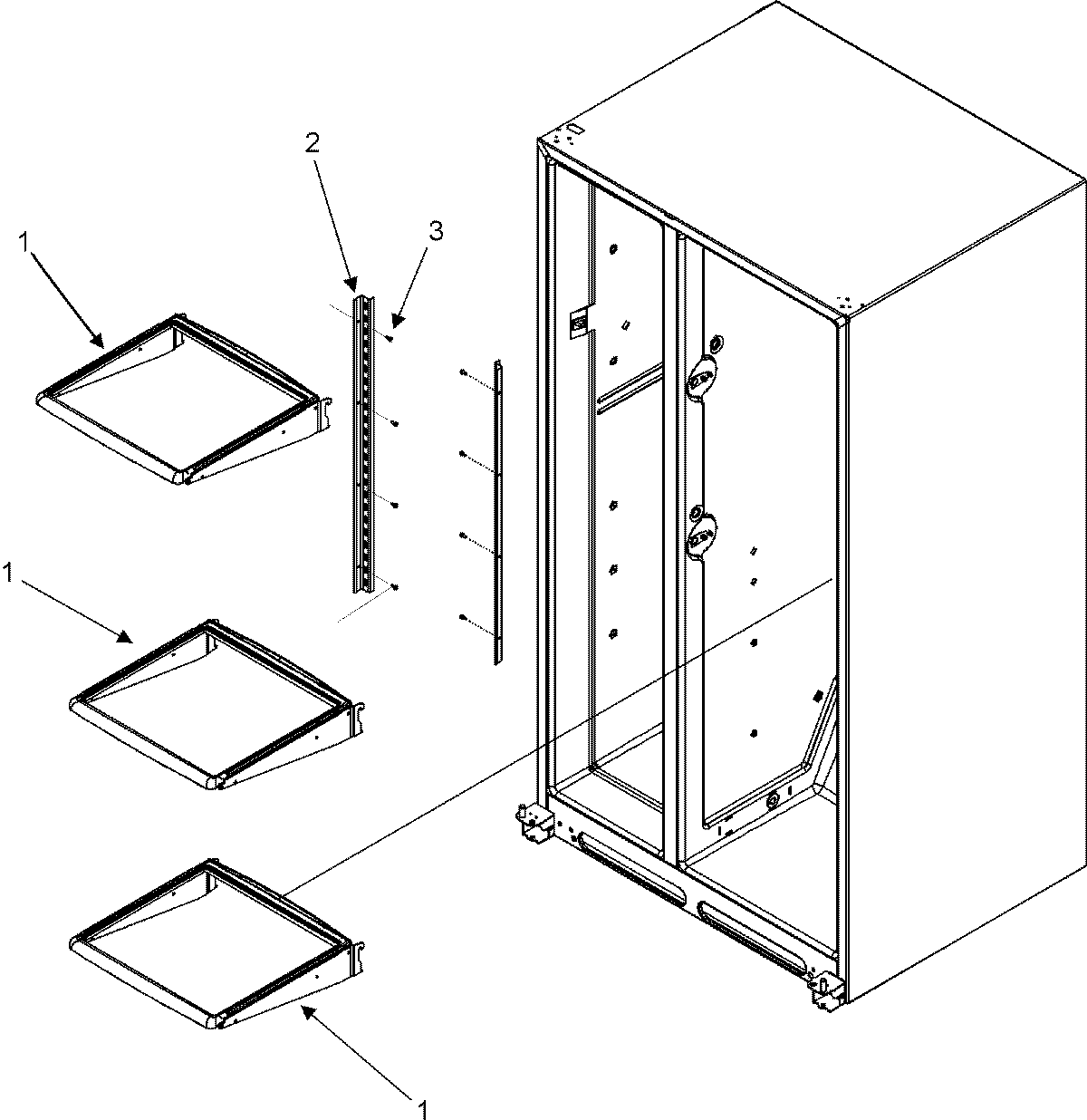

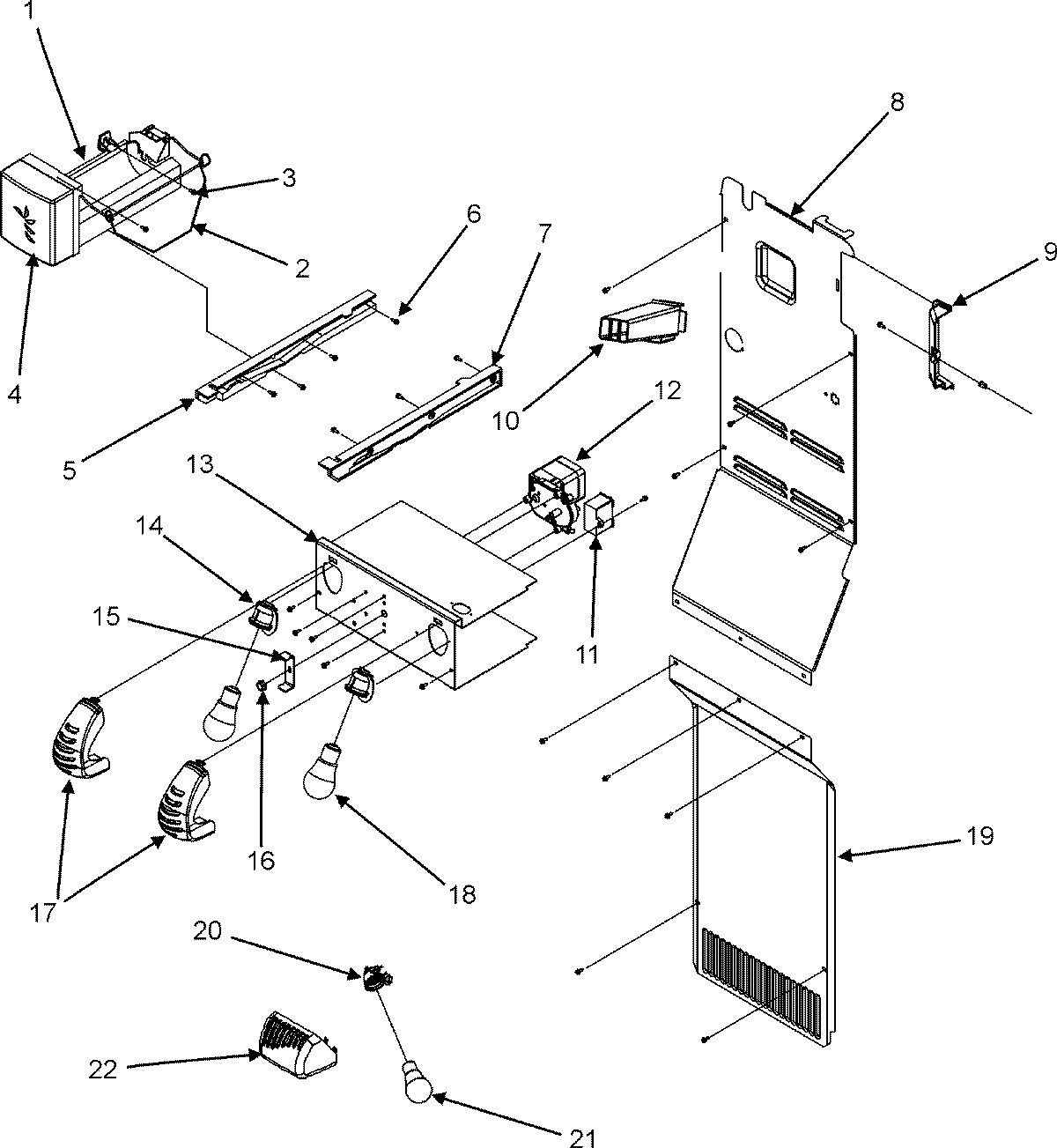

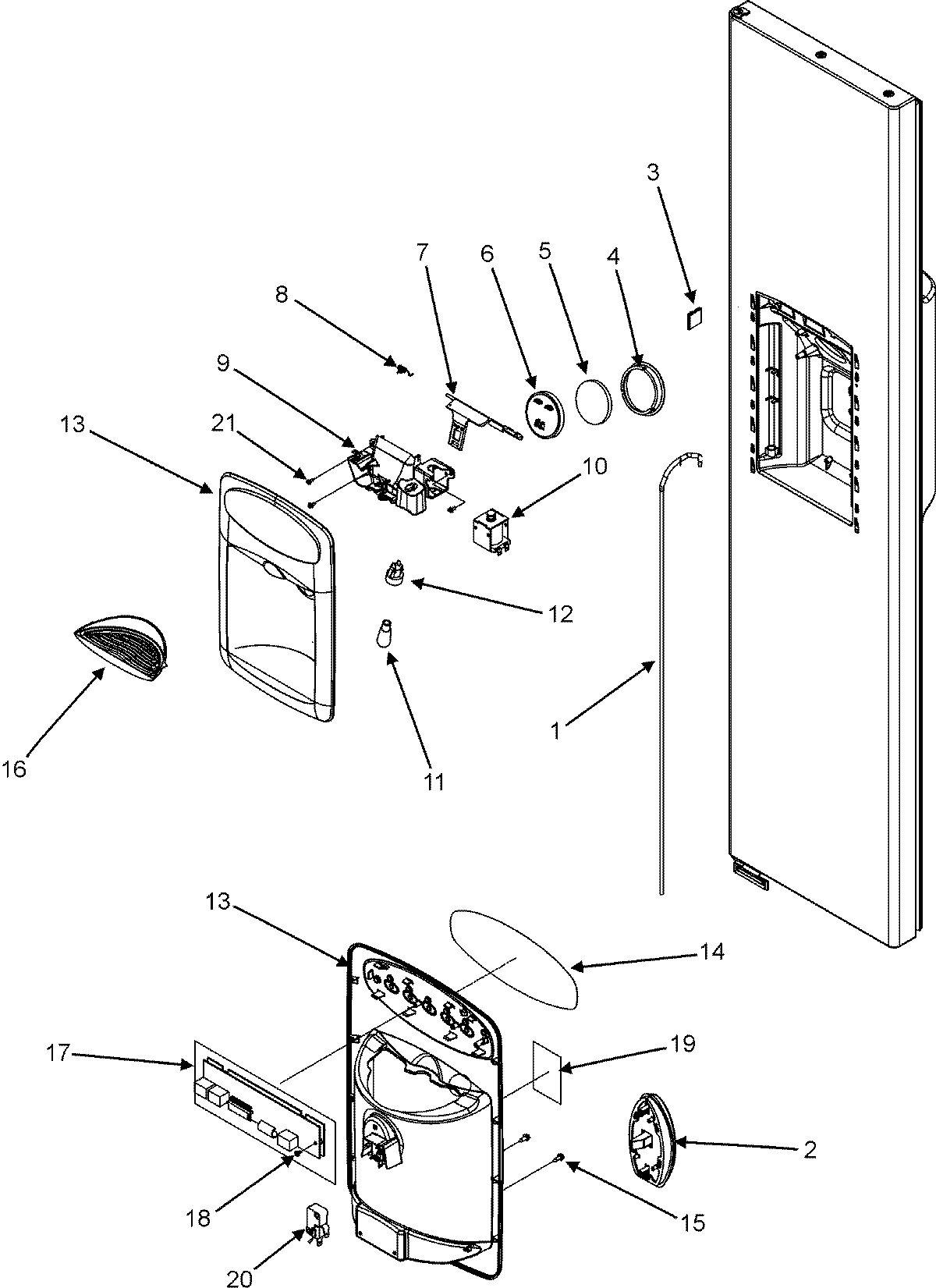

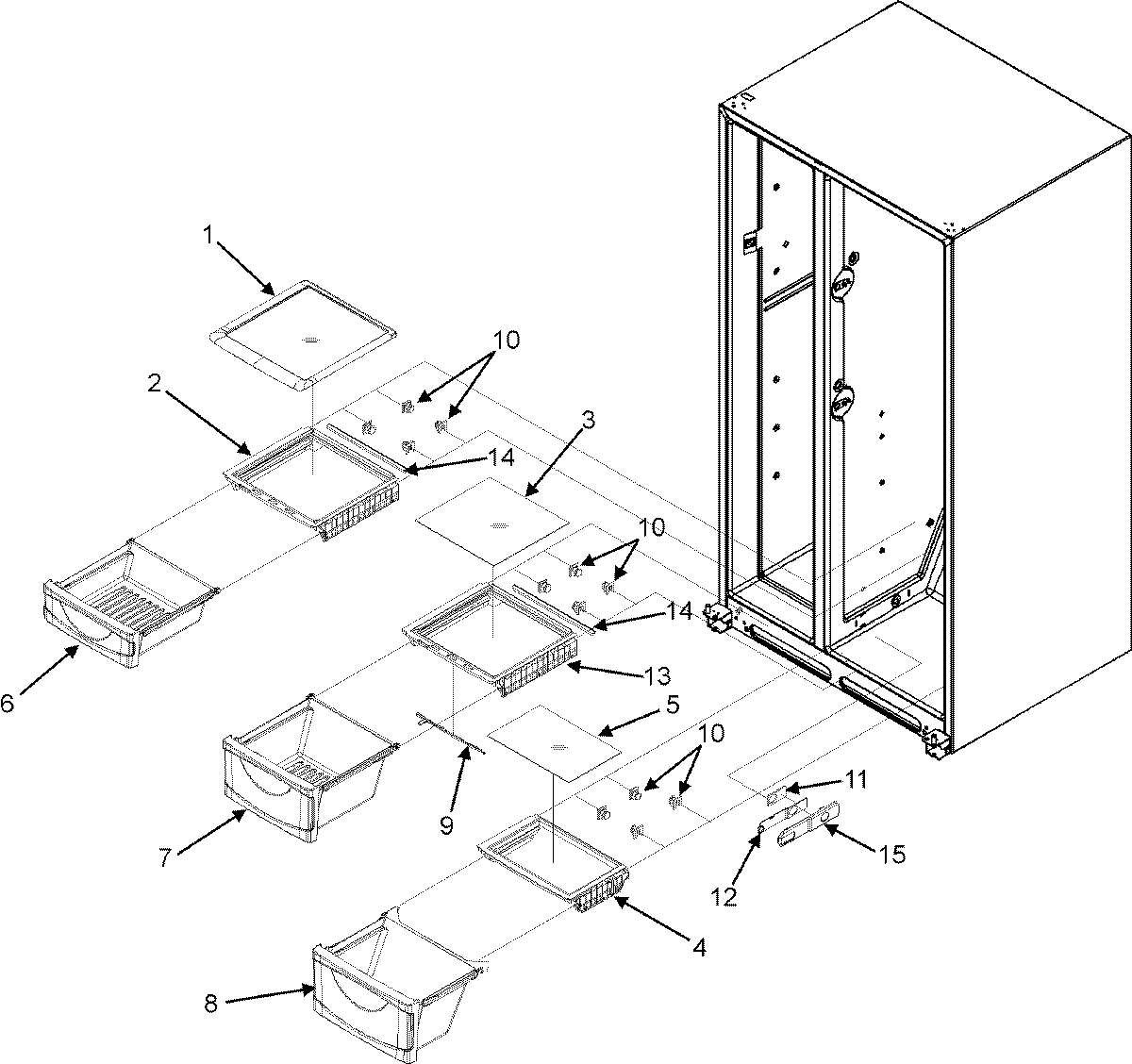

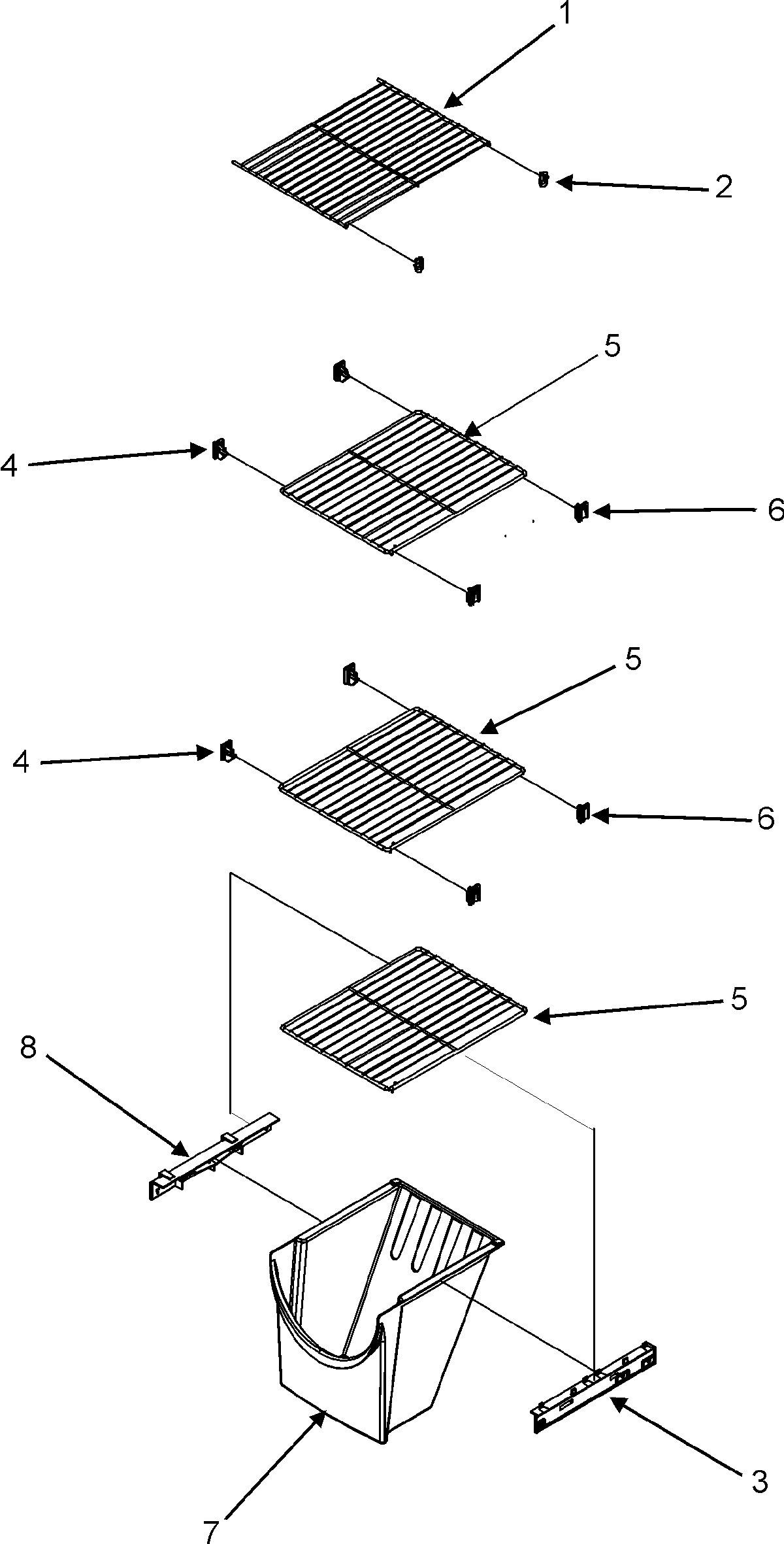

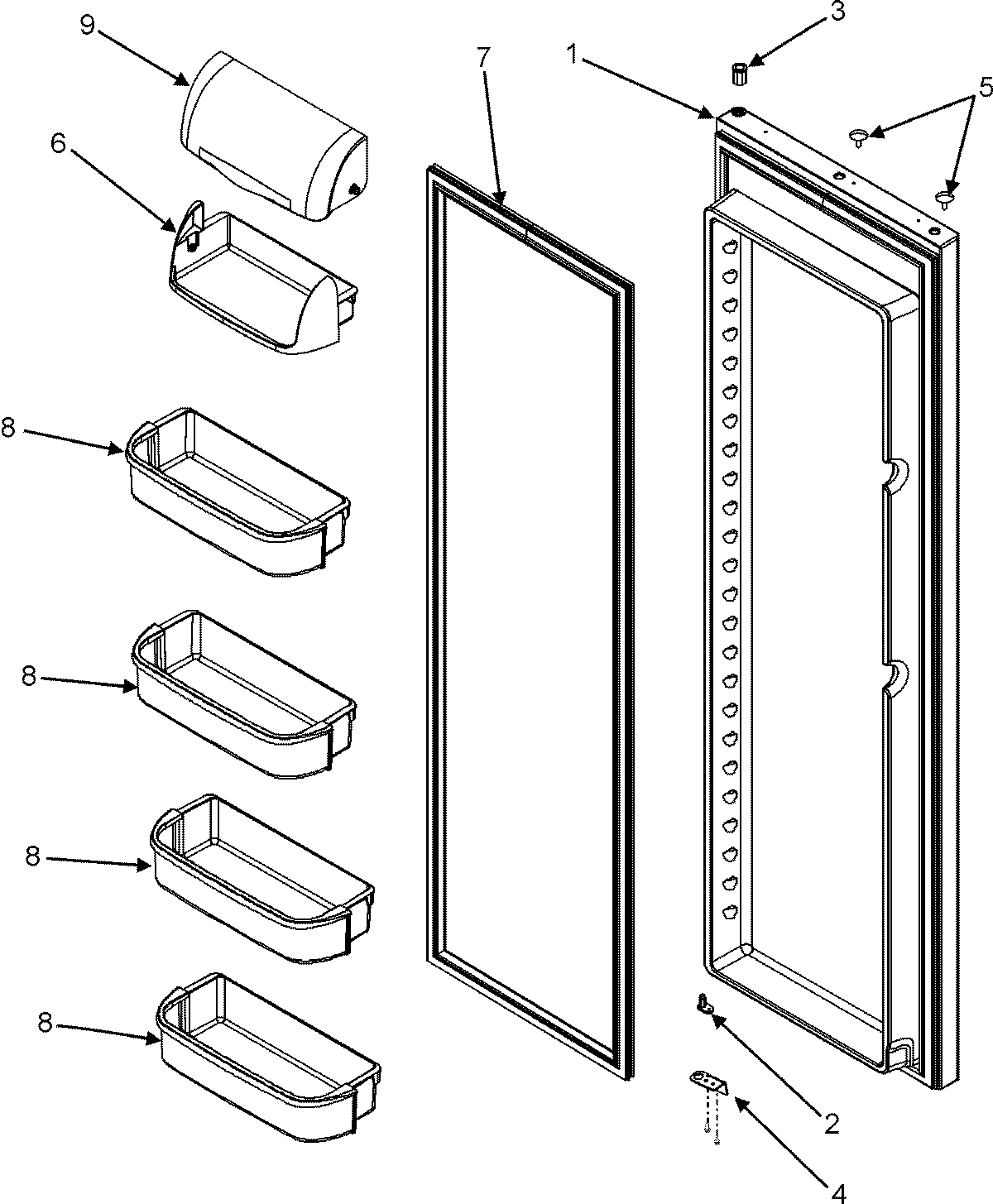

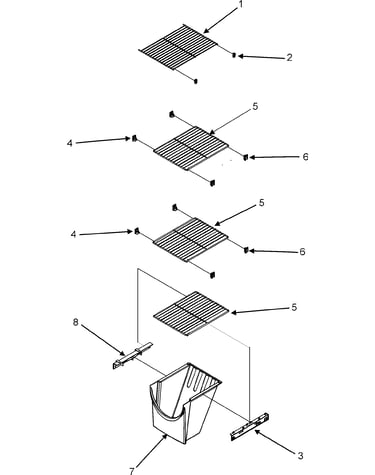

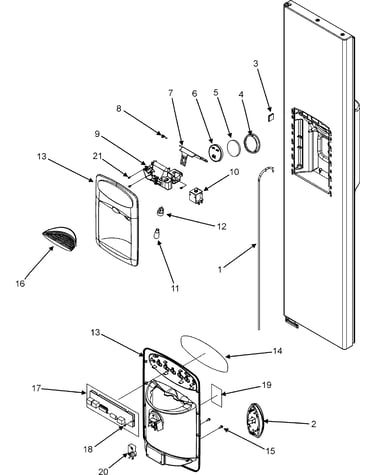

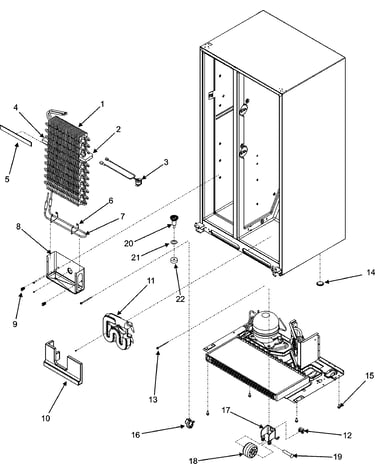

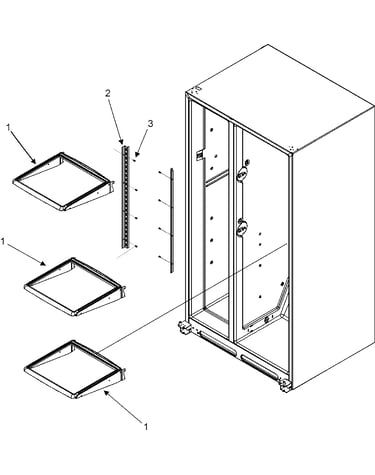

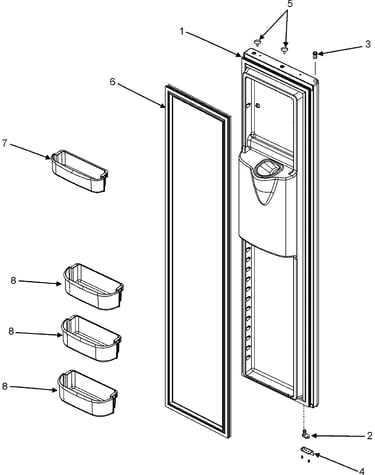

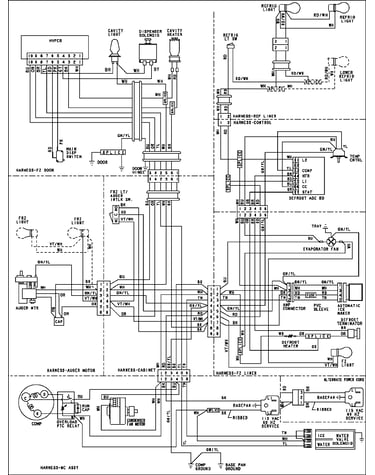

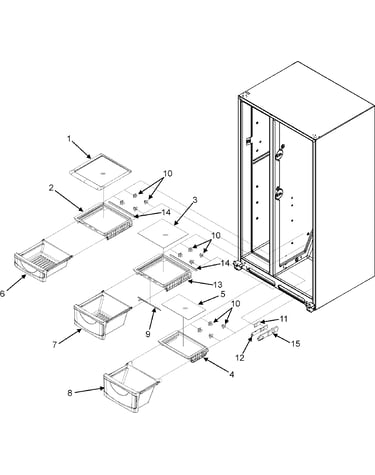

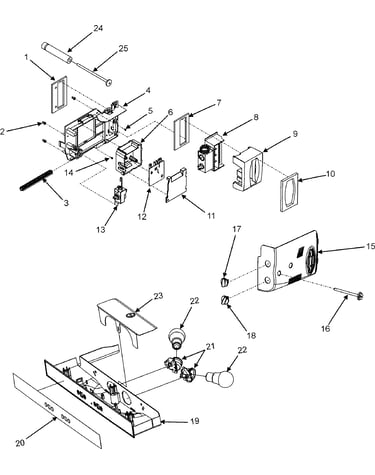

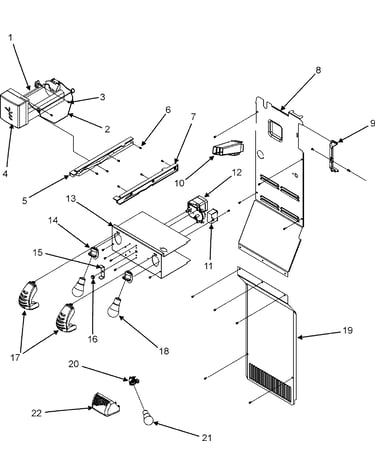

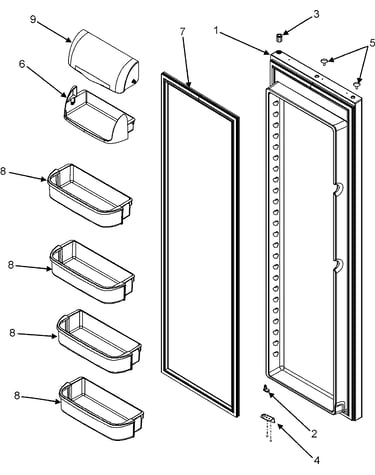

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 253 parts  |
Refrigerator Water Filter 67003591
#15

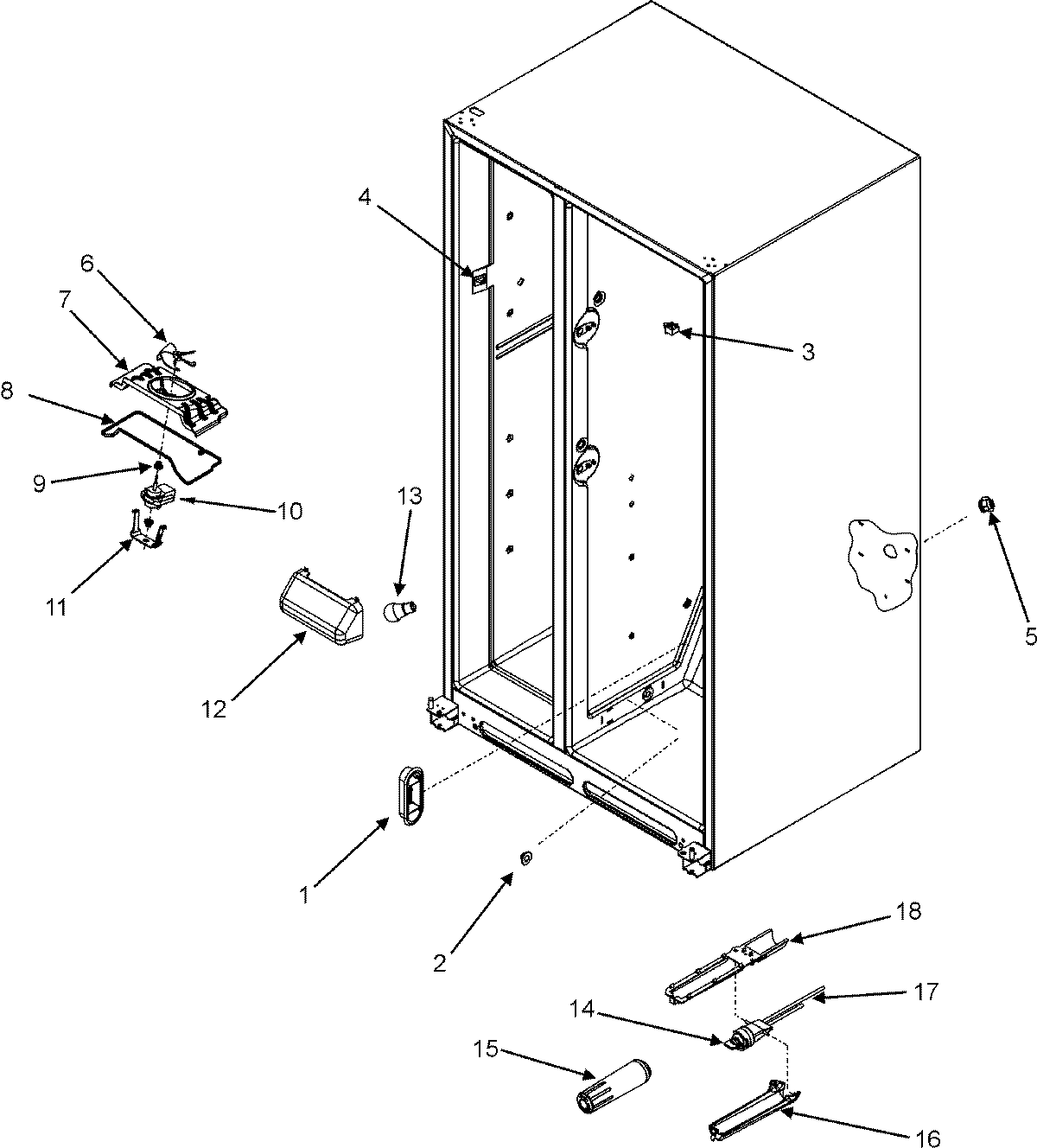

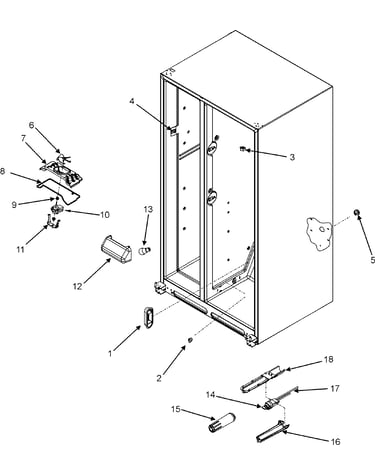

Evap fan/crisp light/water filter diagram

Refrigerator water filter

Part #67003591

Replaced by #EDR4RXD1

?
Manufacturer substitution
This part replaces 67003591. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock

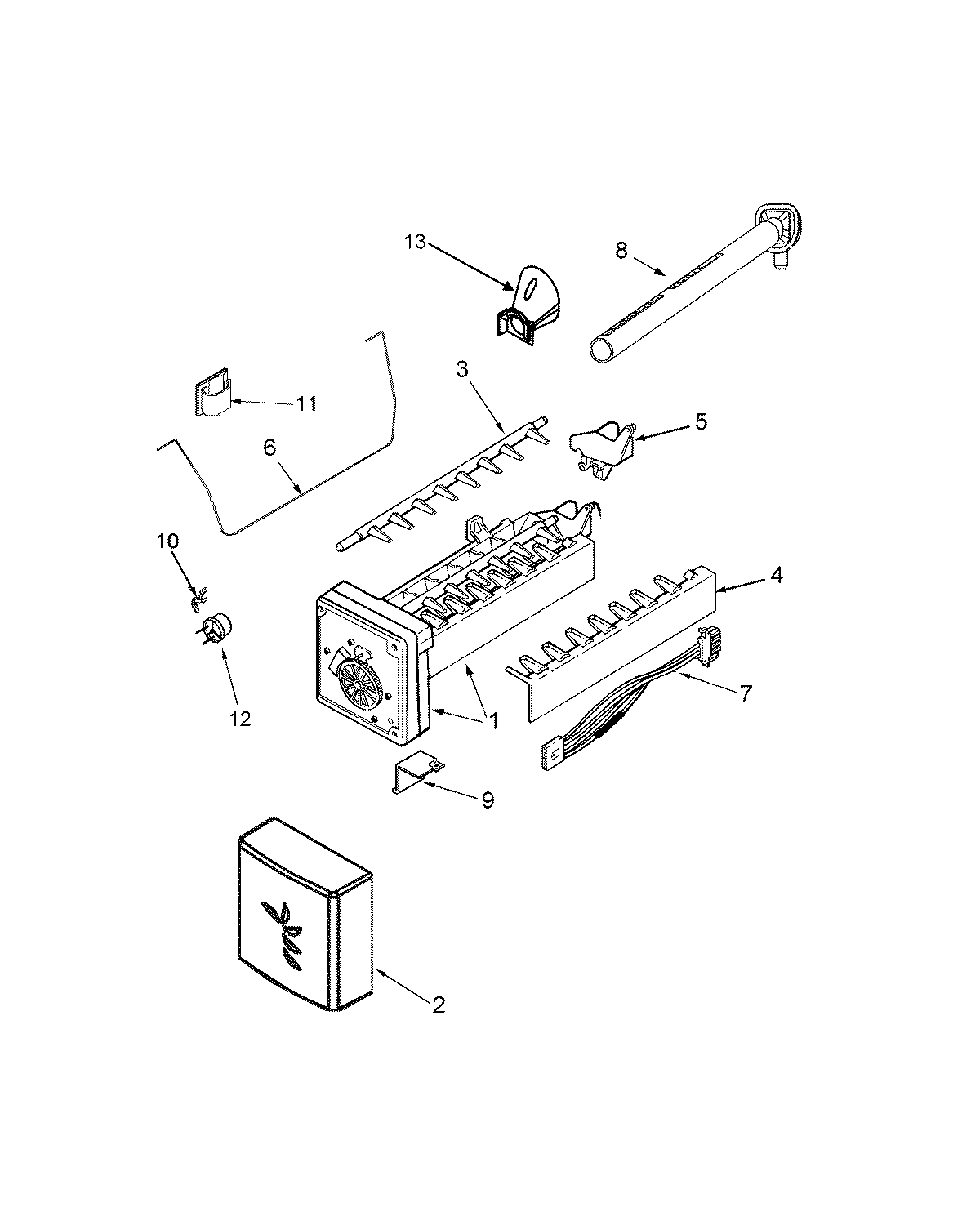

Refrigerator Ice Maker 61005508
Refrigerator ice maker

Part #61005508

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces 61005508. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Lamp 40 Watt 67003568
Lamp 40 watt

Part #67003568

Replaced by #40A15

?
Manufacturer substitution
This part replaces 67003568. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Start Device 67005560
#4

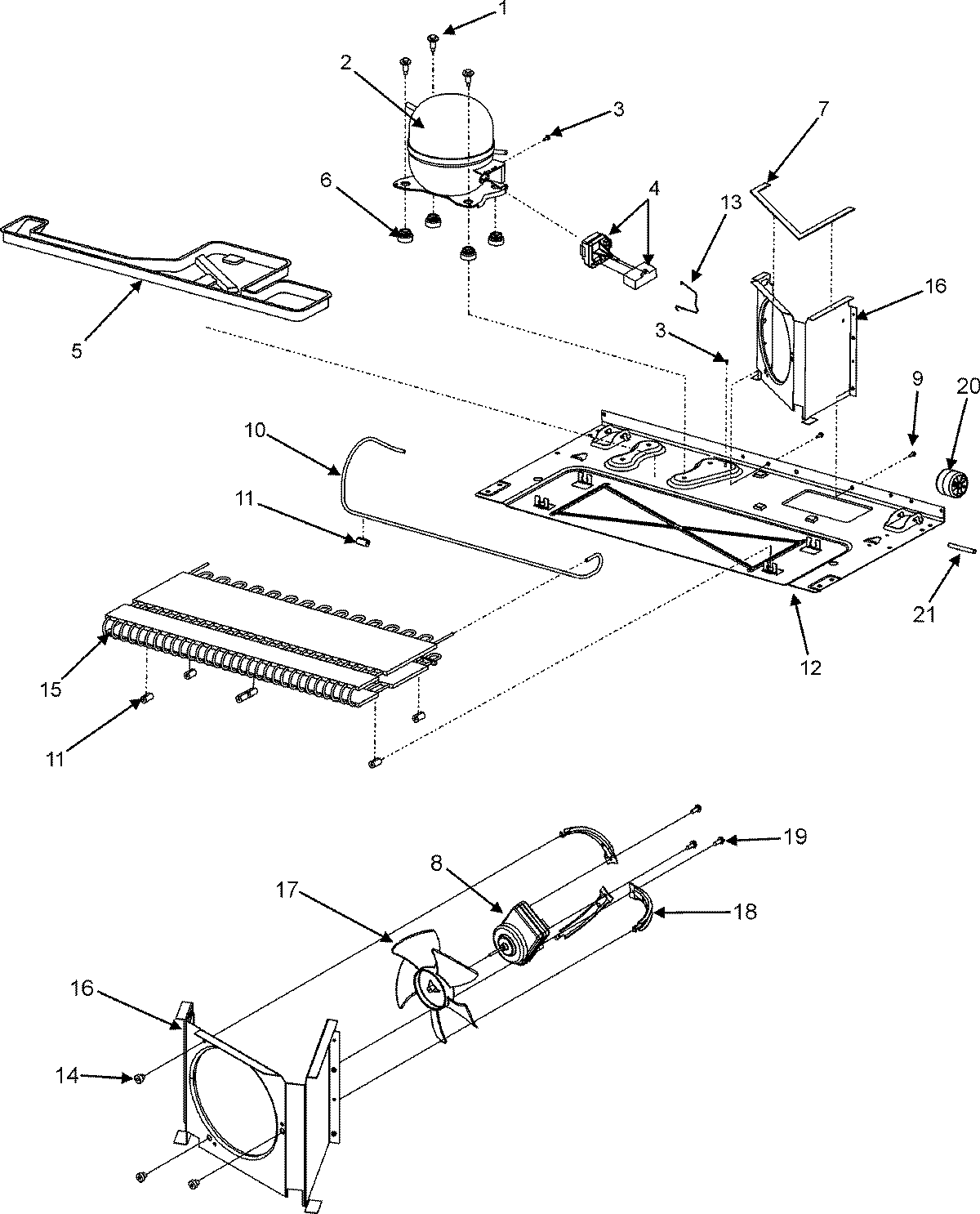

Compressor/cond motor/rear rollers diagram

Refrigerator start device

Part #67005560

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67005560. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Refrigerator Light Switch 12466103
#4

Evap fan/crisp light/water filter diagram

Refrigerator light switch

Part #12466103

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466103. Substitute parts can look different from the original.
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Evaporator Motor 67003636
#10

Evap fan/crisp light/water filter diagram

Evaporator motor

Part #67003636

Replaced by #WPW10128551

?
Manufacturer substitution
This part replaces 67003636. Substitute parts can look different from the original.
BEST SELLER
$65.76 |
8% OFF Phone Price : $71.76
In Stock
Drier B2150504
#16

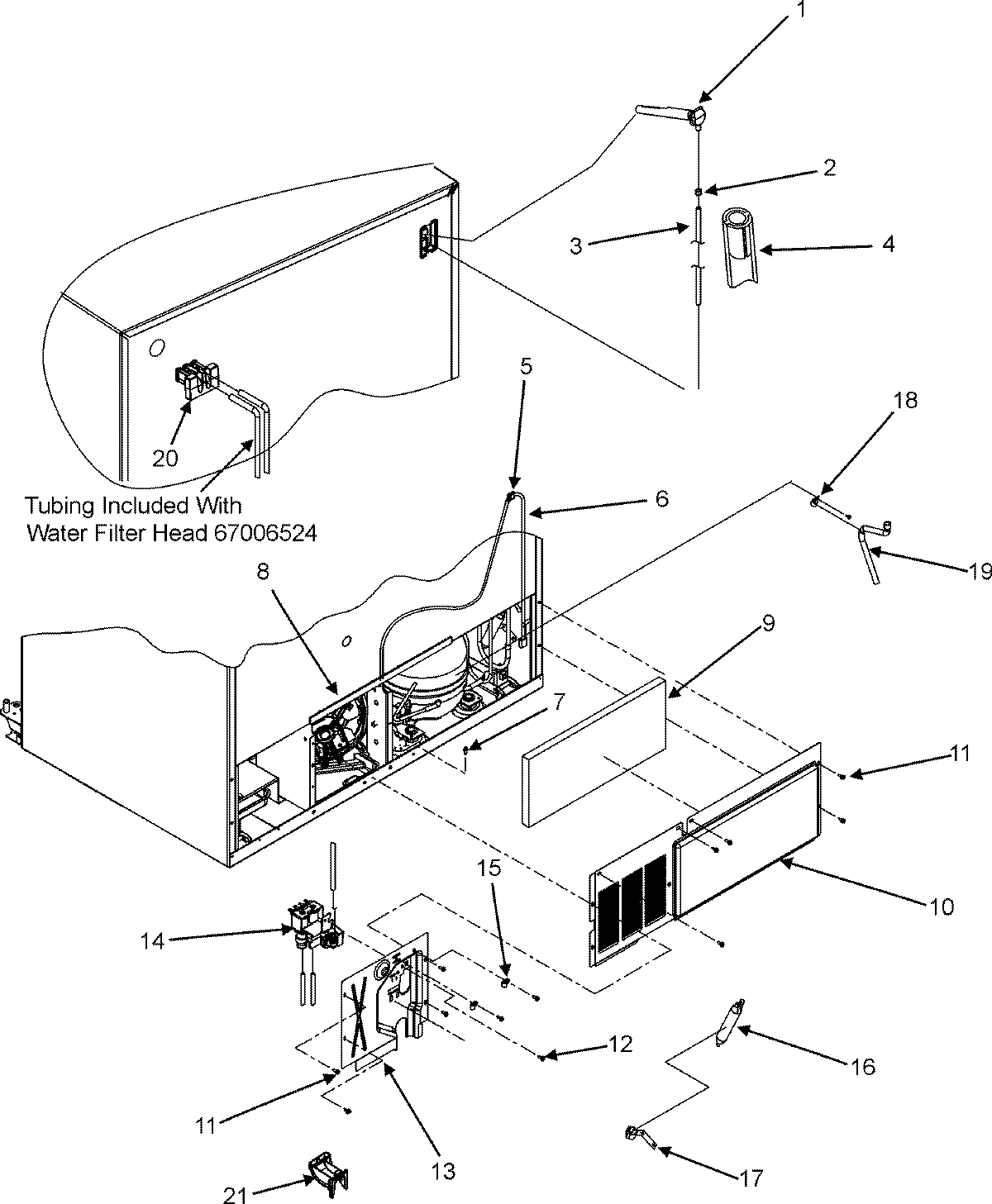

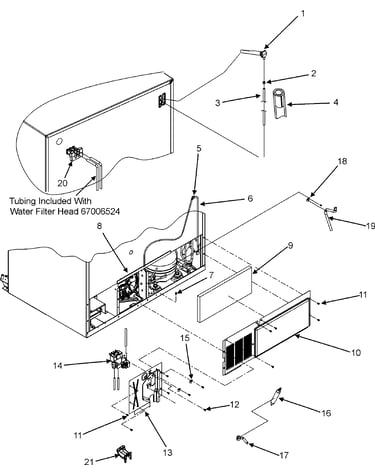

Cabinet back diagram

Drier

Part #B2150504

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150504. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Refrigerator Mounting Screw 67002935
#3

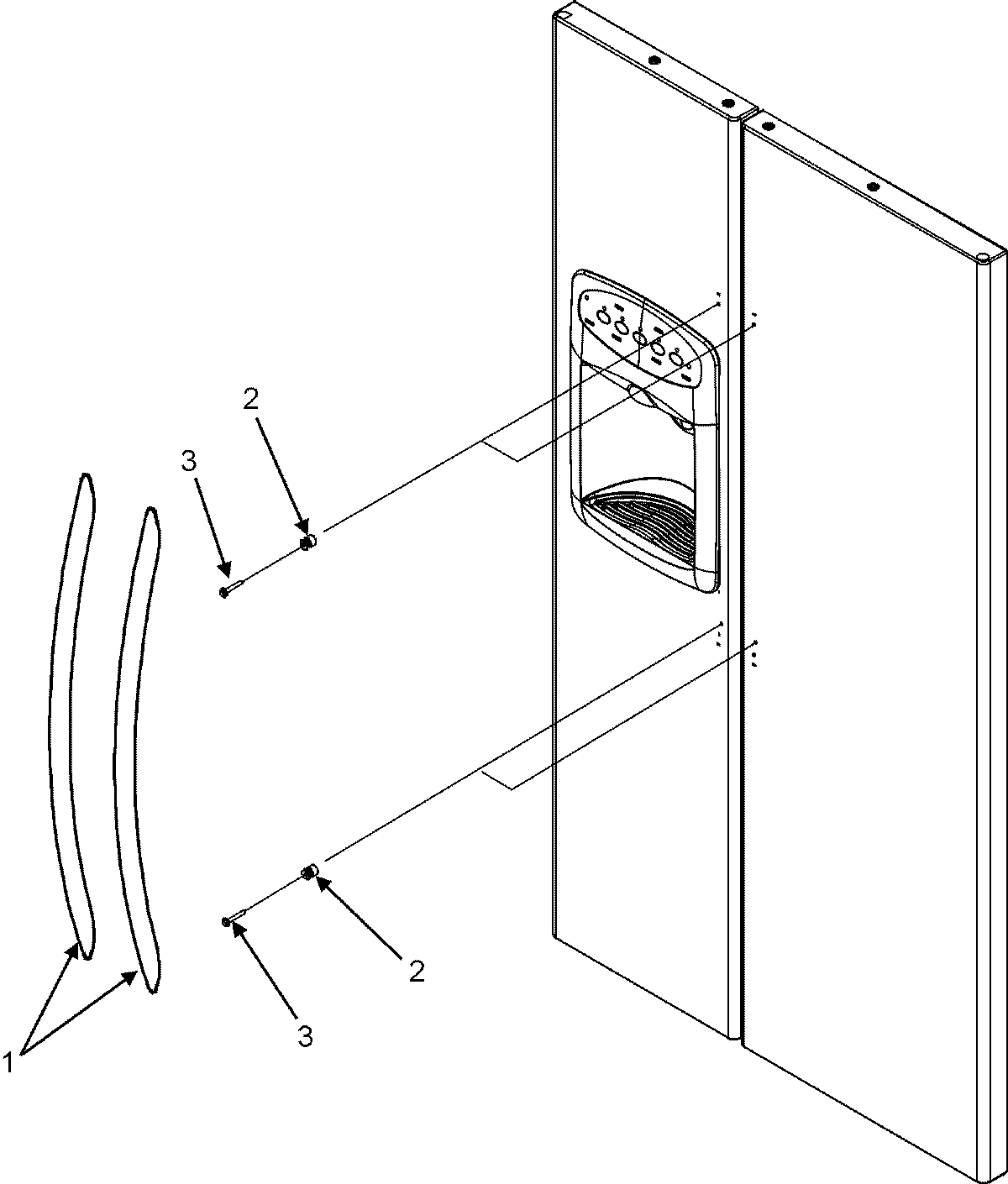

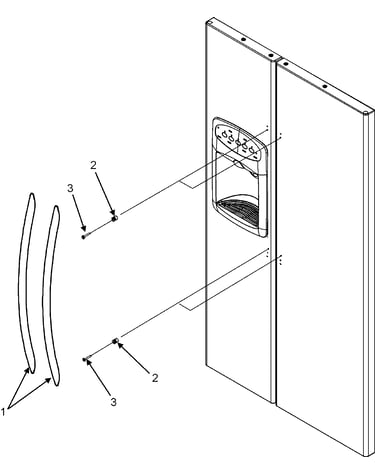

Handles diagram

Refrigerator mounting screw

Part #67002935

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 67002935. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Condenser Fan Motor 67004432
#8

Compressor/cond motor/rear rollers diagram

Refrigerator condenser fan motor

Part #67004432

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 67006492
#12

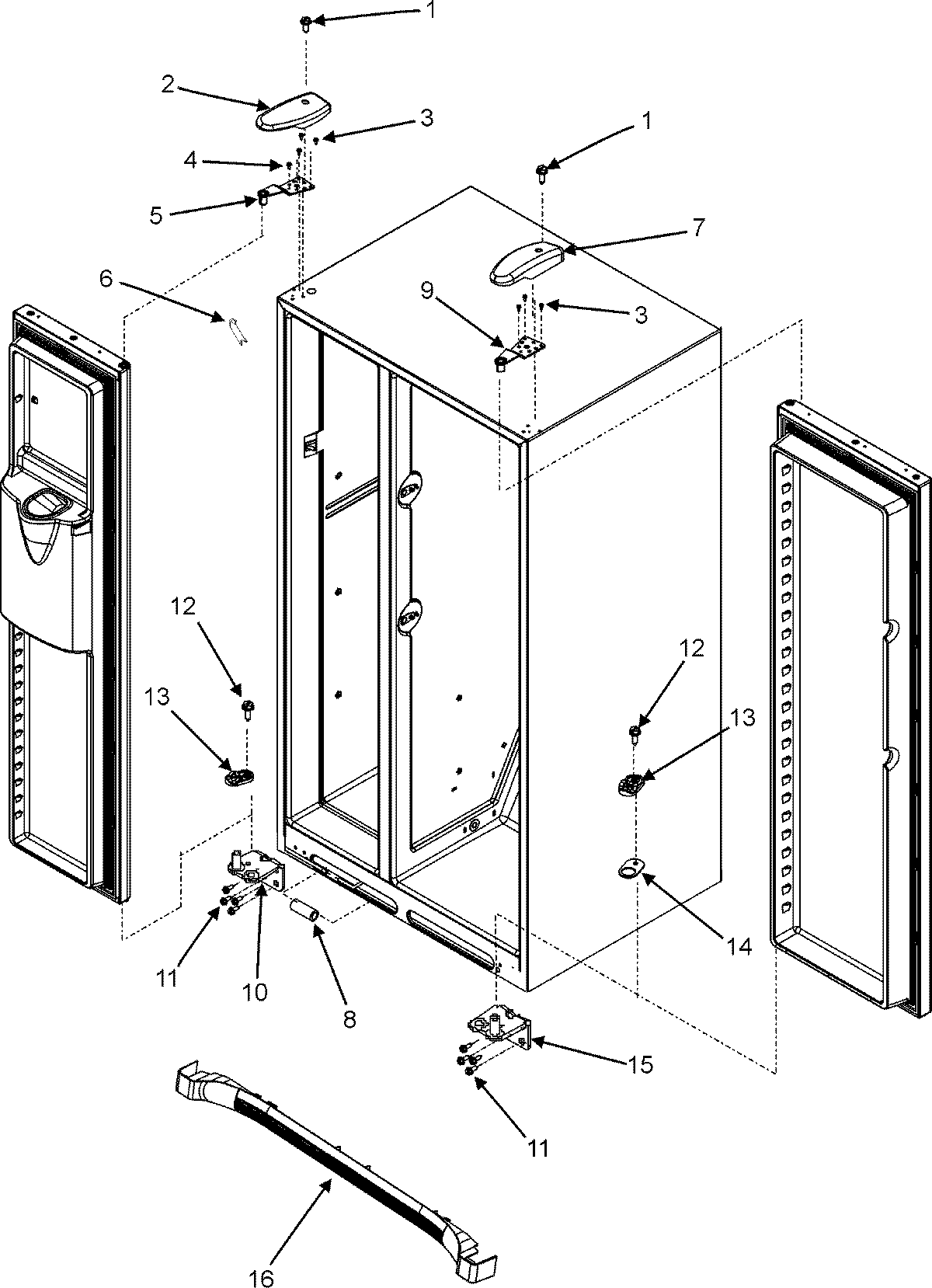

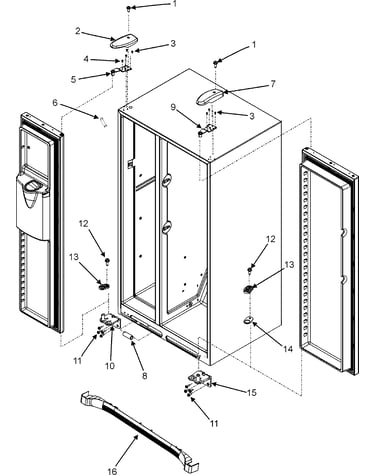

Hinges & toe grille diagram

Refrigerator screw

Part #67006492

Replaced by #WP489483

?
Manufacturer substitution
This part replaces 67006492. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
