Model # DSC-W350G Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-W350G digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |

Lcd Module 180298411
#LCD9

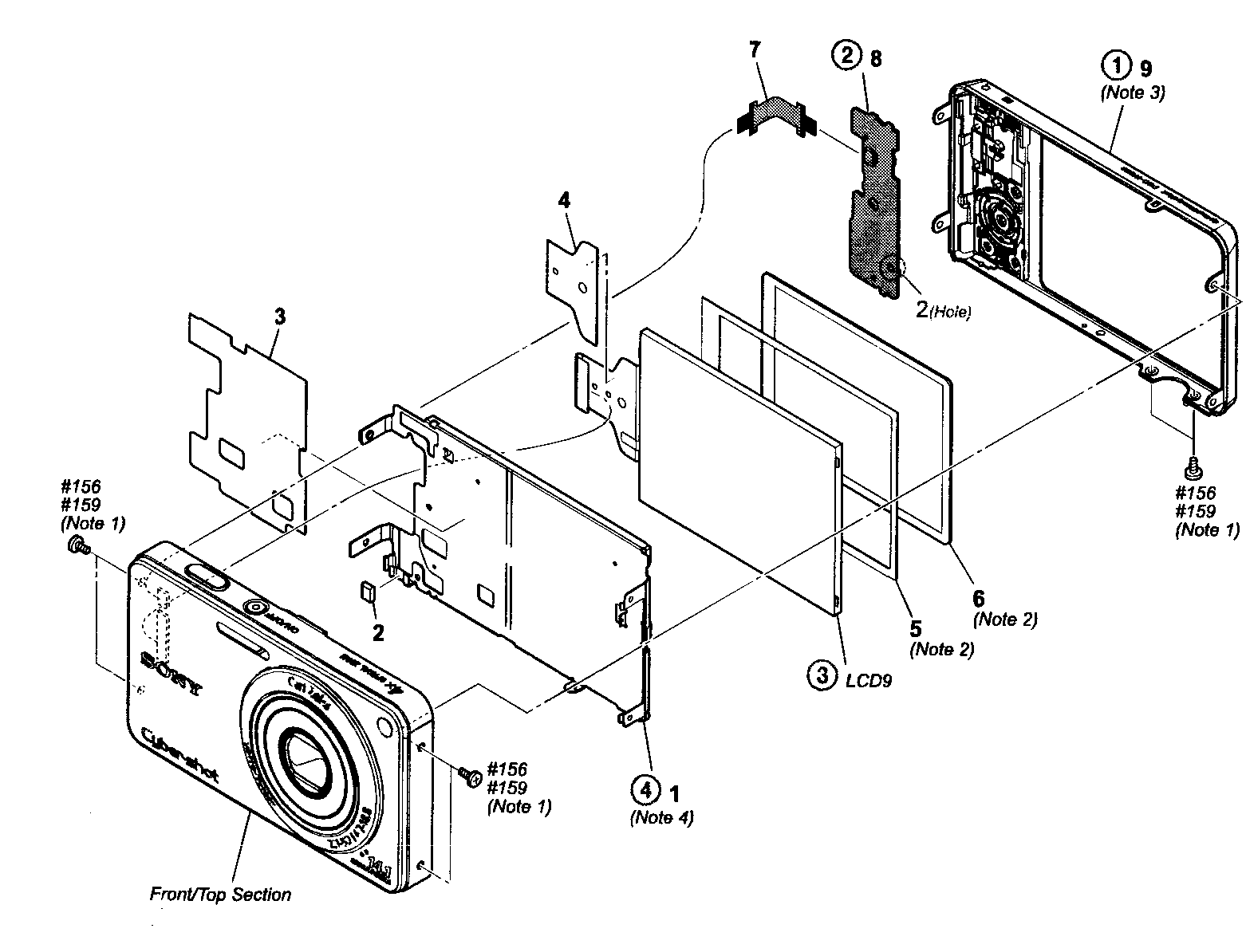

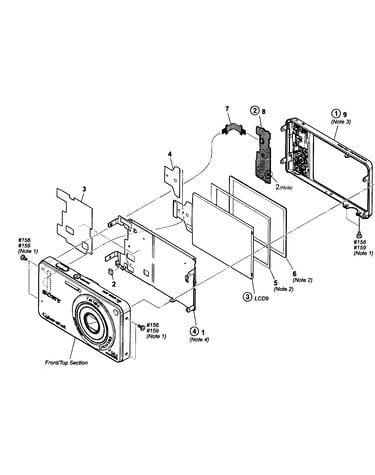

Rear assy diagram

Lcd module

Part #180298411

In Stock
Sheet,alum 416757101
#102

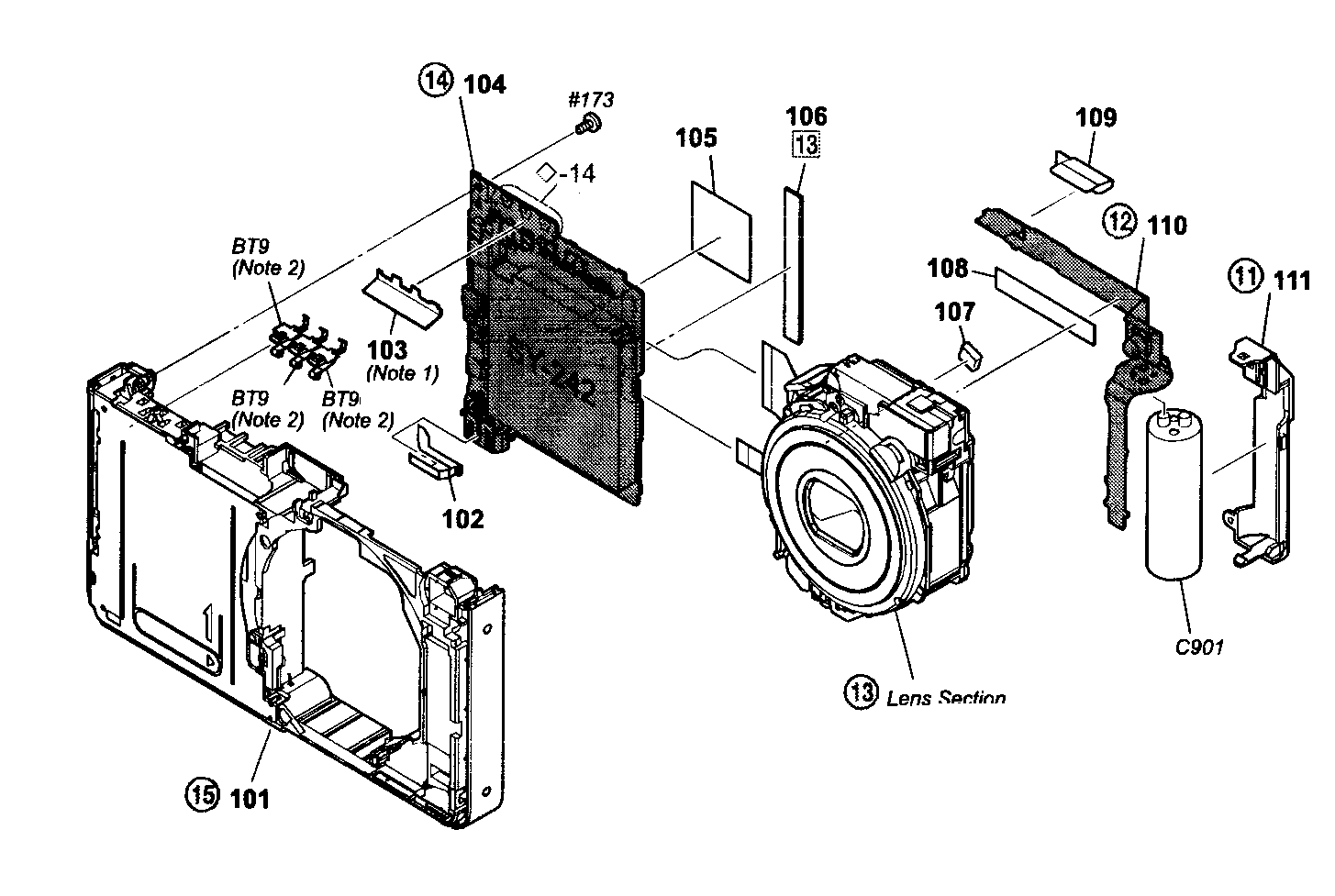

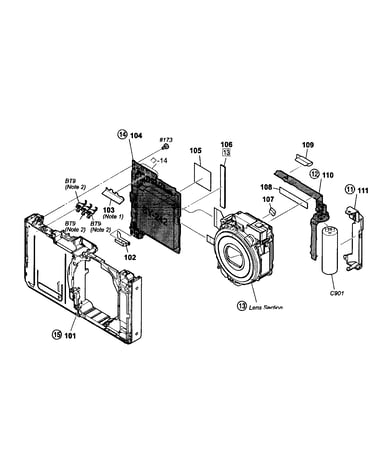

Main assy diagram

Sheet,alum

Part #416757101

This item is not returnable
In Stock
Insl.sheet 416819801
#103

Main assy diagram

Insl.sheet

Part #416819801

In Stock
Pcb,af-125 A1731548A
#110

Main assy diagram

Pcb,af-125

Part #A1731548A

In Stock
Worm Motor A1743725A
#162

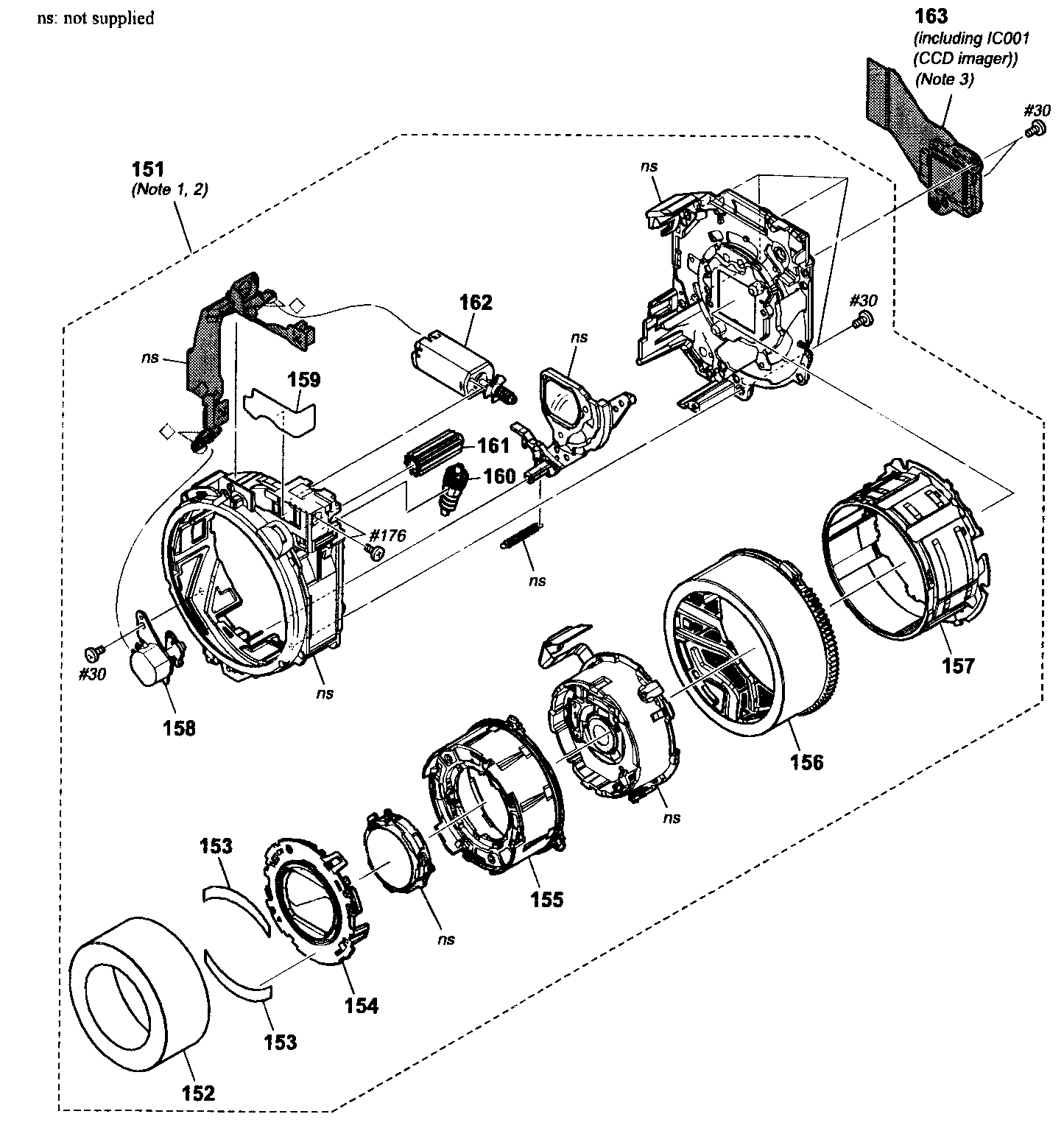

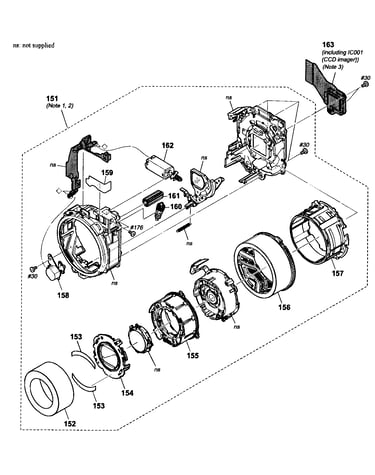

Lens assy diagram

Worm motor

Part #A1743725A

This item is not returnable
In Stock
Sony Cabinet Assembly X25416351
#51

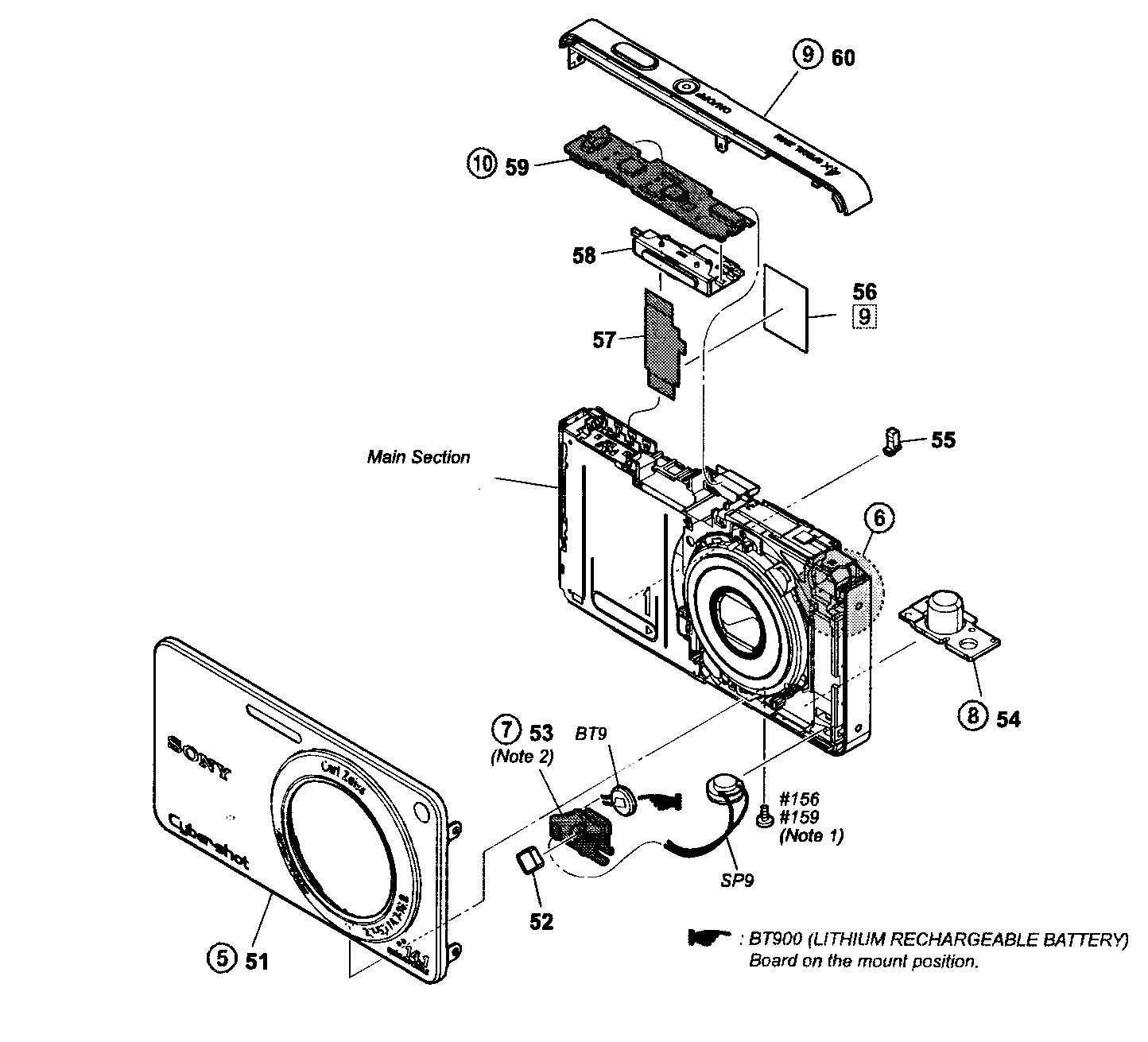

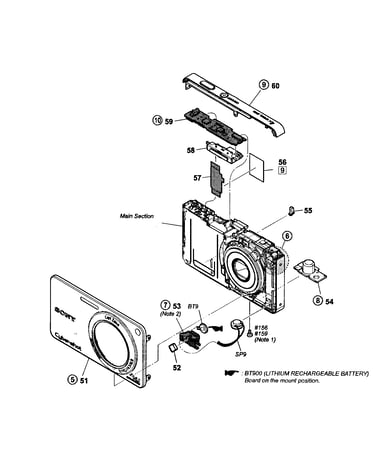

Front assy diagram

Sony cabinet assembly

Part #X25416351

In Stock
Sony Cabinet Assembly X25416281
#101

Main assy diagram

Sony cabinet assembly

Part #X25416281

In Stock
Sony Cabin Uppr X25416421
#60

Front assy diagram

Sony cabin uppr

Part #X25416421

In Stock
Cabinet-rr X25416451
#9

Rear assy diagram

Cabinet-rr

Part #X25416451

In Stock
Retaining 416757301
#111

Main assy diagram

Retaining

Part #416757301

In Stock
